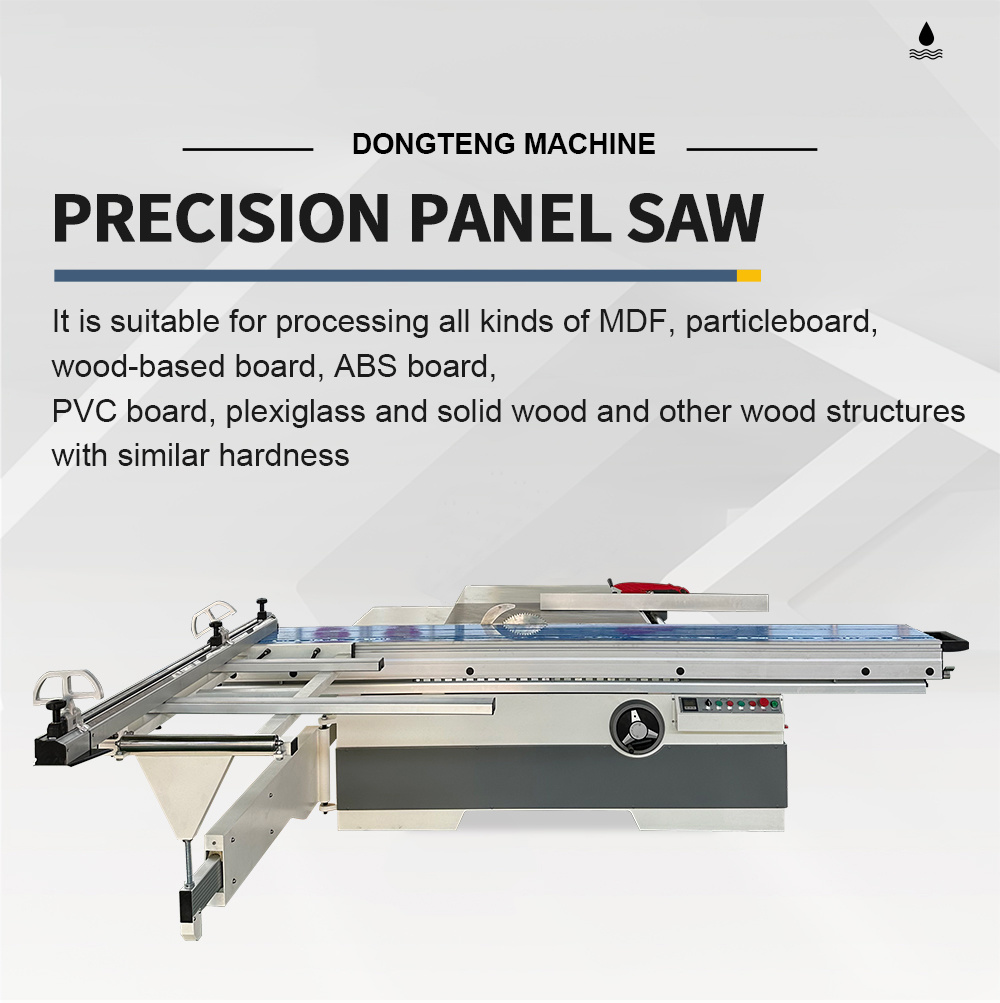

D580 PRECISION PANEL SAW
Sliding table panel saw is suitable for factory, which can adjust the saw blade angle directly by watching screen.
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: D580 PRECISION PANEL SAW
Sliding table panel saw is suitable for factory, which can adjust the saw blade angle directly by watching screen.
Key words:- D580 PRECISION PANEL SAW
-
-

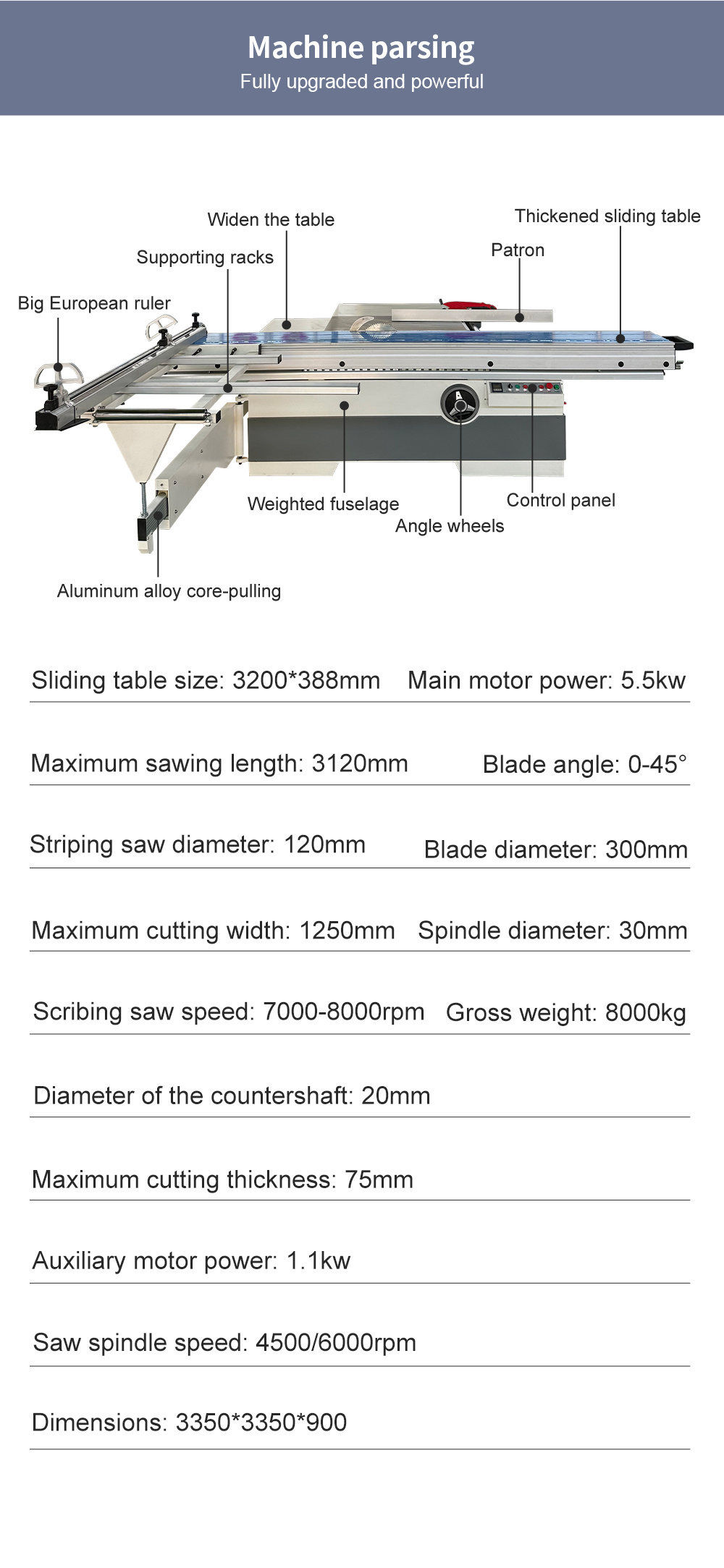

DETAIL PARAMETERS

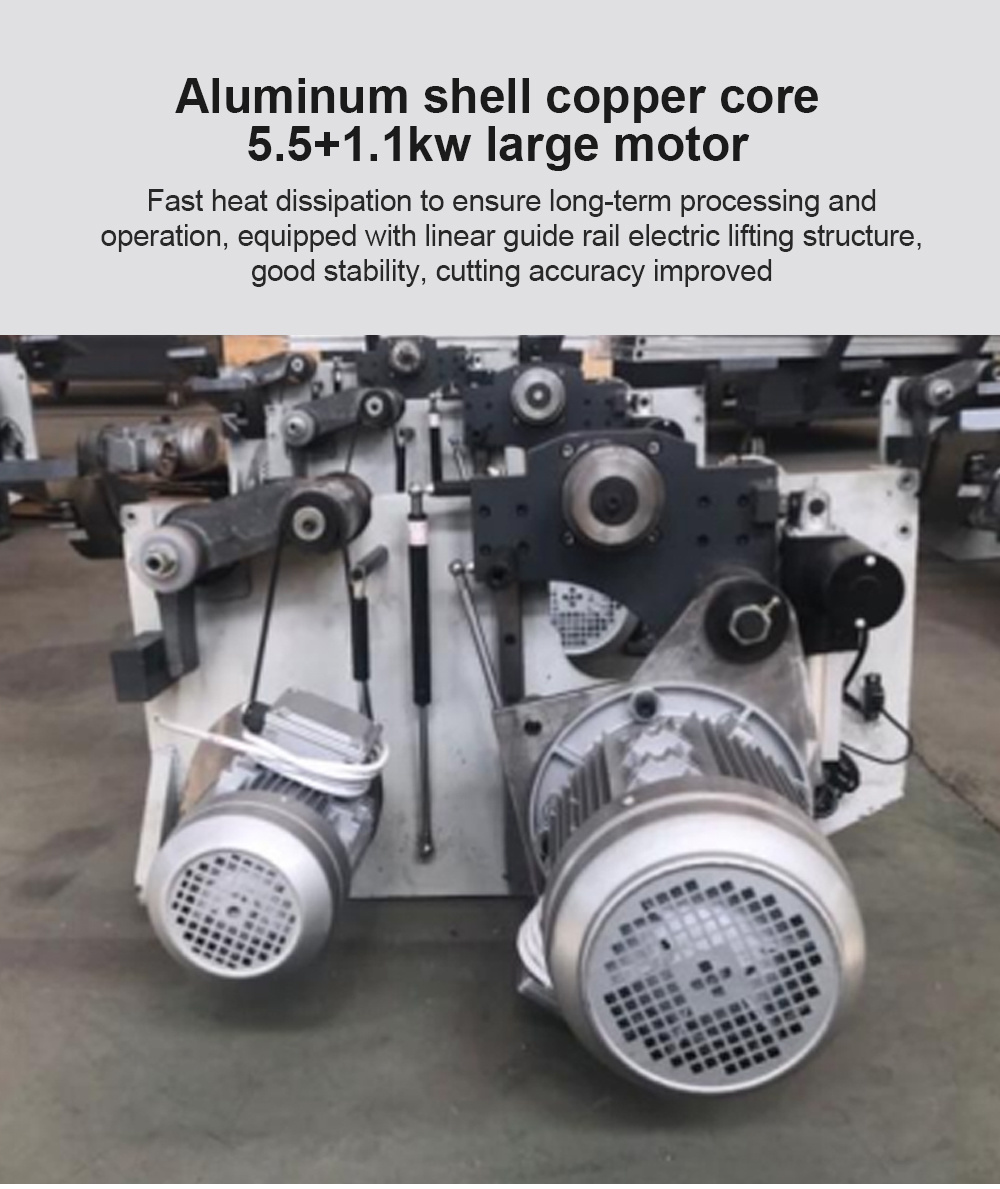

SLIDING TABLE SIZE 3200*388mm MAIN MOTOR POWER 5.5KW MAXIMUM SAWING LENGTH 3120mm
BLADE ANGLE 0-45° STRIPING SAW DIAMETER 120mm BLADE DIAMETER 300mm MAXIMUM CUTTING WIDTH 1250mm SPINDLE DIAMETER 30mm SCRIBING SAW SPEED 7000-8000rpm DIAMETER OF THE COUNTERSHAFT 20mm MAXIMUM CUTTING THICKNESS 75mm AUXILIARY MOTOR POWER 1.1kw SAW SPINDLE SPEED 4500/6000rpm DIMENSION 3350*3350*900mm GROSS WEIGHT 8000kg -

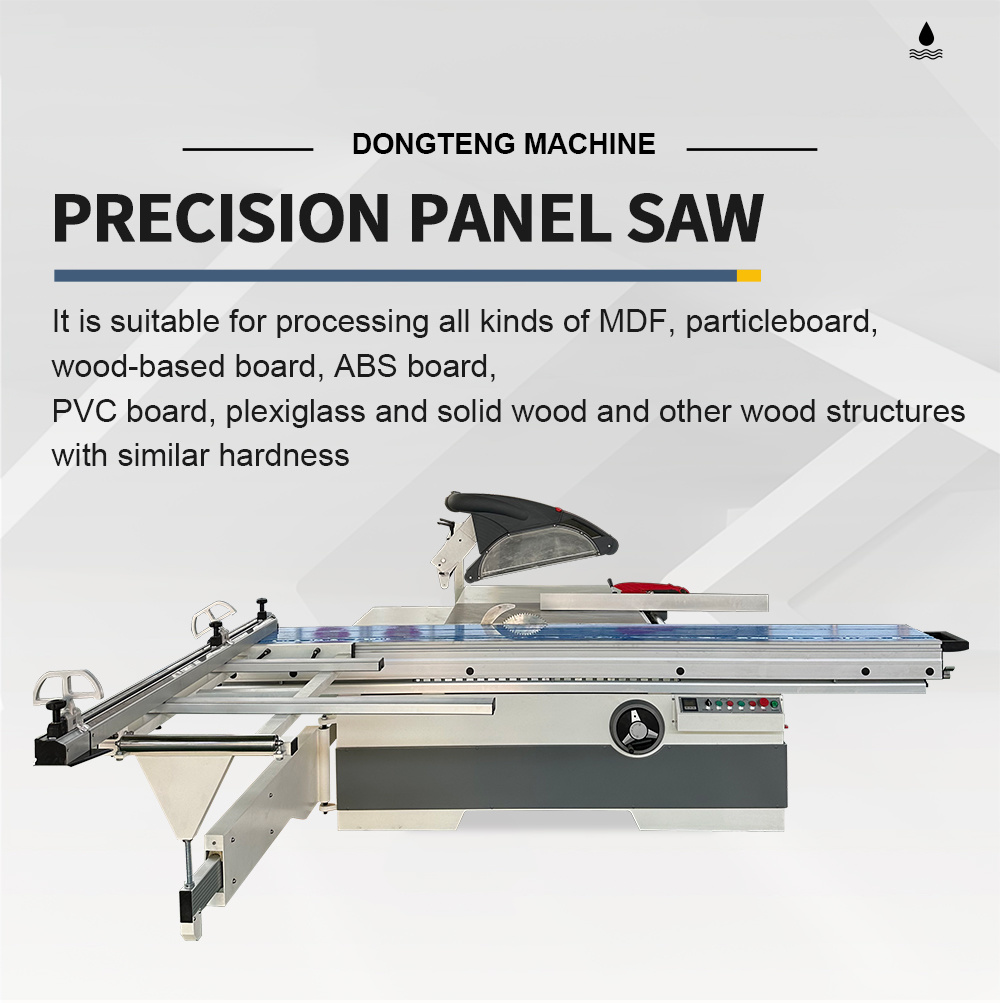

1. It is suitable for processing all kinds of MDF, particleboard, wood-based board, ABS board, PVC board, plexiglass and solid wood and other wood structures with similar hardness.

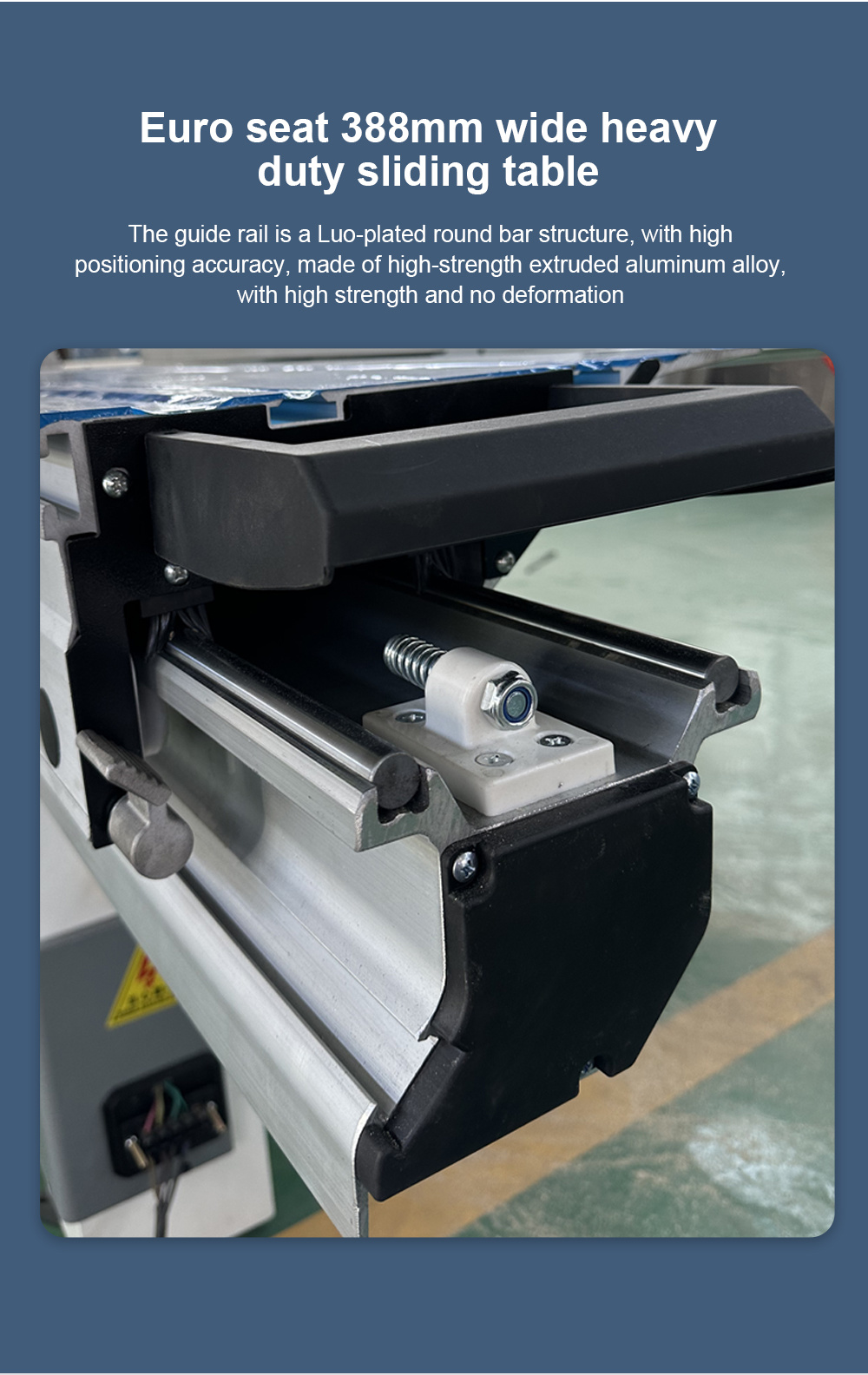

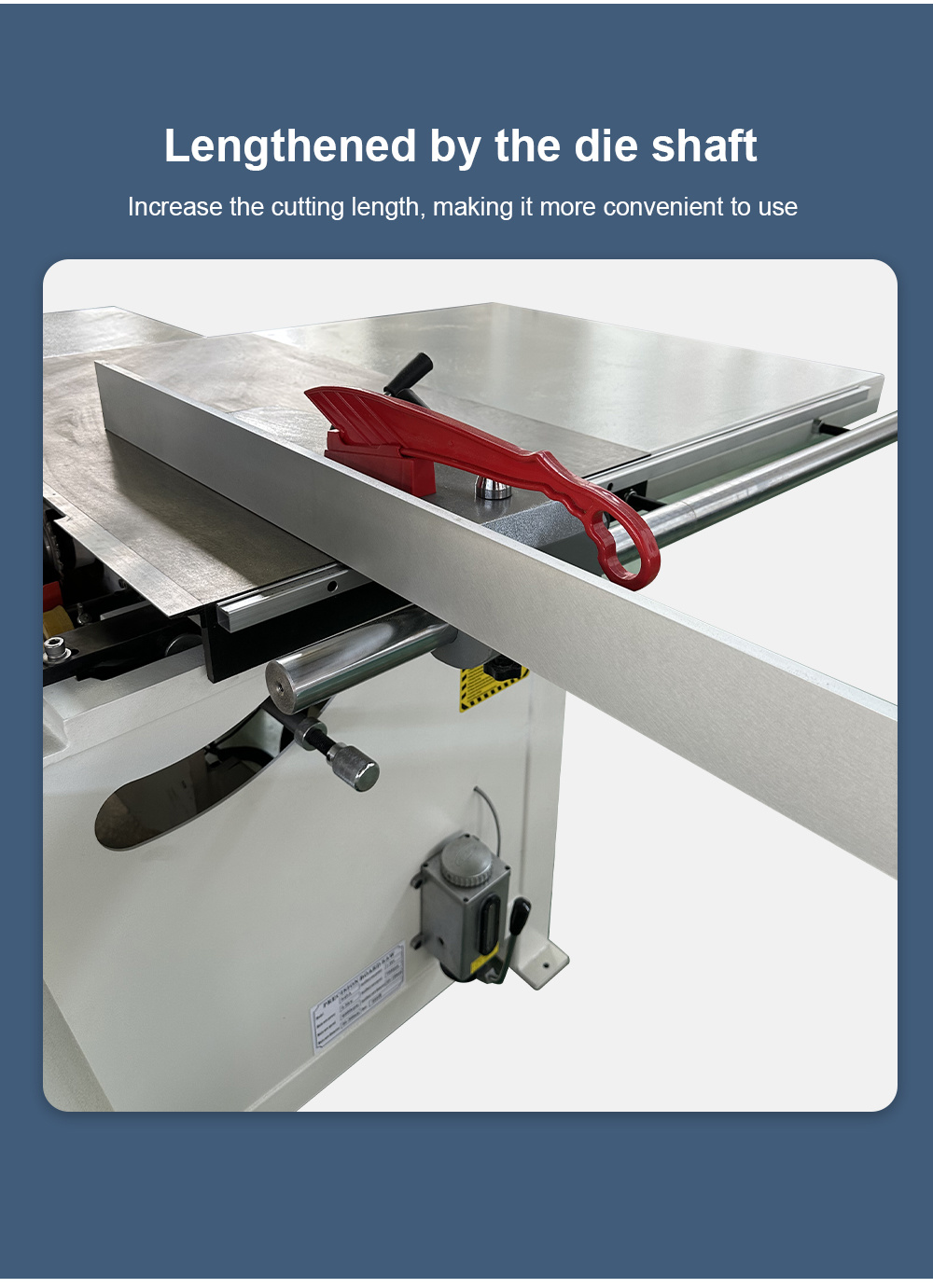

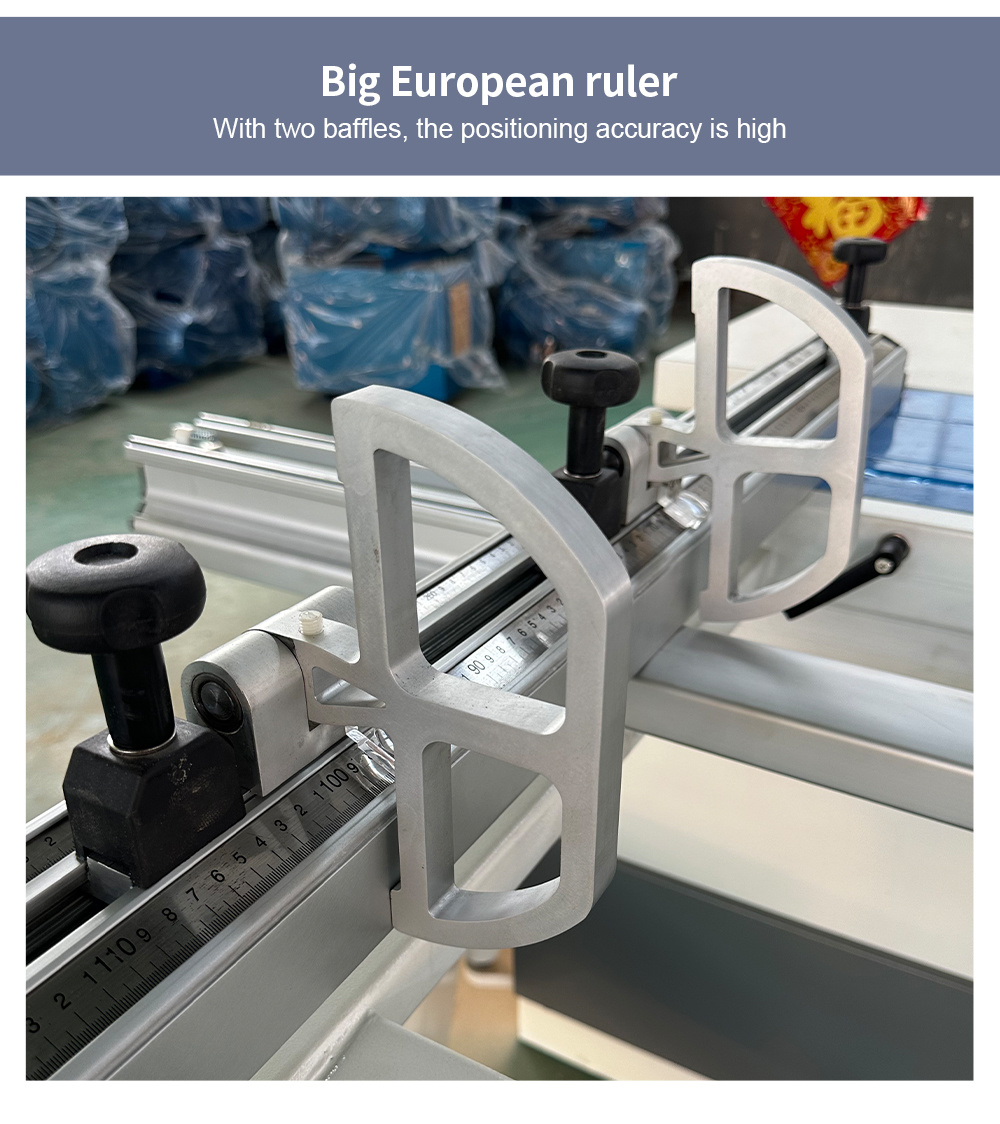

2. The guide rail is a Luo-plated round bar structure, with high positioning accuracy. It is made of high-strength extruded aluminum alloy, with high strength and no deformation; The surface is oxidized, which is beautiful and wear-resistant.

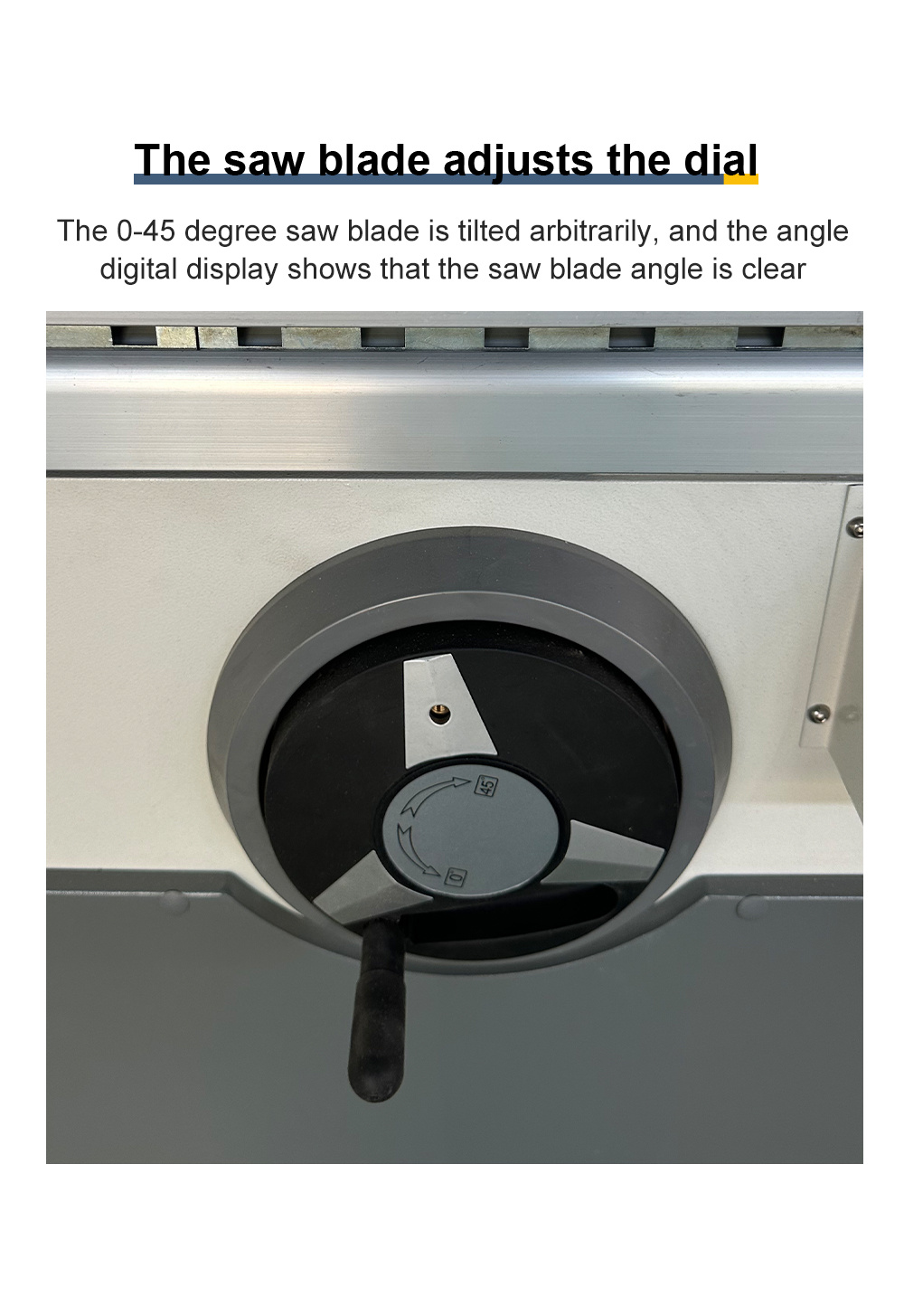

3.The 0-45 degree saw blade is tilted arbitrarily, and the angle digital display shows that the saw blade angle is clear.
Previous:
Next:
Effect Of Sheet
45-90 degrees edge cutting effect
45 degrees cutting effect
45-90 degrees edge cutting effect
