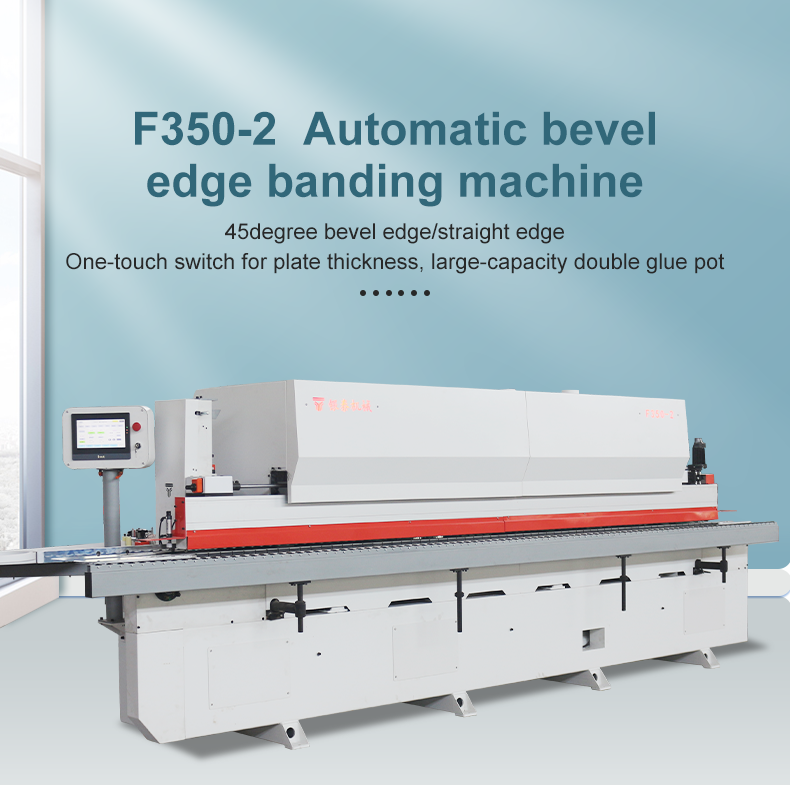

F350-2 AUTOMATIC EDGE BANDING MACHINE
F350-2 fully automatic straight and oblique edge banding machine, the machine can process two shapes of straight and oblique edges, double glue pots for board glue coating, small glue line; hot air and baking lamps assist heating to soften the edge banding strips and increase adhesion
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: F350-2 AUTOMATIC EDGE BANDING MACHINE
F350-2 fully automatic straight and oblique edge banding machine, the machine can process two shapes of straight and oblique edges, double glue pots for board glue coating, small glue line; hot air and baking lamps assist heating to soften the edge banding strips and increase adhesion
Key words:- F360
-
-
DETAIL PARAMETERS
POWER VOLTAGE 380V/50HZ/3 PHASE TOTAL POWER 19.5KW AIR PRESSURE 0.6-0.8Mpa THICKNESS OF EDGE BANDING 0.5-2mm SLOTTED HEIGHT 3-23mm EDGE BANDING WIDTH 14-70mm EDGE BANDING SPEED 12m/min SEALING PLATE SIZE ≥150*150mm
EDGE BANDING PLATE THICKNESS 14-25mm(BEVEL EDGE); 14-40mm (STRAIGHT EDGE)
GLUE POT TEMPERATURE 110°-210° GLUE POT CAPACITY 4L+4L GAS STORAGE TANK VOLUME 2L HOT MELT ADHESIVE CATEGORY EVA EXTERNAL VACUUM VACUUM PORT φ100mm x2 TYPES OF EDGE BANDING PVC, WOOD VENEER (NEED TO BE CUSTOMIZED) PACKAGE SIZE 510*110*175cm WEIGHT 1828KG -

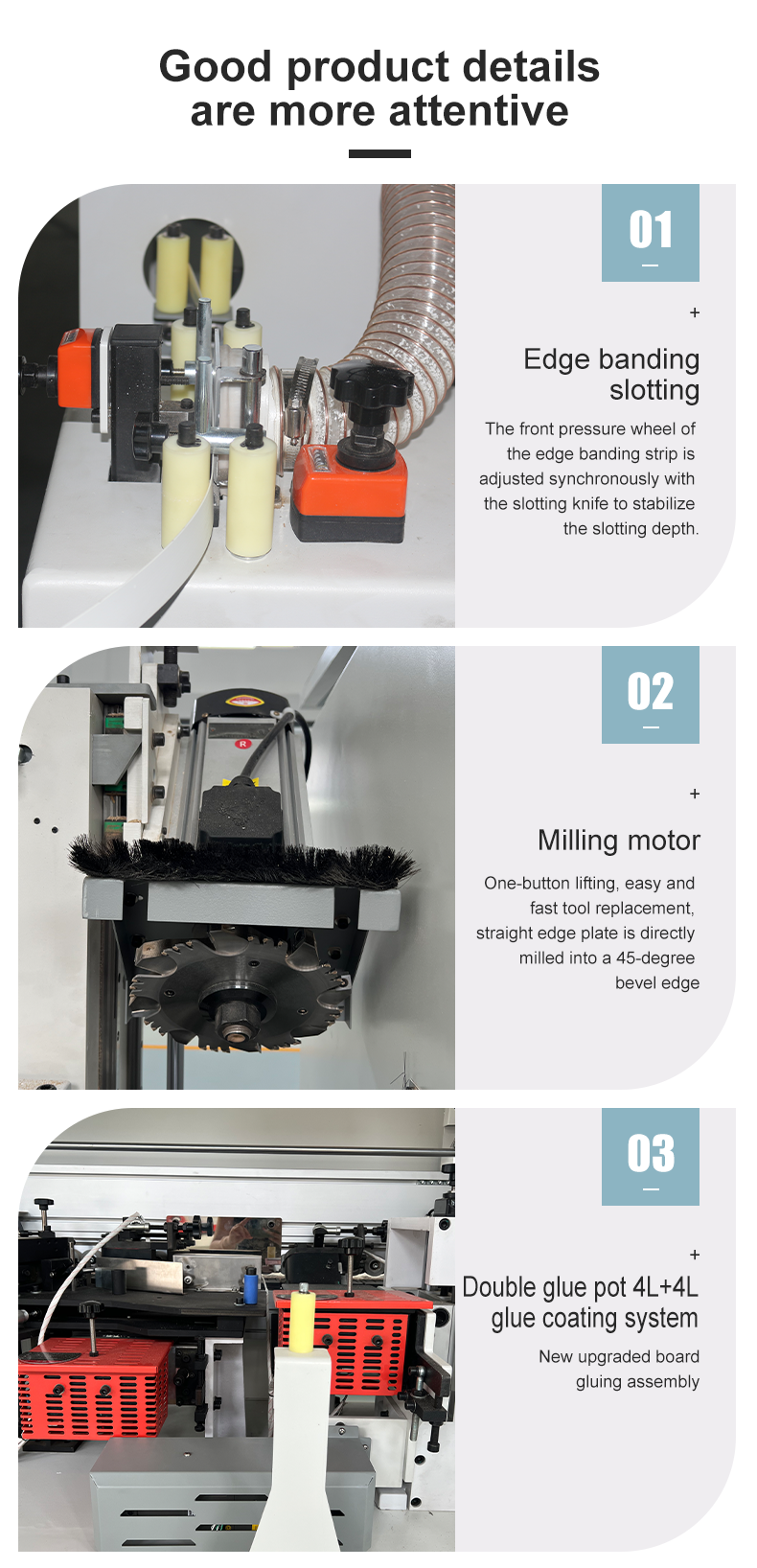

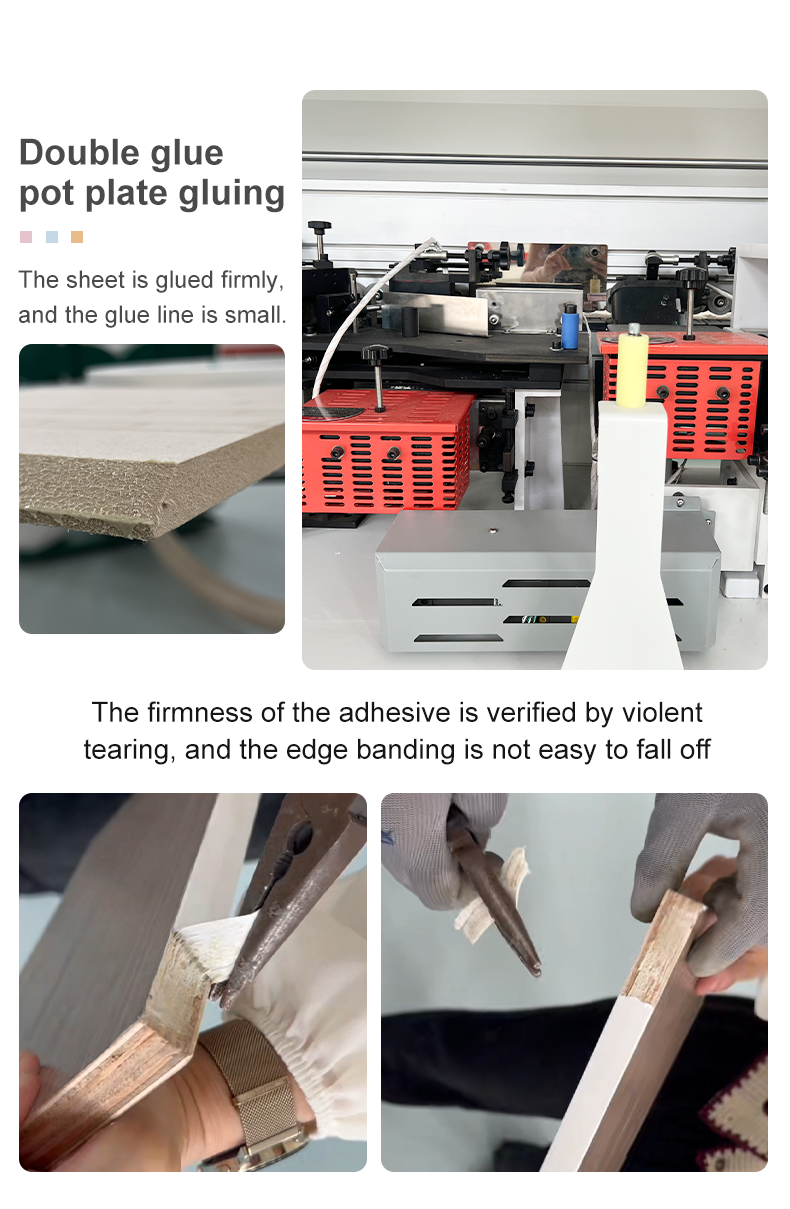

1. Double glue pots for board glue application, the board glue application is firmly bonded, and the glue line is small;

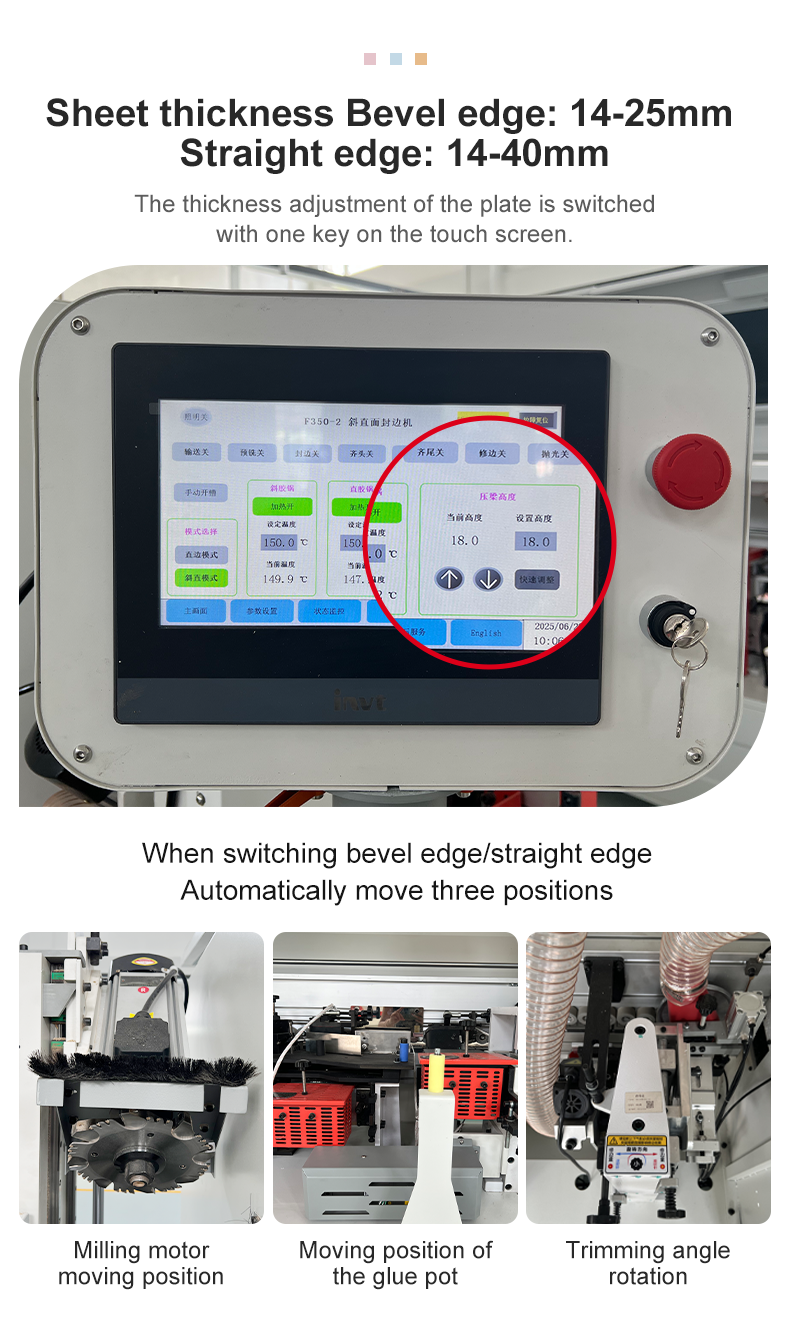

2. Switch the board height with one button on the touch screen, the board thickness is 14-25mm (oblique straight edge), 14-40mm (straight edge)

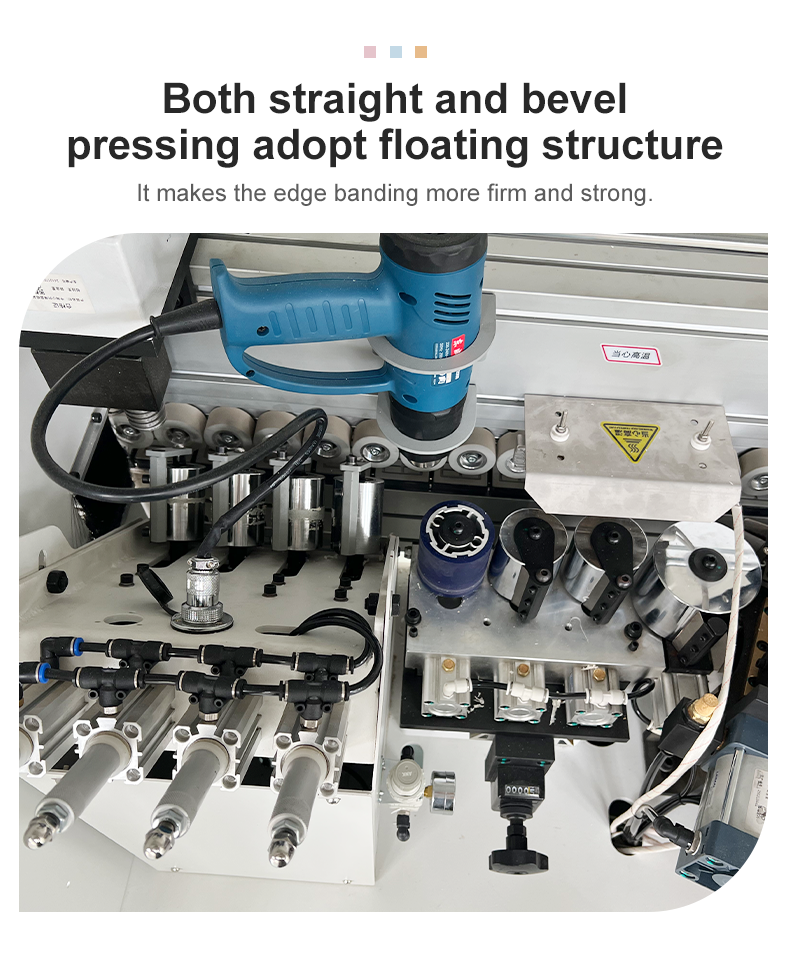

3. Both straight surface pressing and oblique surface pressing adopt floating structure, making the edge banding more firmly and firmly attached
4. Hot air and baking lamp assist heating to soften the edge banding and increase the bonding force

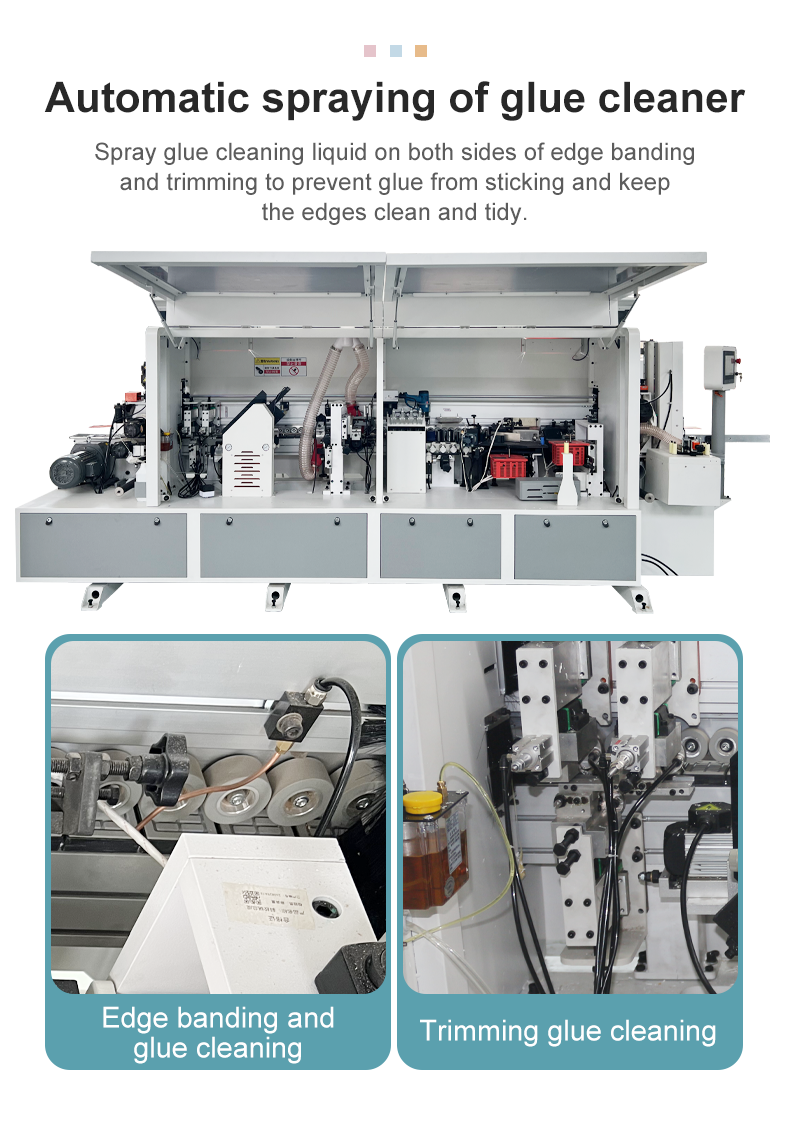

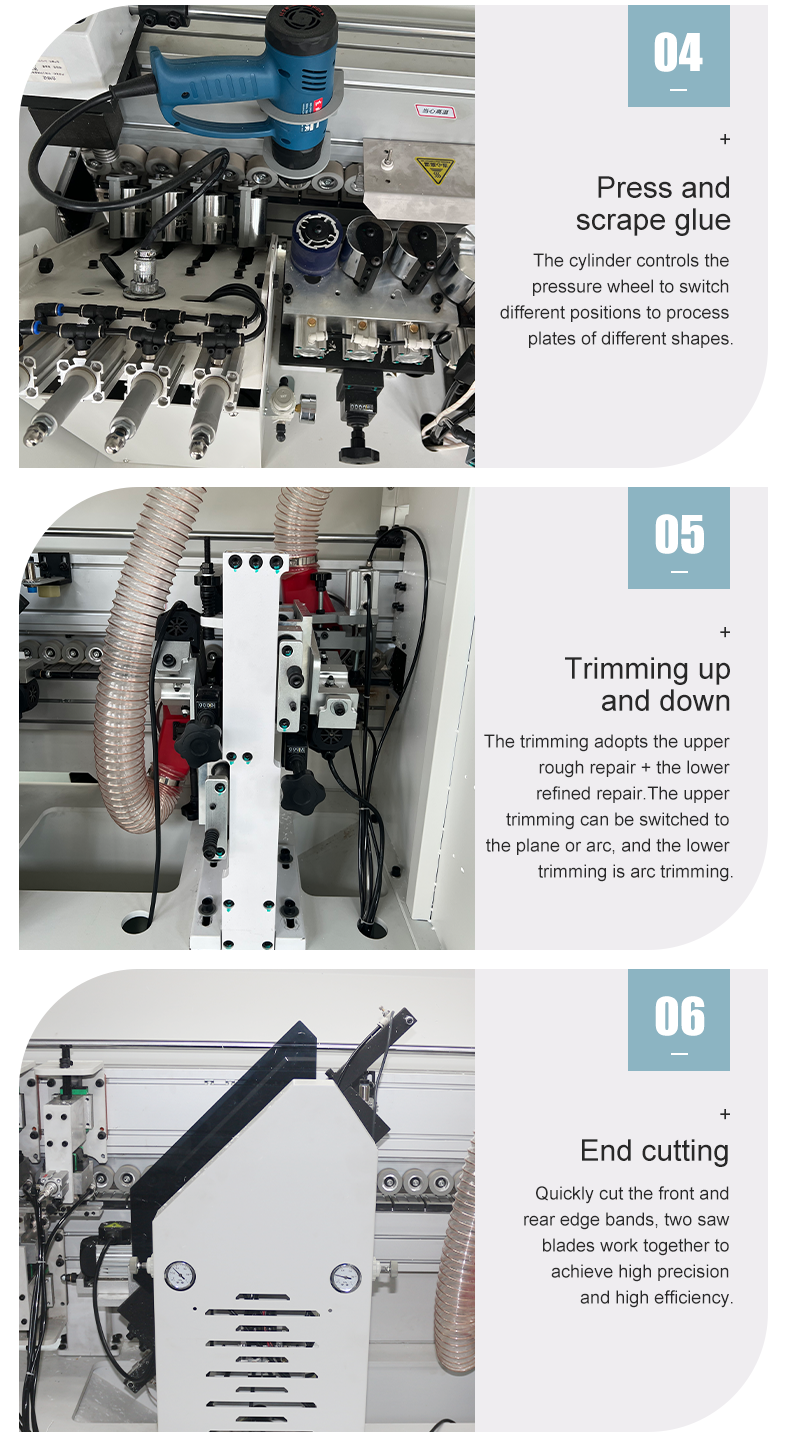

5. Glue remover is automatically sprayed on both edge banding and trimming, which is not easy to stick to glue and is clean and tidy.
Previous:
Effect Of Sheet
X Shape
X Shape
X Shape
Flat Shape
