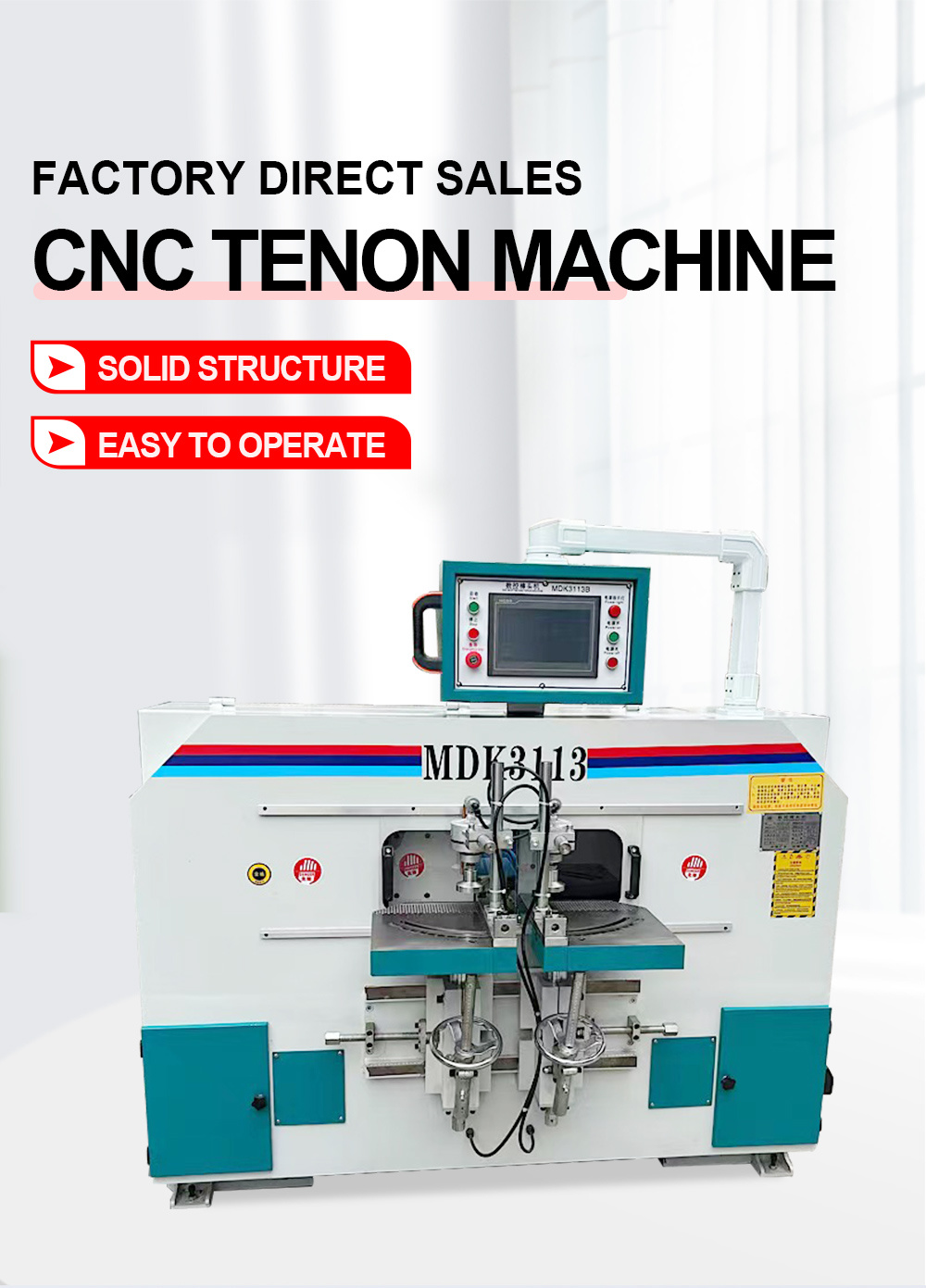

CNC TENON MACHINE

CNC Tenoning Machine equipped with 12.7-inch touch screen, digital control, simplified operation process, the numercial control system of man-machine dialogue, menu mode selection, simple operation and parametric input.

+86 153 1881 6295

admin@dongtengmach.com

E-mail

Category:

Tenoner Mortiser Machine

Inquiry

Back to list

Video
Product Description
Parameter
Advantages

- Commodity name: CNC TENON MACHINE
CNC Tenoning Machine equipped with 12.7-inch touch screen, digital control, simplified operation process, the numercial control system of man-machine dialogue, menu mode selection, simple operation and parametric input.
Key words:

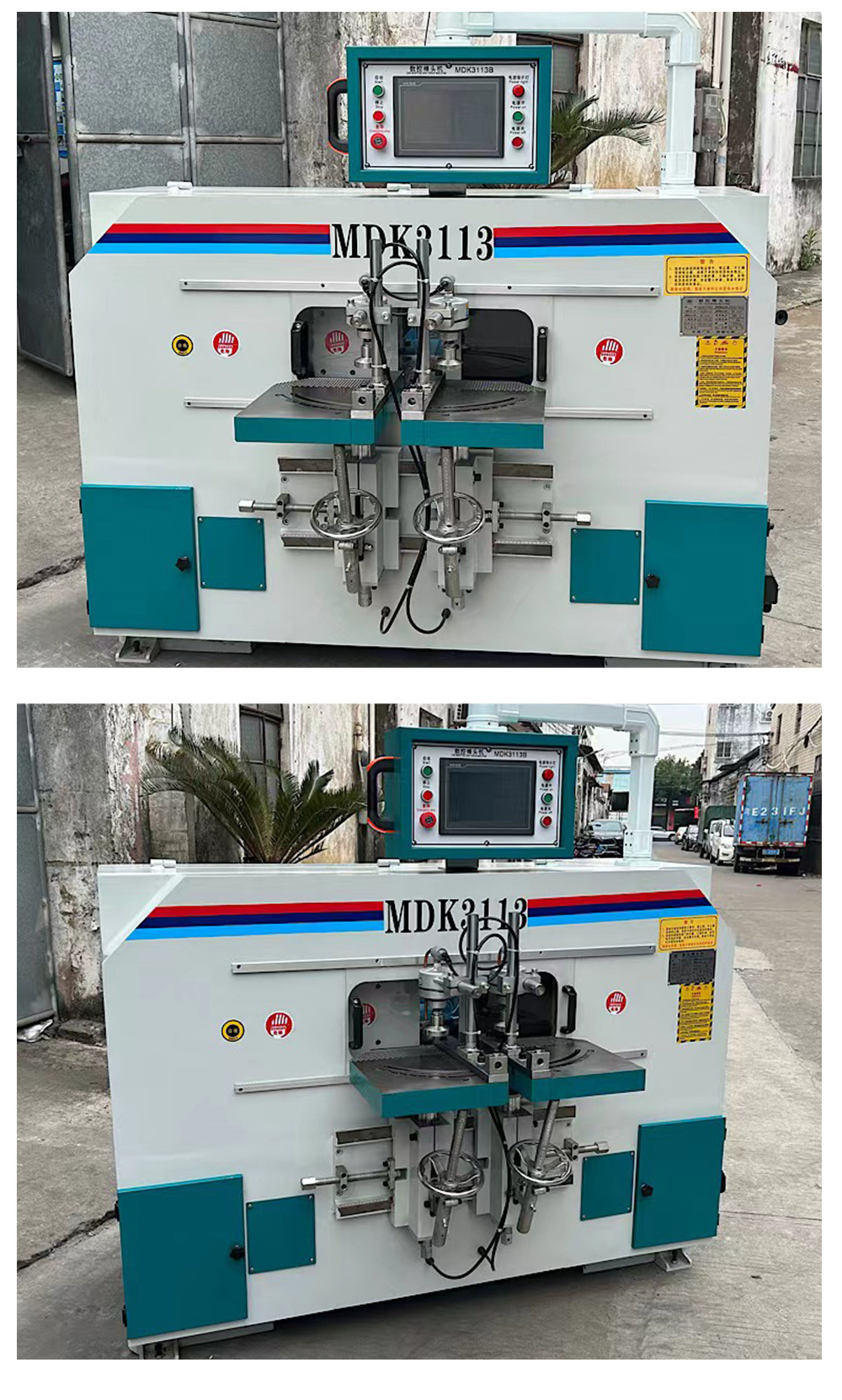

- MDK3113

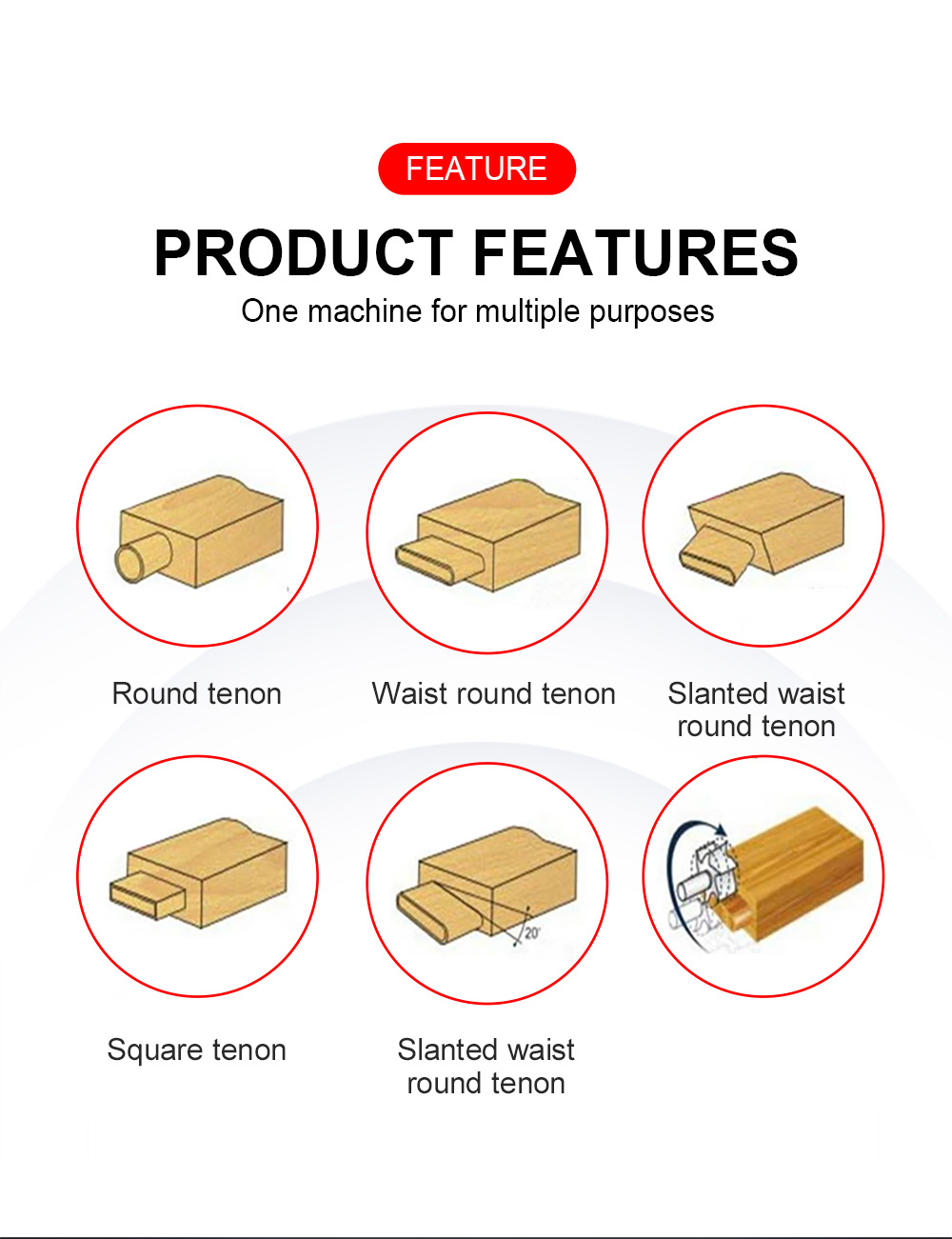

The maximum processing size of square tenon	145x85mm
The maximum machining diameter of round tenons	80mm
The maximum processing width of the cross-waist round tenon	430mm/140mm
The maximum processing width of the vertieal waist round tenon	80mm
Spindle speed	6000-12000r/min
Voltage used	380V
Installed power	7 kw
Dimensions	1850x1200x1780mm
Weight	1000kg

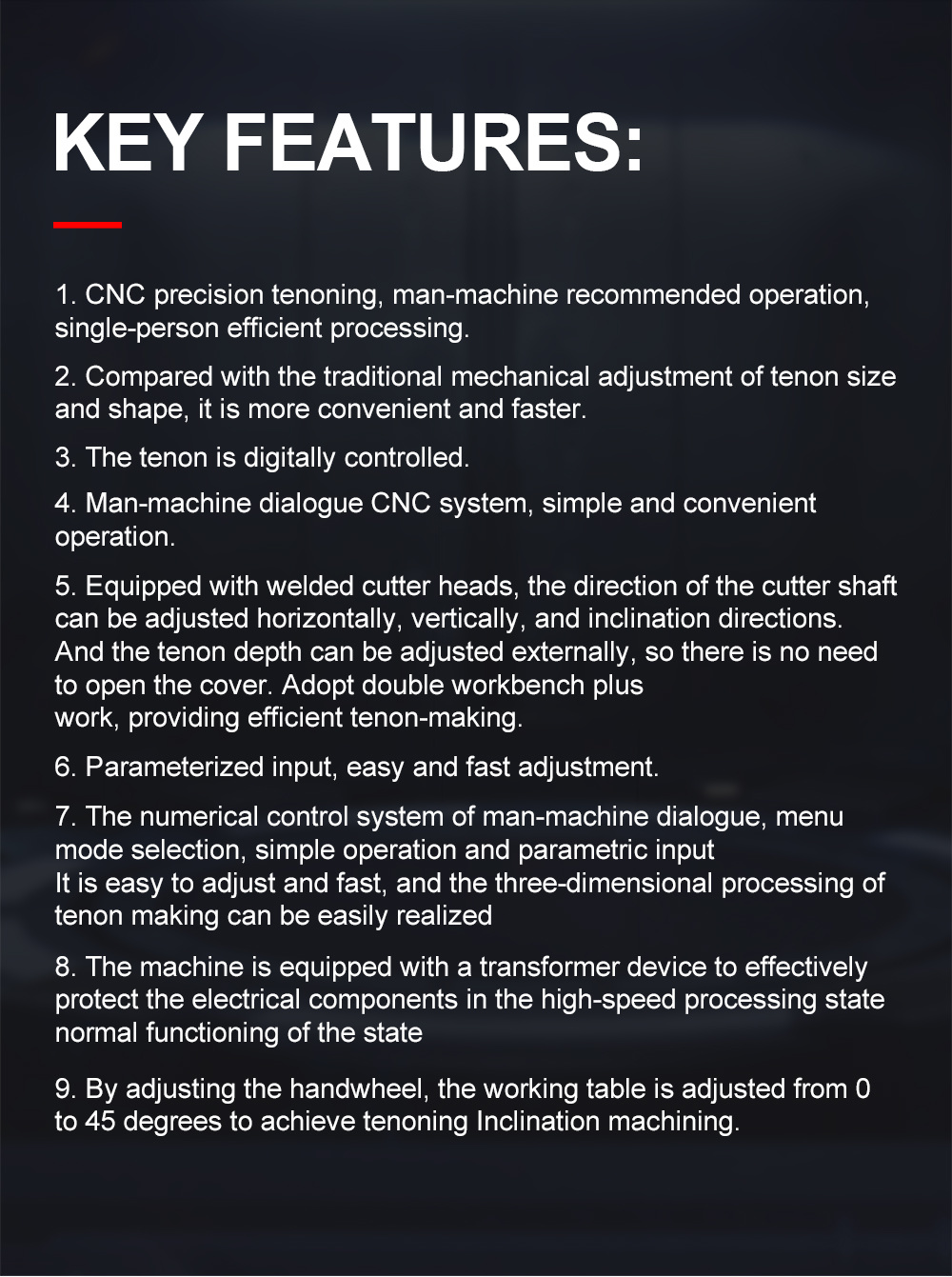

1.CNC precision tenoning, man-machine recommended operation, single-person efficient processing.

2.Compared with the traditional mechanical adjustment of tenon size and shape, it is more convenient and faster.

3.The tenon is digitally controlled.

4. Man-machine dialogue CNC system,simple and convenient operation.

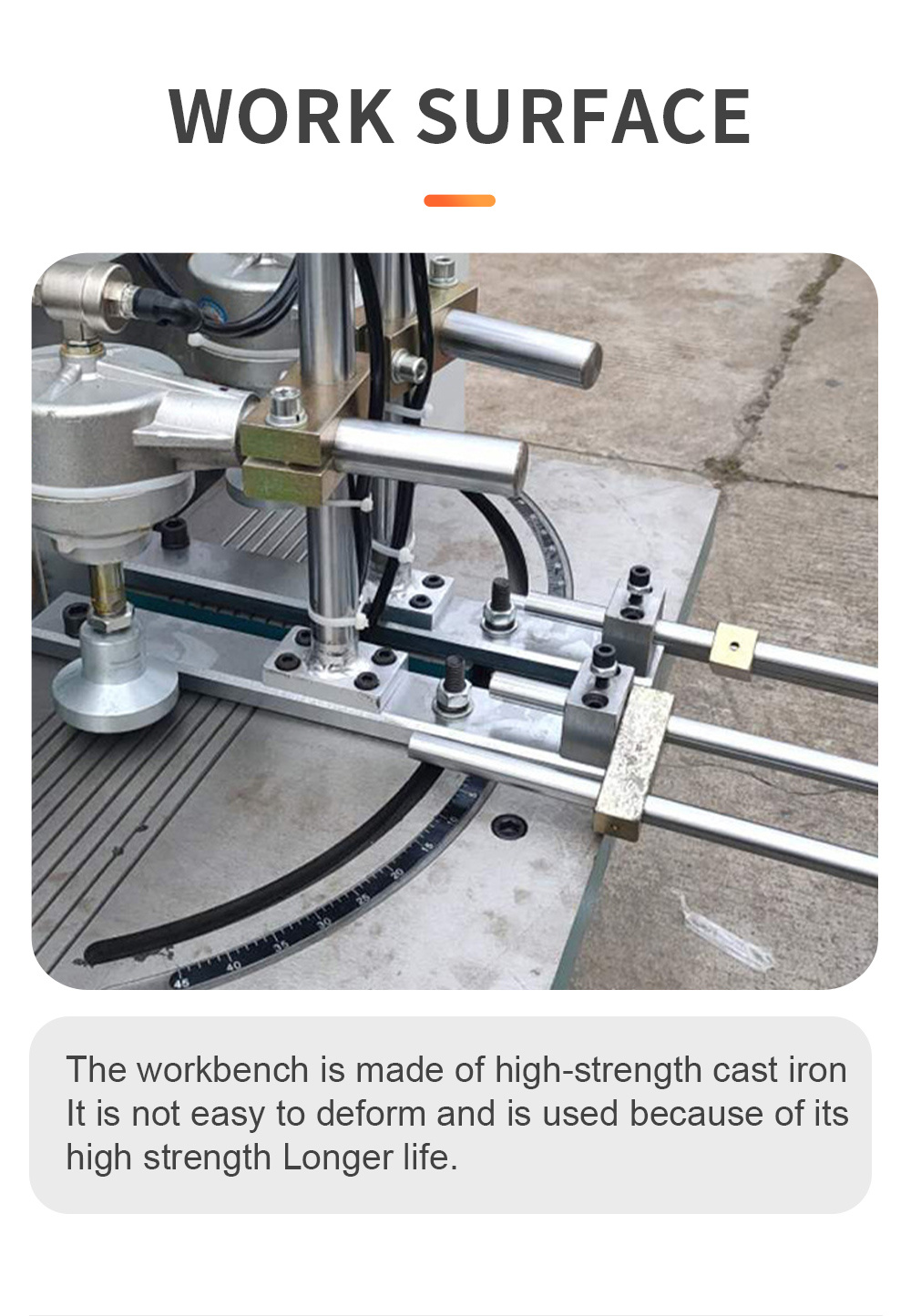

5.Equipped with welded cutter heads,the direction of the cutter shaft can be adjusted horizontally,vertically,and inclination directions. And the tenon depth can be adjusted externally,so there is no need to open the cover.Adopt double workbench plus work,providing efficient tenon-making.

6.Parameterized input,easy and fast adjustment.

7. The numerical control system of man-machine dialogue, menu mode selection, simple operation and parametric input It is easy to adjust and fast,and the three-dimensional processing of tenon making can be easily realized

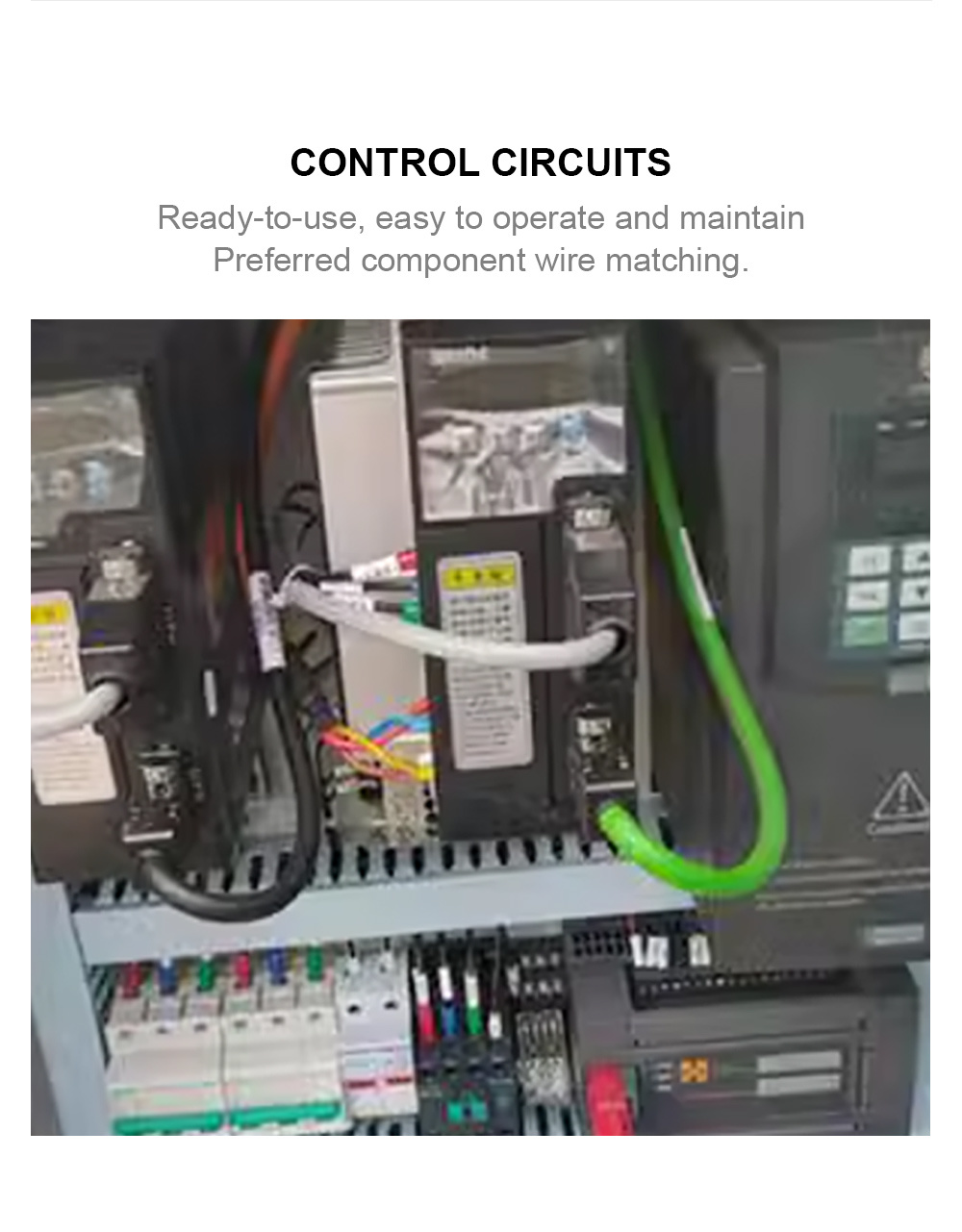

8. The machine is equipped with a transformer device to effectively protect the electrical components in the high-speed processing state normal functioning of the state

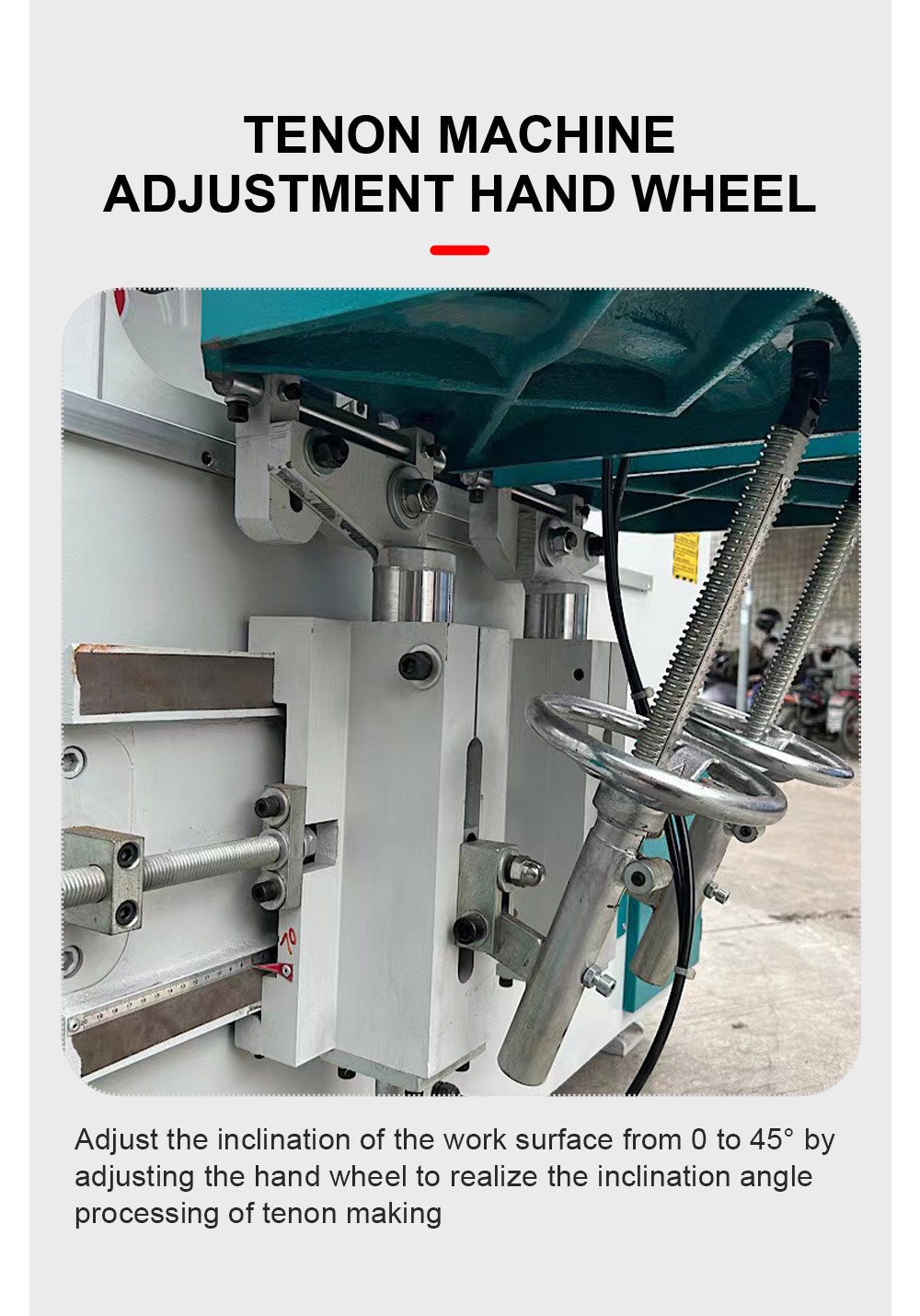

9.By adjusting the handwheel,the working table is adjusted from 0 to 45 degrees to achieve tenoning Inclination machining.

None

WOOD MORTISE AND TENON MACHINE

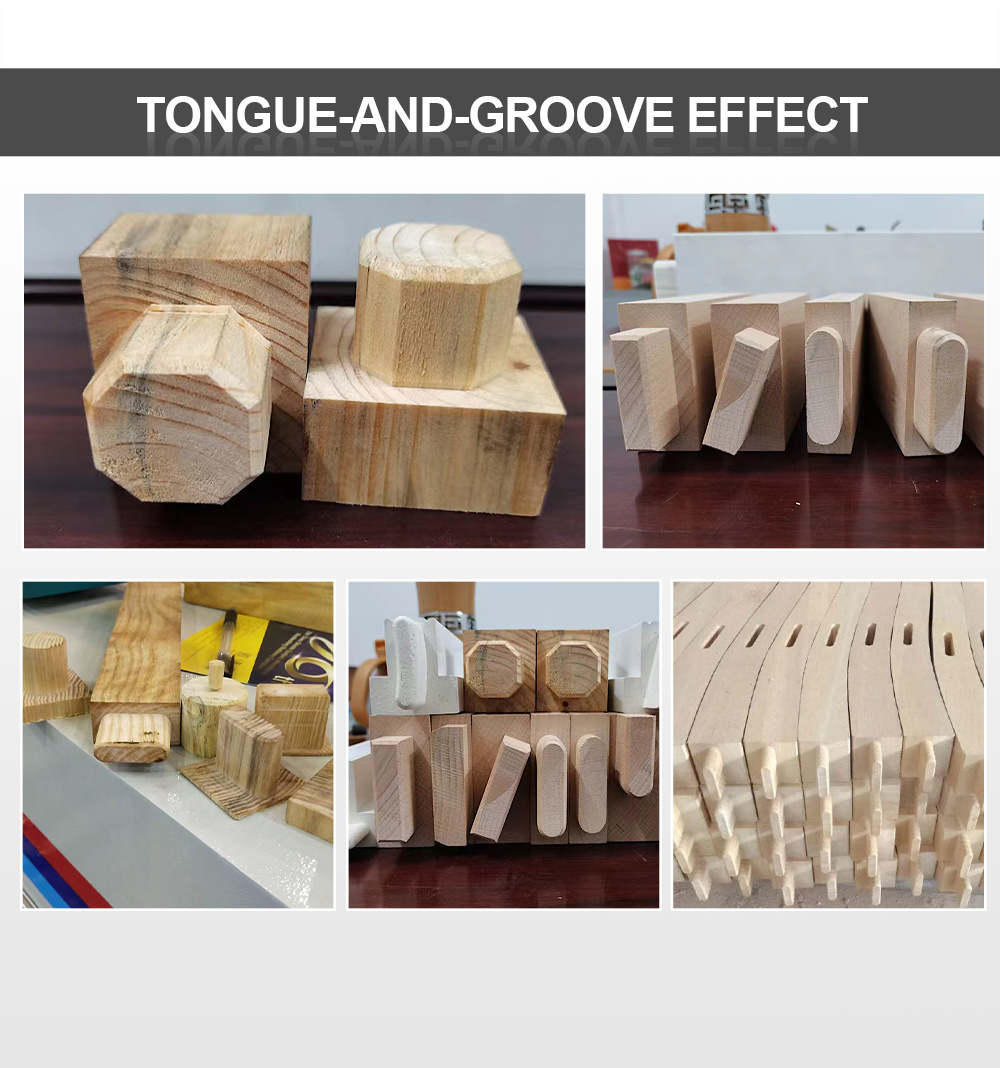

Effect Of Sheet
