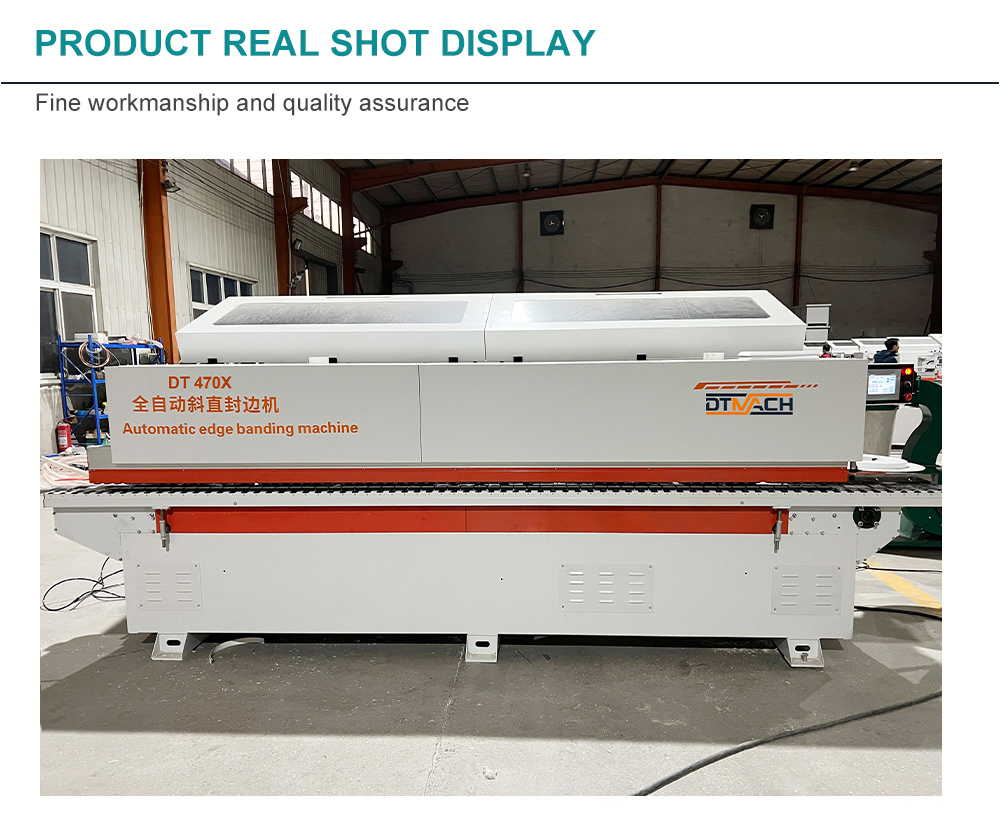

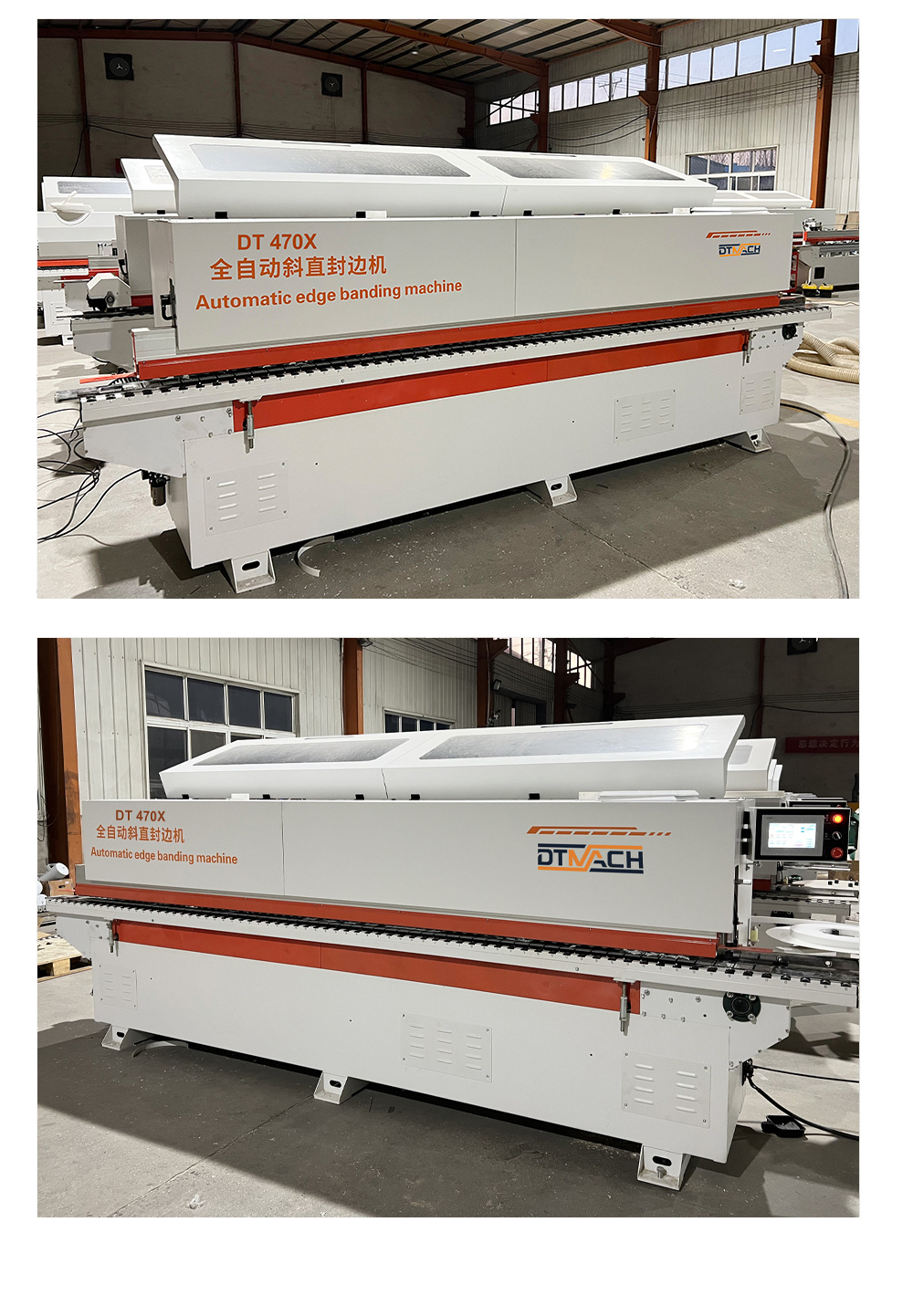

DT-470X AUTOMATIC EDGE BANDING MACHINE

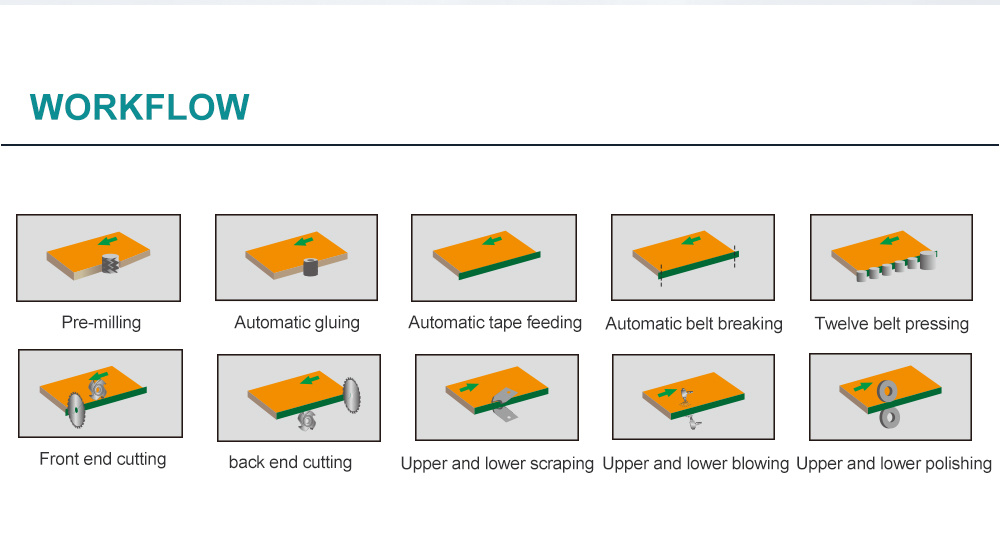

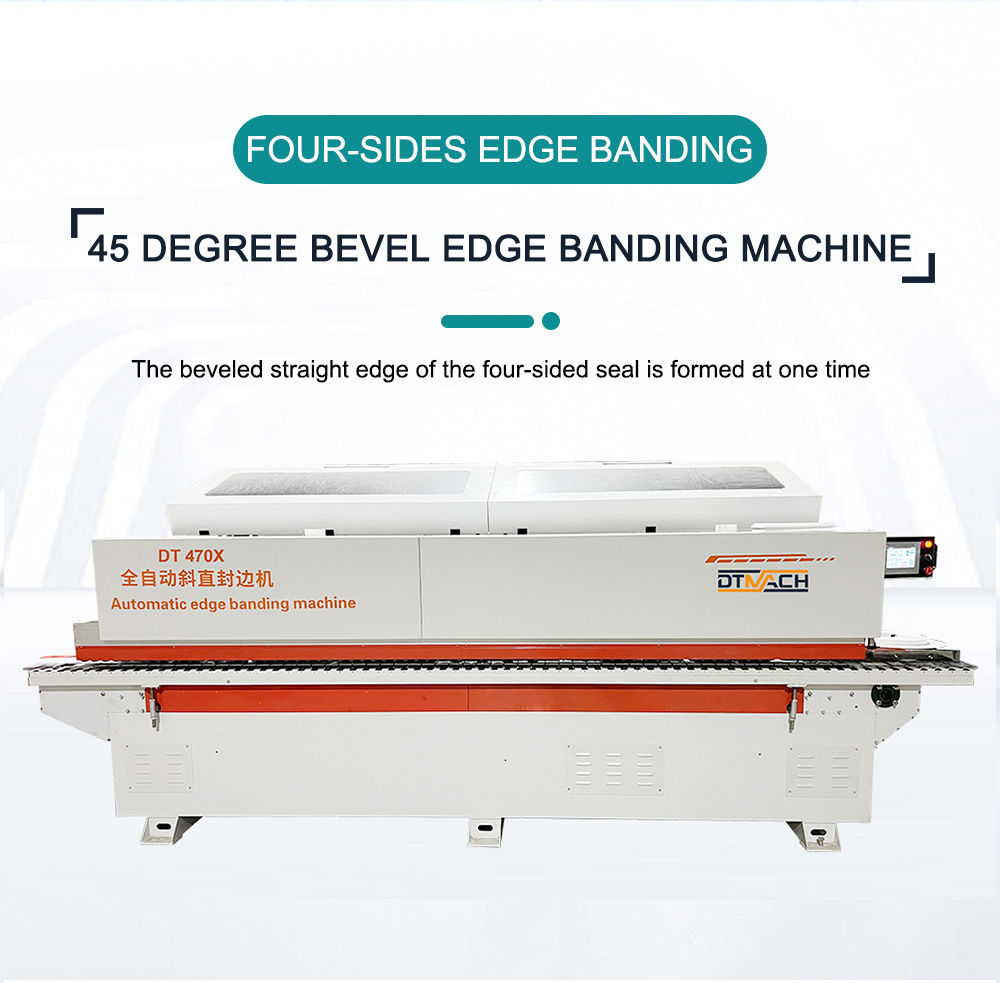

DT-470X automatic edge banding machine is focusing on processing 45 degrees bevel with straight edge shape, which can replace the handle. This machine includes pre-milling, gluing, bonding, end cutting, trimming, scraping and polishing.
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: DT-470X AUTOMATIC EDGE BANDING MACHINE
DT-470X automatic edge banding machine is focusing on processing 45 degrees bevel with straight edge shape, which can replace the handle. This machine includes pre-milling, gluing, bonding, end cutting, trimming, scraping and polishing.
Key words:- DT-470X
-
-
DETAIL PARAMETERS
TOTAL POWER 19.5KW EDGE BAND THICKNESS 0.8-3mm PLATE THICKNESS 15-25mm GLUE BOX MOTOR 0.55KW CONVEYING SPEED 10-13meters/minute CONVEYING MOTOR 1.5KW 32 axis MILLING POWER 3.5KW*2
variable frequency speed regulation
FRONT AND REAR TRIMMING MOTOR 2.2KW*2
variable frequency speed regulation
GLUE BOX HEATER 2KW AUXILIARY HEATING 0.15KW ELECTRIC LIFTING MOTOR 0.37KW DIMENSIONS 4310*830*1450mm -
Previous:

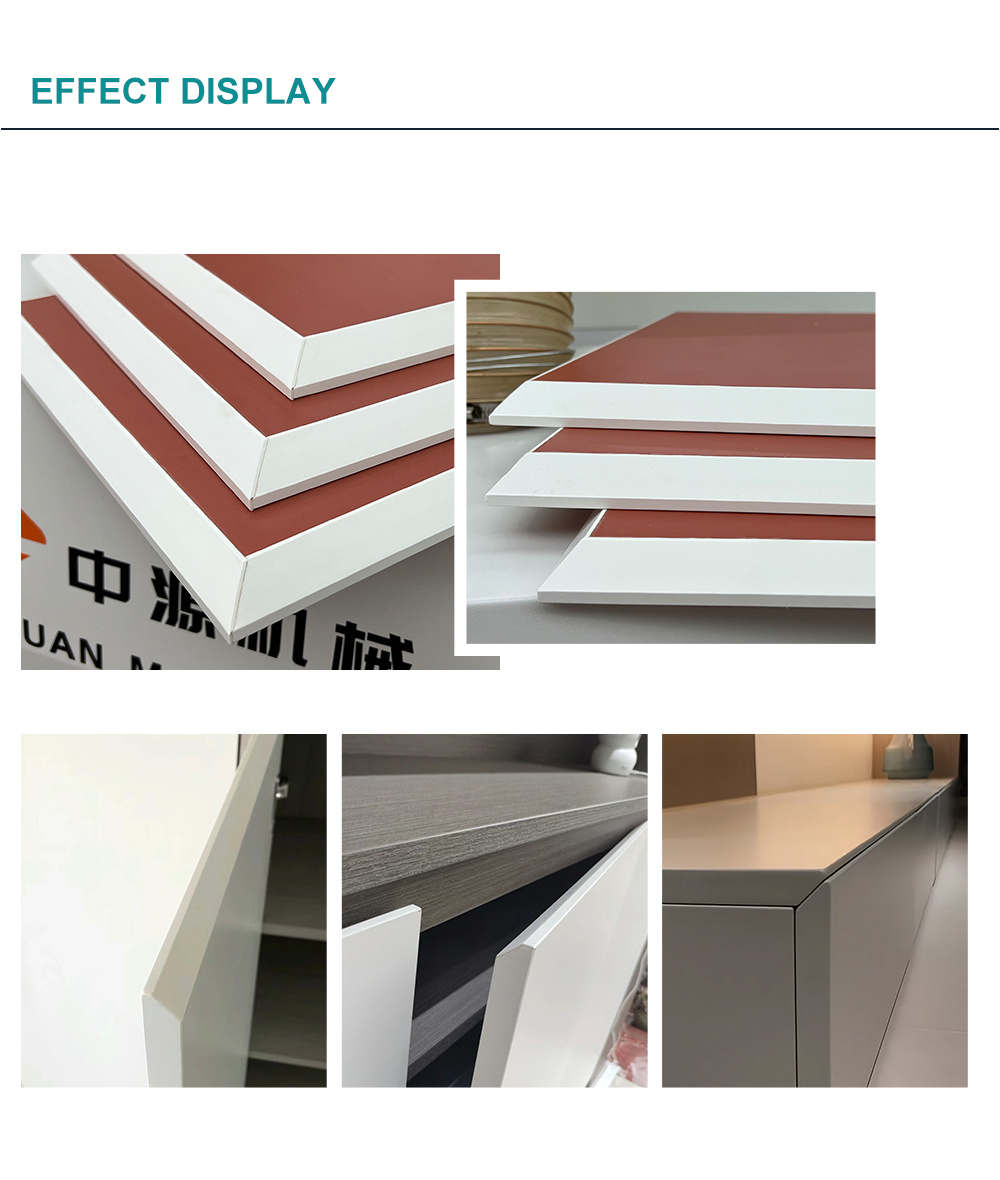

Effect Of Sheet
