KN-800 EDGE BANDING MACHINE WITH TRIMMING

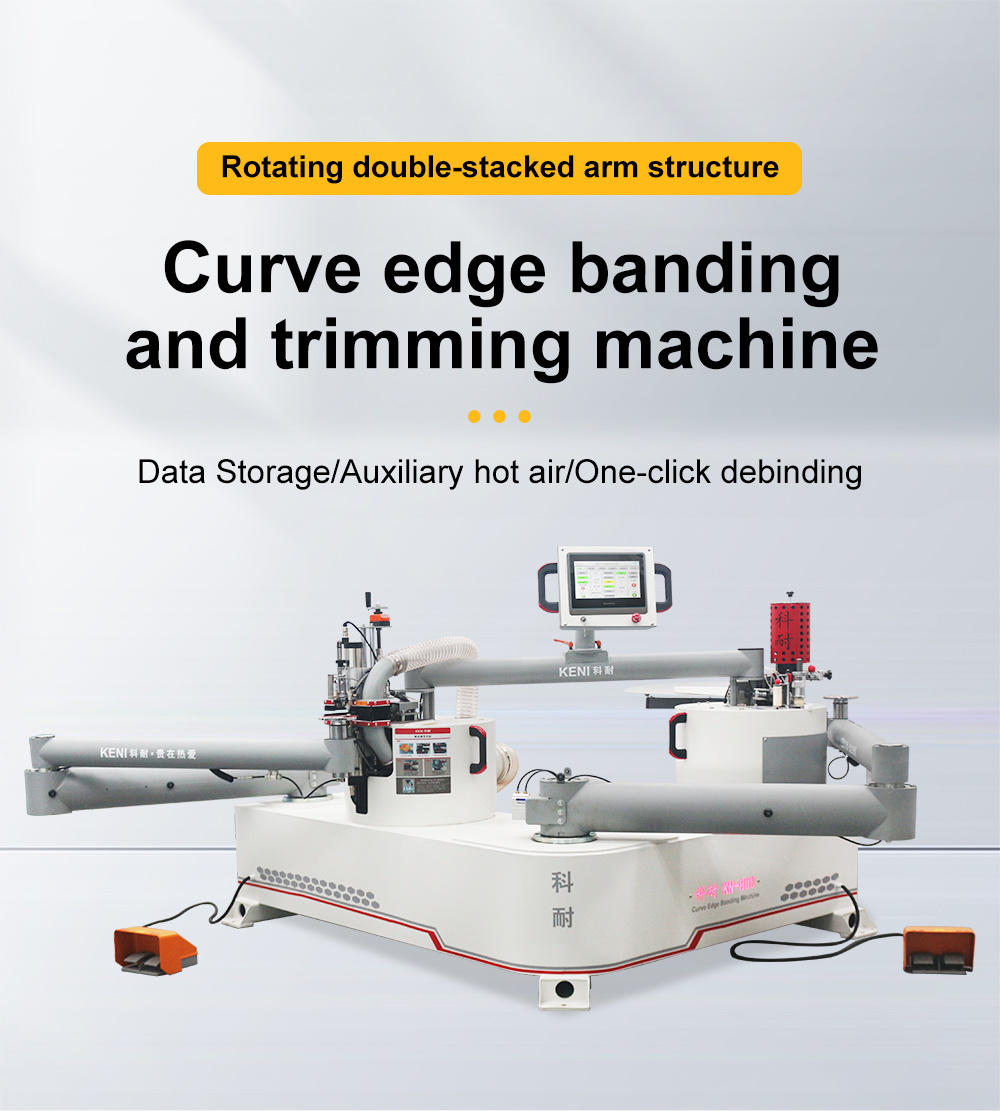

KN-800 curved edge banding machine has a mobile double-arm structure, high working efficiency, adjustable angles of edge banding and trimming, and is suitable for a variety of panels

+86 153 1881 6295

admin@dongtengmach.com

E-mail

Category:

Edge Banding Machine

Inquiry

Back to list

Video
Product Description
Parameter
Advantages

- Commodity name: KN-800 EDGE BANDING MACHINE WITH TRIMMING
KN-800 curved edge banding machine has a mobile double-arm structure, high working efficiency, adjustable angles of edge banding and trimming, and is suitable for a variety of panels
Key words:
- KB-800

DETAIL PARAMETERS

COMPRESSED AIR	0.6 - 0.8 Mpa
FEED SPEED	0 - 20 cm/s ( egde banding )
FEED SPEED	0 - 24 cm/s (profiling)
EDGE BANDING WIDTH	14-70 mm
THICKNESS OF THE EDGING	0.5-3 mm (depending on the material of the edge banding
EDGE ROTATION ANGLE	－70°~+35°
TRIMMING ROTATION ANGLE	±45°
TRIMMING SHEET THICKNESS	＜14mm single side trimming, 14-70mm upper and lower double trimming (related to trimming knives)
INNER ARC RADIUS	Inner≥ 20mm (sealing radius for special operation 4mm)
TYPE OF HOT MELT ADHESIVE	PUR/EVA
GLUE PAN TEMPERATURE	110℃-210℃
EXTERNAL VACUUMING	φ150 Air flow :9800m³/h
PACKAGE SIZE	280019001600mm
WEIGHT	720kg （Half wooden case）
PANEL SIZE	≤ 3800 mm ( ROUND )
	≥ 400400mm ≤18003800mm( RECTANGLE )
	≤ 1500*3200 ( L SHAPE )

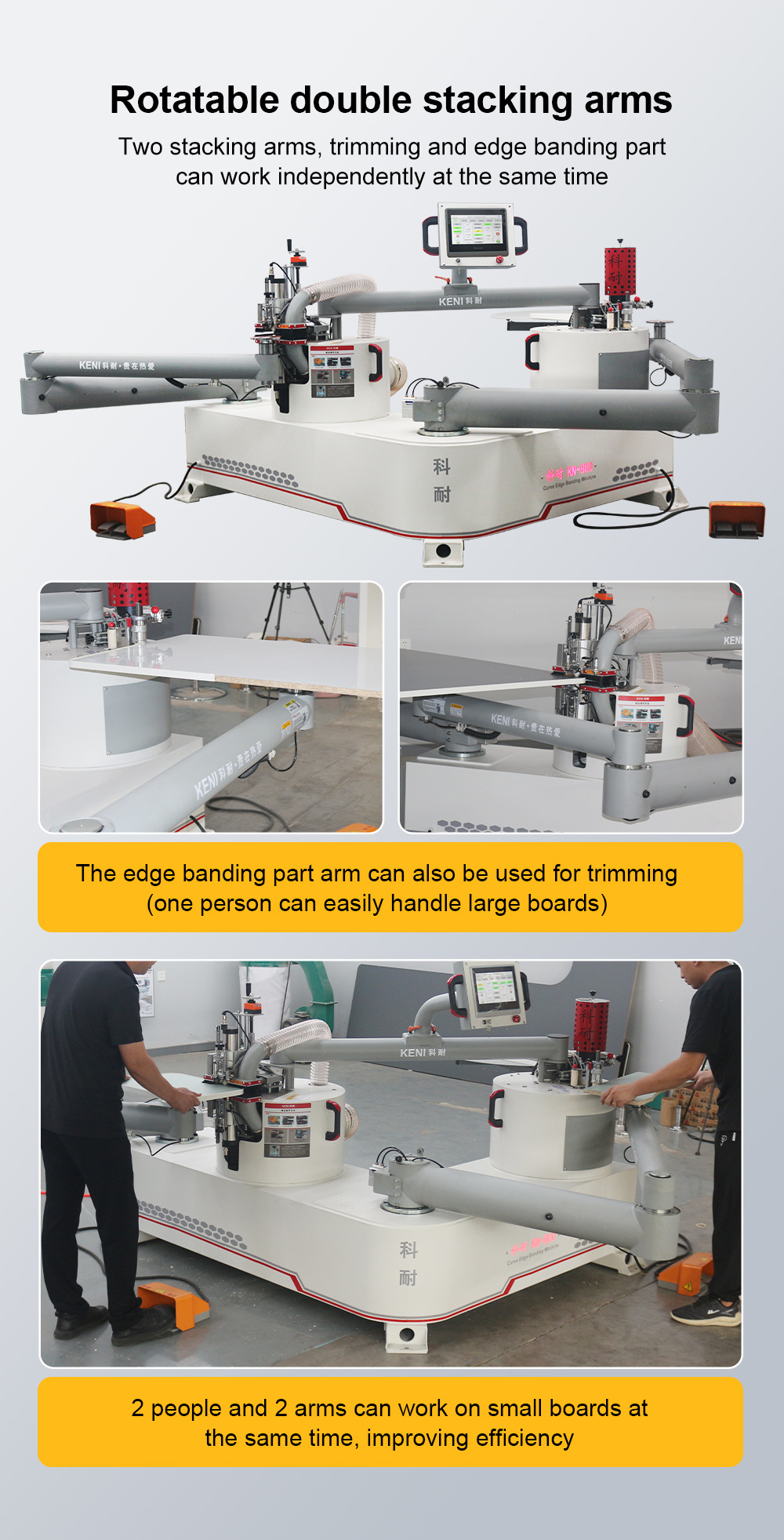

1. Rotatable double stacking arms, Two stacking arms,trimming and edge banding part can work independently at the same time, The edge banding part arm can also be used for trimming (one person can easily handle large boards, 2 people and 2 arms can work on small boards at the same time, improving efficiency.

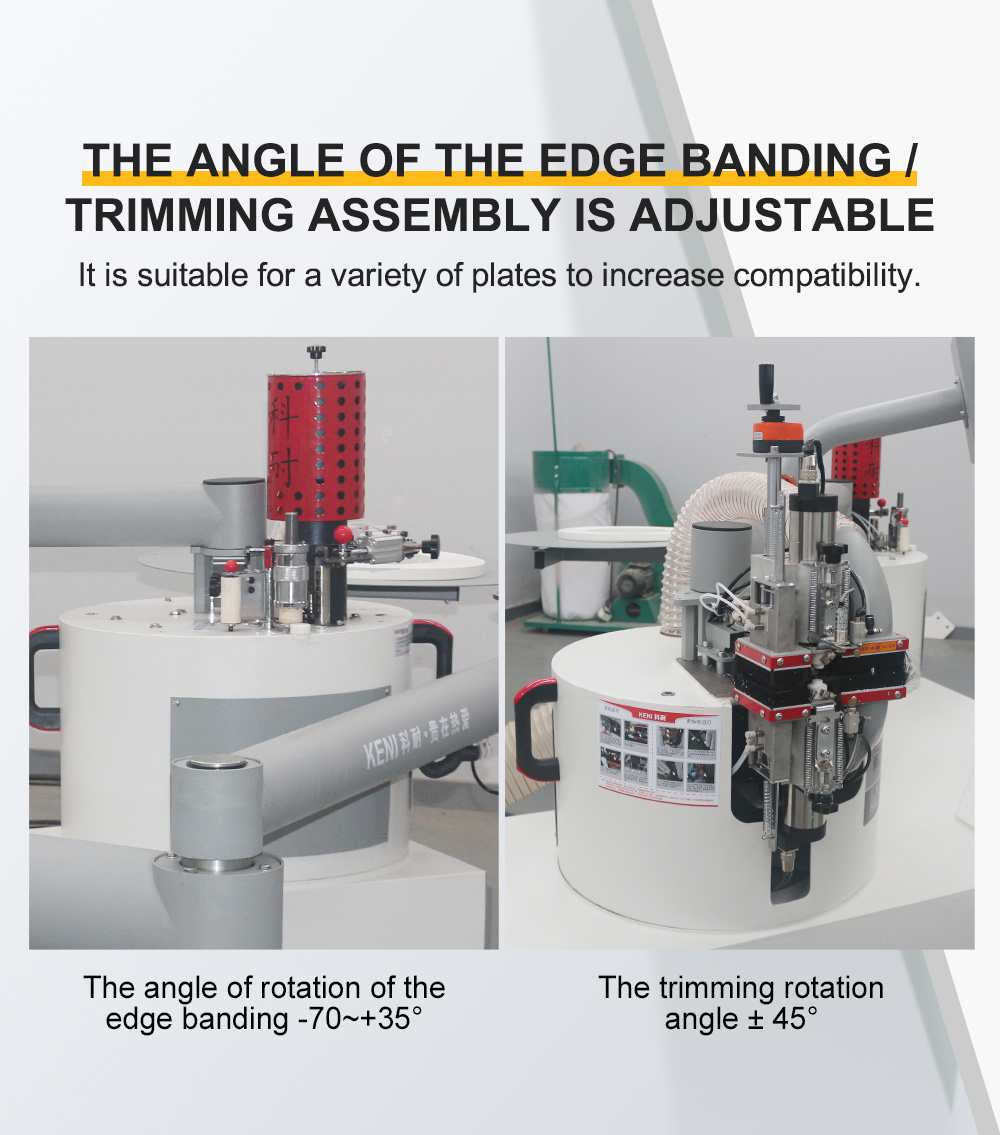

2. The angle of the edge banding/trimming assembly is adjustable, The angle of rotation of the edge banding －70°~+35°, The trimming rotation angle ±45°.

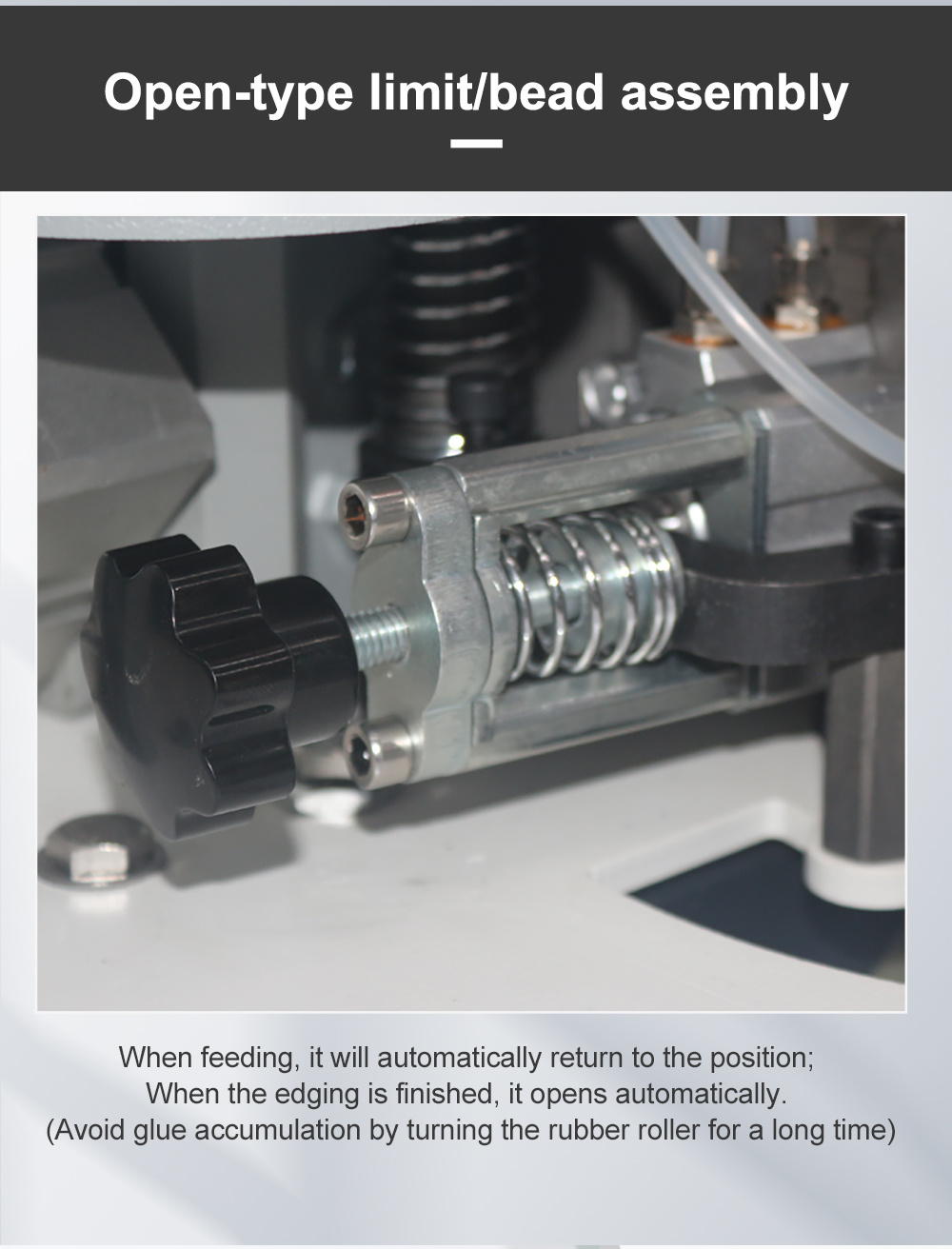

3. Open-type limit/bead assembly, When feeding, it wil automatically return to the position; When the edging is finished, it opens automaticaly. (Avoid glue accumulation by turning the rubber roler for a long time).

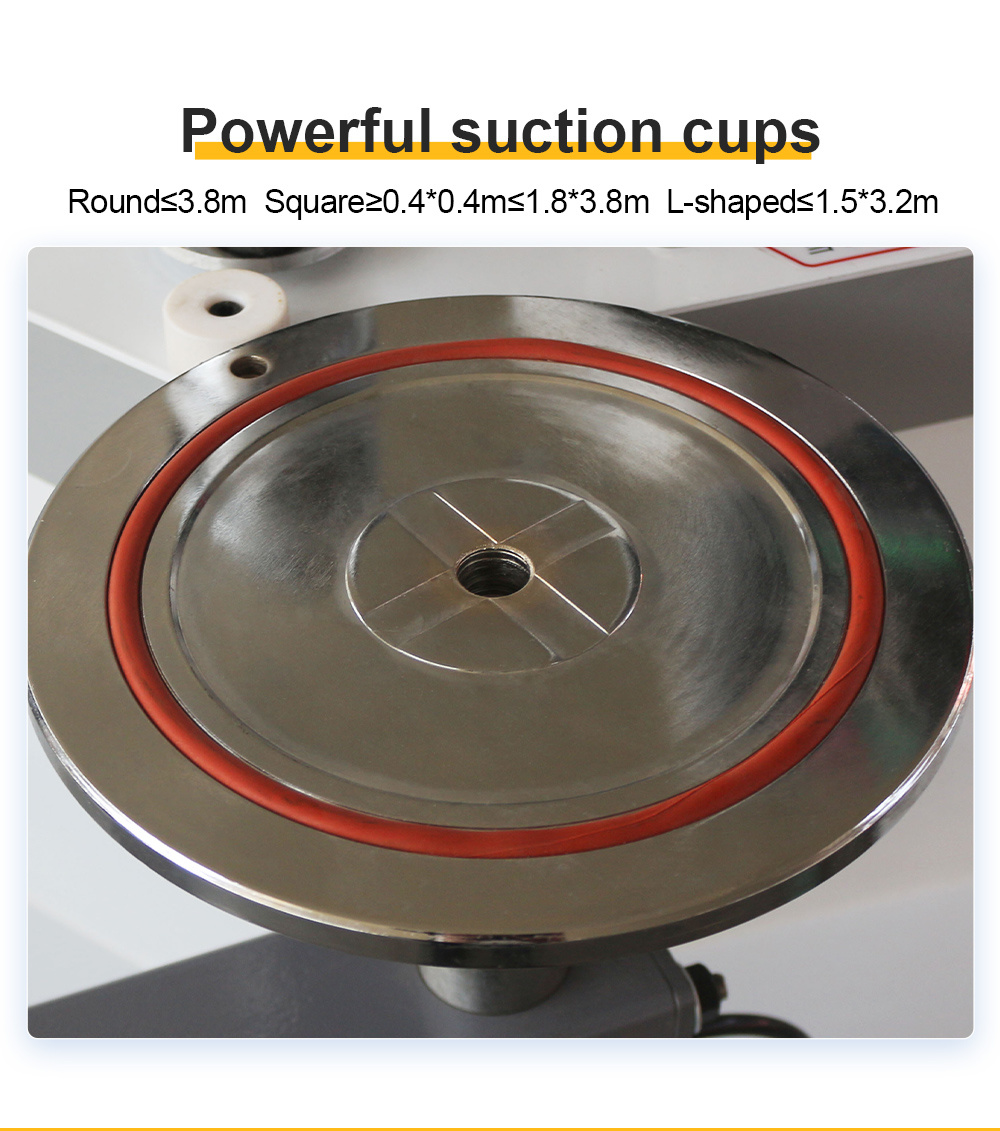

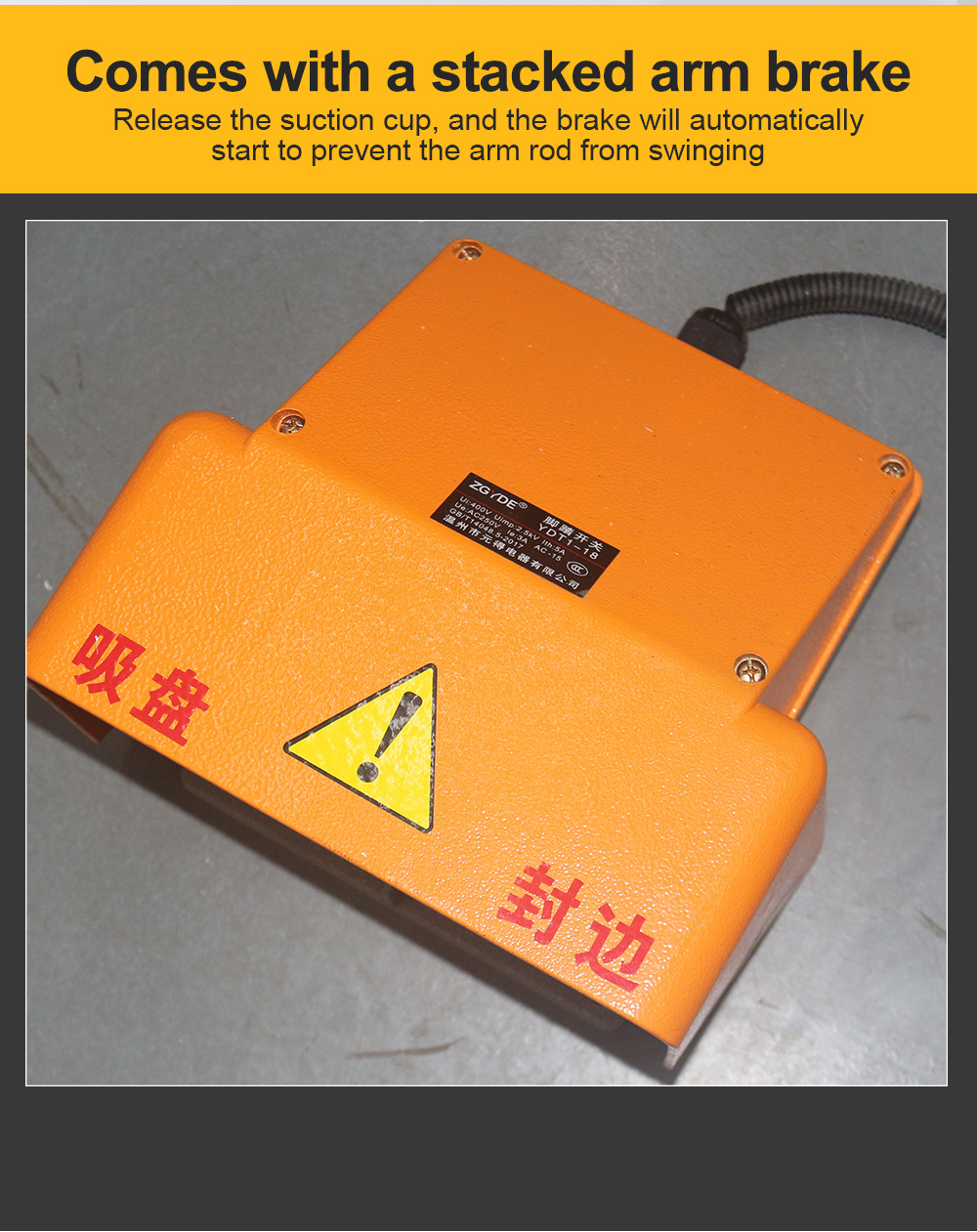

4. Comes with a stacked arm brake, Release the suction cup,and the brake will automatically start to prevent the arm rod from swinging.

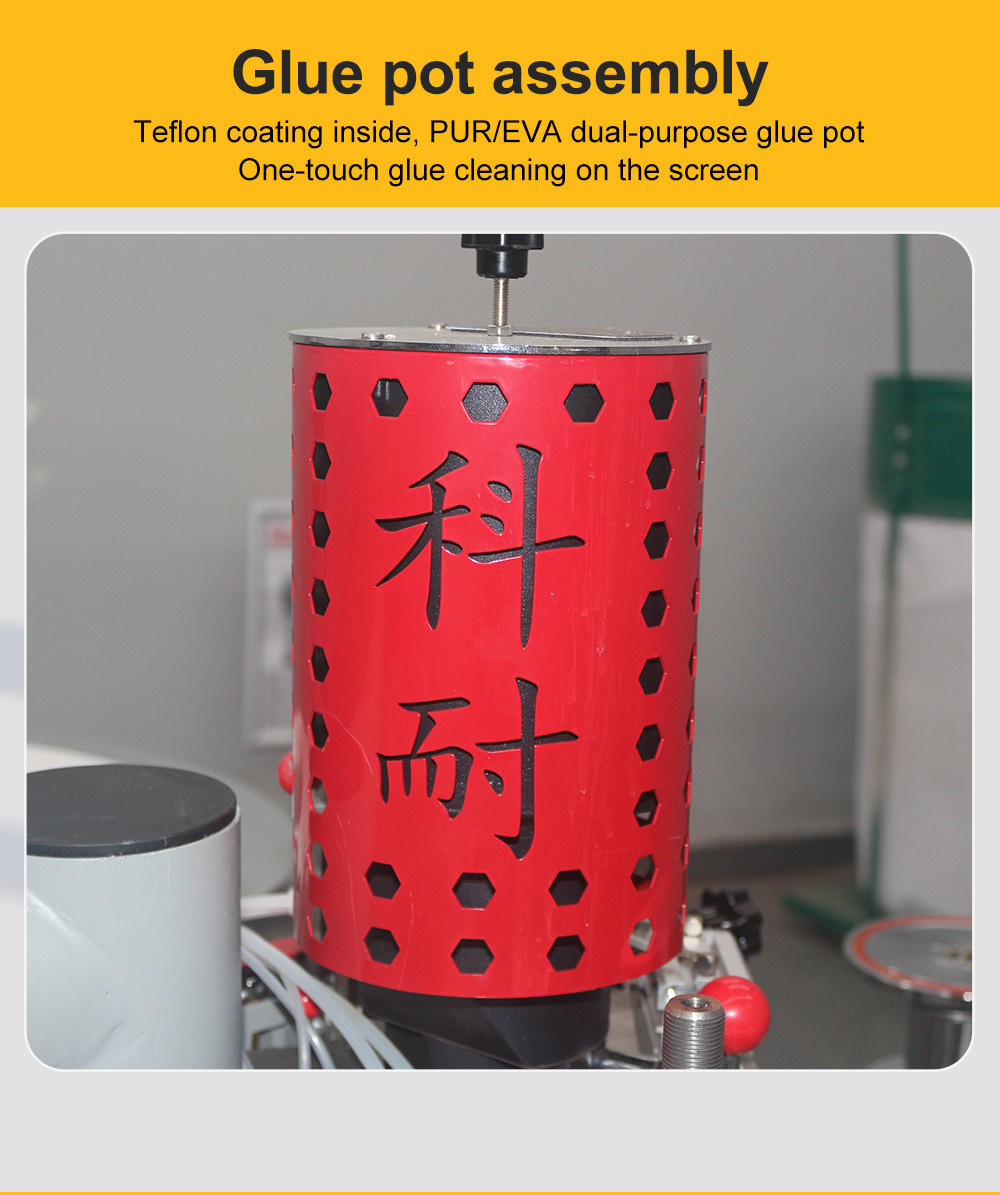

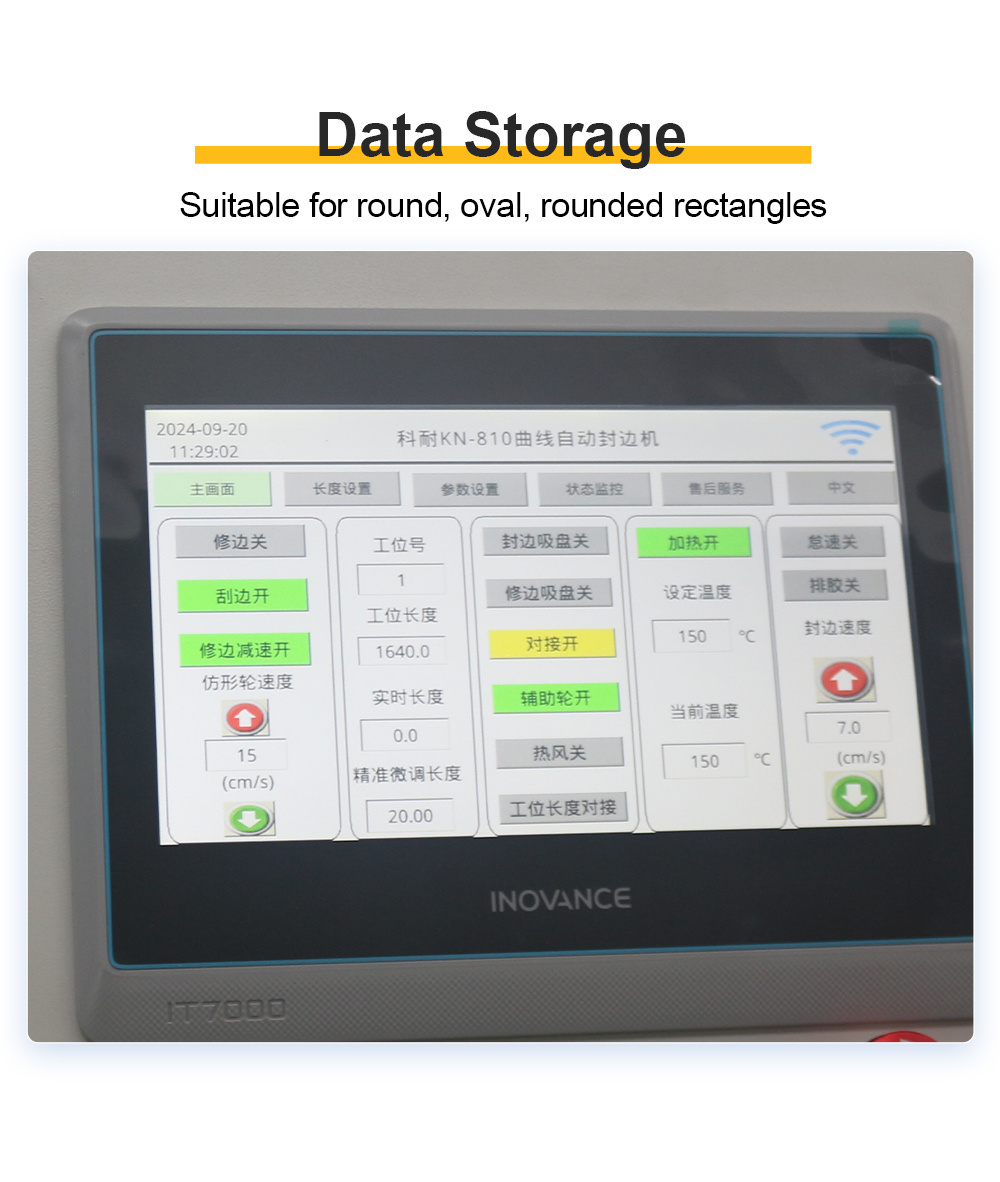

5. Glue pot: Teflon coating inside,PUR/EVA dual-purpose glue pot, one-touch glue cleaning on the screen.
