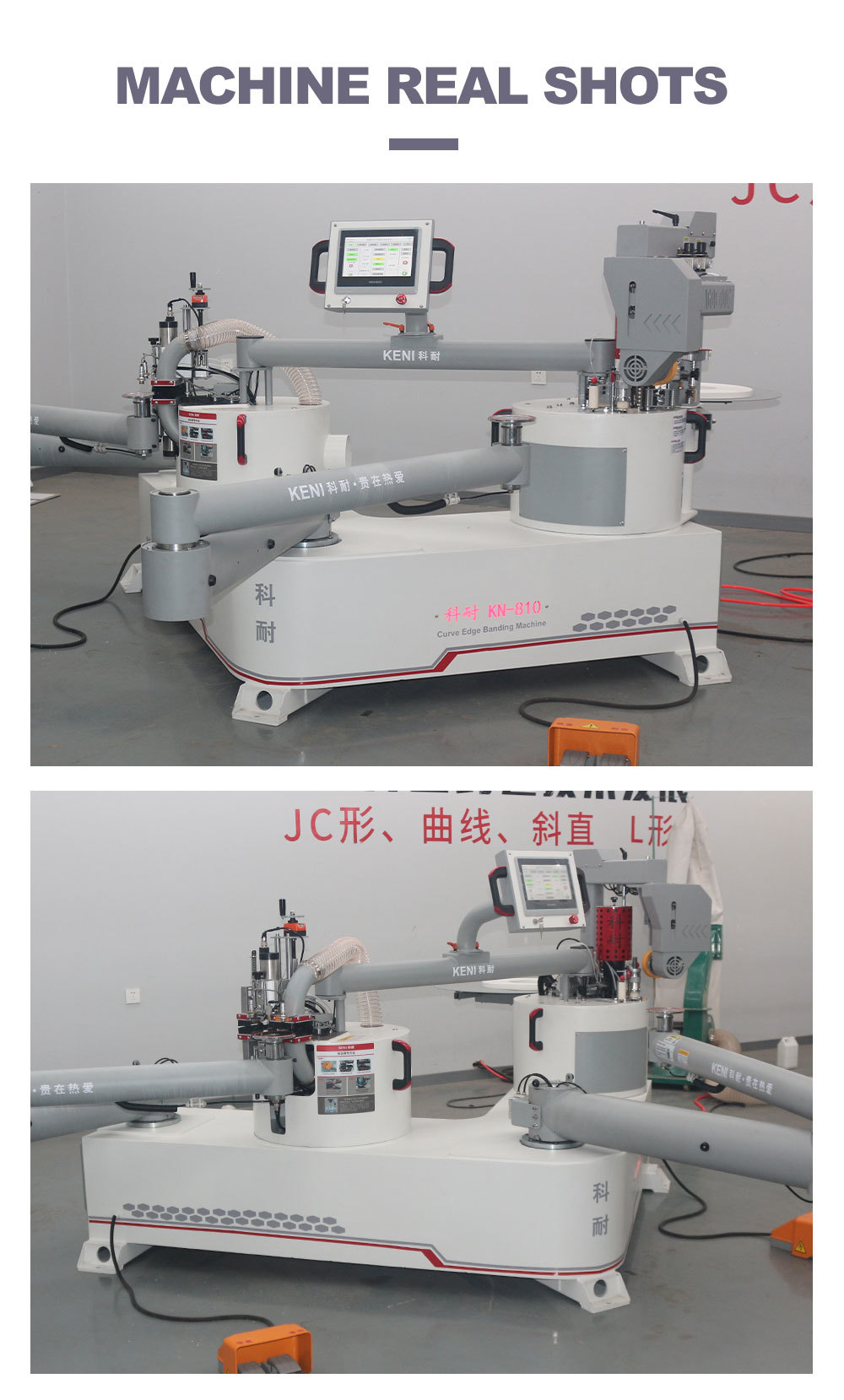

KN-810 EDGE BANDING MACHINE WITH TRIMMING

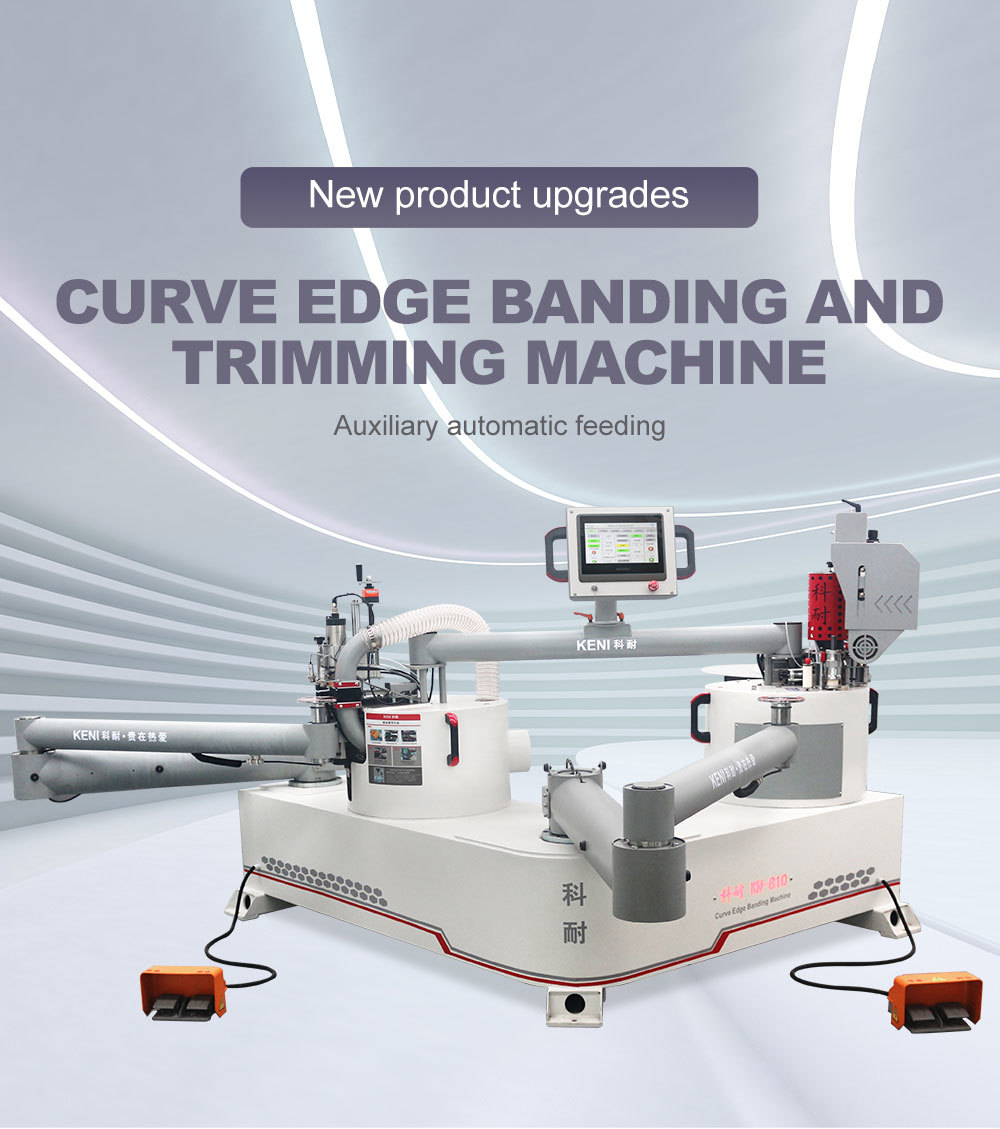

KN-810 curved edge banding machine has a mobile double-arm structure, high working efficiency, Auxiliary automatic feeding: suitable for round, oval, rounded rectangle, adjustable angles of edge banding and trimming, and is suitable for a variety of panels

+86 153 1881 6295

admin@dongtengmach.com

E-mail

Category:

Edge Banding Machine

Inquiry

Back to list

Video
Product Description
Parameter
Advantages

- Commodity name: KN-810 EDGE BANDING MACHINE WITH TRIMMING
KN-810 curved edge banding machine has a mobile double-arm structure, high working efficiency, Auxiliary automatic feeding: suitable for round, oval, rounded rectangle, adjustable angles of edge banding and trimming, and is suitable for a variety of panels
Key words:
- KN-810

DETAIL PARAMETERS

COMPRESSED AIR	0.6 - 0.8 Mpa
FEED SPEED	0 - 30 cm/s ( edge banding )
FEED SPEED	0 - 24 cm/s (profiling)
EDGE BANDING WIDTH	14-70 mm
THICKNESS OF THE EDGING	0.5-3 mm (depending on the material of the edge banding
DOCKING ERROR	± 0.3 mm
EDGE ROTATION ANGLE	-70°~+35°
TRIMMING ROTATION ANGLE	±45°
TRIMMING SHEET THICKNESS	＜14mm single side trimming, 14-70mm upper and lower double trimming (related to trimming knives)
INNER ARC RADIUS	Inner≥ 20mm (sealing radius for special operation 4mm)
TYPE OF HOT MELT ADHESIVE	PUR/EVA
GLUE PAN TEMPERATURE	110℃-210℃
EXTERNAL VACUUMING	φ150mm Air flow :9800m³/h
PACKAGE SIZE	280019001600mm
WEIGHT	770kg (half wooden box)
PANEL SIZE	≤ 3800 mm ( ROUND )
	≥ 400400mm ≤18003800mm( RECTANGLE )
	≤ 1500*3200 ( L SHAPE )

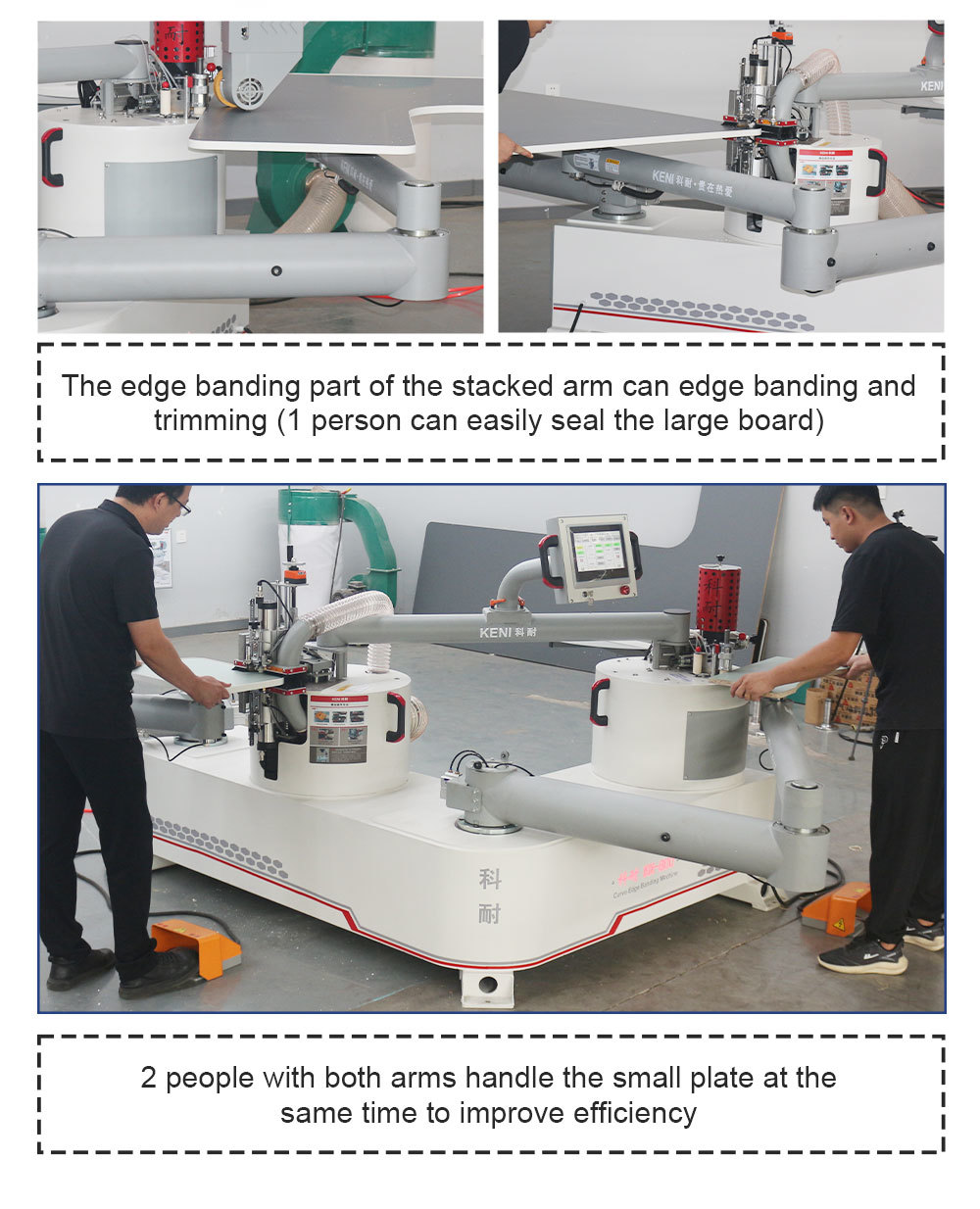

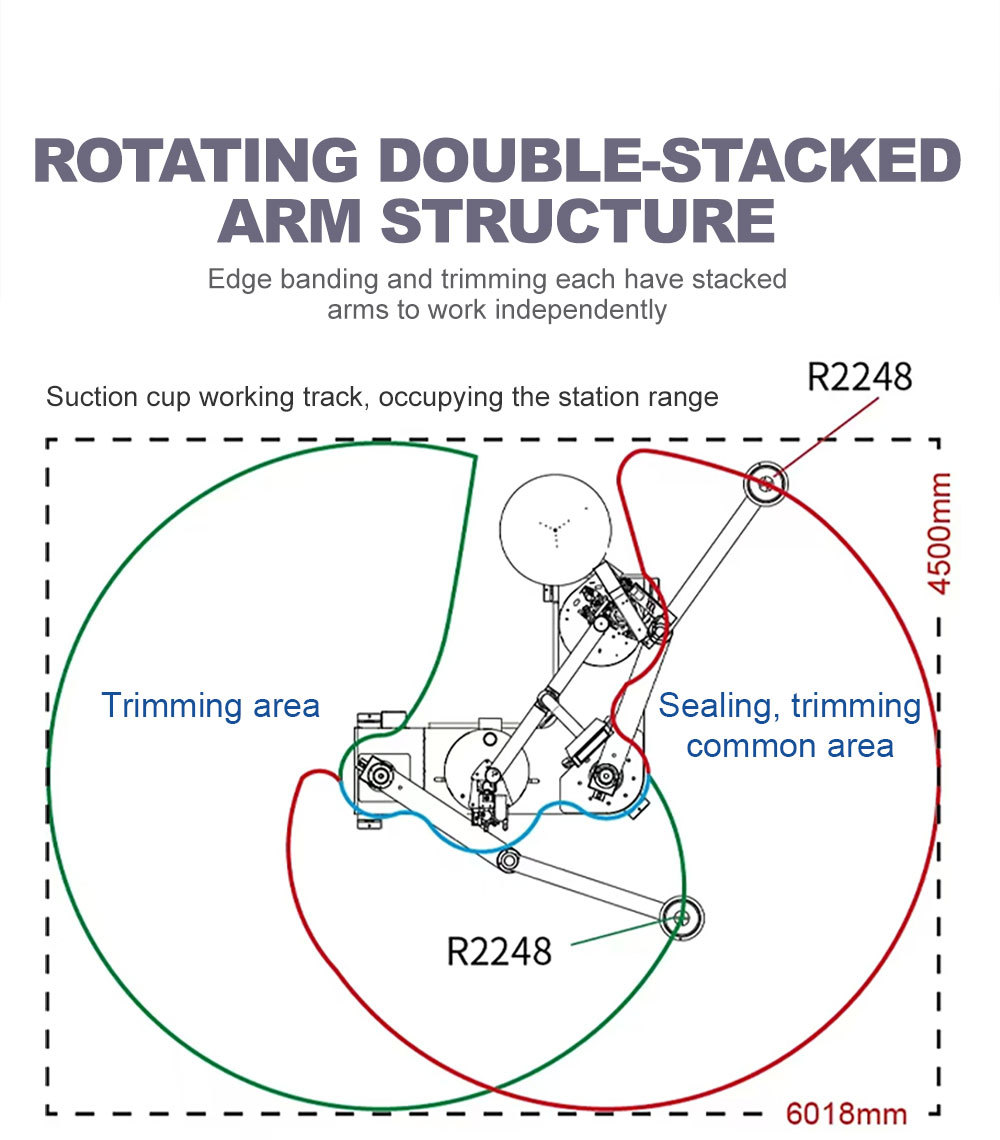

1. Rotating double-arm structure: Edge banding and trimming have their own arms working independently. The edge banding arm can be used for both sealing and trimming (one person can easily seal a large board); two people can seal a small board at the same time with double arms to improve efficiency.

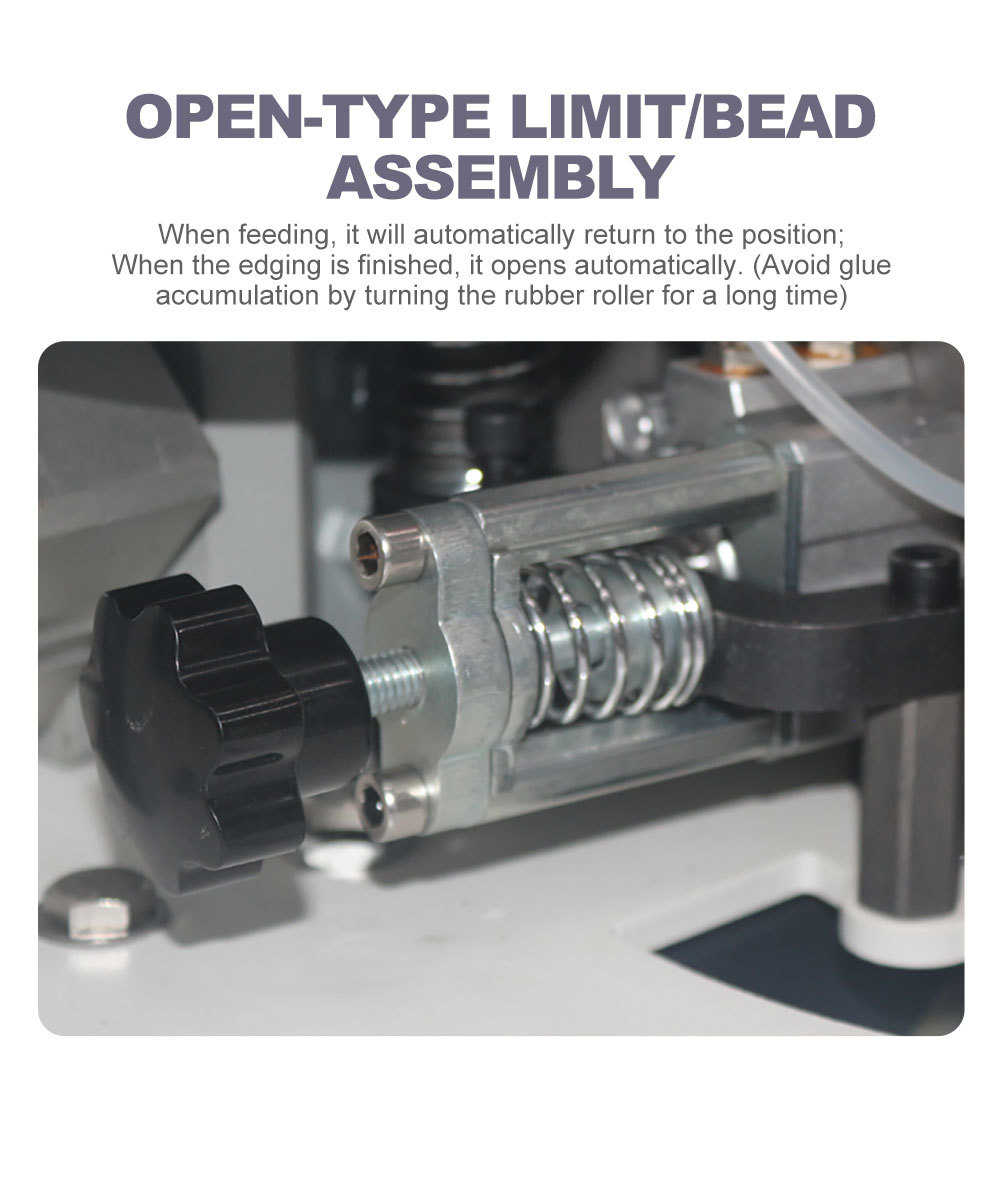

2. Opening and closing limiter and pressure strip assembly: automatically returns to position when feeding the tape; automatically opens when the edge banding tape is finished. (To avoid glue accumulation due to long-term rotation of the rubber roller)

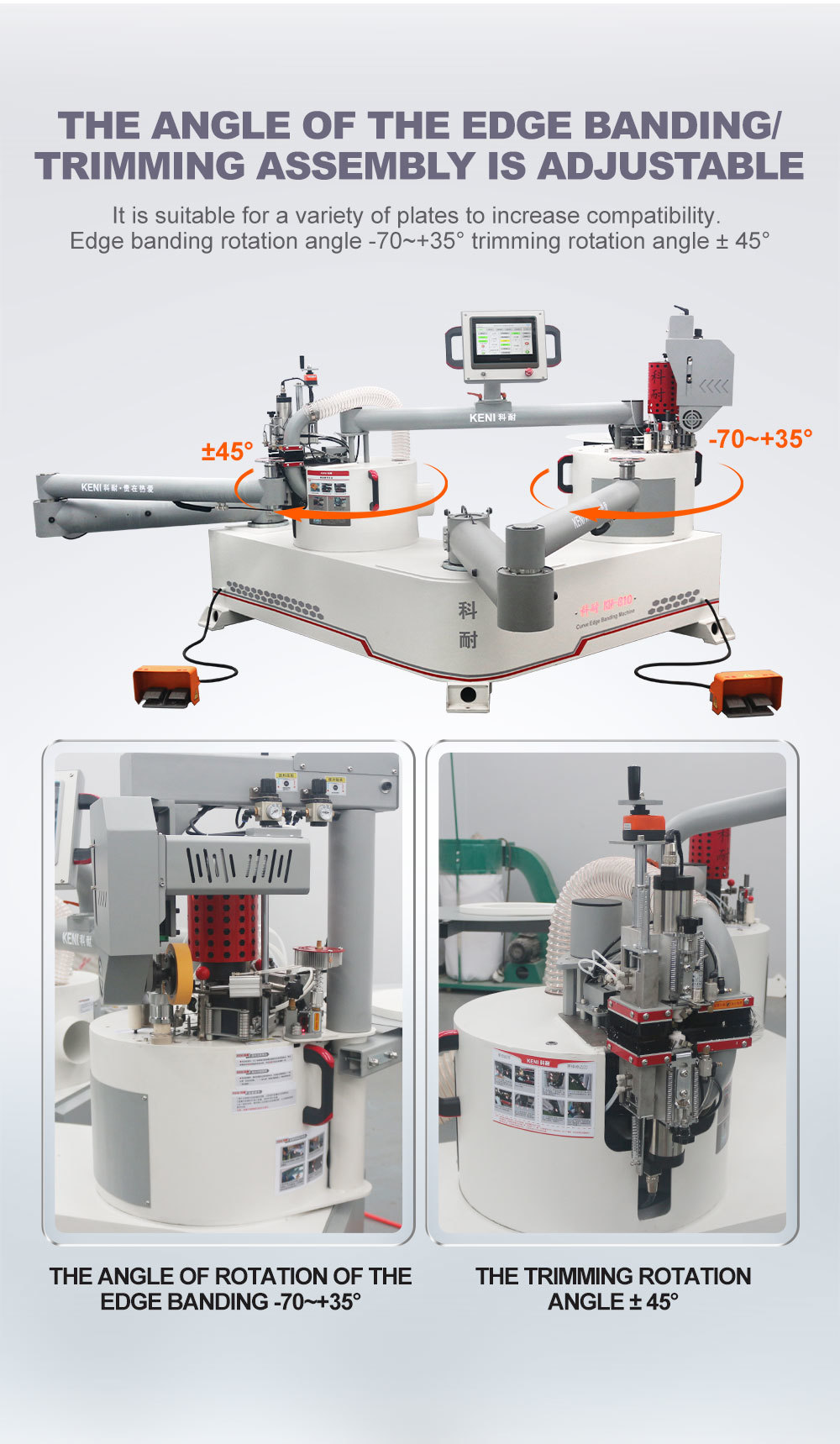

3. The angle of edge banding and trimming assembly is adjustable: suitable for a variety of panels, increasing compatibility. (Edge banding rotation angle -70°~＋35°, trimming rotation angle ±45°).

4. Folding arm brake: Release the suction cup and the brake will start automatically to prevent the arm from swinging

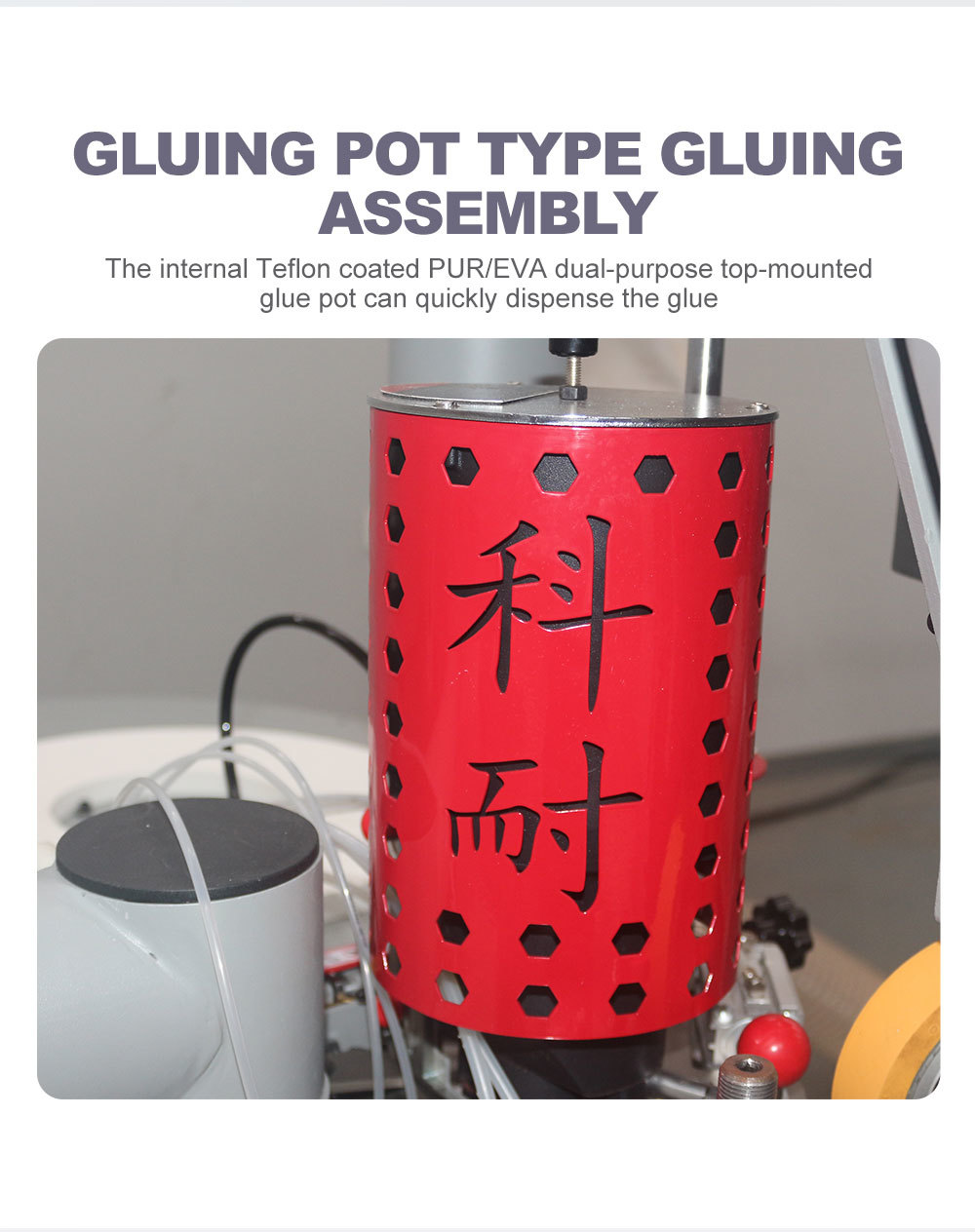

5. Adopt glue pot type glue coating assembly: PUR/EVA glue can be used alone, glue pot capacity 2600m

6. Auxiliary automatic feeding: suitable for round, oval, rounded rectangle

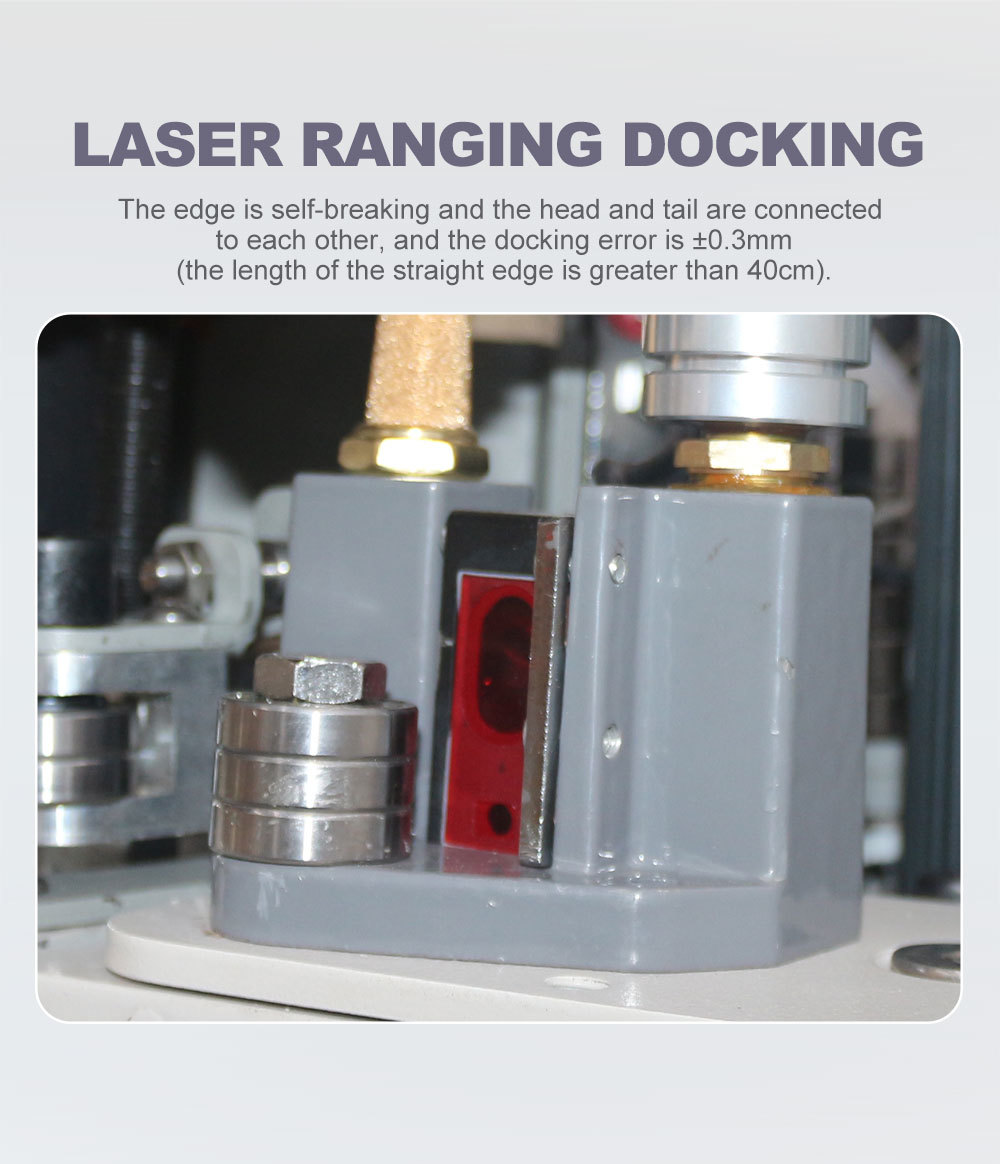

7. Laser ranging docking: docking error ±0.3mm

8.Processable sheet size: Round ≤3.8 m, Square ≥0.4*0.4 m ≤1.8*3.8 m, L-shaped ≤1.5*3.2 m
