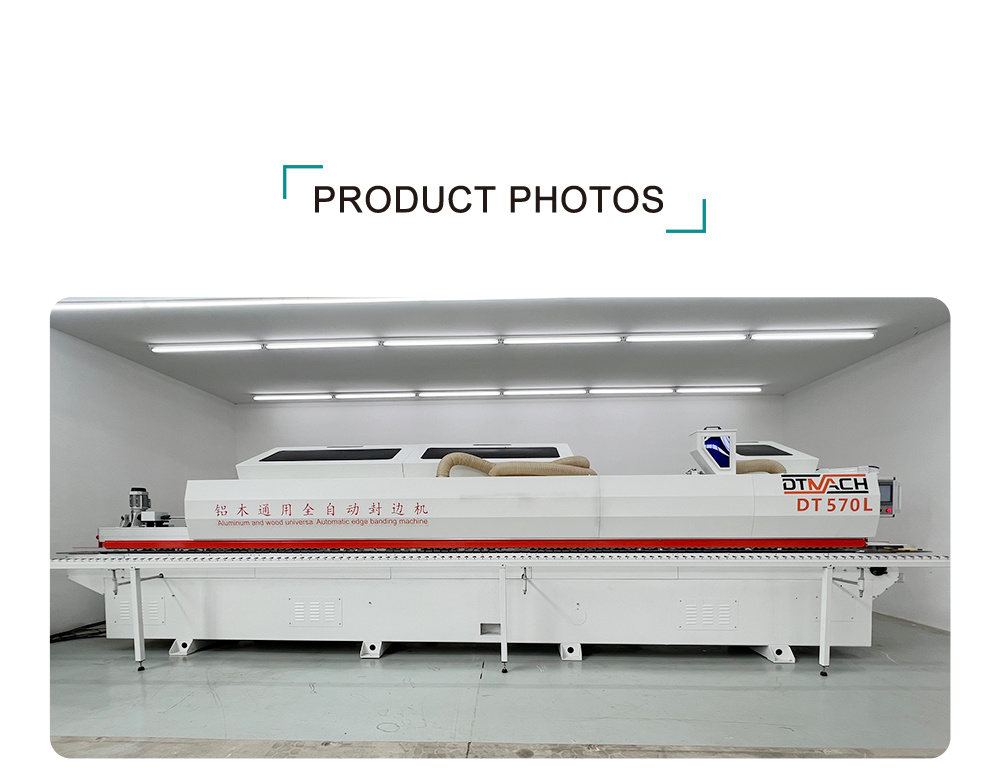

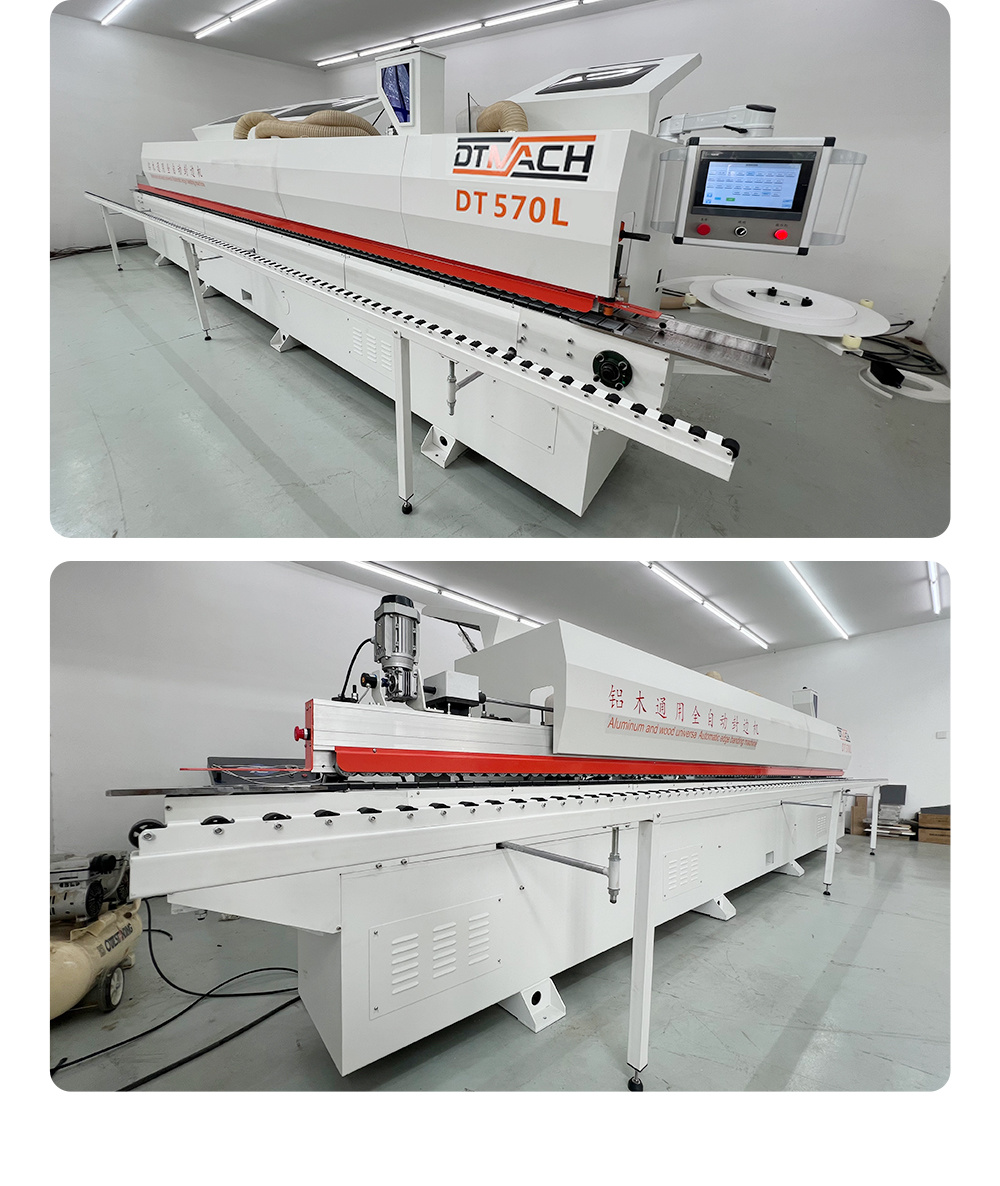

DT-570L AUTOMATIC EDGE BANDING MACHINE


DT 570L is a aluminum-wood fully automatic edge banding machine, which can process both wooden boards and aluminum honeycomb panels, equipped with three-in-one glue port, easy to operate.

  • Video
  • Product Description
  • Parameter
  • Advantages
    • Commodity name: DT-570L AUTOMATIC EDGE BANDING MACHINE

    DT 570L is a aluminum-wood fully automatic edge banding machine, which can process both wooden boards and aluminum honeycomb panels, equipped with three-in-one glue port, easy to operate.

    Key words:
    • DT-570L
  •



  • DETAIL PARAMETERS

    TOTAL POWER  16.5KW

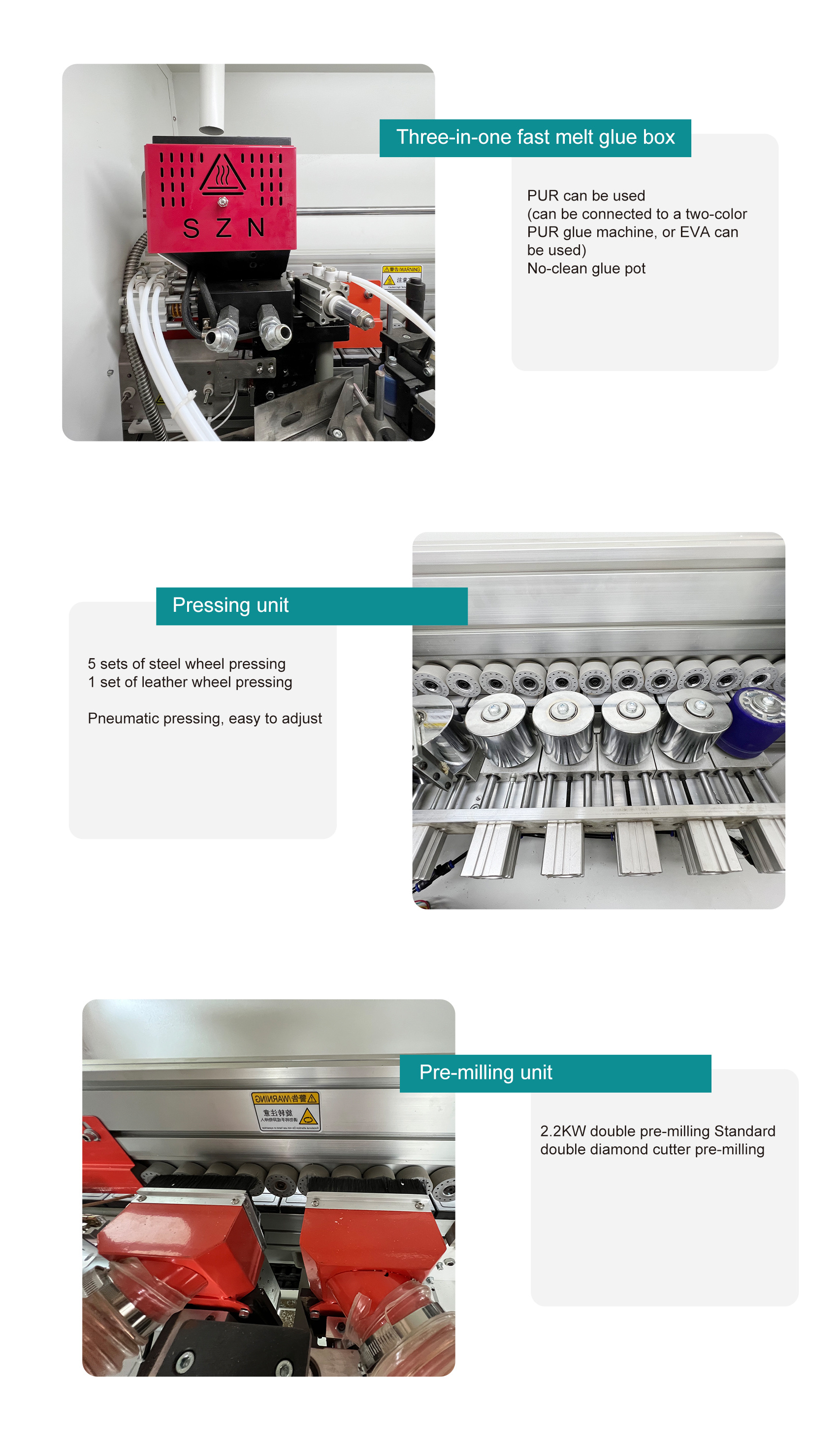

    GLUE POT MOTOR

    0.55KW

    EDGE BAND THICKNESS 0.4-3 mm
    PLATE THICKNESS 9-55 mm
    CONVEYING SPEED 16, 18, 20m/min
    CONVEYING MOTOR 3.7KW
    POLISHING MOTOR 0.55KW*4/ 1400rpm
    END CUTTING MOTOR 0.37KW*2
    GLUE BOX HEATER 2KW
    ROUGH TRIMMING MOTOR 0.55KW*2
    AUXILIARY HEATING  0.15KW
    FINE TRIMMING MOTOR 0.55KW*2
    ELECTRIC LIFTING MOTOR 0.37KW

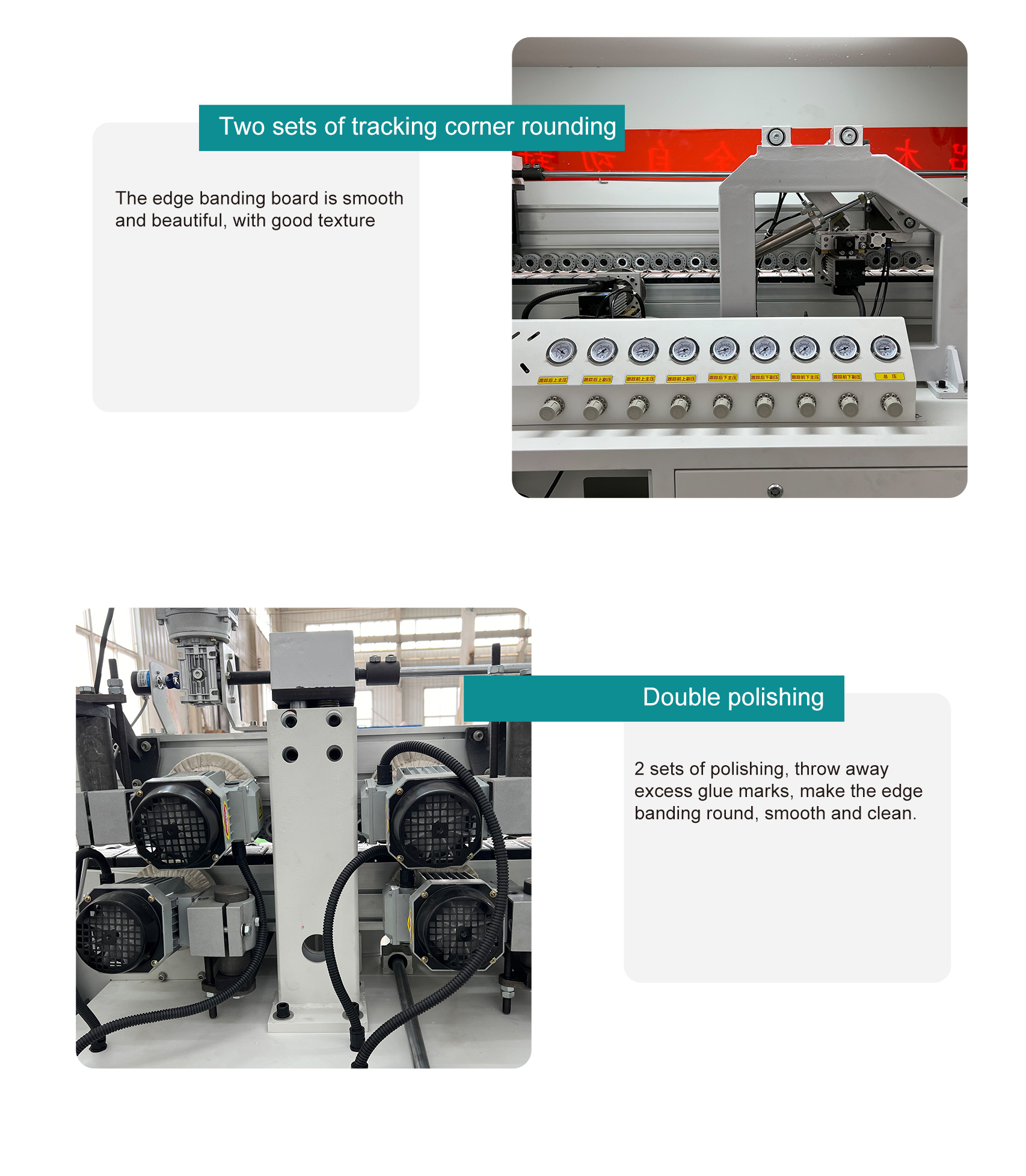

    TRACKING CORNER ROUNDING MOTOR 0.37KW*2
    PRE-MILLING MOTOR 2.2KW/2
    DIMENSIONS 6910*830*1600mm
  •

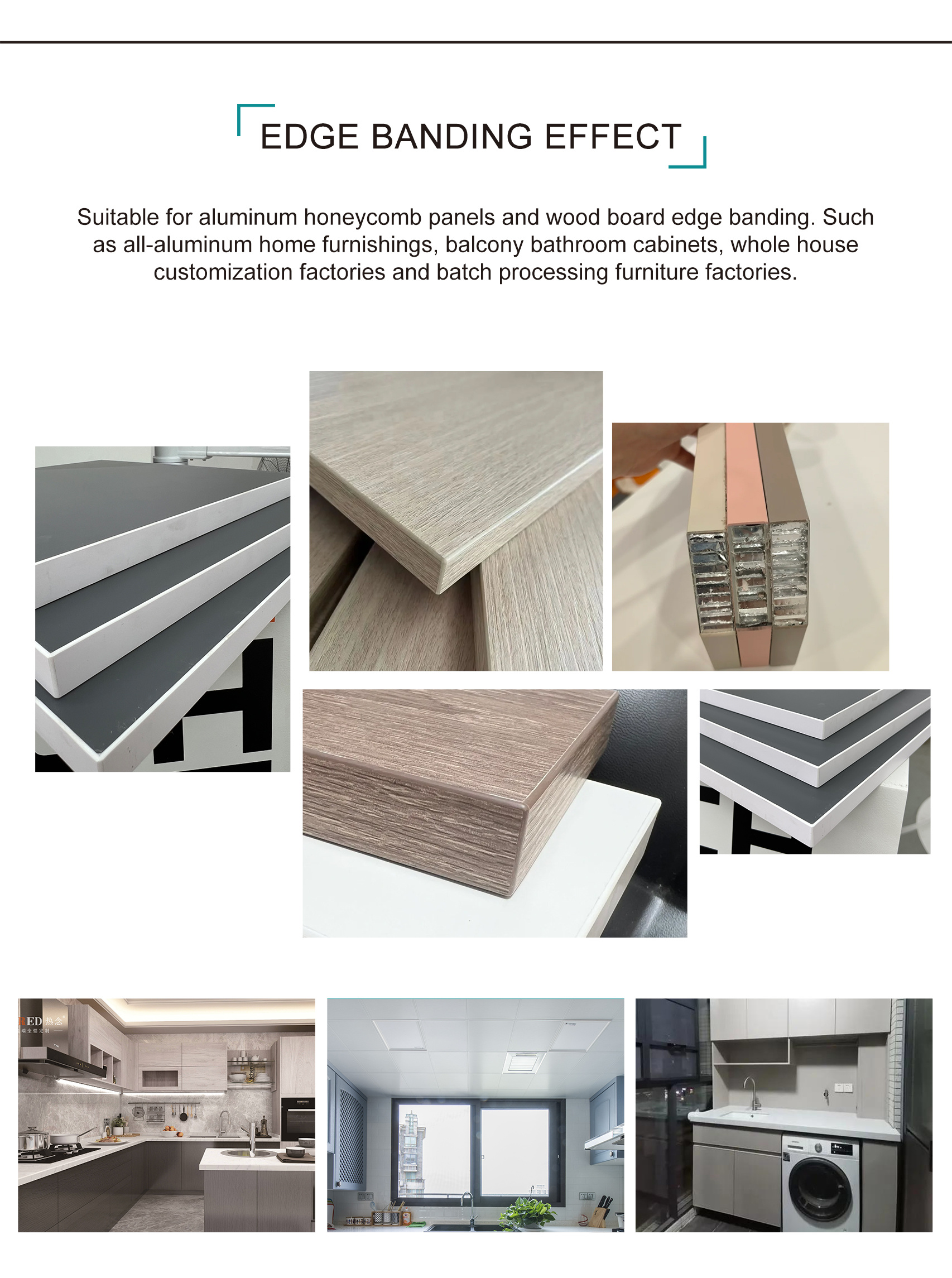

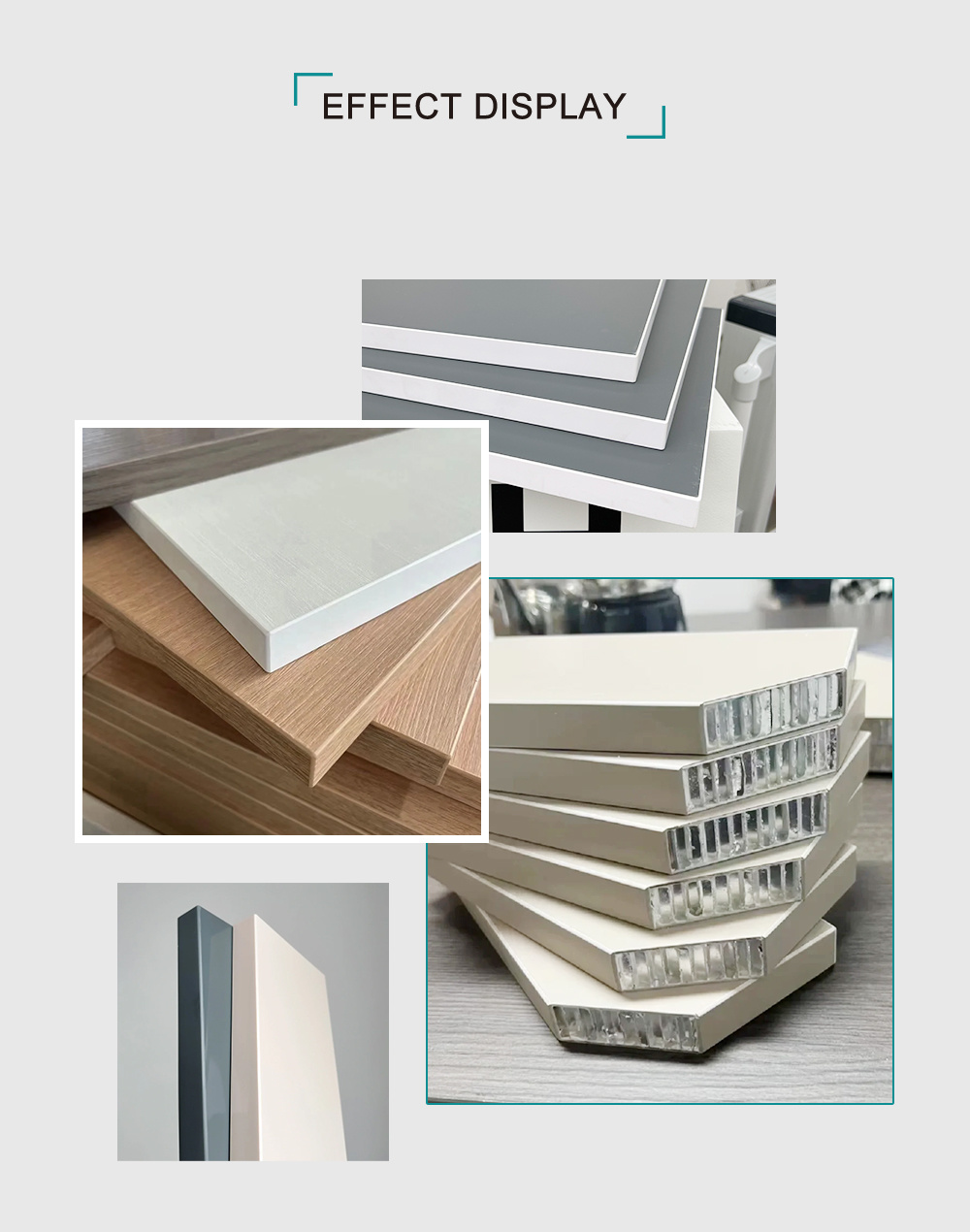

Effect Of Sheet

Straight Edge-6

Straight Edge

Straight Edge-5

Straight Edge

Straight Edge-3

Straight Edge

Straight Edge-2

Straight Edge

Straight Edge-1

Straight Edge

Straight Edge

Straight Edge
