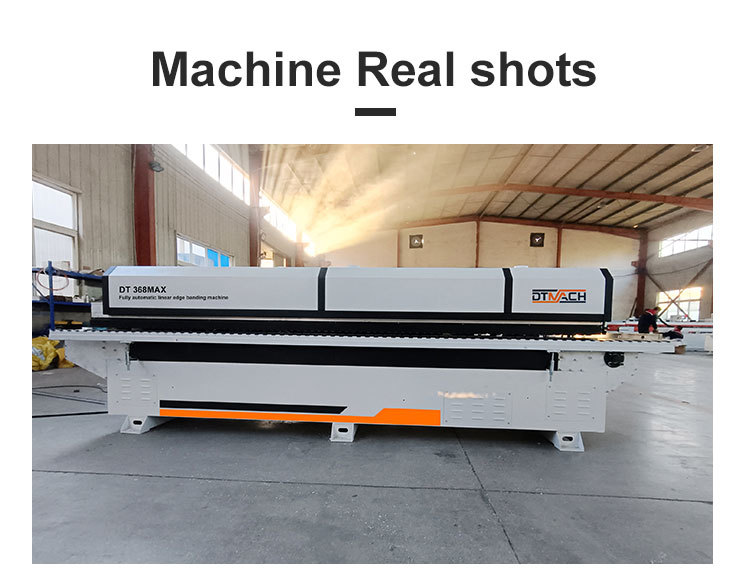

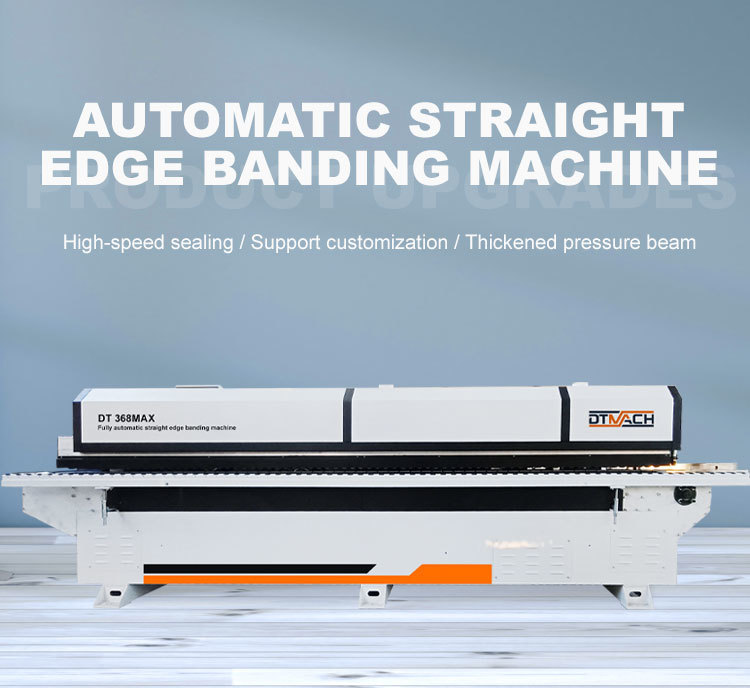

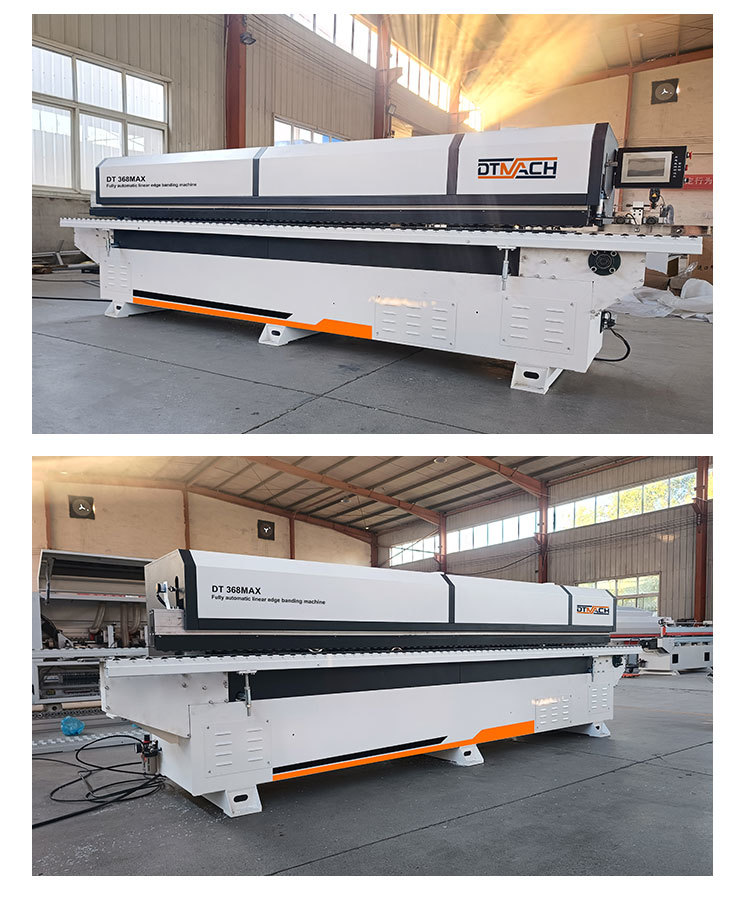

DT368MAX AUTOMATIC EDGE BANDING MACHINE

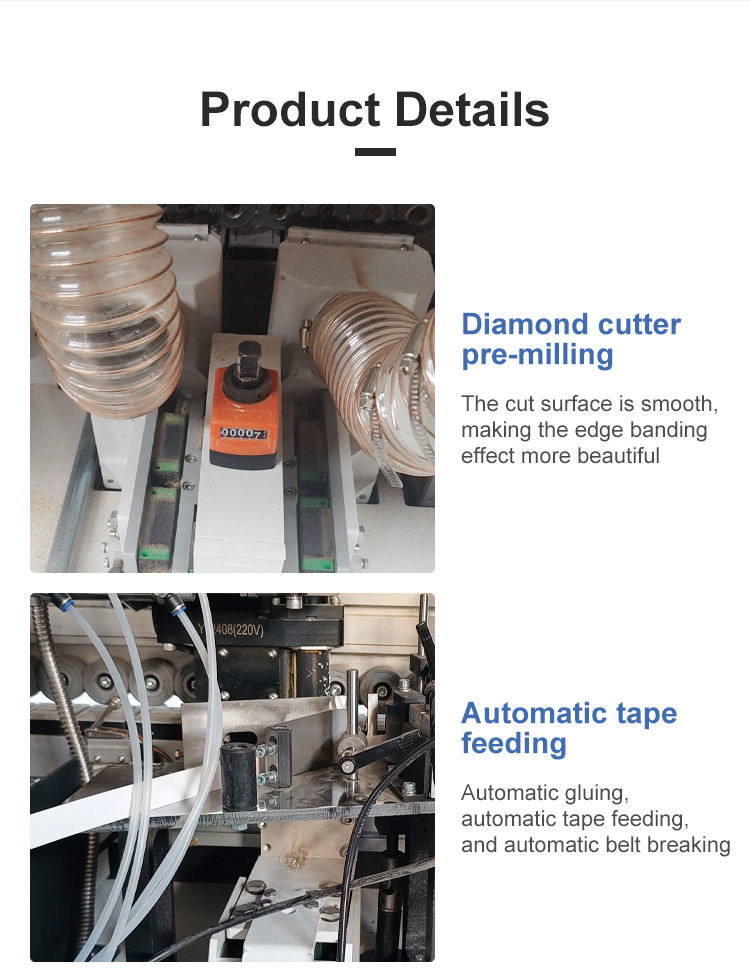

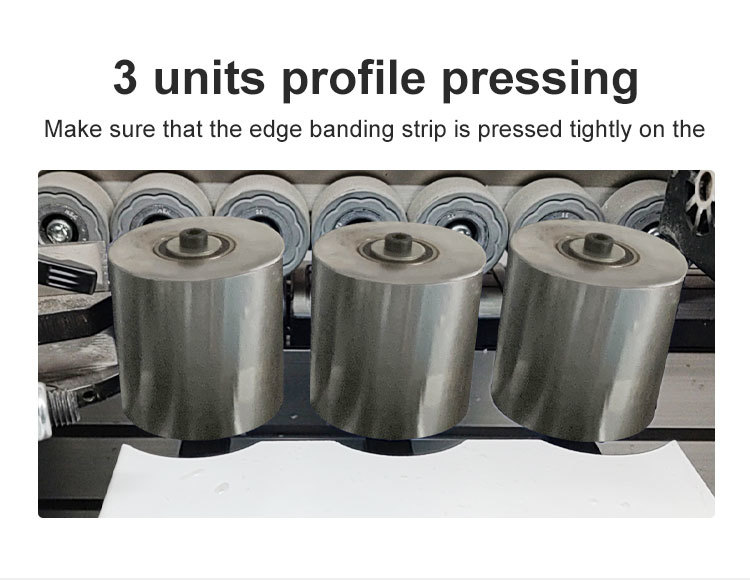

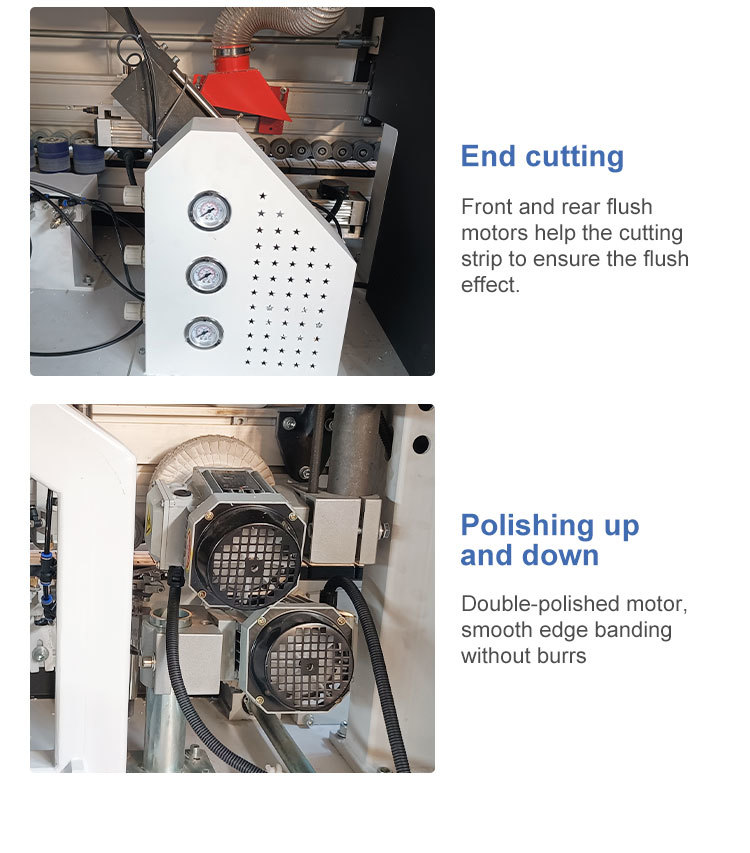

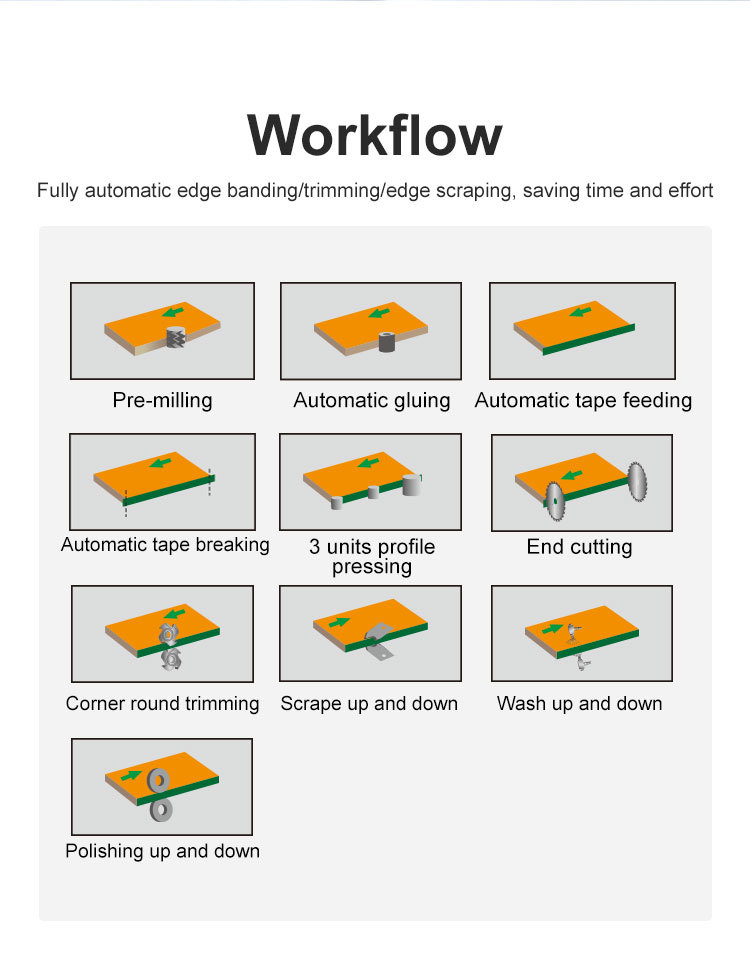

DT368MAX is a fully automatic straight edge banding machine, it is equipped with pre-miling, automatic gluing, automatic tape feeding, automatic tape breaking, 3 units profile pressing, end cutting, corner round trimming, scrape up and down, wash up and down, polishing up and down.

  • Video
  • Product Description
  • Parameter
  • Advantages
    • Commodity name: DT368MAX AUTOMATIC EDGE BANDING MACHINE

    DT368MAX is a fully automatic straight edge banding machine, it is equipped with pre-miling, automatic gluing, automatic tape feeding, automatic tape breaking, 3 units profile pressing, end cutting, corner round trimming, scrape up and down, wash up and down, polishing up and down.

    Key words:
    • DT368MAX
  •

  • DETAIL PARAMETERS

    THICKNESS OF EDGING 0.8-2mm
    PLATE THICKNESS 15-50mm
    CONVEYING SPEED 15m/min
    CONVEYING MOTOR 1.5KW 32shaft
    MILLING MOTOR

    1.8KW x2

    Frequency conversion speed regulation

    GLUE BOX MOTOR 0.55KW
    GLUE BOX HEATER 2KW
    TRACKING MOTOR

    0.75KW x2

    ELECTRIC LIFTING MOTOR 0.37KW
    END CUTTING MOTOR

    0.37KW x2

    UPPER AND LOWER POLISHING MOTOR

    0.55KW x2

    TOTAL POWER 11.36KW
    DIMENSIONS 4310*825*1171mm

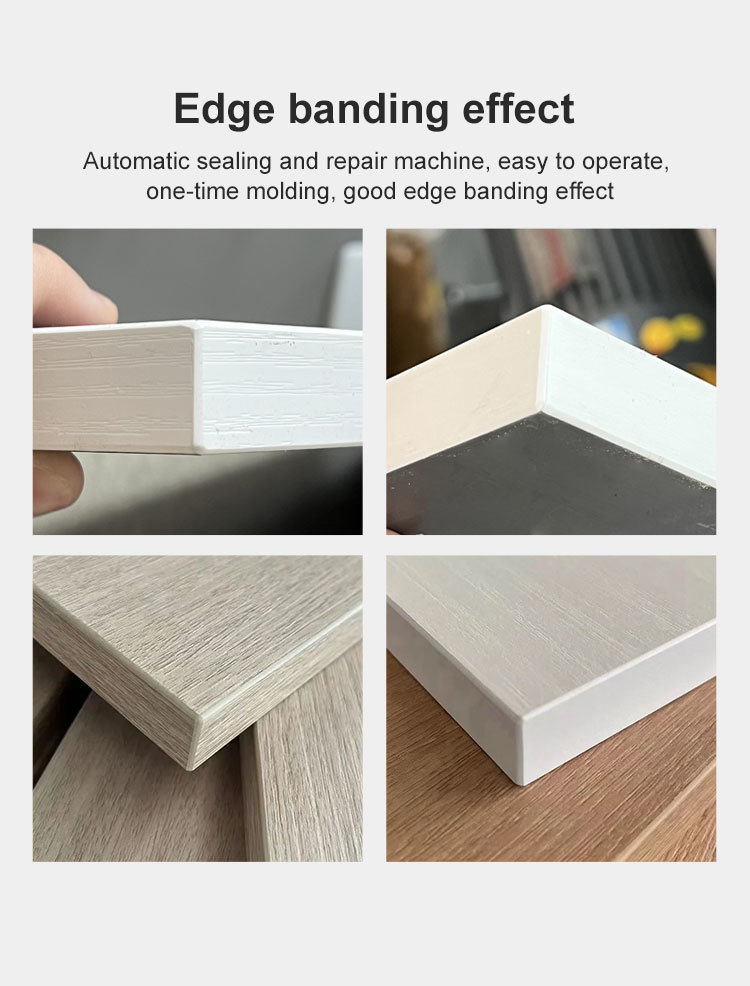

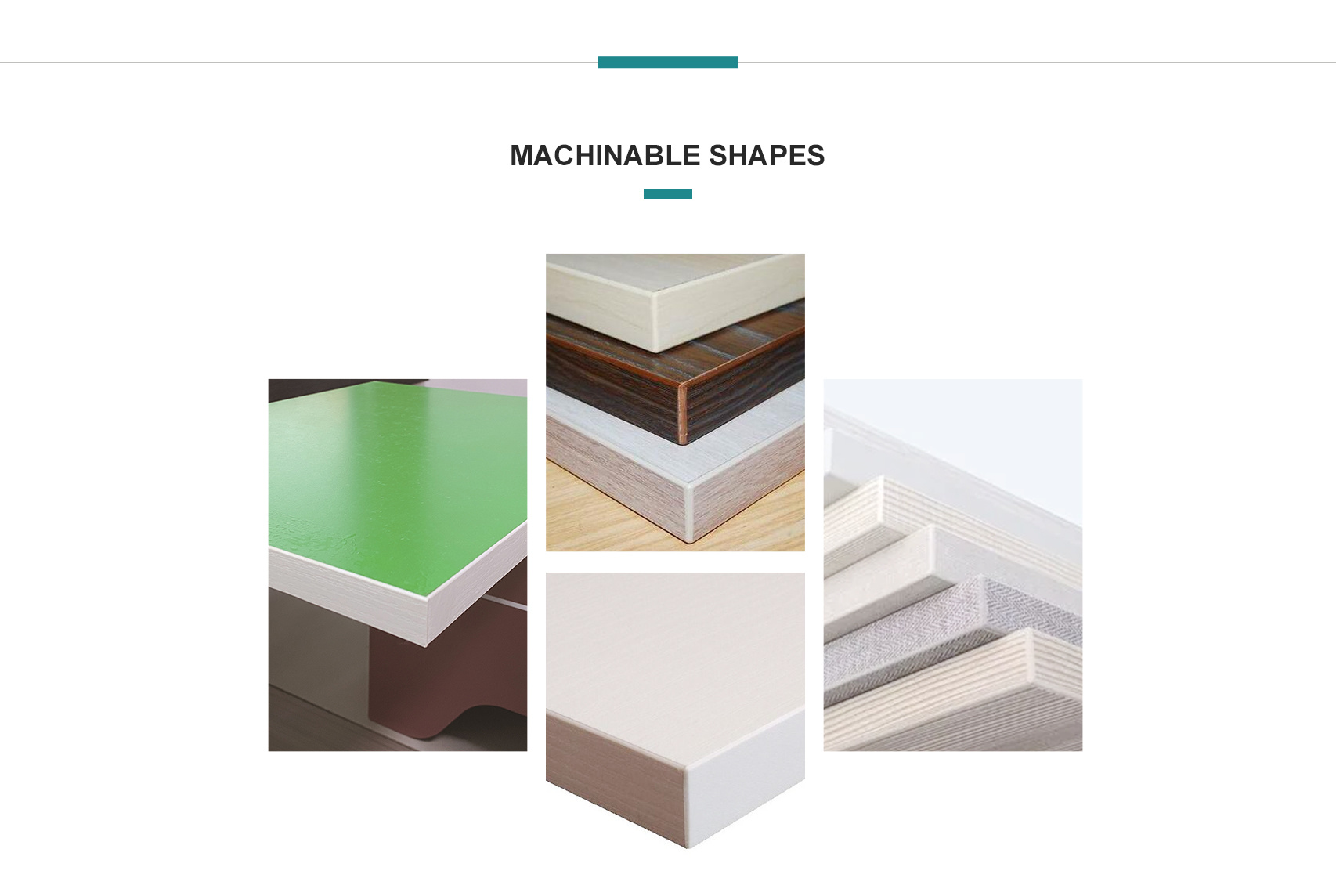

Effect Of Sheet

T-3-3

Flat Shape

T-3-2

Flat shape

T-3-1

Flat Shape
