DT-481X AUTOMATIC EDGE BANDING MACHINE

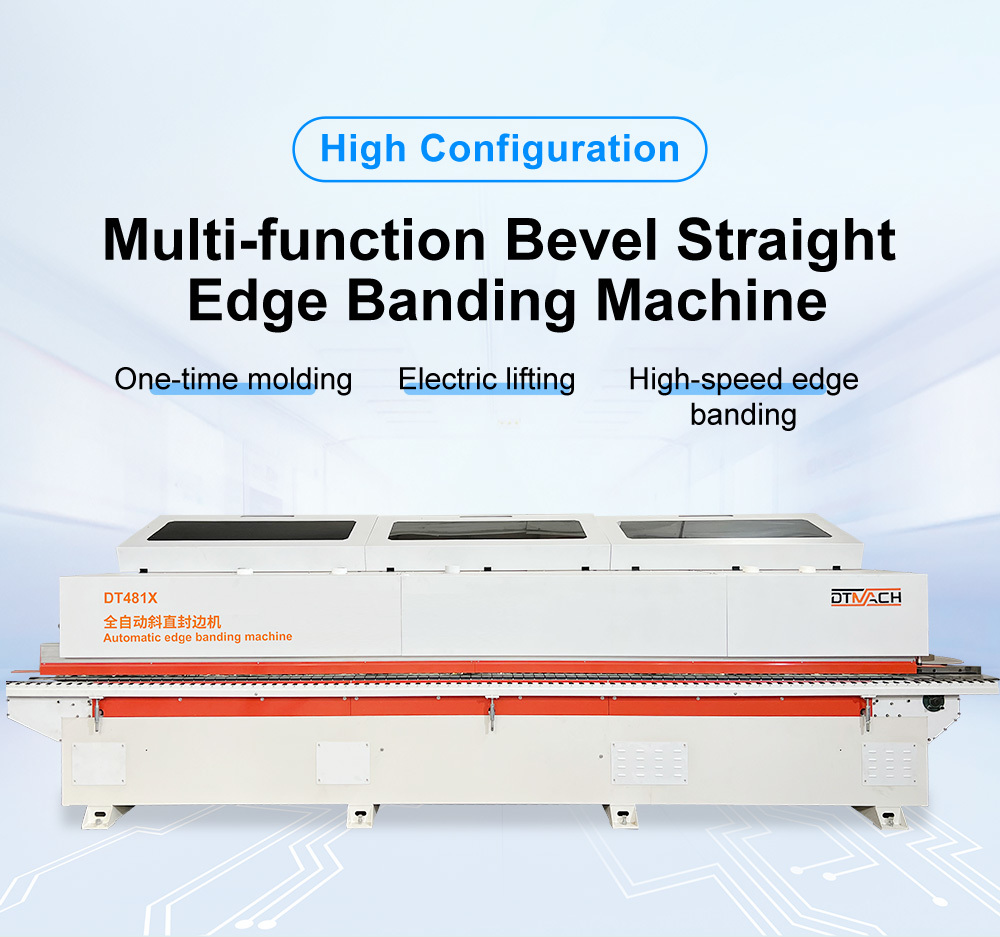

DT-481X is a multifunctional fully automatic edge banding machine, mainly processing bevel straight edges, straight edges, pure bevel edges and straight on all sides.

+86 153 1881 6295

admin@dongtengmach.com

E-mail

Category:

Edge Banding Machine

Inquiry

Back to list

Video
Product Description
Parameter
Advantages

- Commodity name: DT-481X AUTOMATIC EDGE BANDING MACHINE
DT-481X is a multifunctional fully automatic edge banding machine, mainly processing bevel straight edges, straight edges, pure bevel edges and straight on all sides.
Key words:
- DT-481X

DETAIL PARAME

THICKNESS OF THE EDGING		0.8-2mm
PLATE THICKNESS	BEVELED STRAIGHT EDGE	15-35mm
	PURE OBLIQUE EDGE	18-25mm
	STRAIGHT EDGE	15-45mm
CONVEYING SPEED		10-16m/min
SLOTTED MOTORS		600W
STRAIGHT EDGE MILLING MOTOR		1.8KW x2 frequency conversion speed regulation
BEVELED EDGE MILLING MOTOR		6KW x2 frequency conversion speed regulation
PLASTIC BOX MOTOR		0.55KW
PLASTIC BOX HEATERS		2KW
END CUTTING MOTOR		0.37KW x2 frequency conversion speed regulation
CHAMFERING MOTOR		2.2KW x2 inverter speed regulation
REFINE MENT OF THE MOTOR		0.55KW x2 inverter
AUXILIARY HEATING		2KW+2KW+500W
POLISHING MOTOR		1.1KW
ELECTRIC LIFTING MOTOR		0.37KW
TOTAL POWER		36.56KW
DIMENSIONS		59108301450mm

DT-481X is a multifunctional fully automatic edge banding machine, mainly processing bevel straight edges, straight edge, pure bevel edges and straight on all sides.

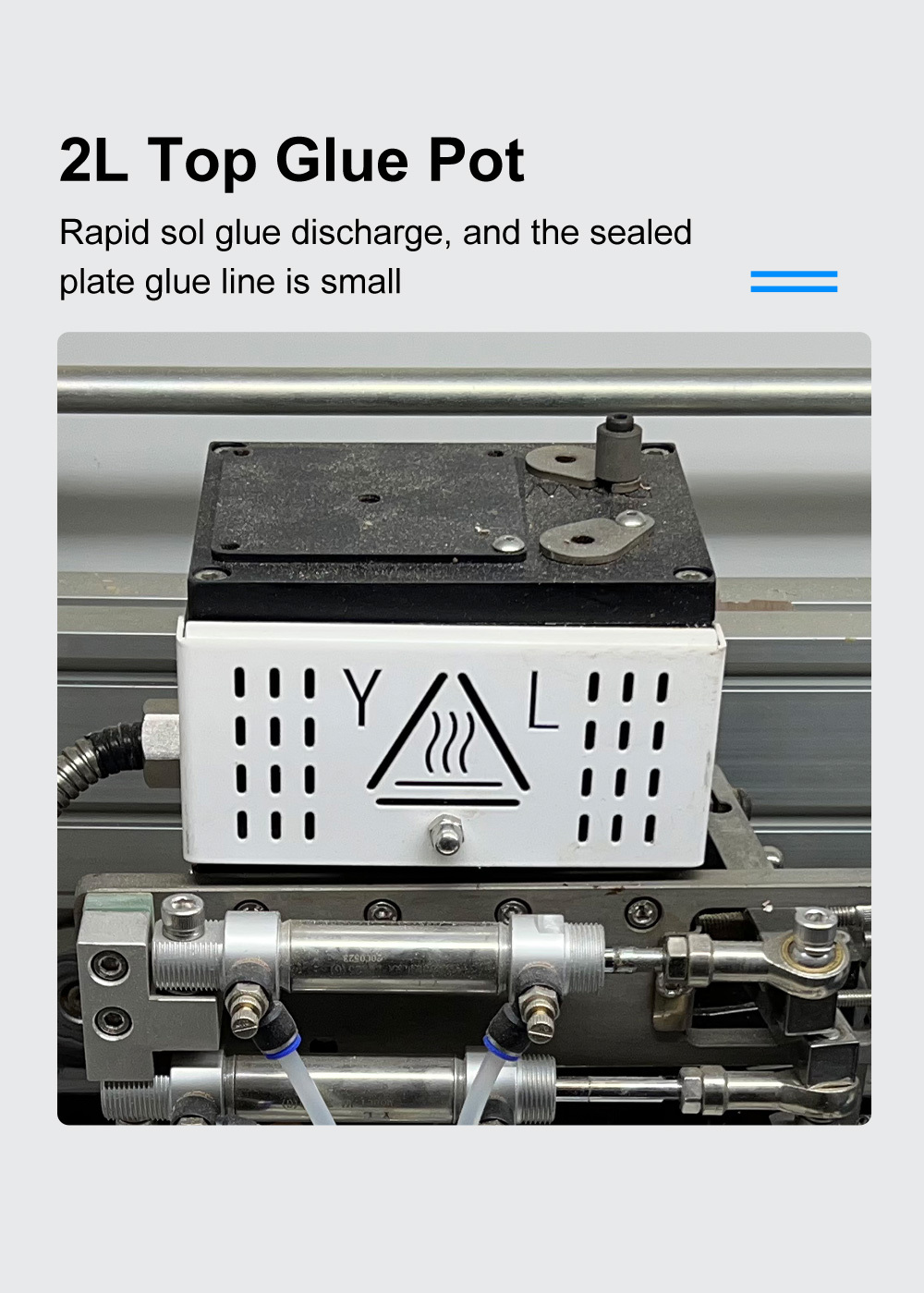

1. 2L top glue pot, Rapid sol glue discharge, and the sealed plate glue line is small.

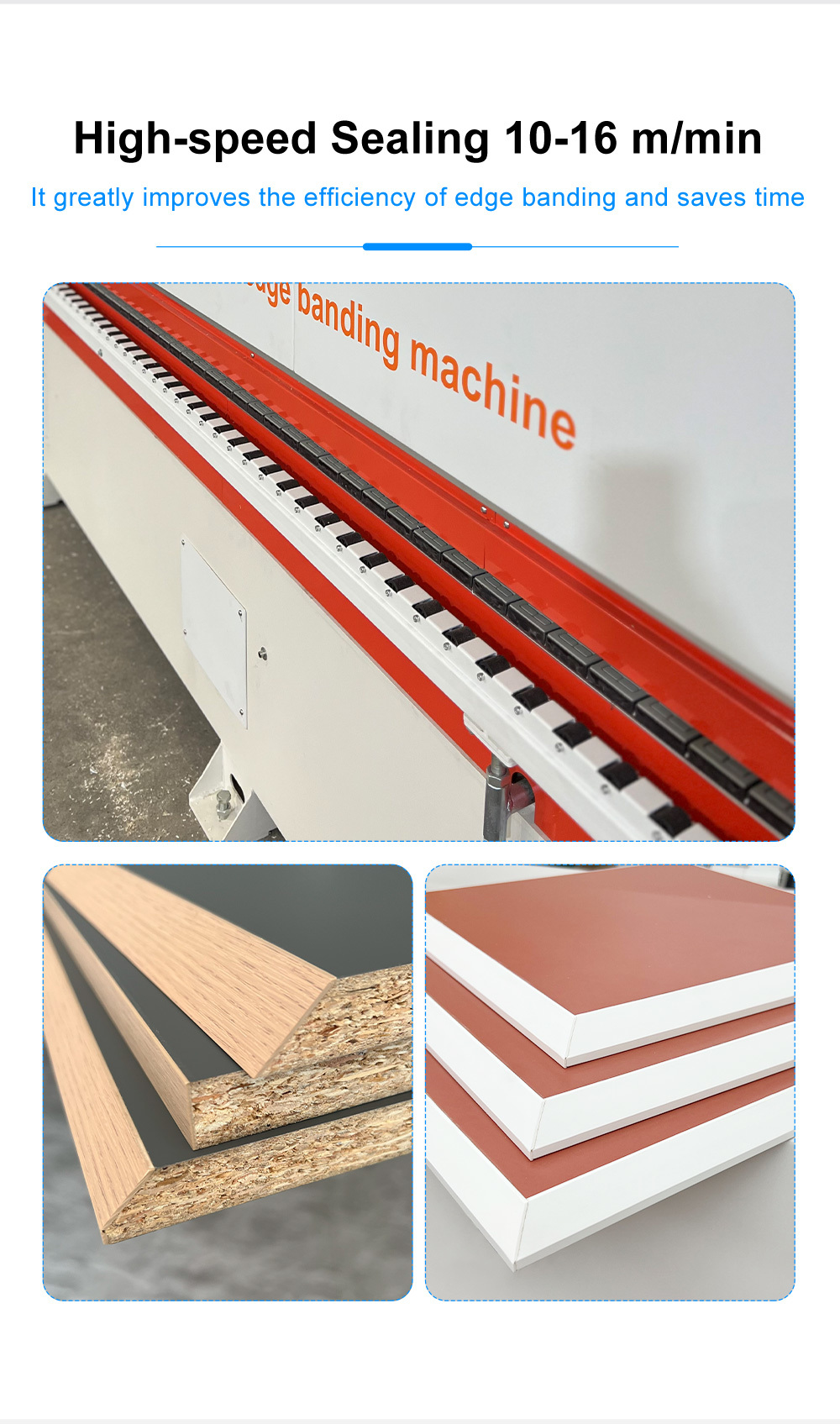

2. High-speed sealing 10-16 m/min, lt greatly improves the efficiency of edge banding and saves time.

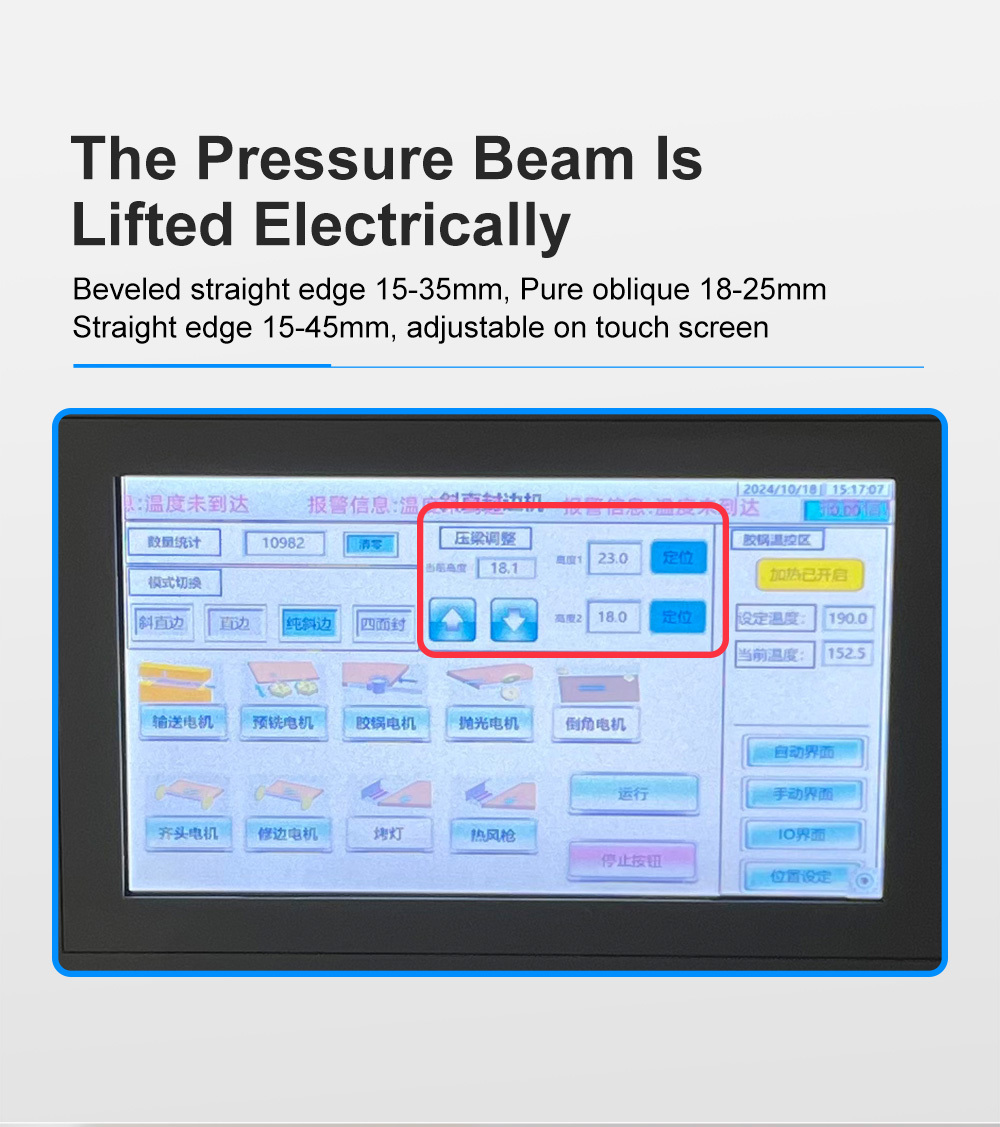

3. The pressure beam Is lifted electrically, Beveled straight edge 15-35mm,Pure oblique 18-25mm, Straight edge 15-45mm,adjustable on touch screen.

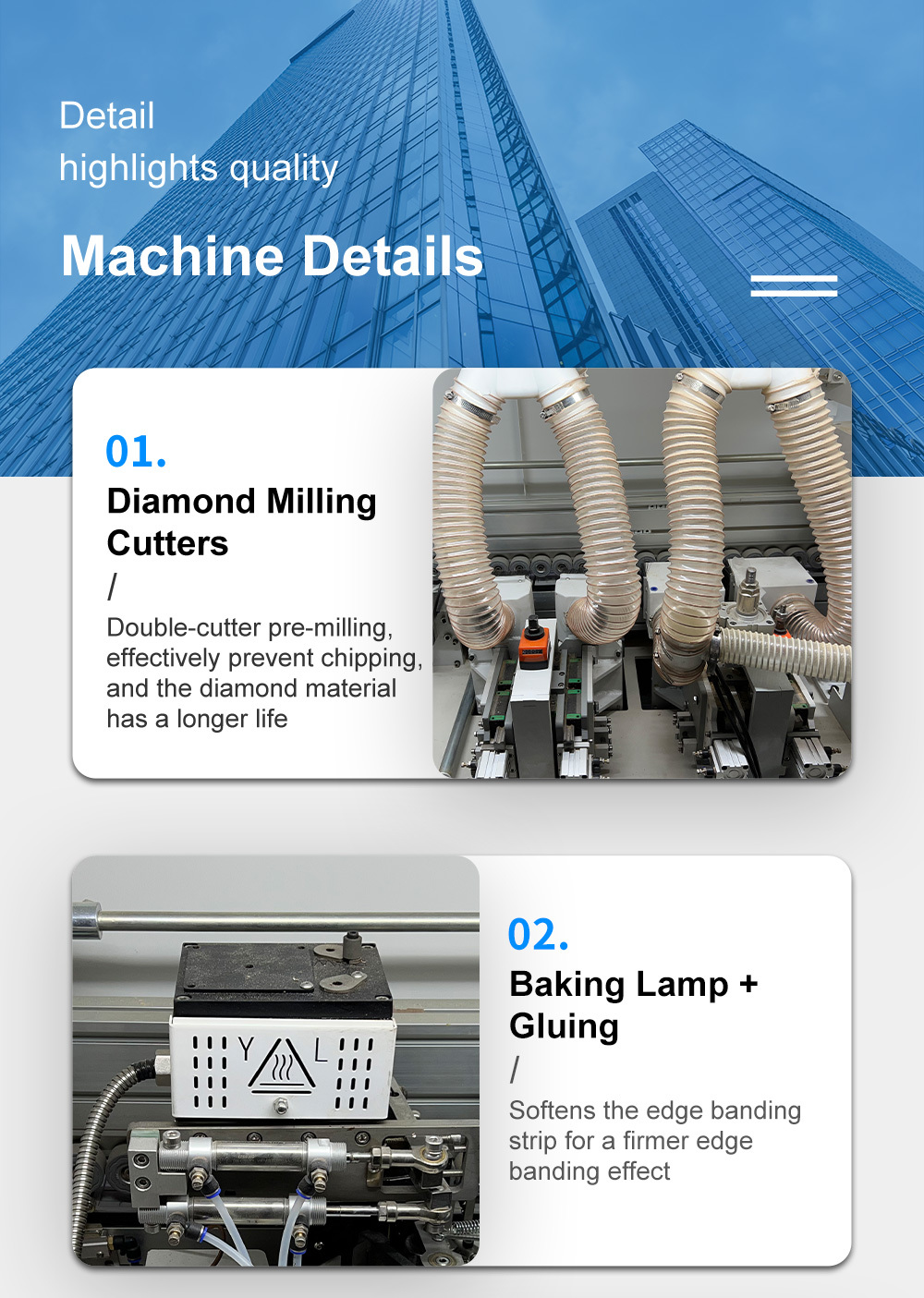

4.Diamond milling cutters, double-cutter pre-milling effectively prevent chipping,and the diamond material has a longer life.

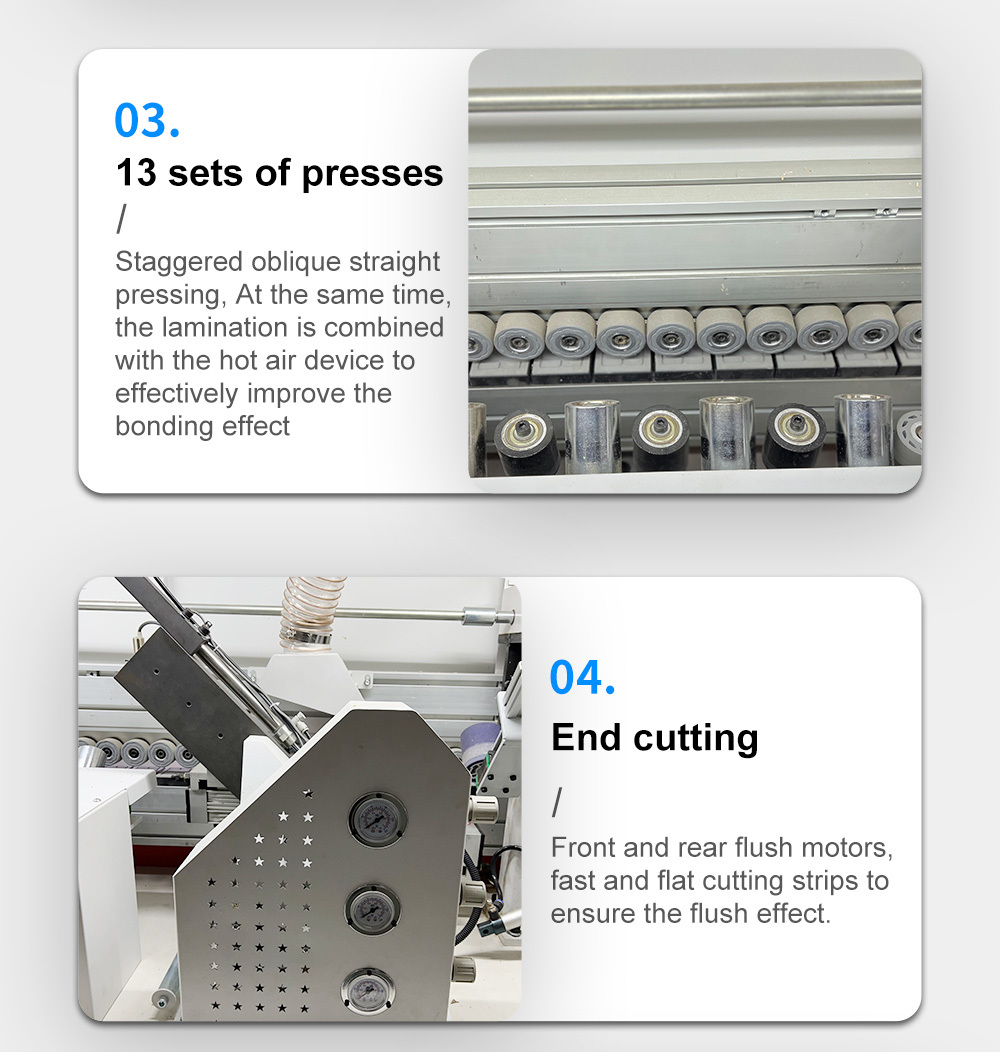

5. 13 sets of presses staggered oblique straight pressing,at the same time, the lamination is combined with the hot air device to effectively improve the bonding effect.

F350 AUTOMATIC EDGE BANDING MACHINE

DT-471X AUTOMATIC EDGE BANDING MACHINE

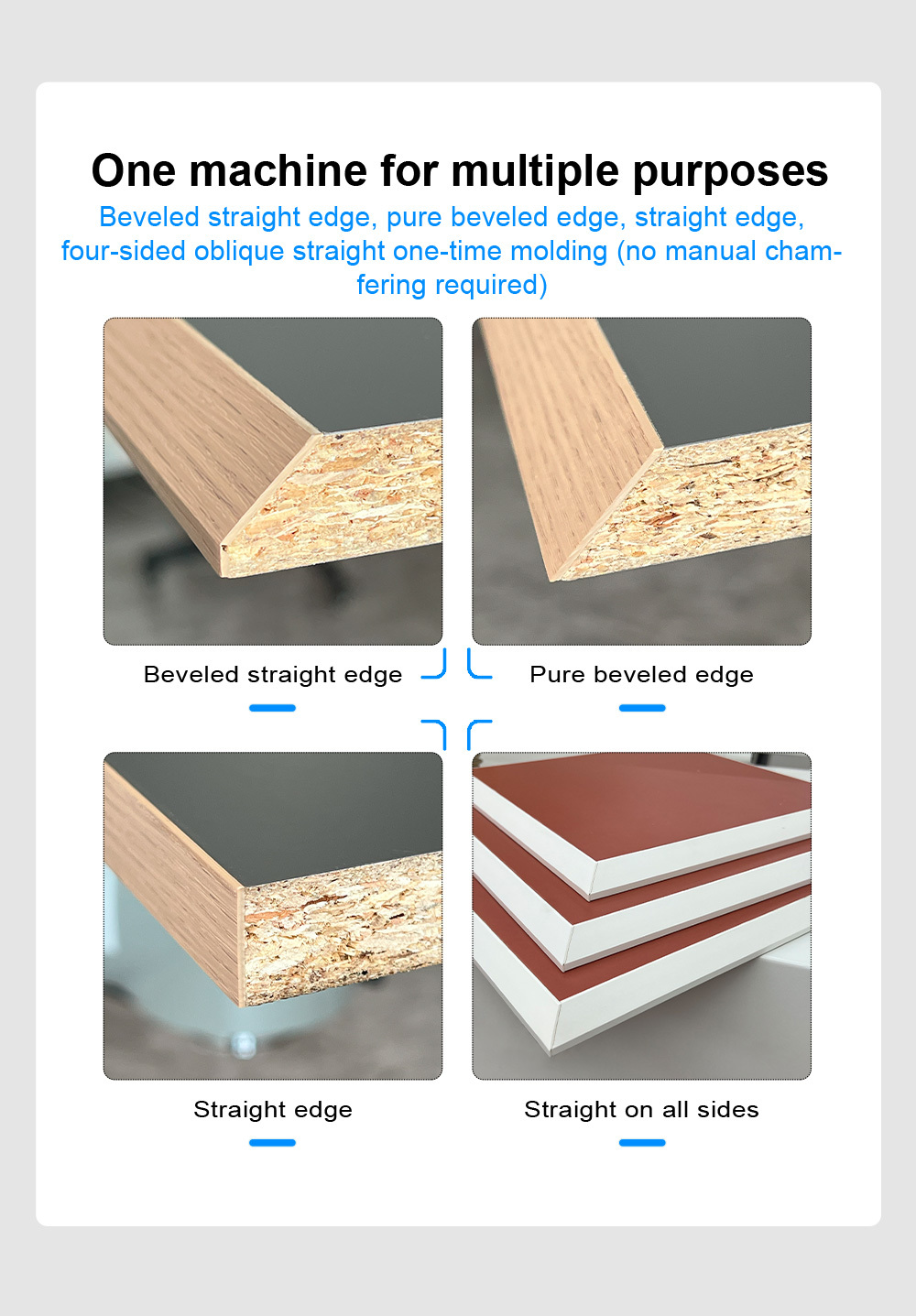

Effect Of Sheet

Straight Shape

X Shape

Pure Bevel Shape

X Shape

Pure Bevel Edge
