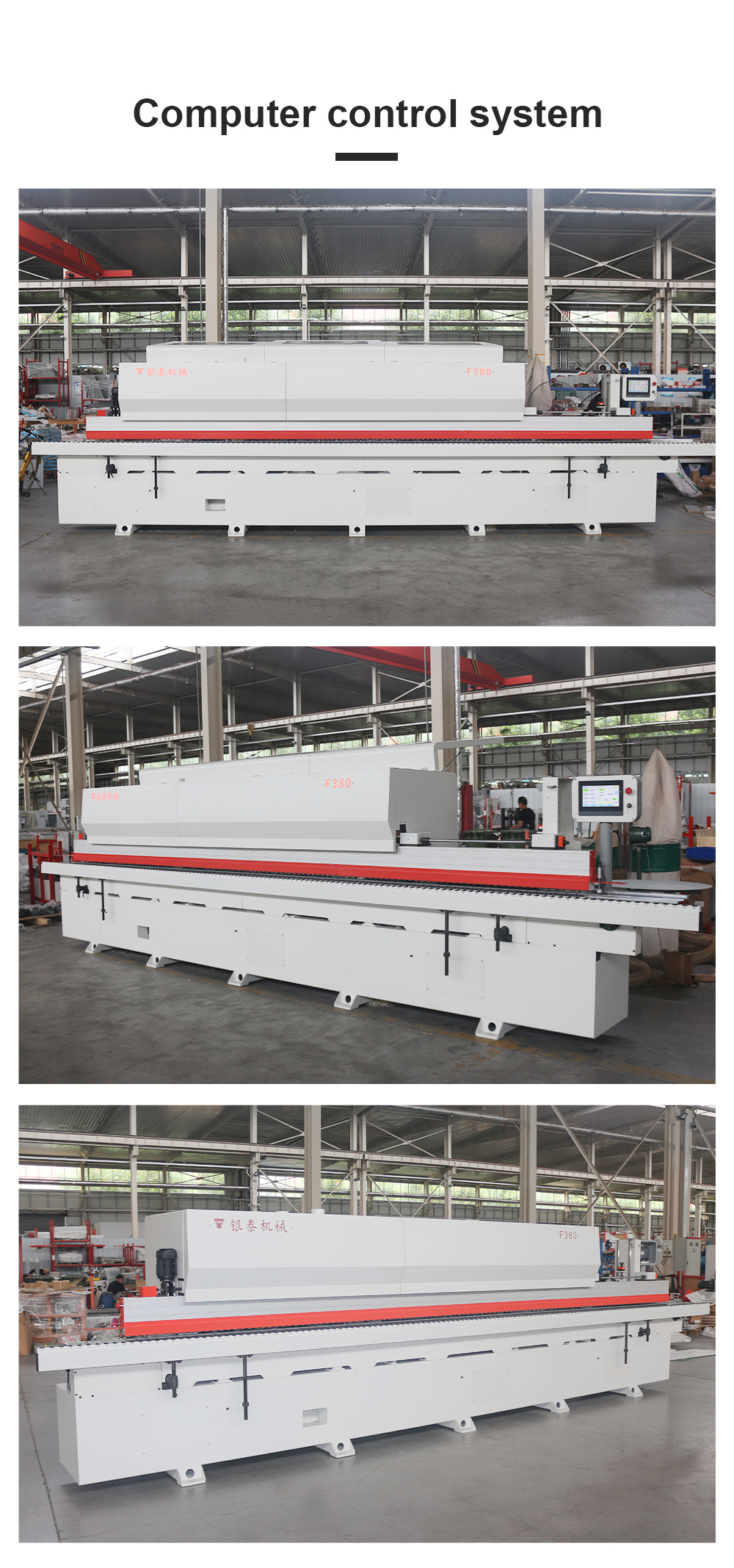

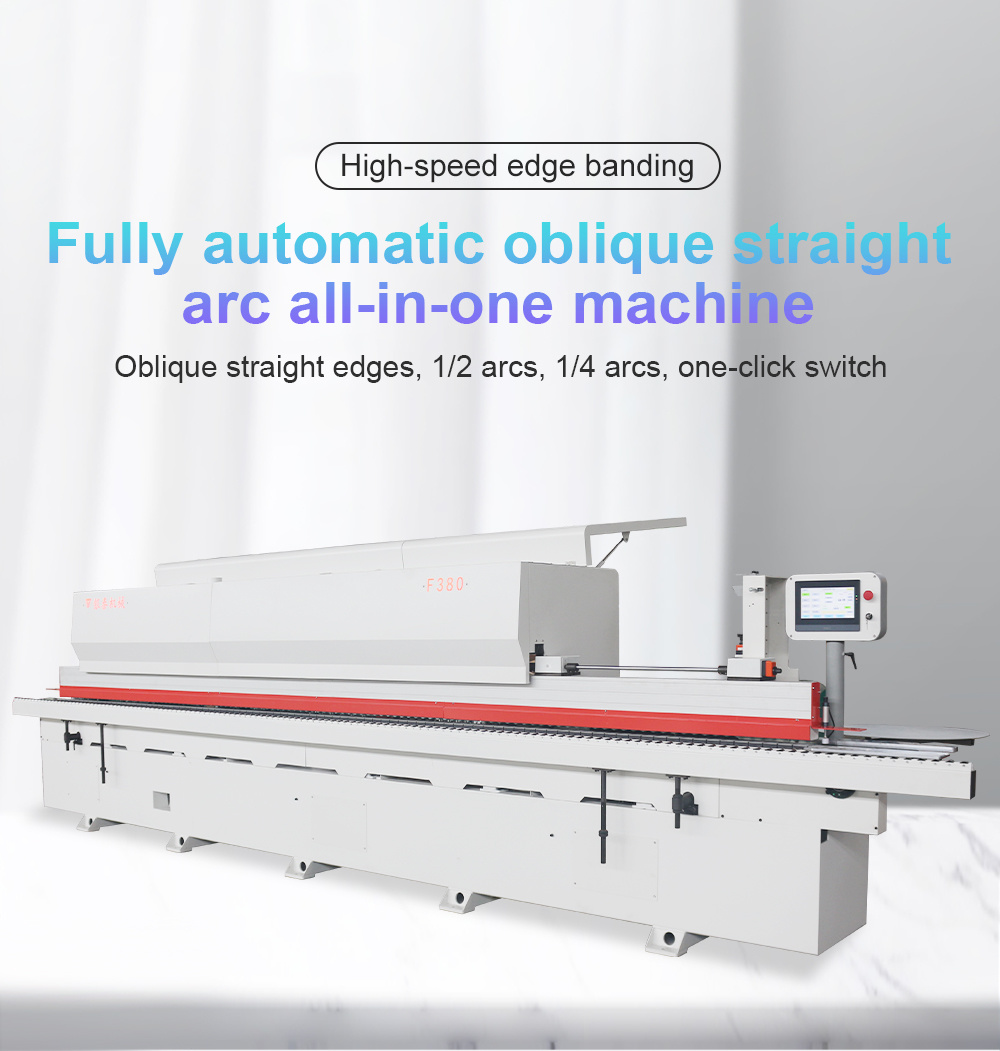

F380 AUTOMATIC EDGE BANDING MACHINE

F380 fully automatic edge banding machine, one-button switch between bevel straight edge, arc, and 1/4 arc

E-mail

Category:

- Commodity name: F380 AUTOMATIC EDGE BANDING MACHINE
F380 fully automatic edge banding machine, one-button switch between bevel straight edge, arc, and 1/4 arc
Key words:
- F360

DETAIL PARAMETERS

SUPPLY VOLTAGE	380V/3 phase 4-wire /50HZ
TOTAL POWER	29KW
EDGE BANDING SHAPE	Oblique straight edge, 1/2 arc, 1/4arc
EDGE BANDING THICKNESS	Oblique straight edge 0.5-2mm; arc 0.5-0.8mm
AIR PRESSURE	0.6-0.8Mpa
SLOTTING HEIGHT	3-23mm
STRAIGHT EDGE HEIGHT	≥2mm after milling
WIDTH OF EDGE BANDING	14-70mm
SEALING PLATE SIZE	≥250*150mm (250 is the direction of edge banding)
SHEET THICKNESS	Oblique straight 14-25mm; arc 18mm
EDGE BANDING SPEED	12m/min
GLUE POT TEMPERATURE	110℃-210℃
EXTERNAL VACUUM	Vacuum port φ100mmx5pcs
GLUE POT CAPACITY	2600ml
PACKAGE SIZE	700115180cm
WEIGHT	2400kg

1. One-touch switching between beveled and straight edges, circular arcs, and quarter-circles.

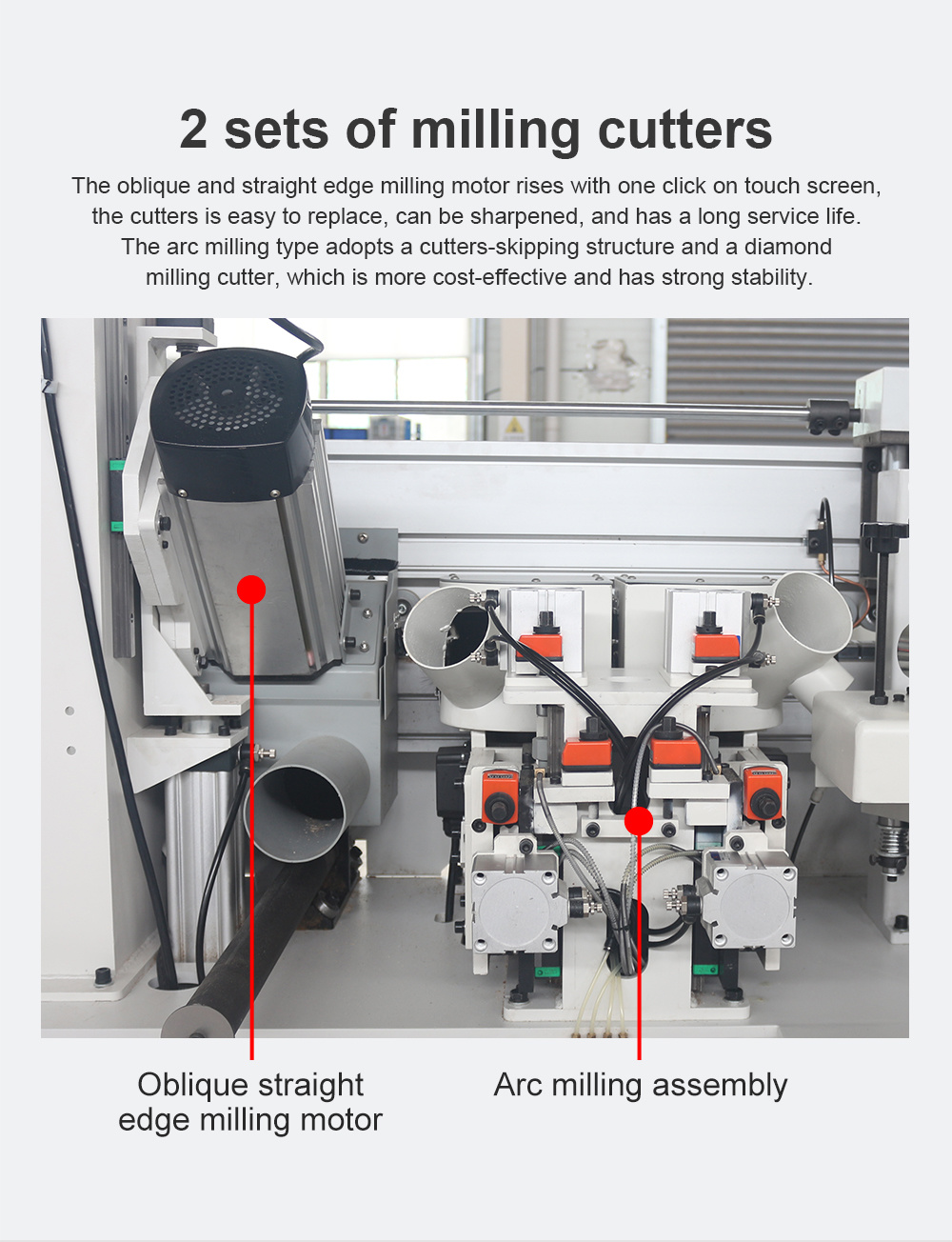

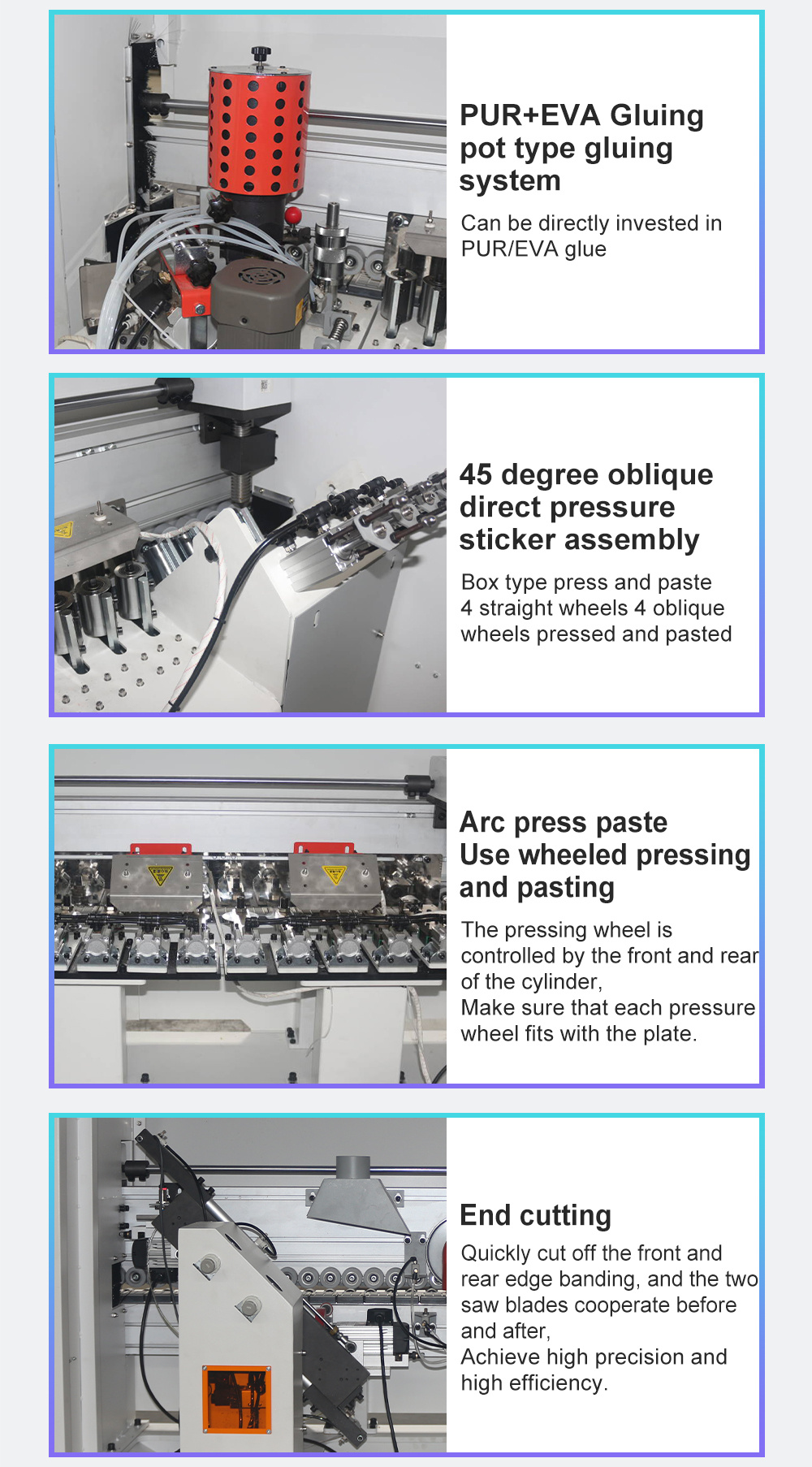

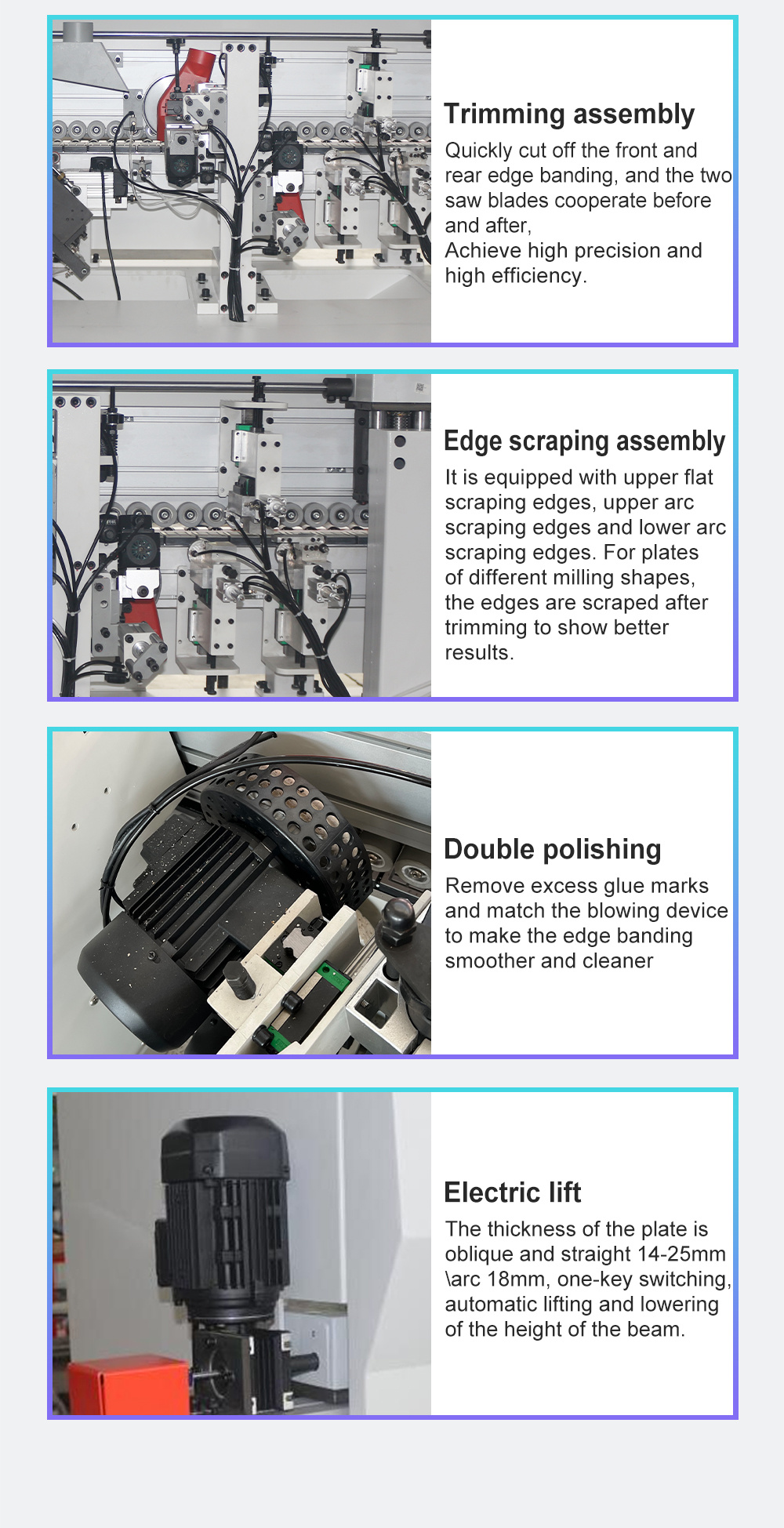

2. Two sets of milling tools, one for beveled and straight edges and one for circular milling, offer easy tool switching, high cost-effectiveness, and long service life.

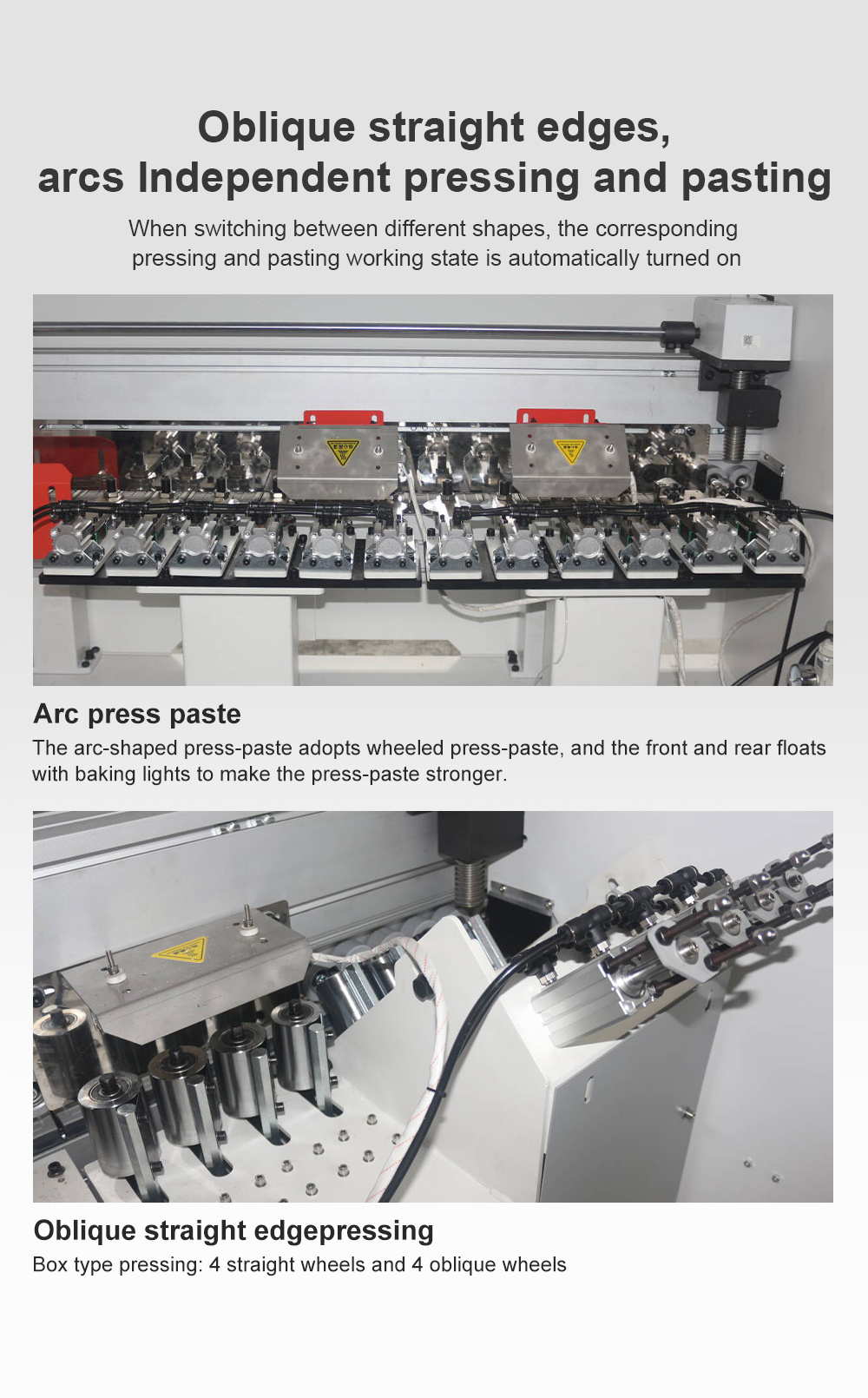

3. Independent presses for beveled and straight edges and circular arcs. The circular arc press utilizes a wheel-type press, which floats back and forth and is equipped with a heat lamp for a more secure press. The box-type press utilizes four straight wheels and four beveled wheels.

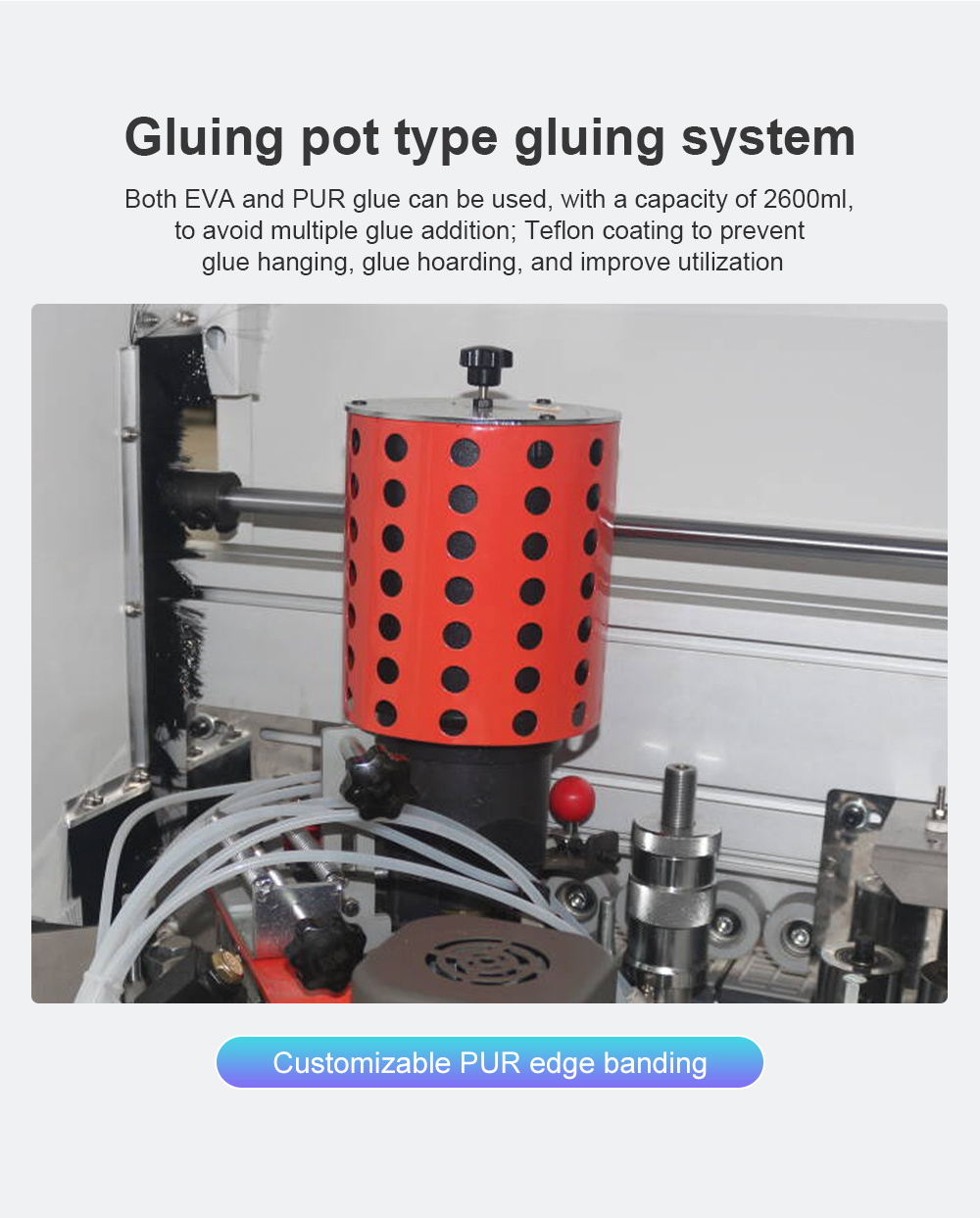

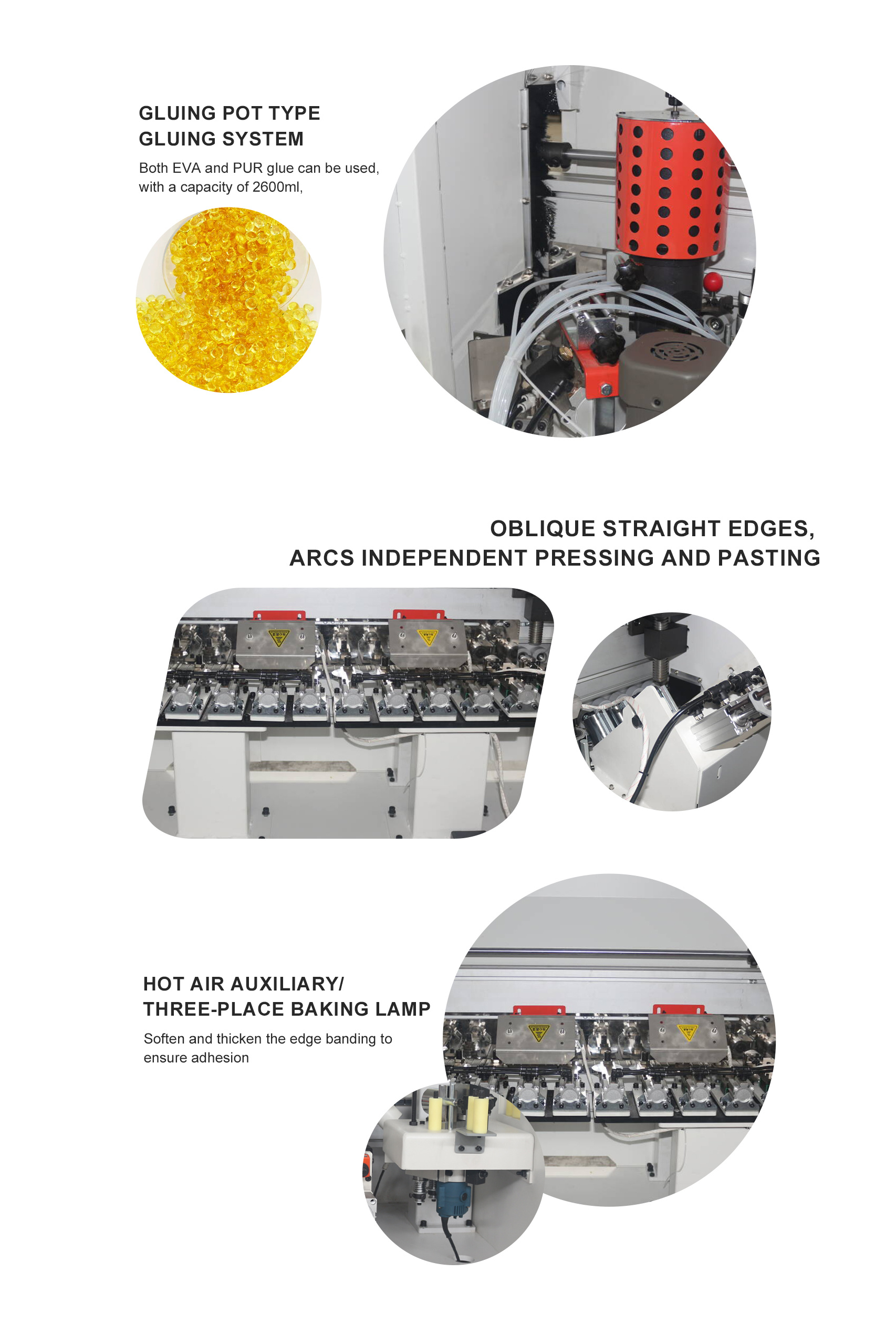

4. PUR/EVA dual-purpose adhesive with a 2600ml glue pot capacity, eliminating the need for frequent refills. Teflon-coated interior.

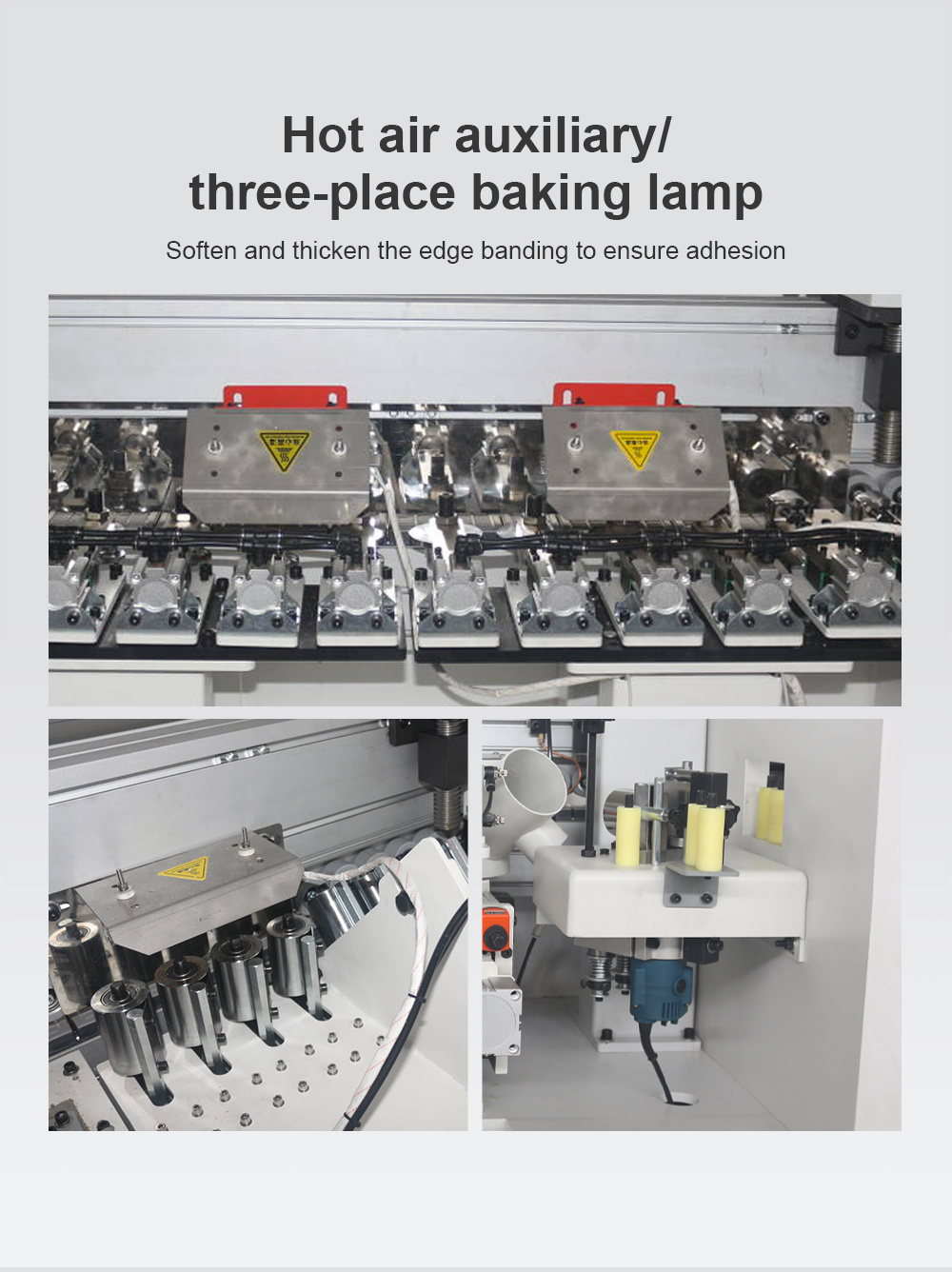

5. Hot air assist and three heat lamps soften thick edge banding to enhance adhesion.

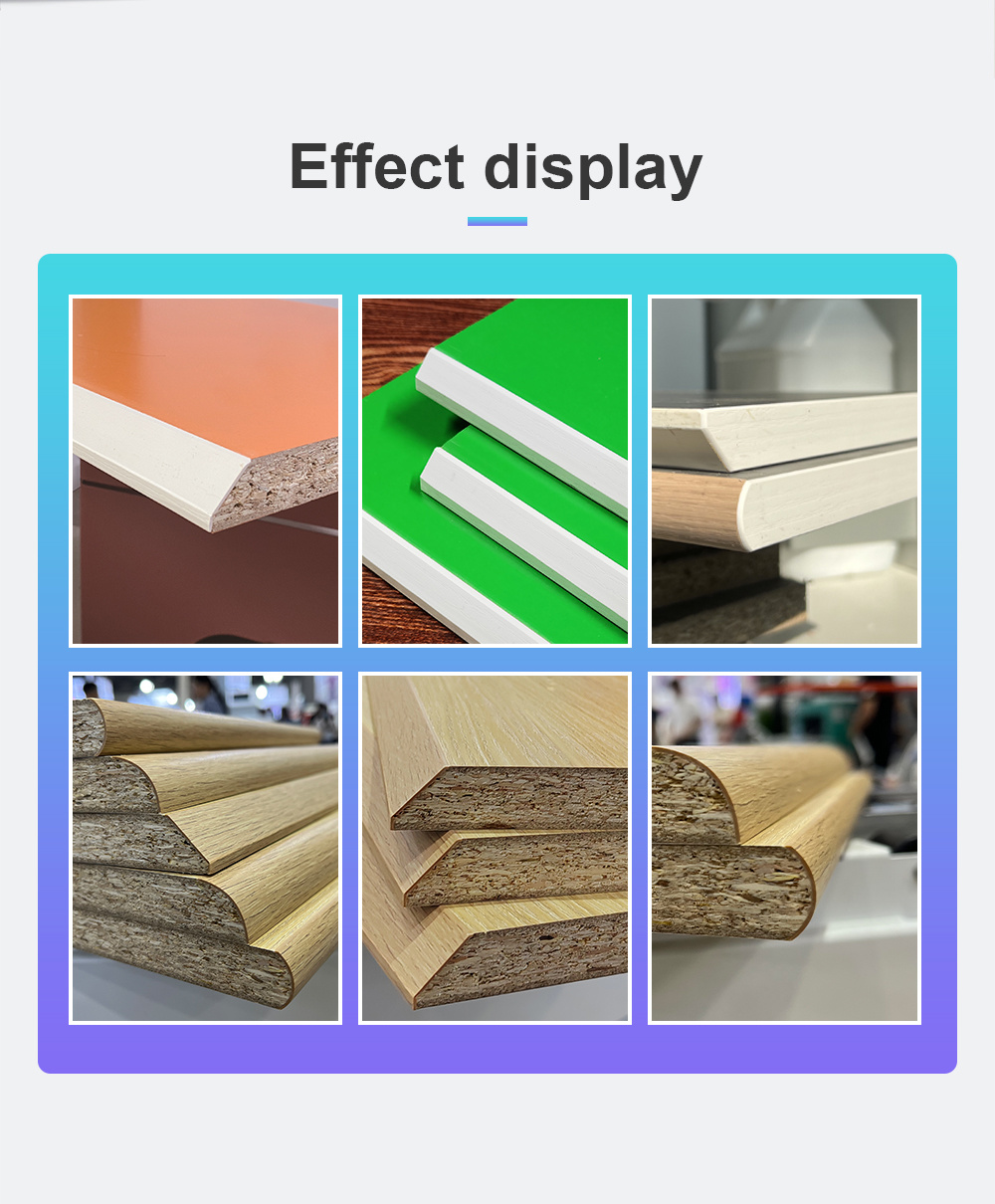

Effect Of Sheet

ARC SHAPE AND BEVEL STRAIGHT SHAPE

ARC SHAPE

BEVEL STRAIGHT SHAPE

ARC SHAPE
