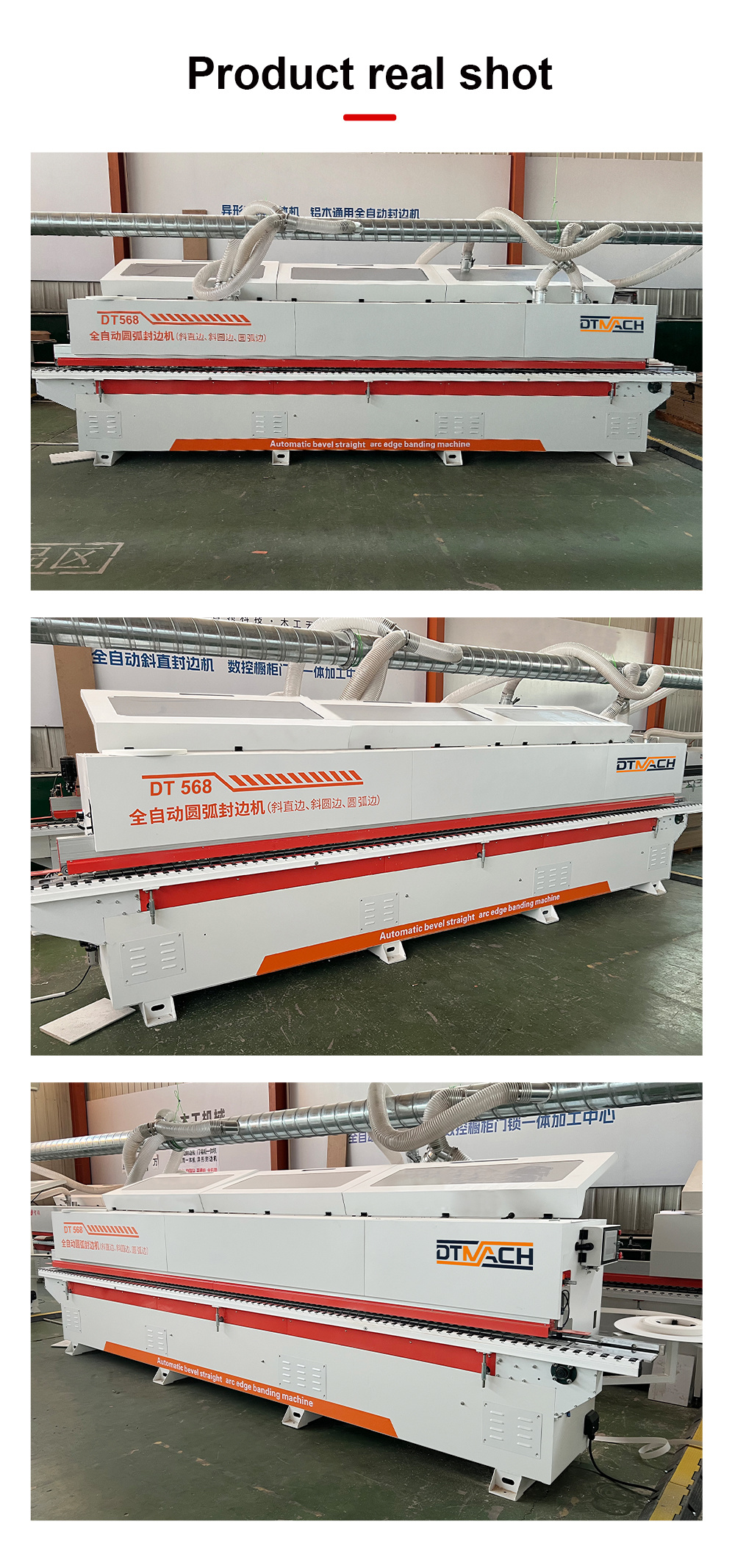

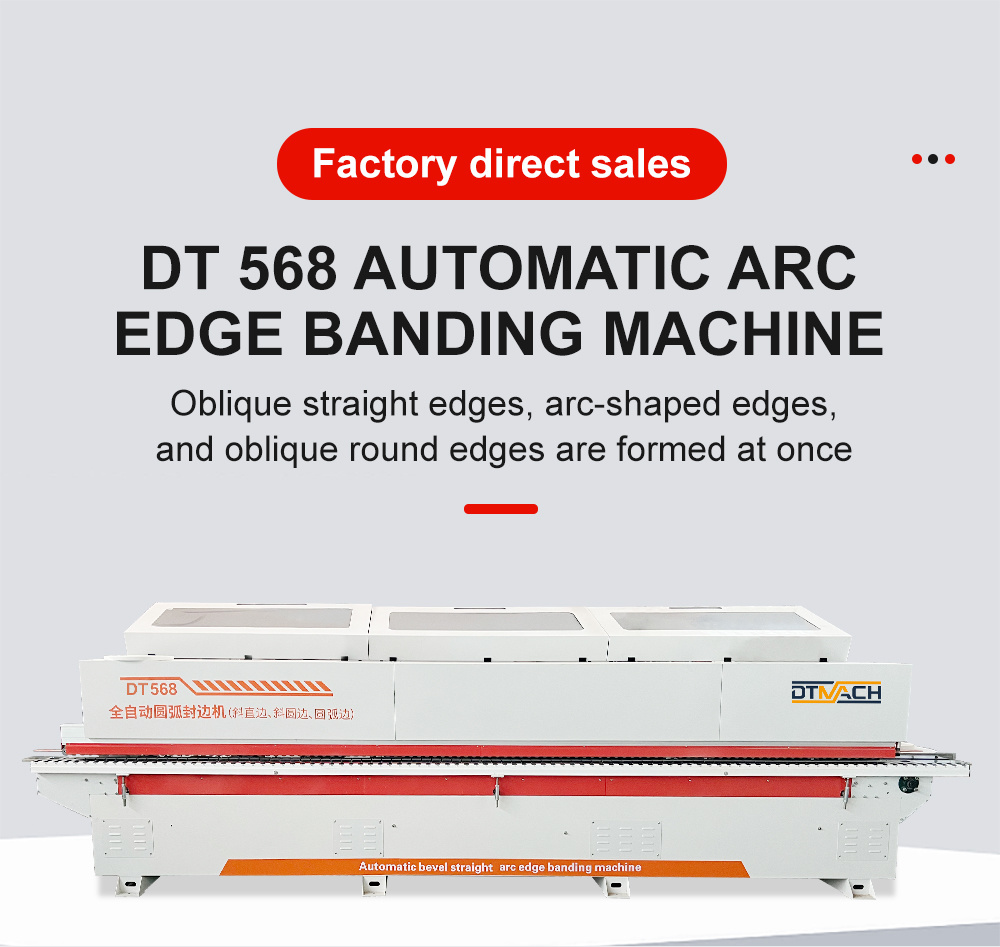

DT568 AUTOMATIC EDGE BANDING MACHINE
DT-568 is a multifunctional fully automatic edge banding machine, mainly processing oblique straight edge, arc edge and oblique round edge, high-speed edge banding 10-12m/min, easy to operation
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: DT568 AUTOMATIC EDGE BANDING MACHINE
DT-568 is a multifunctional fully automatic edge banding machine, mainly processing oblique straight edge, arc edge and oblique round edge, high-speed edge banding 10-12m/min, easy to operation
Key words:- DT568
-
-
DETAIL PARAMETERS

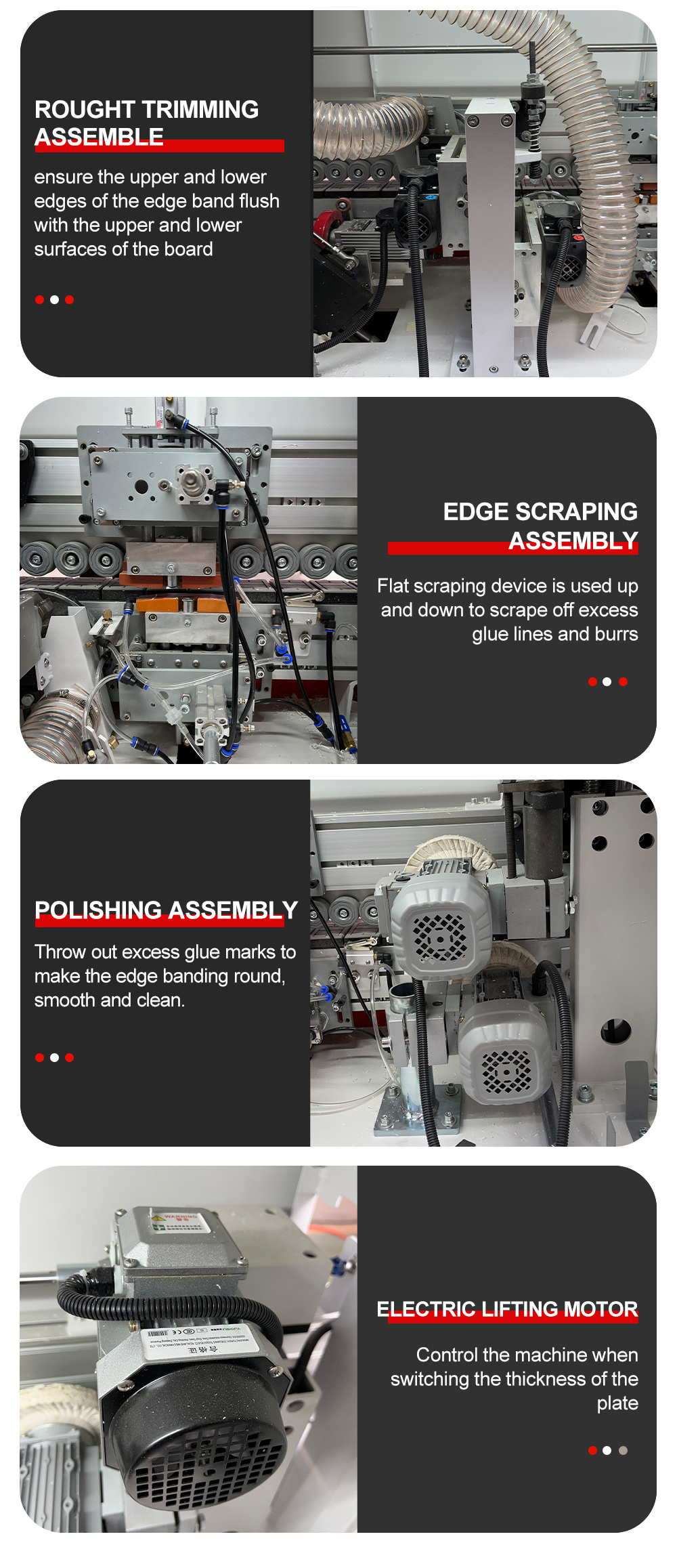

TOTAL POWER 28kw ELECTRIC LIFTING MOTOR 0.37kw AUXILIARY HEATING 1.5kw+1.5kw+1.5kw UPPER AND LOWER POLISHING MOTOR 1.1kw PLASTIC BOX HEATER 2kw PLASTIC BOX MOTOR 0.55kw ARC EDGE BANDING THICKNESS 0.6-0.7mm OBLIQUE ROUND EDGE BANDING THICKNESS 0.6-0.7mm OBLIQUE STRAIGHT EDGE BANDING THICKNESS 0.8-2mm
CONVEYING SPEED 10-12m/min

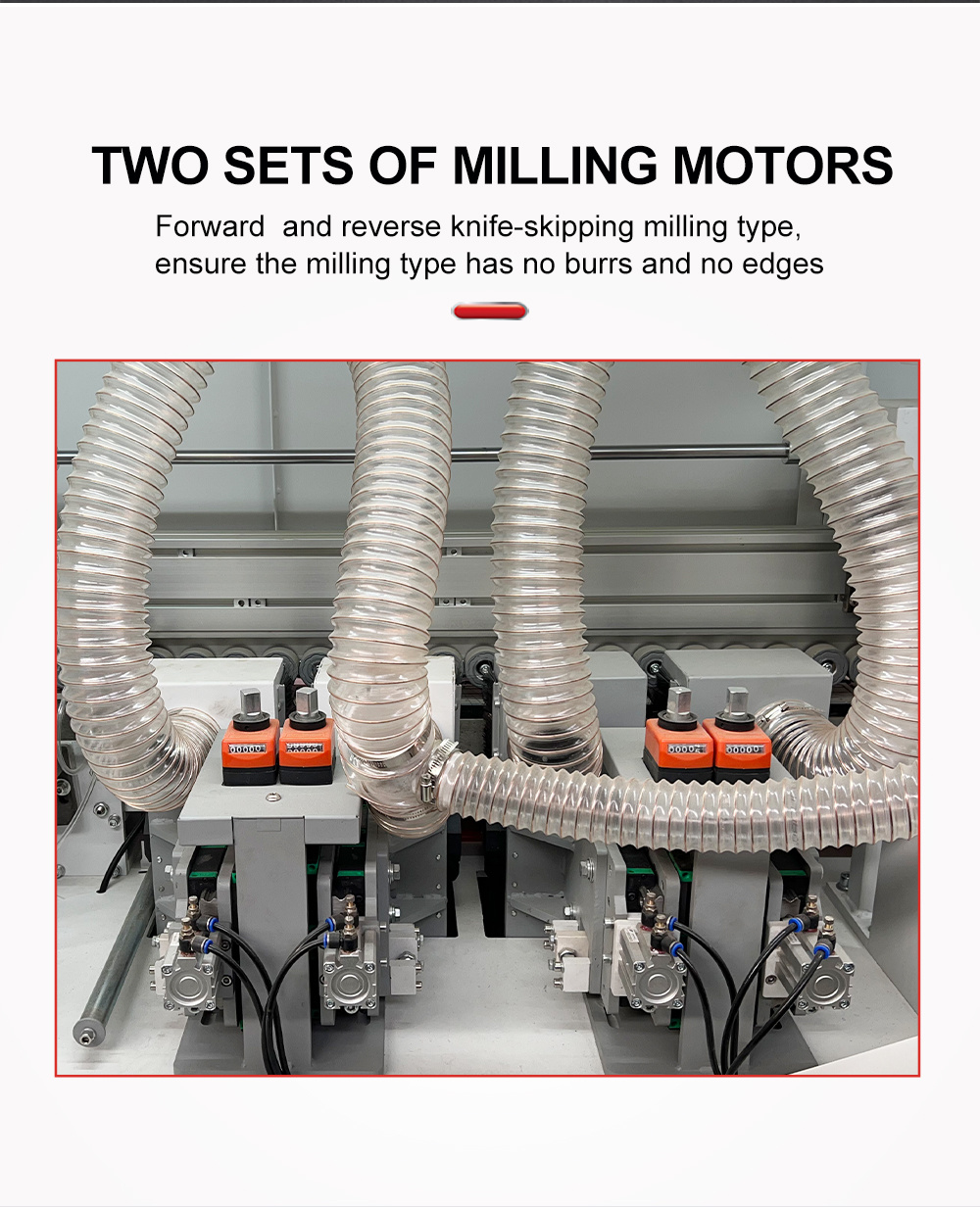

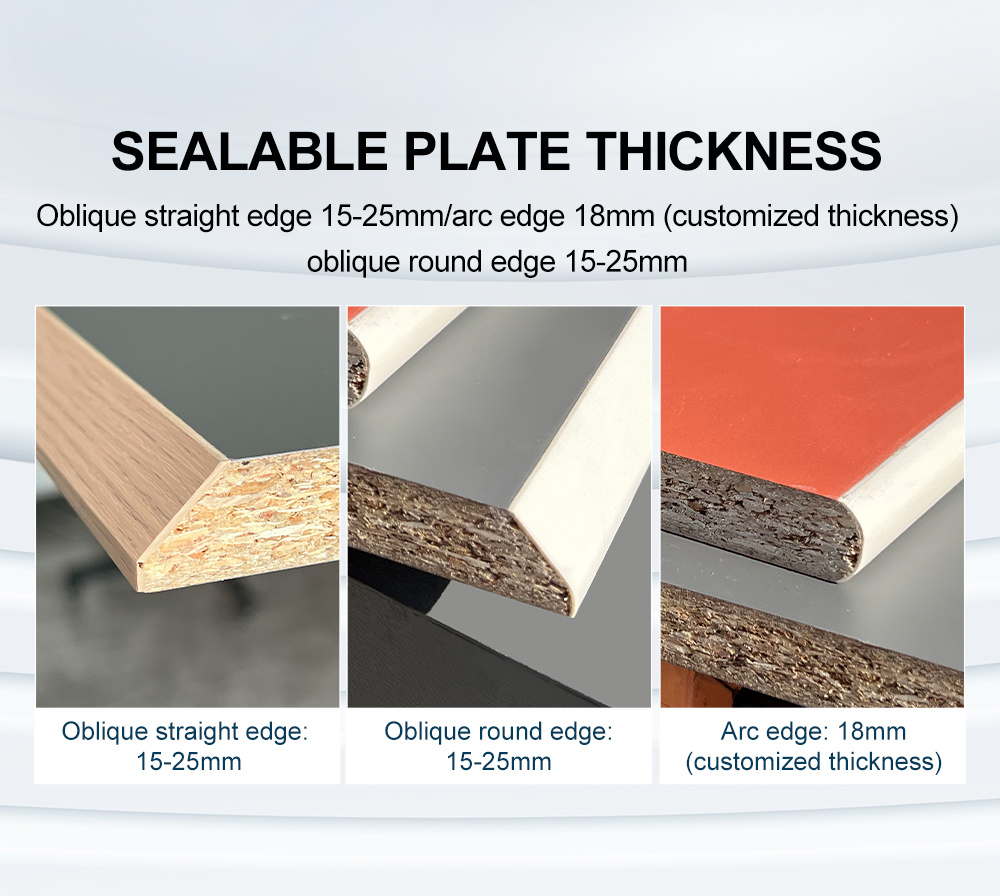

CONVEYOR MOTOR 2.2Kw40 SHAFT HEAD AND TAIL MOTOR 0.37kw x2 FREQUENCY SPEED CONTROL PLATE THICKNESS OBLIQUE STRAIGHT EDGE 15-25mm ARC EDGE 18mm (CUSTOMIZED THICKNESS) OBLIQUE ROUND EDGE 15-25mm PLATE CHAMFERING MOTOR 600W EDGE BANDING SLOTTING MOTOR 600W OBLIQUE STRAIGHT EDGE MILLING MOTOR 3.5KW x2 FREQUENCY SPEED CONTROL TRIMMING MOTOR 0.55KW x2 INVERTER ARC MILLING MOTOR 3.5KW x2 FREQUENCY SPPED CONTROL WEIGHT 1.65 TONS DIMENSIONS 5910*830*1450mm -
Previous:

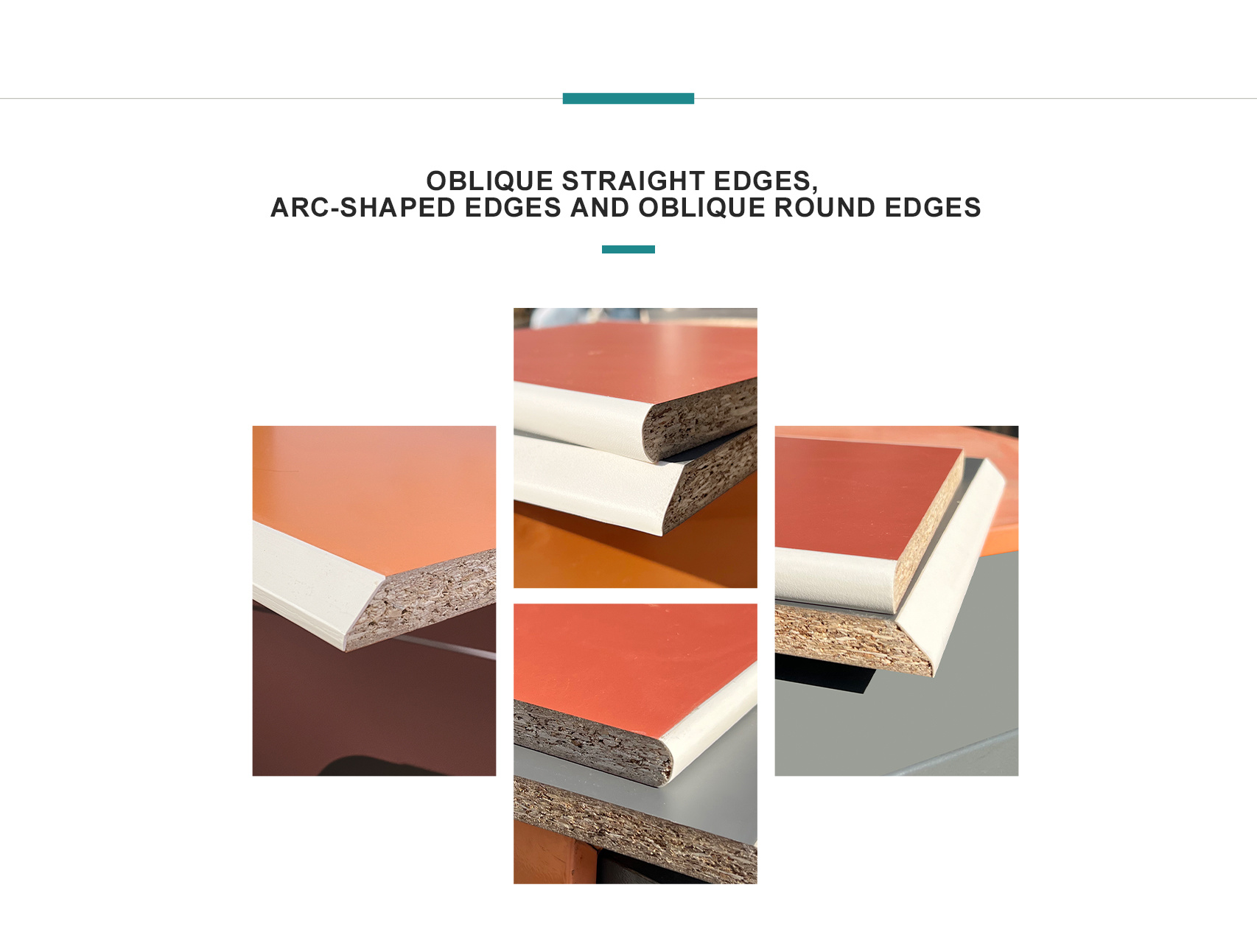

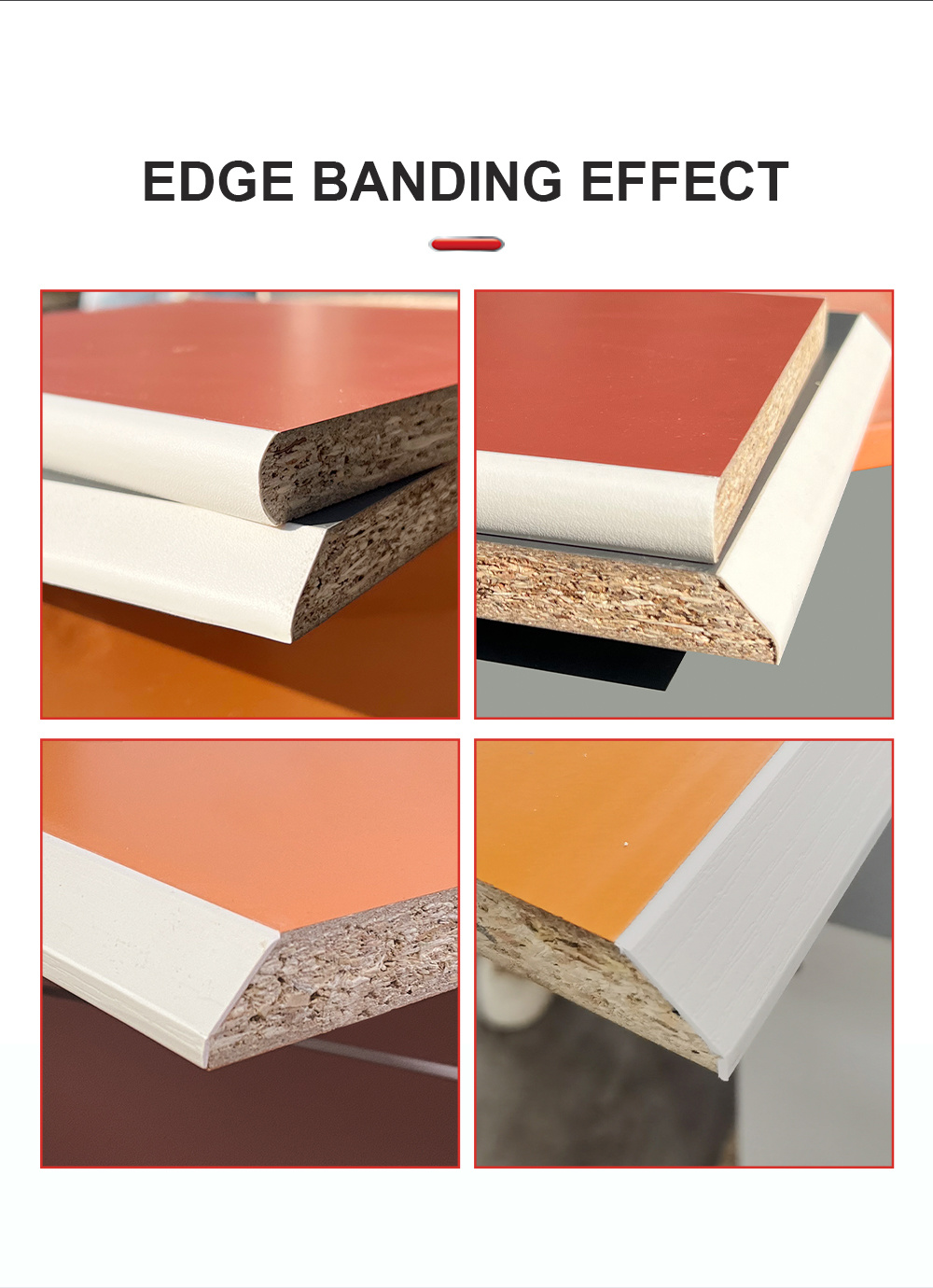

Effect Of Sheet
Arc Shape And Oblique Round Shape
Oblique Round Shape
X Shape
Arc Shape
Arc Shape And Oblique Round Shape
X Shape
