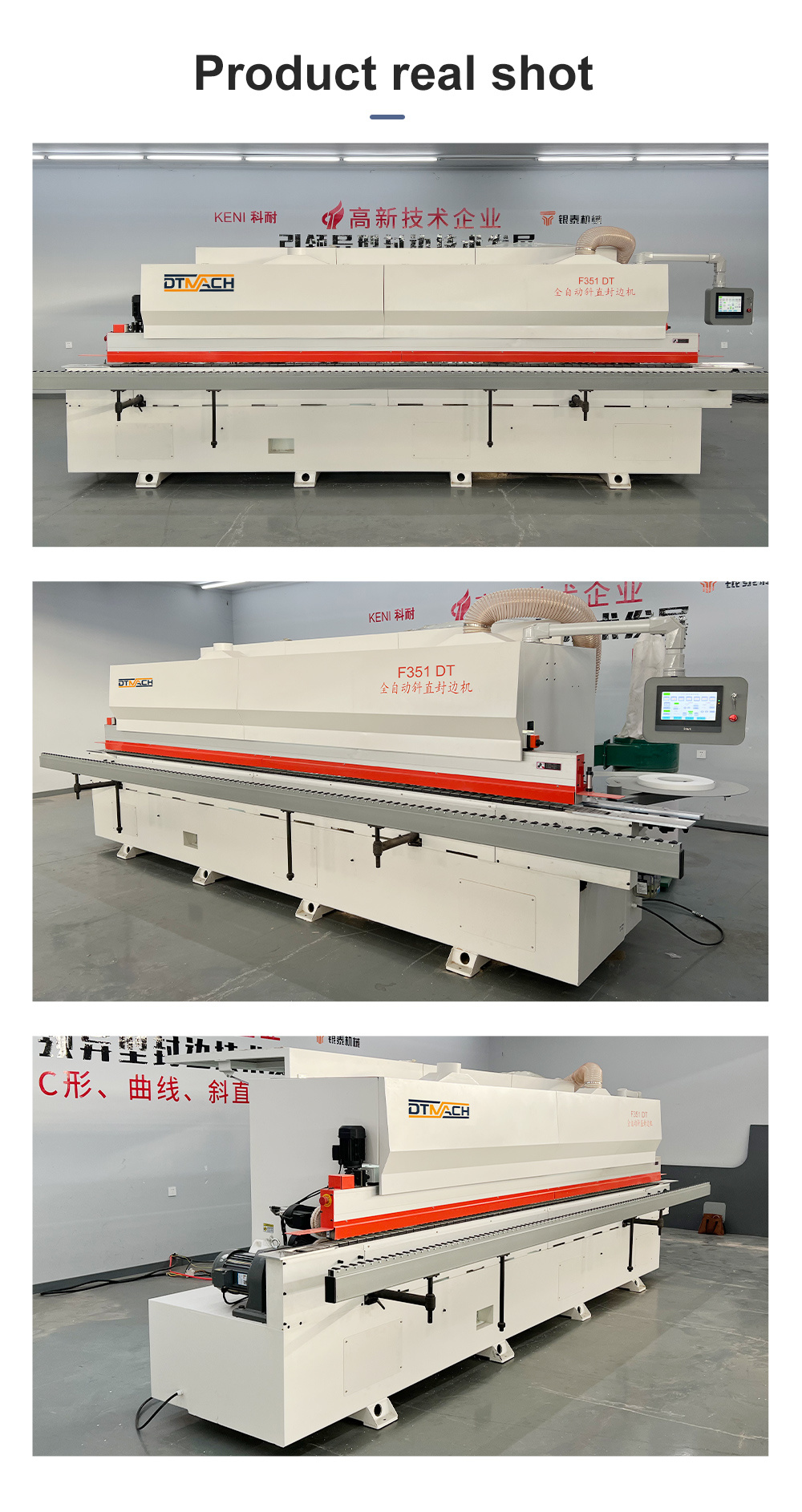

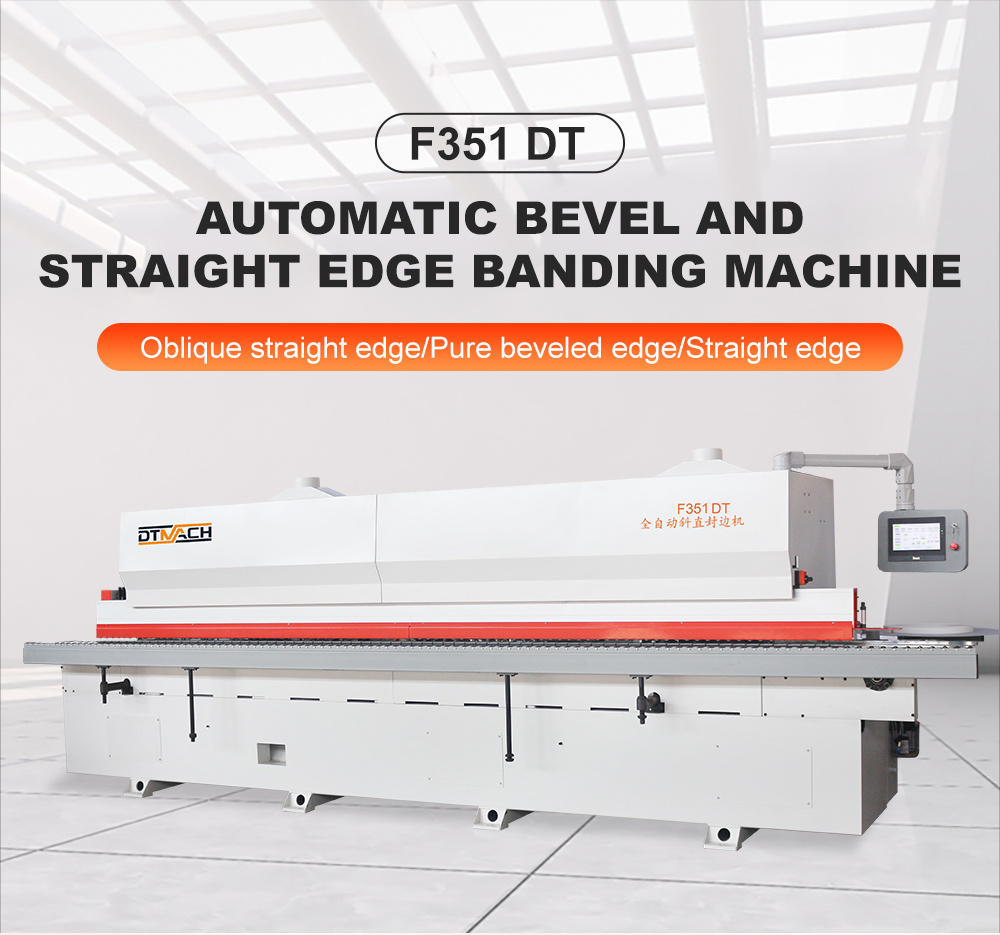

F351 DT AUTOMATIC EDGE BANDING MACHINE

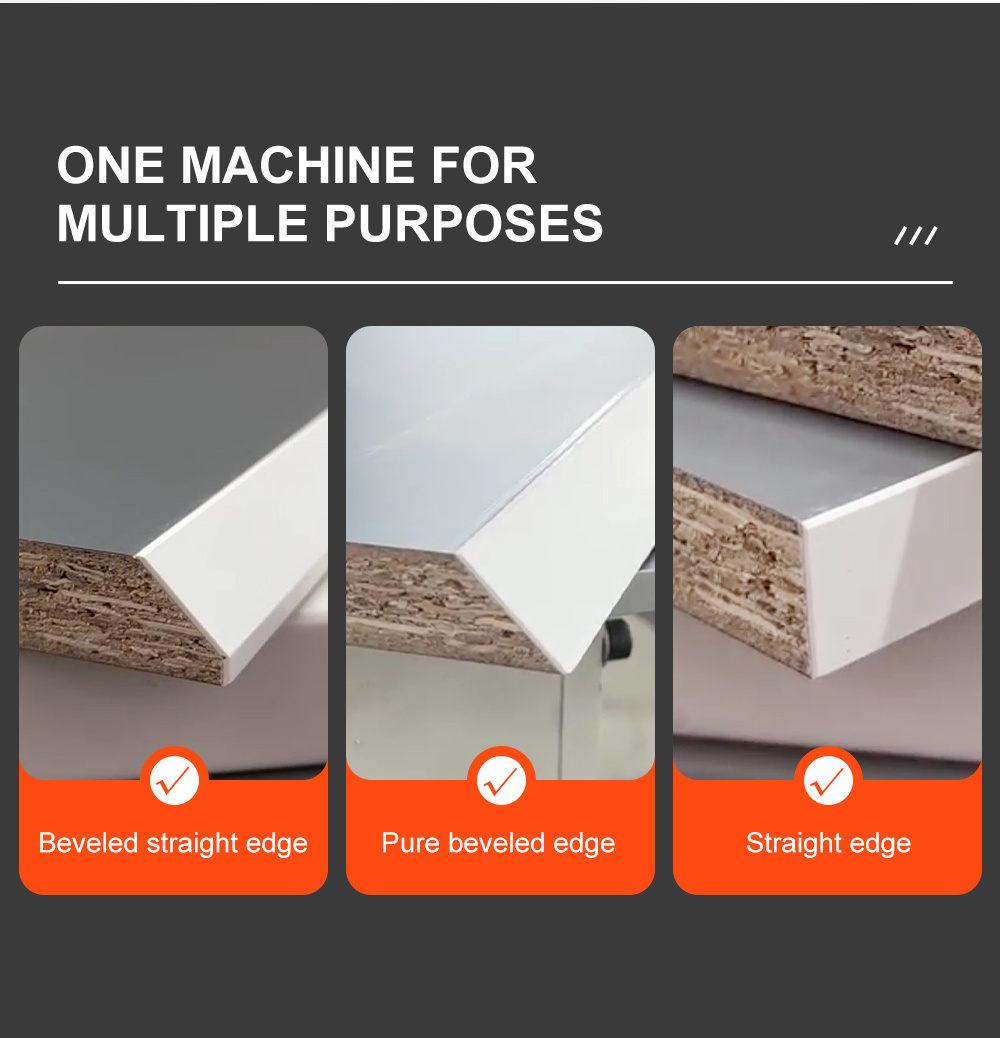

F351 DT automatic edge banding machine is focusing on process 45° X edge, pure beveled edge, also for common flat edge.
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: F351 DT AUTOMATIC EDGE BANDING MACHINE
F351 DT automatic edge banding machine is focusing on process 45° X edge, pure beveled edge, also for common flat edge.
Key words:- F351 DT
-
-
DETAIL PARAMETERS
SUPPLY VOLTAGE 380V/50HZ/3 PHASE TOTAL POWER 30.3KW EDGE BANDING PLATE THICKNESS PURE BEVELED EDGE: 16-25mm;
STRAIGHT EDGE: 16-40mm

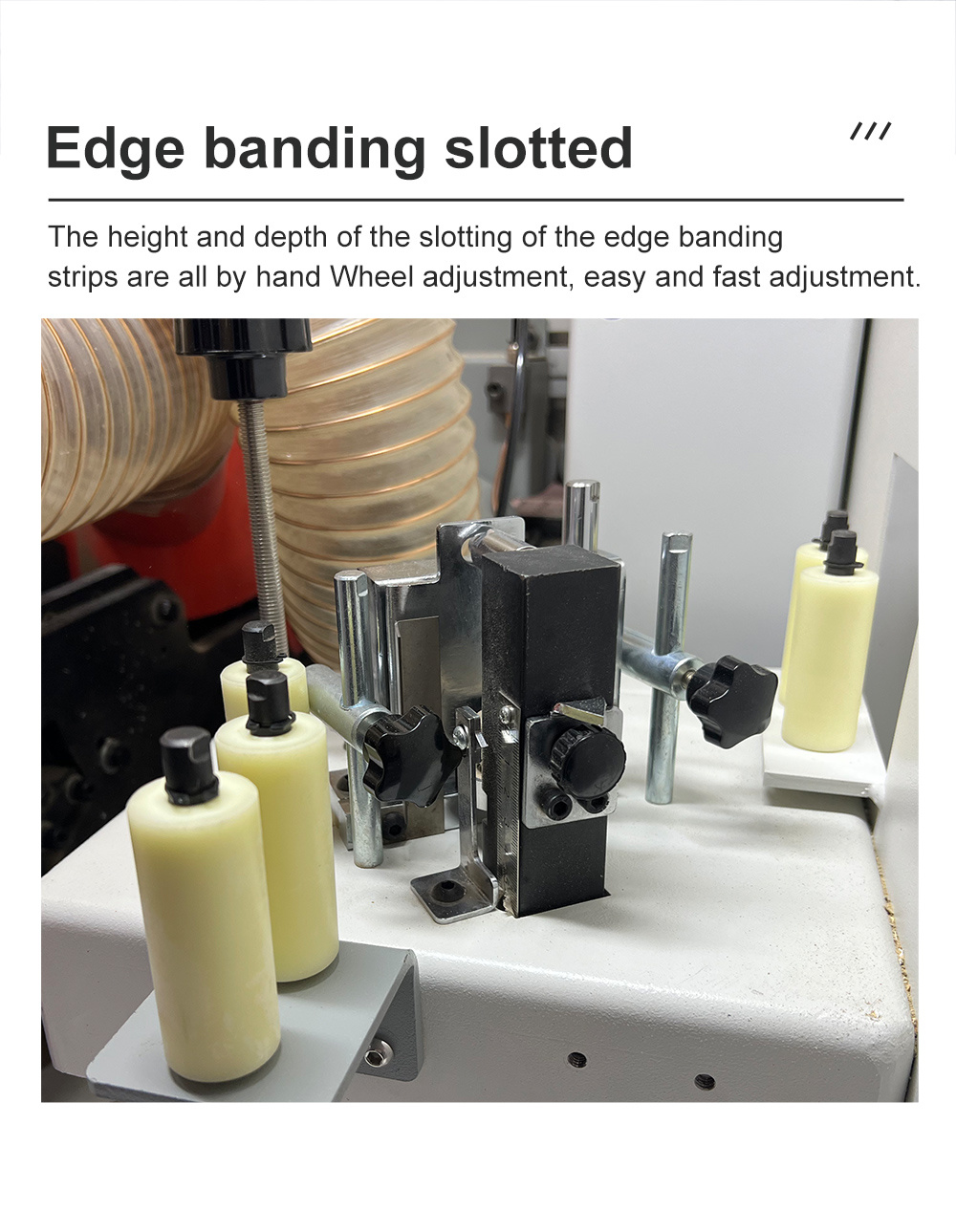

SLOTTING HEIGHT 3-23mm EDGE BAND THICKNESS 0.5-2mm GLUE POT CAPACITY 2600ml GLUE PAN TEMPERATURE 110℃-210℃ TYPE OF HOT MELT ADHESIVE PUR/EVA EDGE BANDING WIDTH 20-70mm EDGE BANDING THICKNESS 0.5-2mm（RELATED TO THE MATERIAL OF THE EDGE BANDING) FEED SPEED 12m/min PLATE SHAPE BEVEL STRAIGHT EDGE, PURE BEVEL EDGE, STRAIGHT EDGE SEAL PLATE SIZE ≥250*150mm(250 IS THE SIZE OF THE EDGE BANDING DIRECTION) STRAIGHT EDGE HEIGHT ≥5mm TOTAL PRE-MILLING MOTOR 13.7KW TYPE OF EDGE BANDING MATERIAL PVC,VENEER(NEED TO BE CUSTOMIZED) TANK VOLUME 2L PACKAGE SIZE 550*110*190(L*W*HCM) NET WEIGHT 2130kg PANEL SIZE ≥250*150 mm
-
Previous:

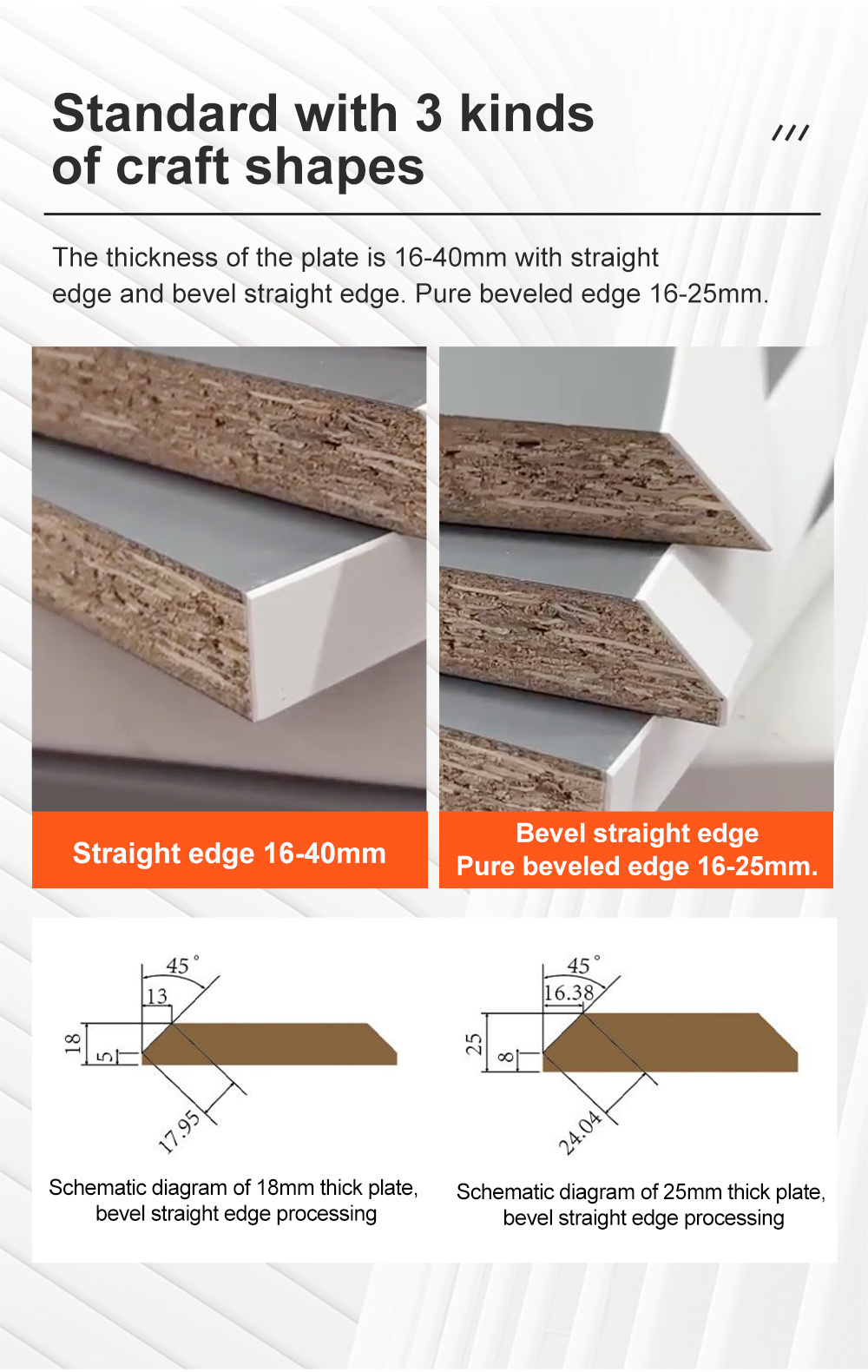

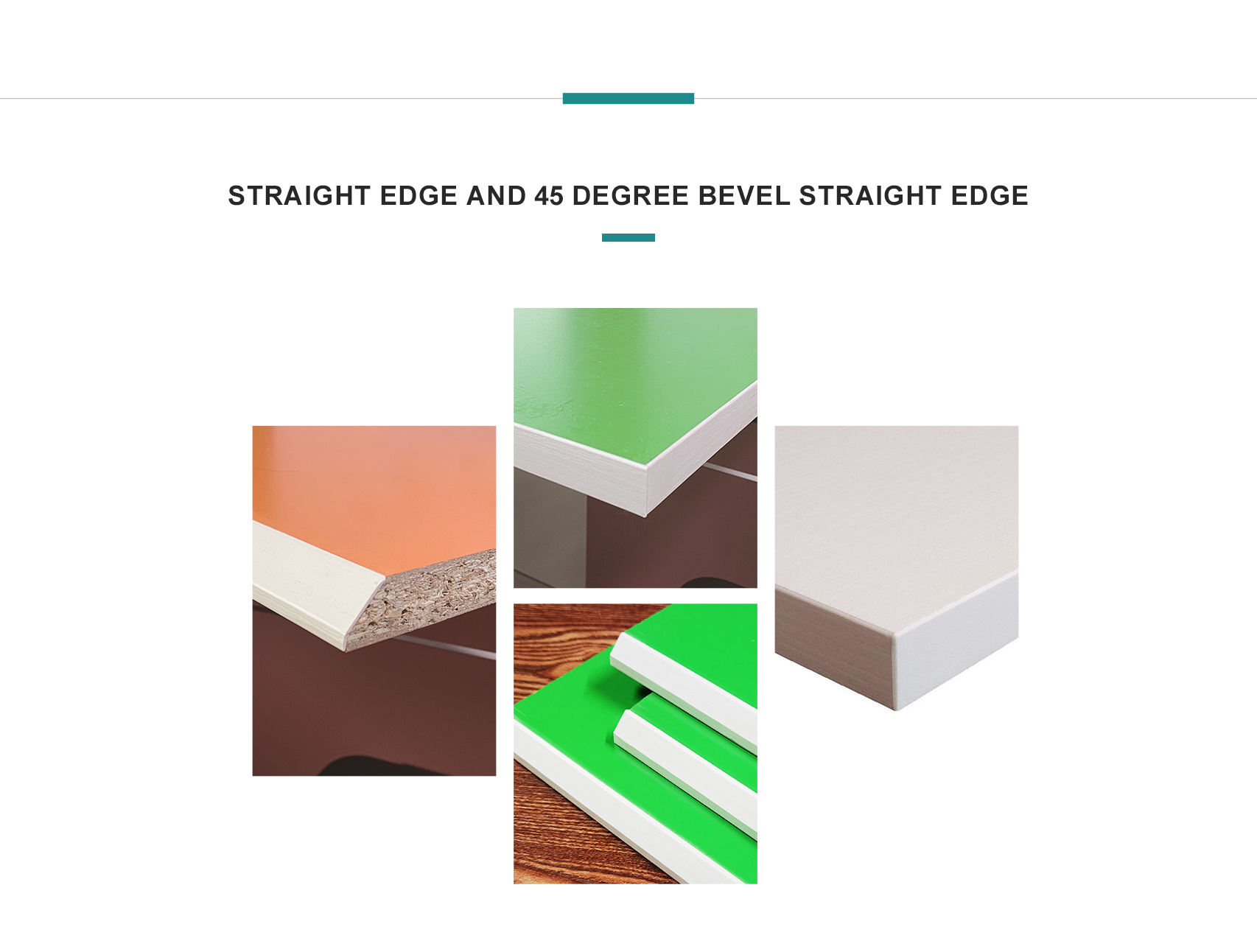

Effect Of Sheet
X Shape
X Shape
X Shape
Flat Shape
Pure Oblique Shape
Pure Oblique Shape
