KN-620-3 EDGE BANDING MACHINE WITH TRIMMING

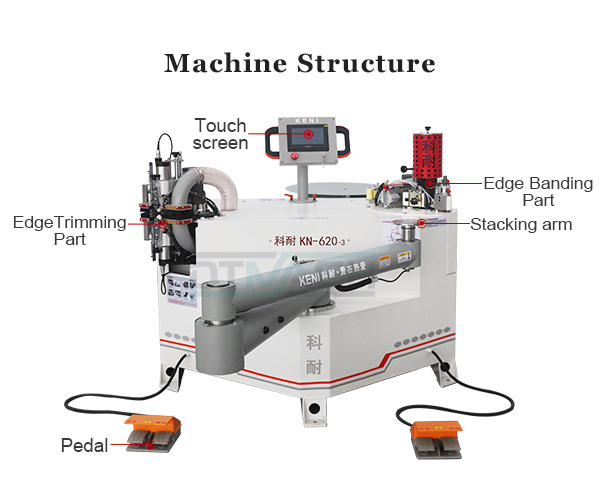

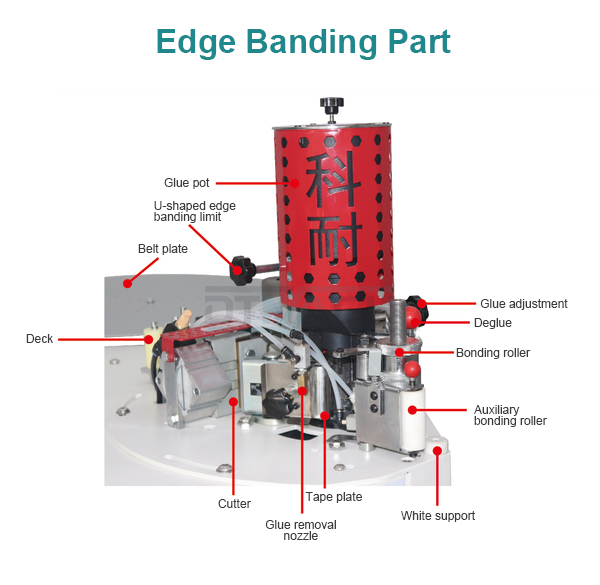

KN-620-3 edge banding machine has two main structures, edge banding part and edge trimming part. This machine realize the functions of bonding, cleaning, trimming and scraping. It can handle both straight and curve shape boards, especially for irregular board. After the machine is processed, it is a finished product, which can be packaged and delivered.

  • Video
  • Product Description
  • Parameter
  • Advantages
    • Commodity name: KN-620-3 EDGE BANDING MACHINE WITH TRIMMING

    KN-620-3 edge banding machine has two main structures, edge banding part and edge trimming part. This machine realize the functions of bonding, cleaning, trimming and scraping. It can handle both straight and curve shape boards, especially for irregular board. After the machine is processed, it is a finished product, which can be packaged and delivered.



    Key words:
    • KN-620-3
  • DETAIL PARAMETERS

    COMPRESSED AIR

    0.6 - 0.8 Mpa



    FEED SPEED

    0 - 20 cm/s ( edge banding )
    0 - 24 cm/s ( edge trimming )

    EDGE THICKNESS

    0.5 - 3 mm

    DOCKING ERROR

    ± 1 mm

    PANEL THICKNESS

    12 - 60 mm

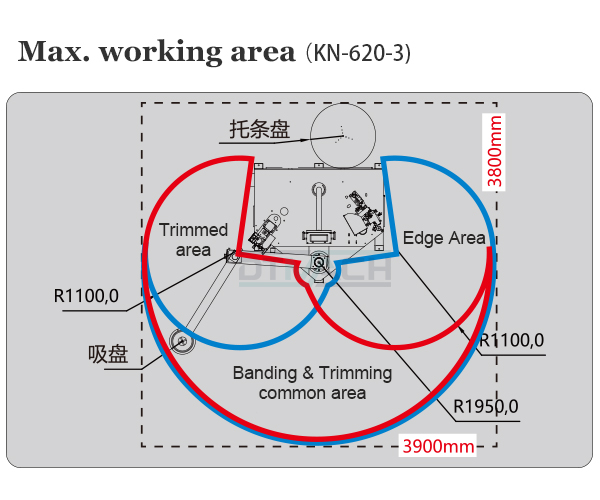

    PANEL SIZE



    ≤ 2400 mm ( ROUND )
    ≤ 1200*2400 mm ( RECTANGLE )
    ≤ 1400*1600 mm ( L SHAPE )

Effect Of Sheet

All-in-one machine for sealing and repairing4

90 Degrees Edge Banding Effect

All-in-one machine for sealing and repairing3

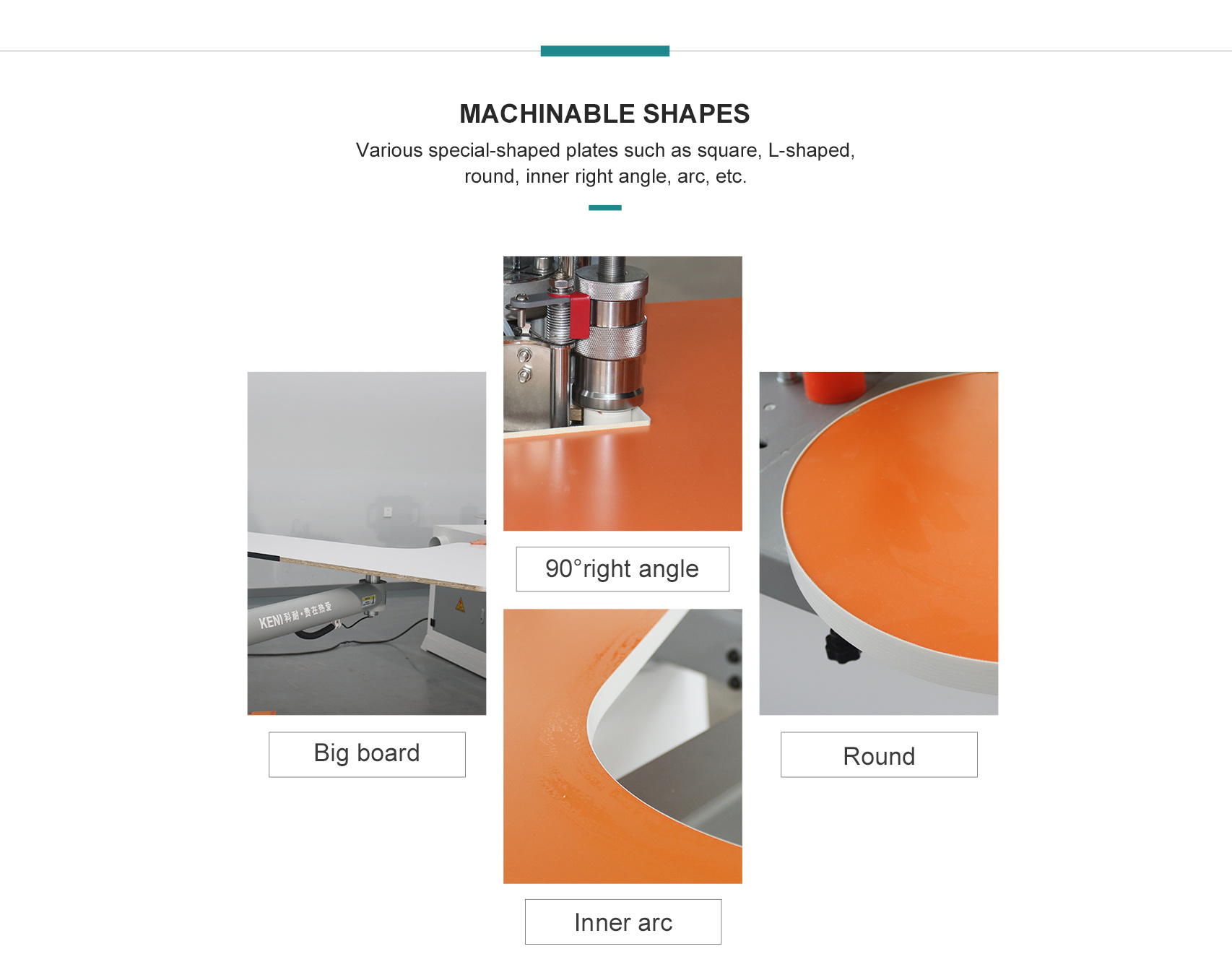

Edge Banding For Curve

All-in-one machine for sealing and repairing2

Laser Detection, Precise Docking

All-in-one machine for sealing and repairing1

90 Degrees Edge Banding Effect
