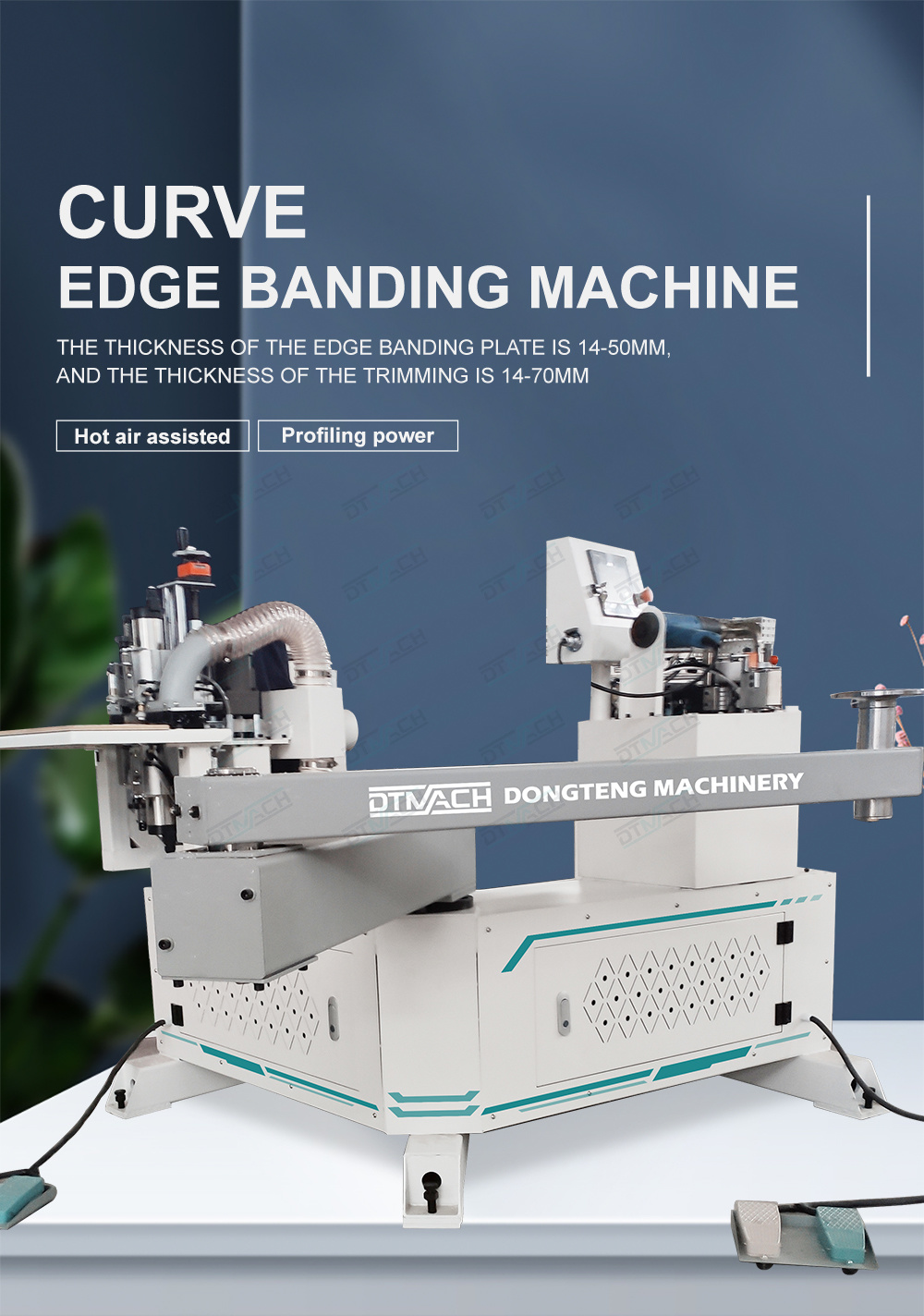

DT-680 CURVE EDGE BANDING MACHINE WITH TRIMMING
DT-680 curve edge banding machine with trimming can handle plates with thickness 14-50mm, 7-inch touch screen can store 5 plate data, easy to operate.
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: DT-680 CURVE EDGE BANDING MACHINE WITH TRIMMING
DT-680 curve edge banding machine with trimming can handle plates with thickness 14-50mm, 7-inch touch screen can store 5 plate data, easy to operate.
Key words:- DT-680
-
-
DETAIL PARAMETERS
AIR PRESSURE
0.6-0.8 Mpa
FEED SPEED
0 - 18 cm/s ( egde banding )
0 - 24 cm/s (edge trimming)
EDGE THICKNESS
0.4 - 2 mm (related to edge banding material)
WIDE OF EDGING 8-50 mm HOT MELT ADHESIVE TYPE EVA TRIMMING SHEET THICKNESS

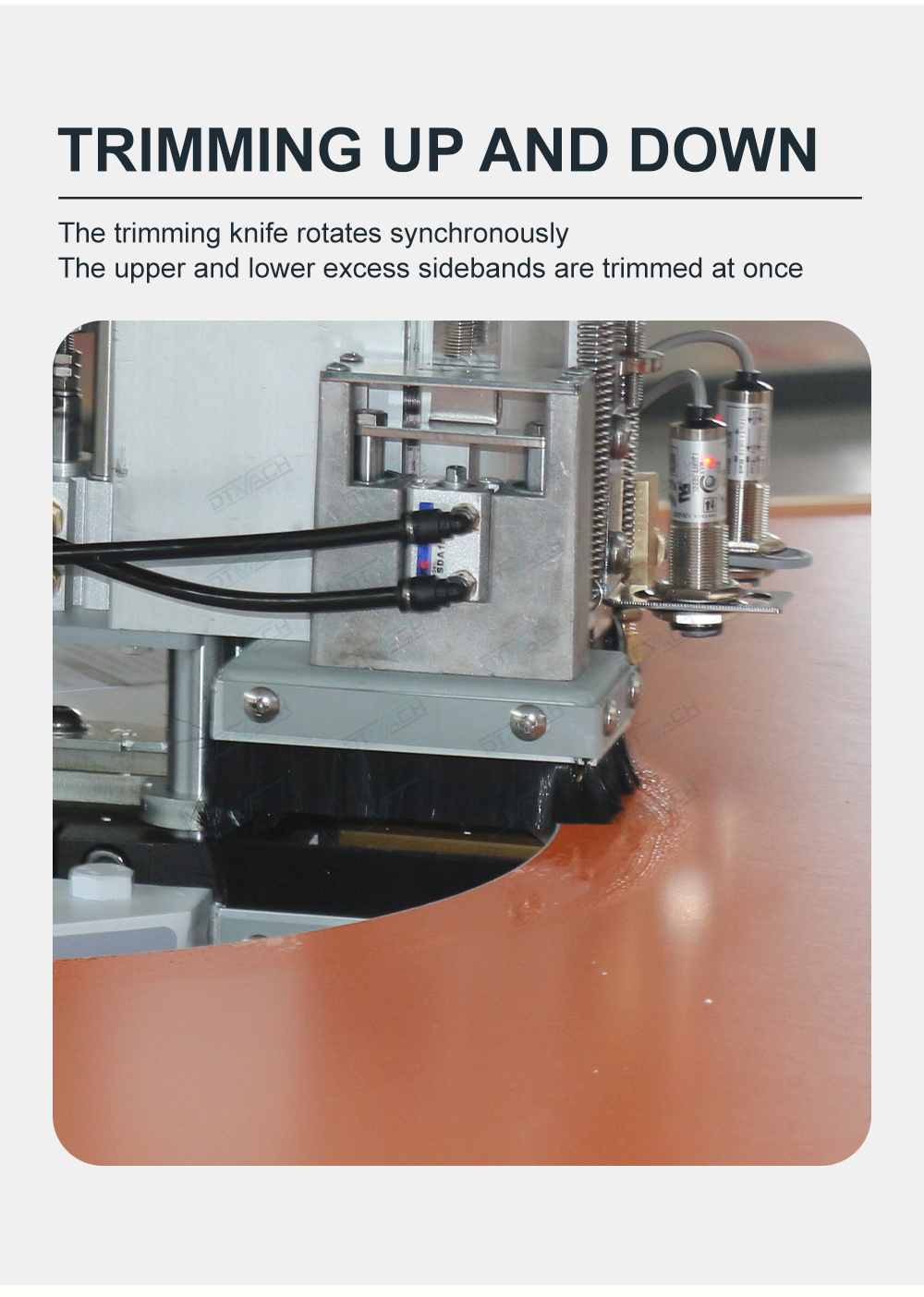

＜14 mm single-side trimming, 14-70 mm upper and lower double trimming ( related to trimming knives)
PANEL SIZE
≤ 2400 mm ( ROUND ) ≤ 1200*2400 mm ( RECTANGLE )
≤ 1400*1600 ( L SHAPE ) -
Features：

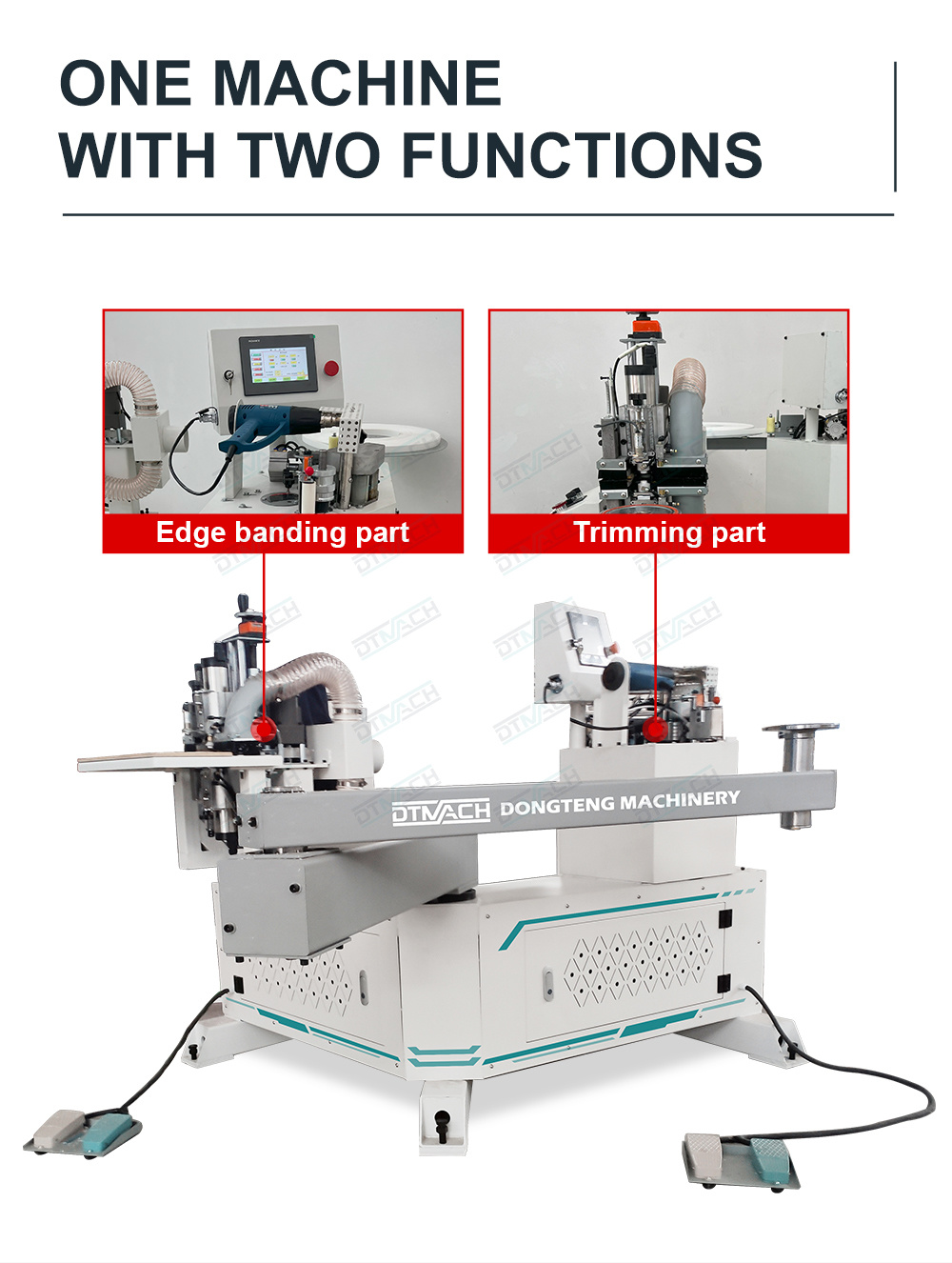

1.It have two functions, edge banding and edge trimming.

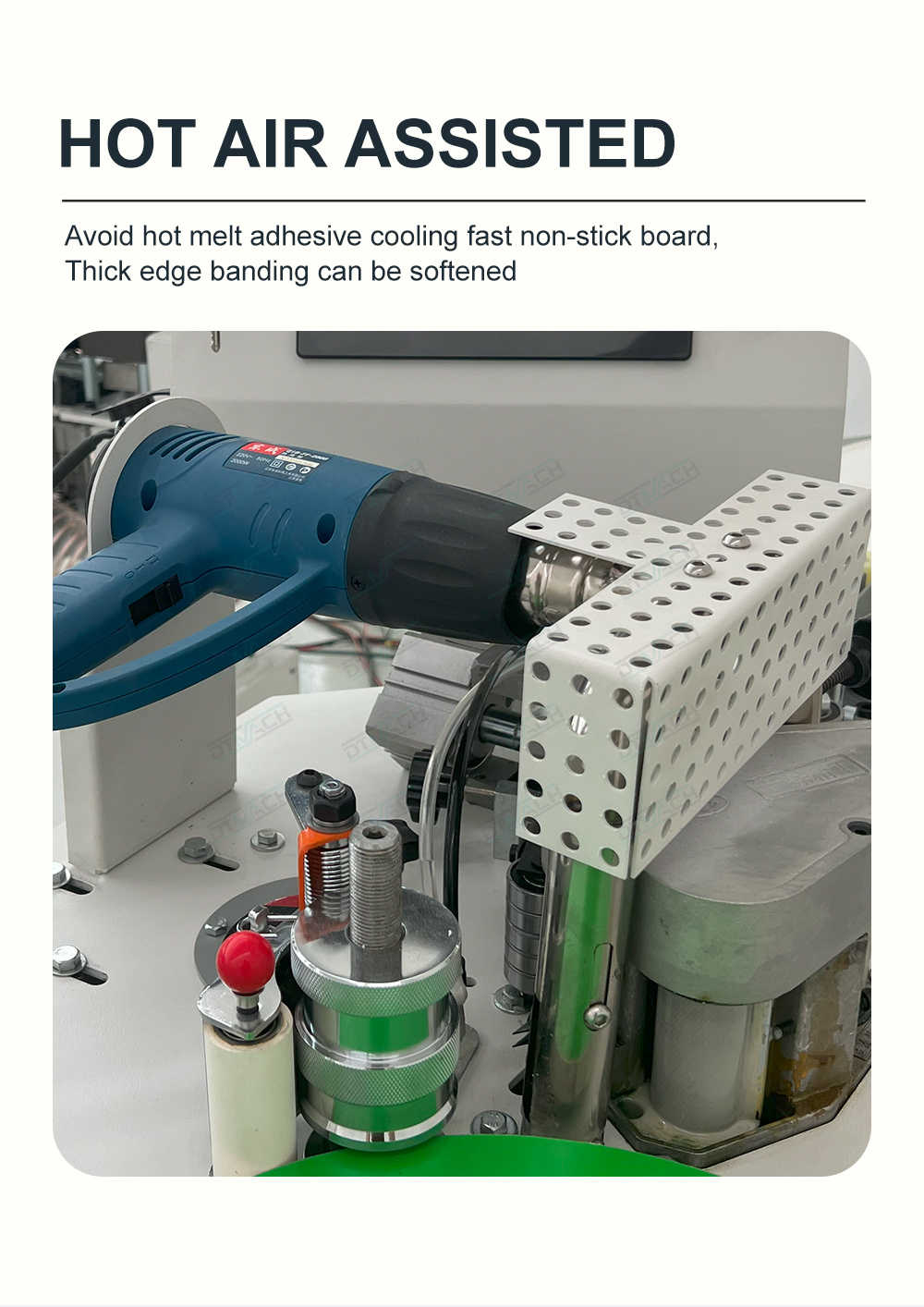

2.It has heating device, avoid hot melt adhesive cooling fast non-stick board.

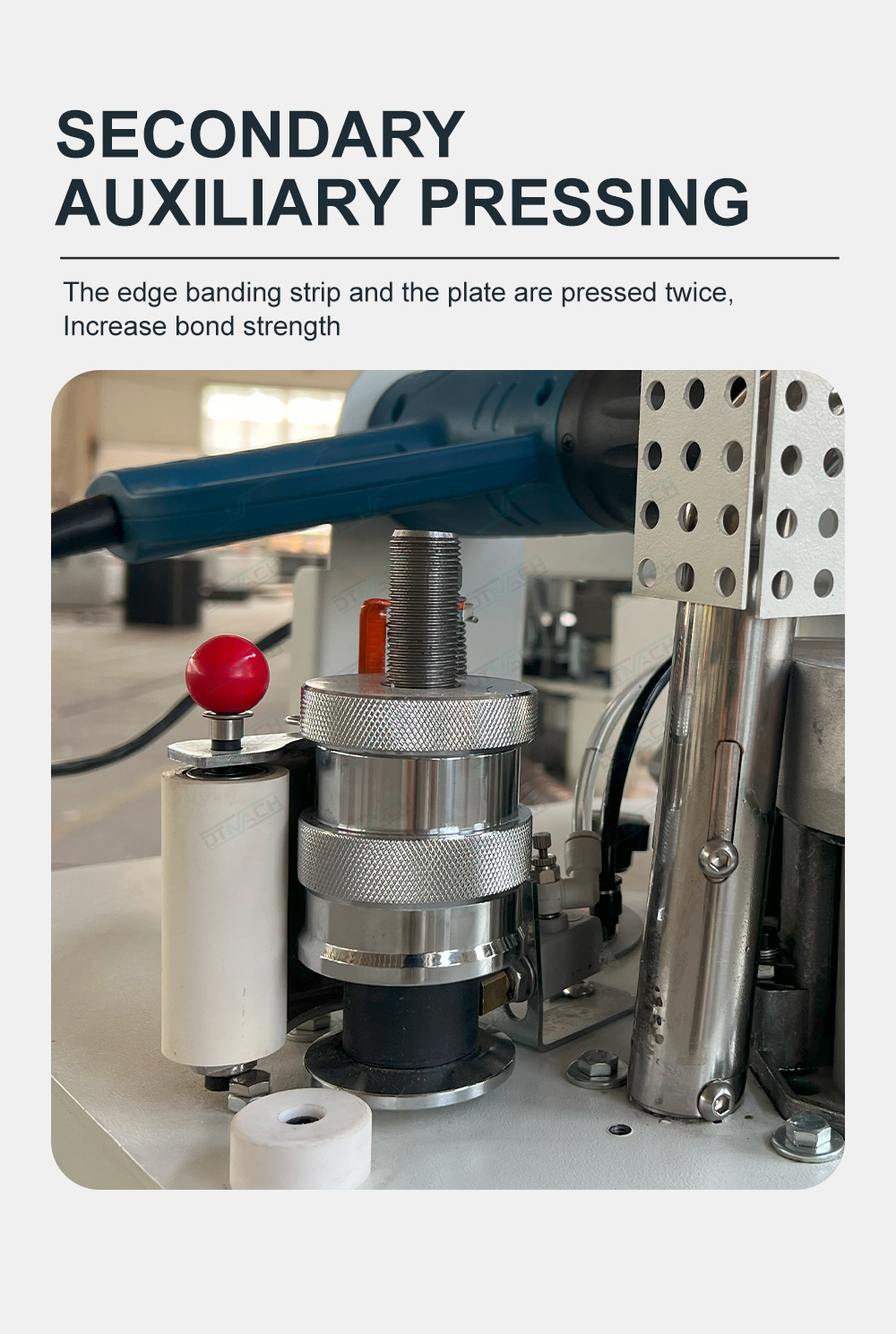

3.About secondary auxiliary pressing, the edge banding strip and the plate are pressed twice, increase bond strength.

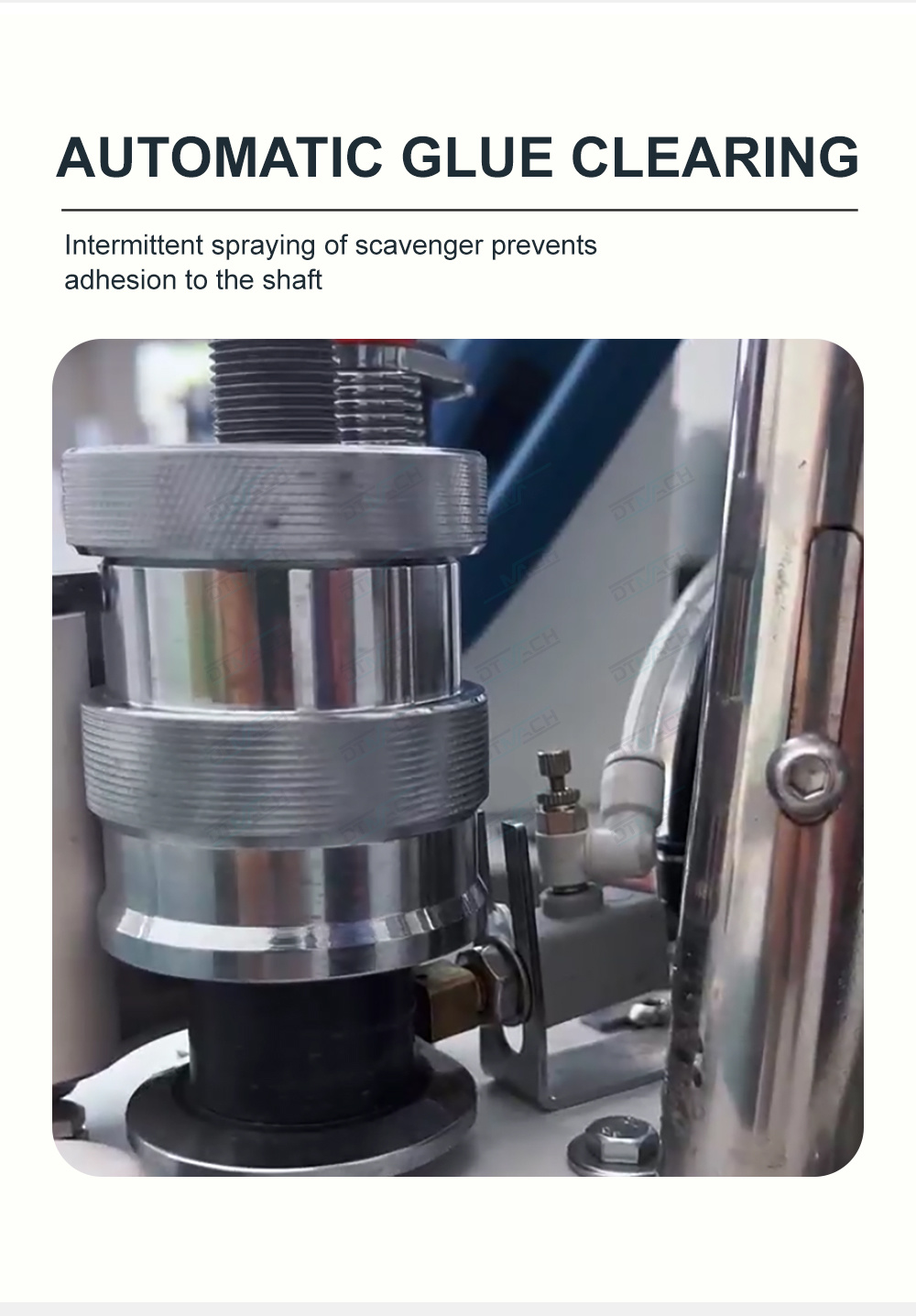

4.It has cleaning device, can spray clear glue on the surface of board

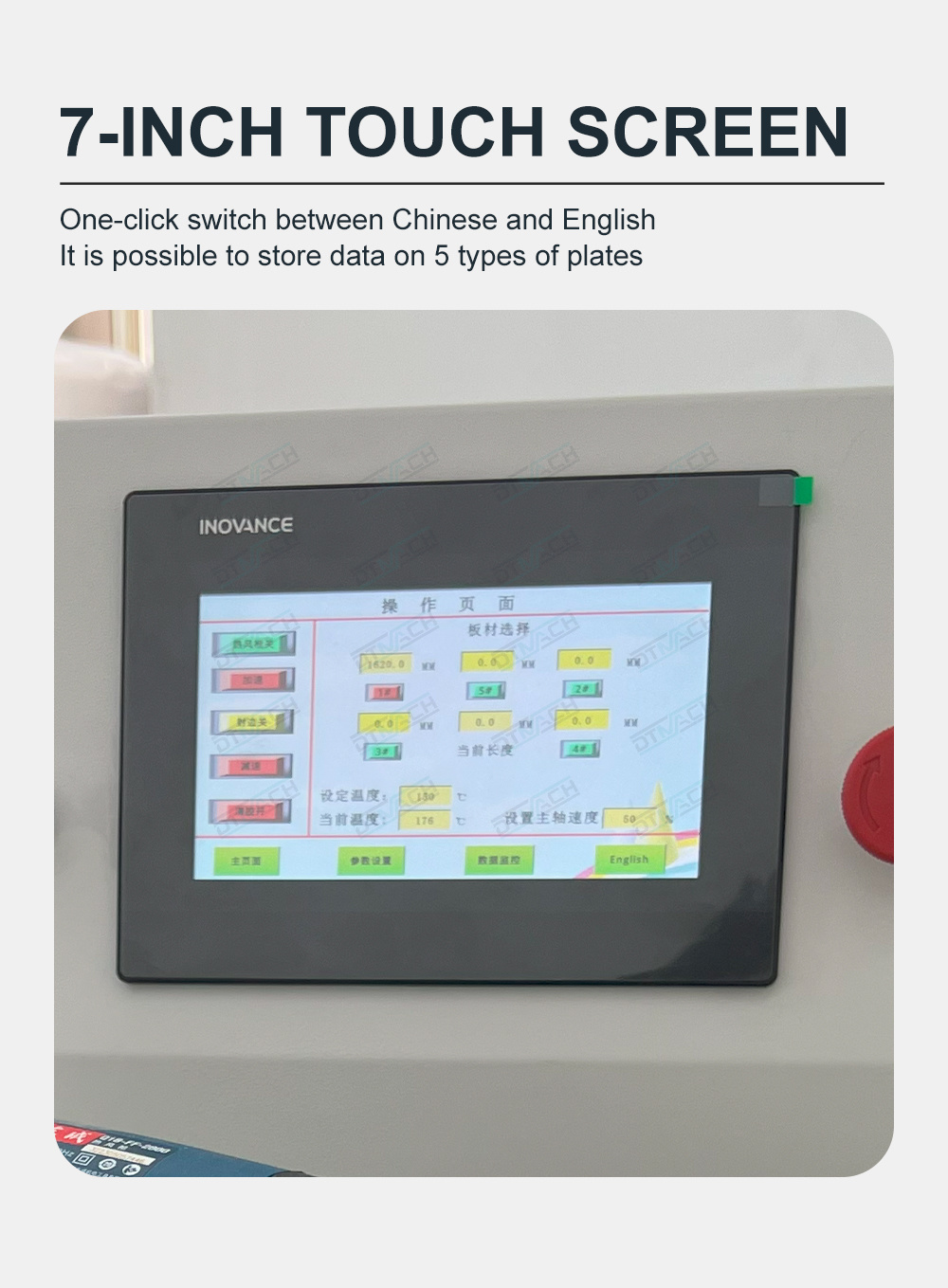

5.One-click switch between Chinese and English, it is possible to store data on 5 types of plates.
Effect Of Sheet
Edge Banding For Curve
Edge Banding For Irregular Shape
Edge Banding For Curve
Laser Detection, Precise Docking
