What upgrades has KN-810 made based on KN-700-3?

Author:

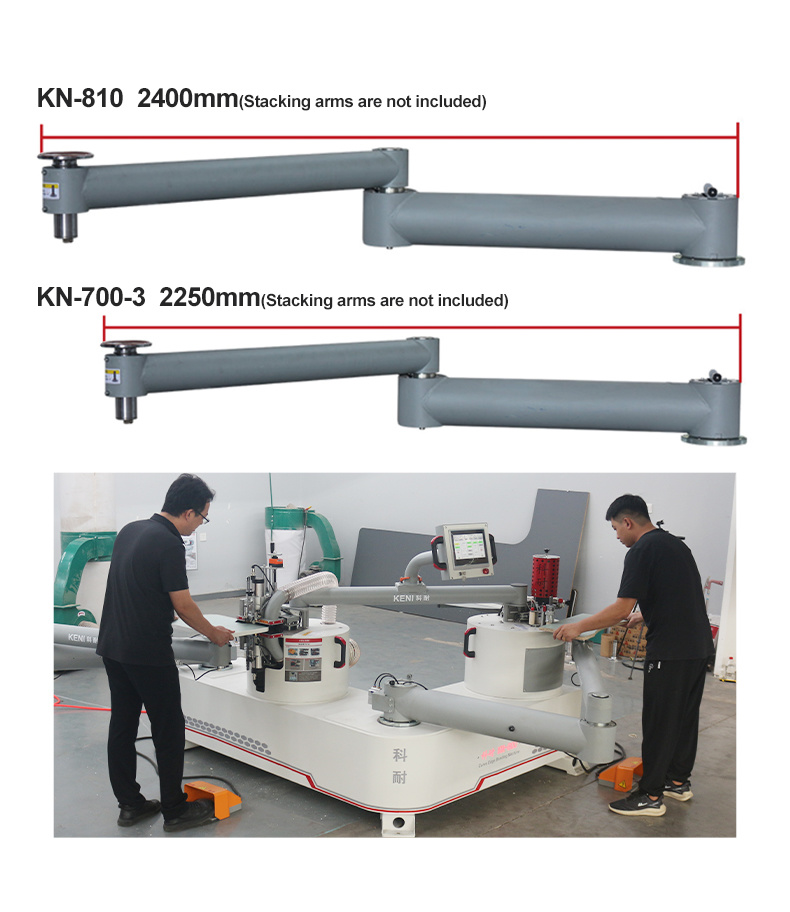

1.Stacking arm upgrade
KN-810 edge banding machine have two stacking arm, stacking arm length 240cm, maximum load-bearing 120kg, can be operated by two people at the same time, large stacked arm increases the braking device, which will not shake back and forth
KN-700-3 edge banding machine have one stacking arm, stacking arm length 225cm, maximum load-bearing 100kg

2.Processing maximum plate size upgrade
KN-810 edge banding machine can process maximum plate size is:
Round shape board≤ 3.8 m
0.4*0.4 m≥ Square shape ≤ 1.8*3.8 m
L-shaped ≤ 1.5*3.2 m

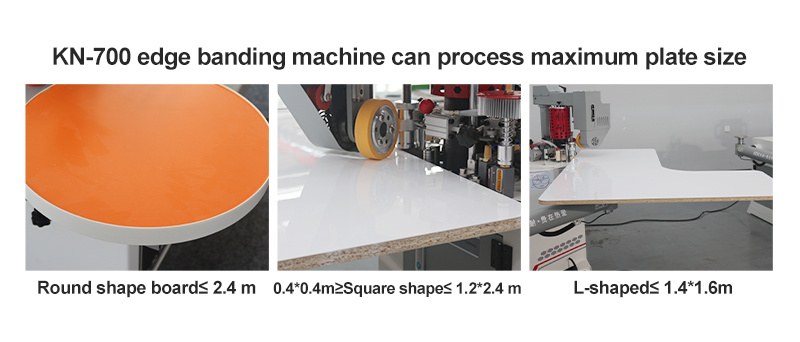

KN-700-3 edge banding machine can process maximum plate size is:
Round shape board≤ 2.4m
0.4*0.4m≥Square shape≤ 1.2*2.4 m
L-shaped≤ 1.4*1.6m

3.Screen upgrade
KN-810 edge banding machine upgrade remote OTA upgrade, which can be connected to Wifi upgrade operation, which is more convenient for maintenance

4.Function upgrade
(1)KN-810 edge banding machine upgrade to pneumatically adjust the bead plate to realize the random switching of edge banding strips of different thicknesses
(2)KN-810 edge banding machine upgrade with visual hot air assistance, 100-500 degree adjustment, and thick edge banding is easier
(3)KN-810 edge banding machine upgrade the opening and closing limit and pressure strip assembly to prevent glue accumulation on the rubber roller
(4)KN-810 edge banding machine upgrade to the new second generation cutter assembly
