DT368MAX Fully Automatic Straight Edge Banding Machine

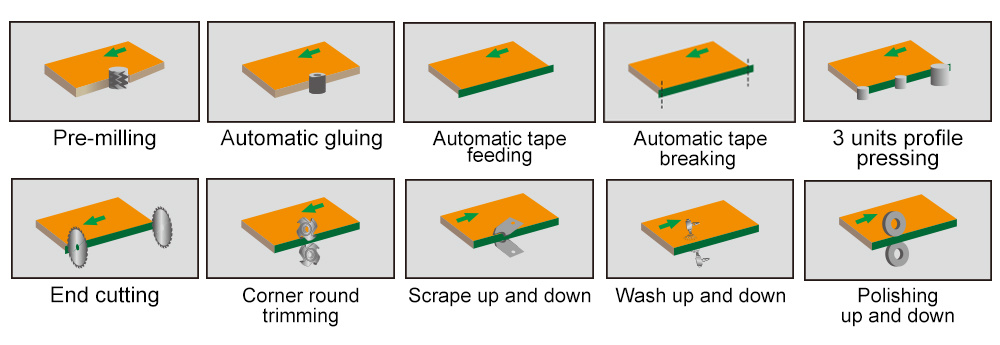

DT368MAX fully automatic linear edge banding machine has the functions of premilling, gluing, pressing, end cutting, fine trimming and corner rounding, scrapping, buffing.

Author:

DT368MAX is a fully automatic linear edgebander, The length of the machine is 4.3m, it’s small but with full functions: premilling, gluing, pressing, end cutting, fine trimming and corner rounding, scrapping, buffing.

Main Features:
(1) High-speed edge banding, the edge banding speed can reach 15m/min
(2) Material limited 3s, continuous board feeding
(3) The conveyor plate is a side plate structure, which is more stable and firm
(4) The upper glue pot has a capacity of 2L,

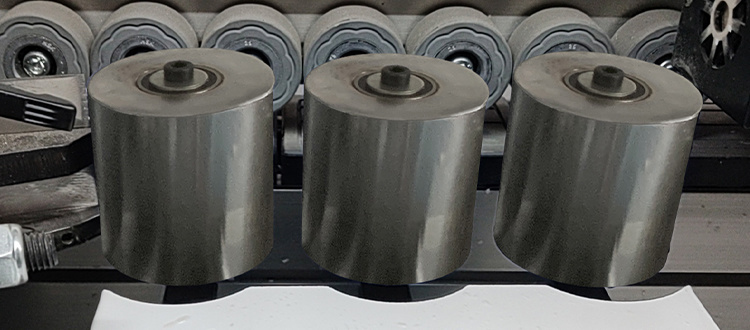

(5) 3-pass pressing wheels to ensure that the edge banding strip is pressed tightly and firmly
(6) Electric lifting pressure beam,suitable for different thickesses of boards
(7) The bottom beam is a whole widened and thickened aluminum profile
(8) Widened table, large plates can also be easily operated
(9) Customization is supported

Automatic sealing and repair machine,
easy to operate.one-time molding,
good edge banding effect
