DT702 EDGE BANDING MACHINE WITH TRIMMER

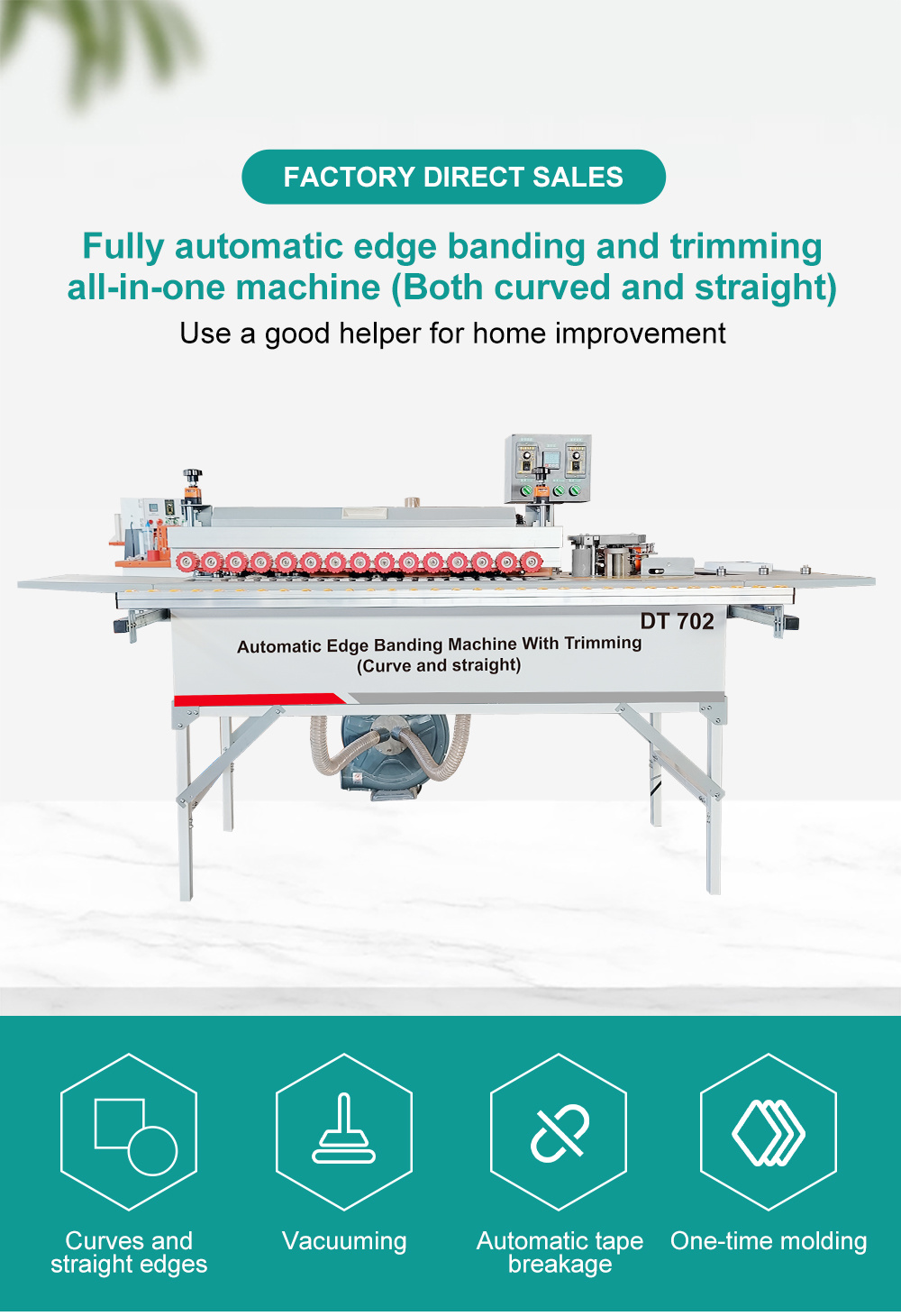

DT702 edge banding machine is a fully automatic edge banding trimmer machine all-in-one machine, which can process straight edges and curves.
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: DT702 EDGE BANDING MACHINE WITH TRIMMER
DT702 edge banding machine is a fully automatic edge banding trimmer machine all-in-one machine, which can process straight edges and curves.
Key words:- DT702
-
-
DETAIL PARAMETER
STRIP THICKNESS 0.8-2mm CONVEYING SPEED 6-8m/min
PANEL THICKNESS 15-30mm NARROWEST PANEL WIDTH 45mm MINIMUM PANEL LENGTH 200mm GLUE BOX MOTOR 25W CONVEYOR MOTOR 60W/ SPEED RATIO 50 TOTAL POWER 2.2KW TRIMMING MOTOR 500W x2 GLUE BOX HEATER 800W UPPER AND LOWER POLISHING MOTOR 180W x2
DIMENSIONS INSTALLATION 1966*520*1167mm WEIGHT 110kg -

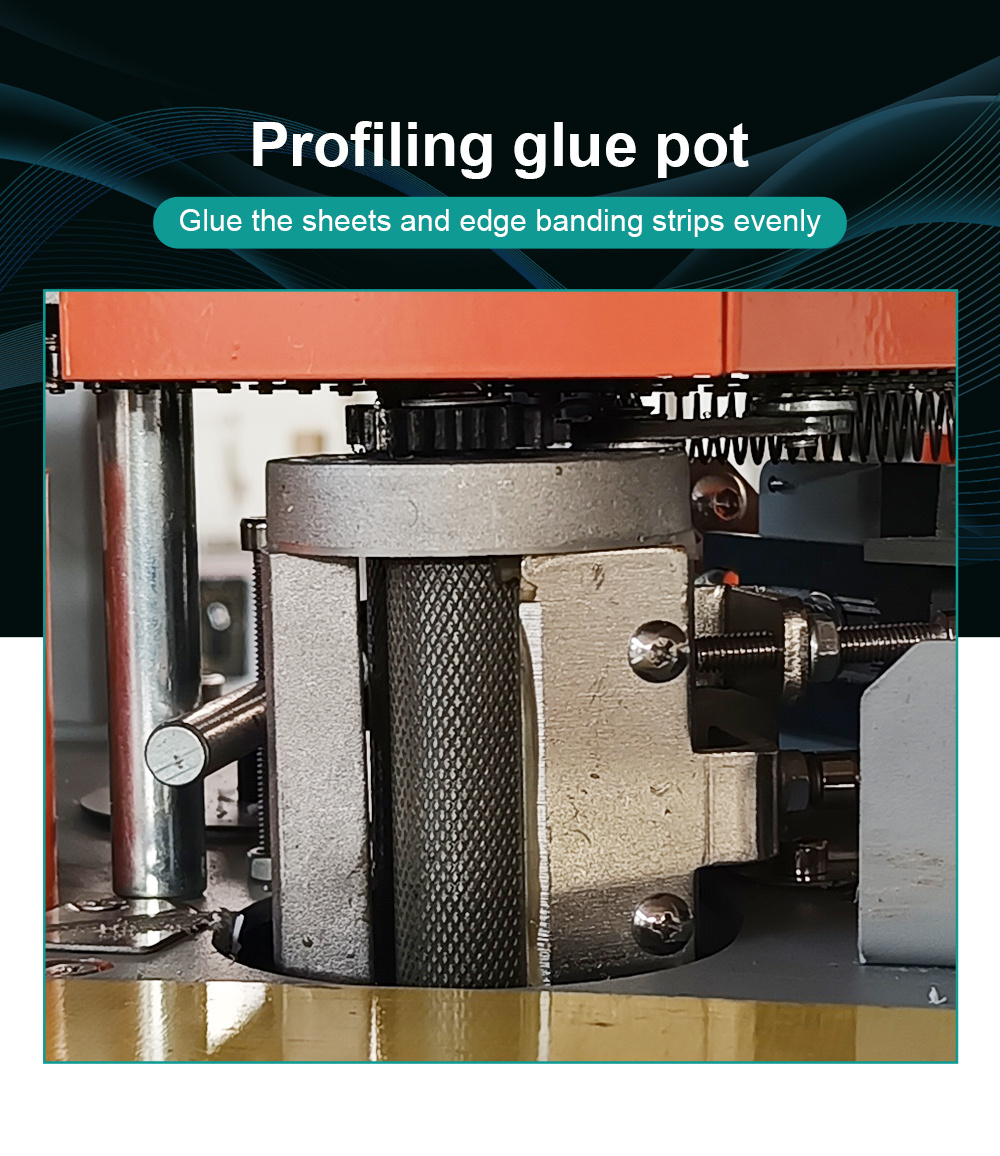

1. Use the profiling glue pot,make the glue more uniform.

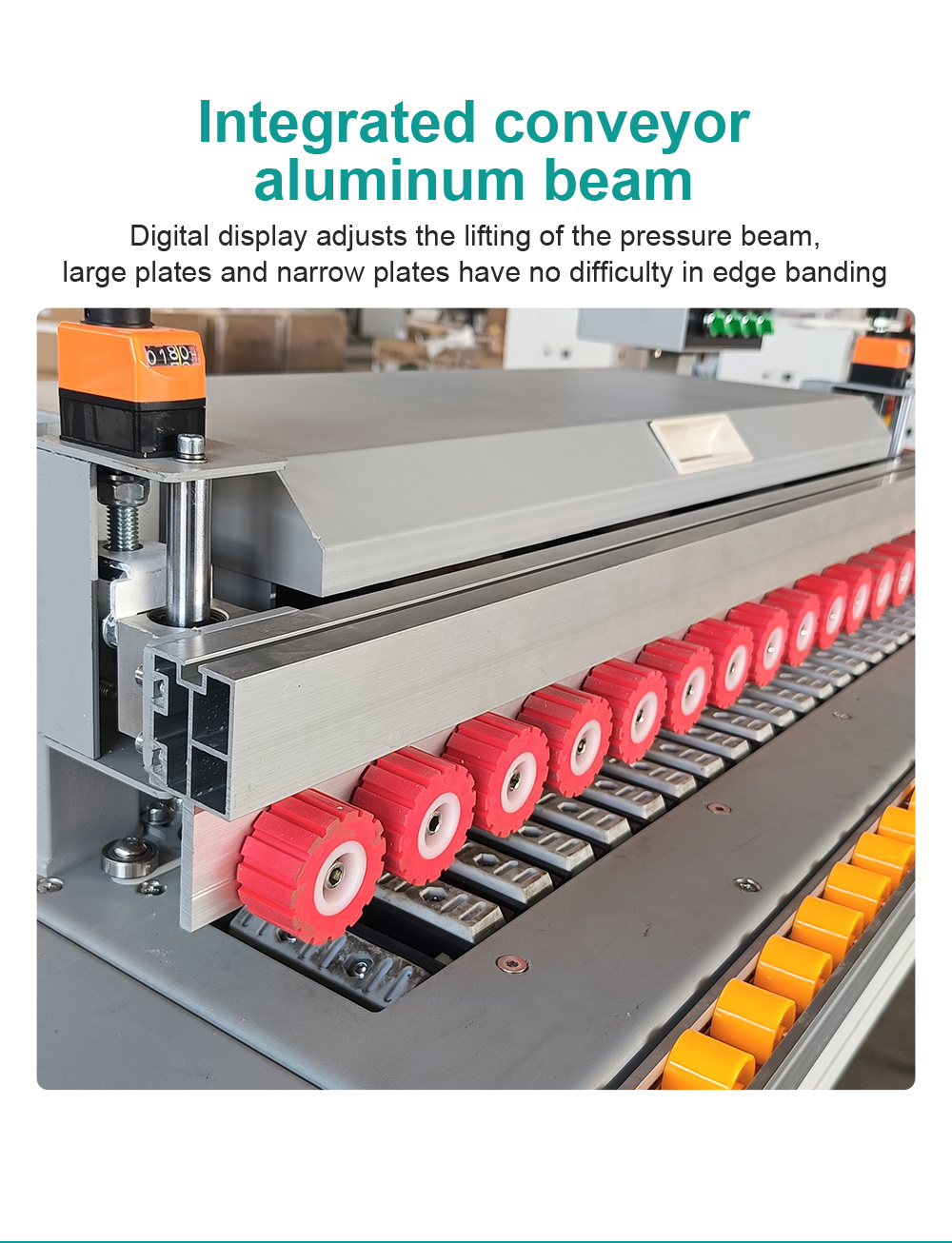

2. Use the integrated conveying aluminum beam,the digital display, ad-iusts the lifting of the pressure beam and easy to edge banding the large plate sand narrow plates.
3. Conveying motor power is increase, operation is stable

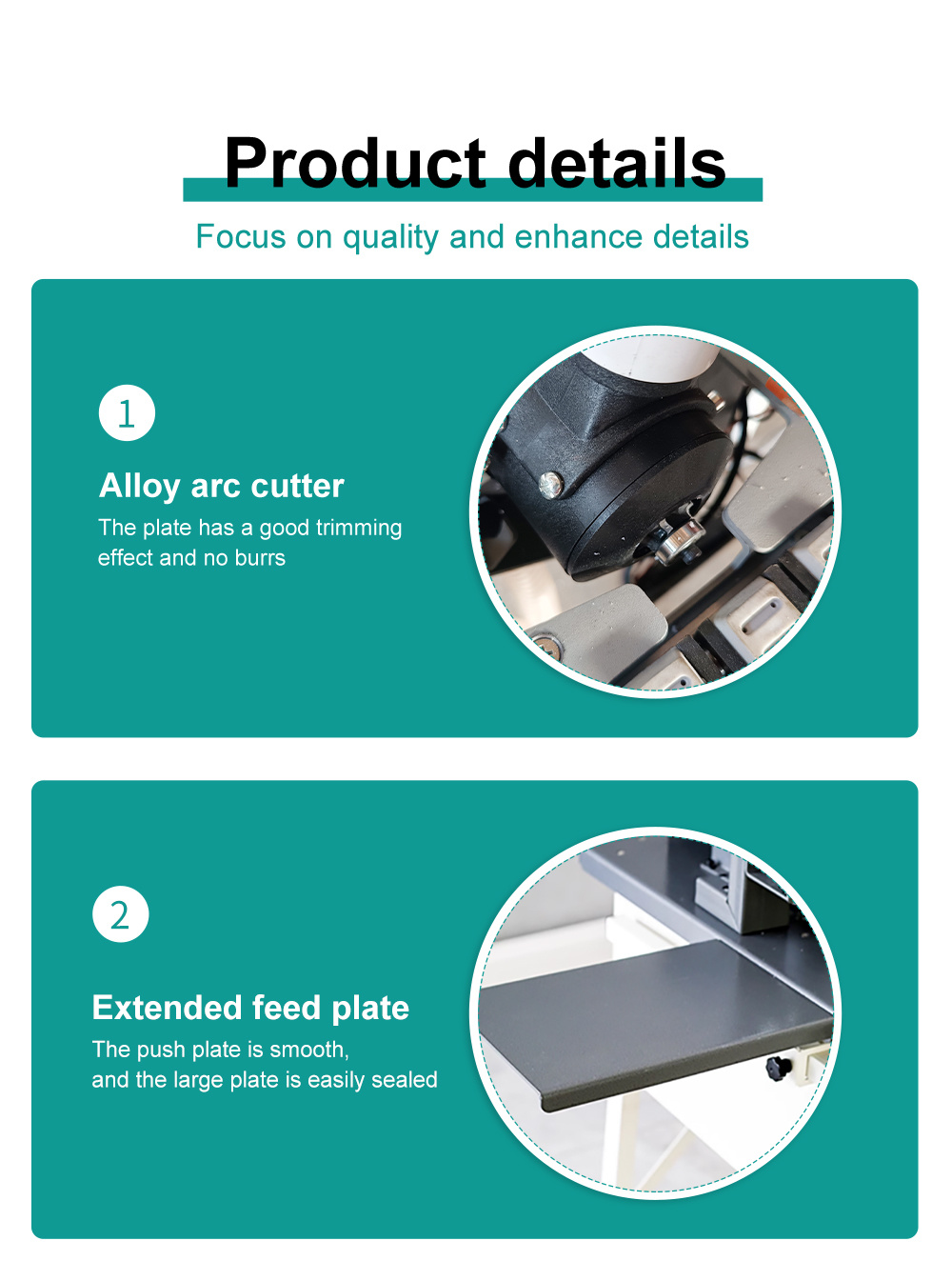

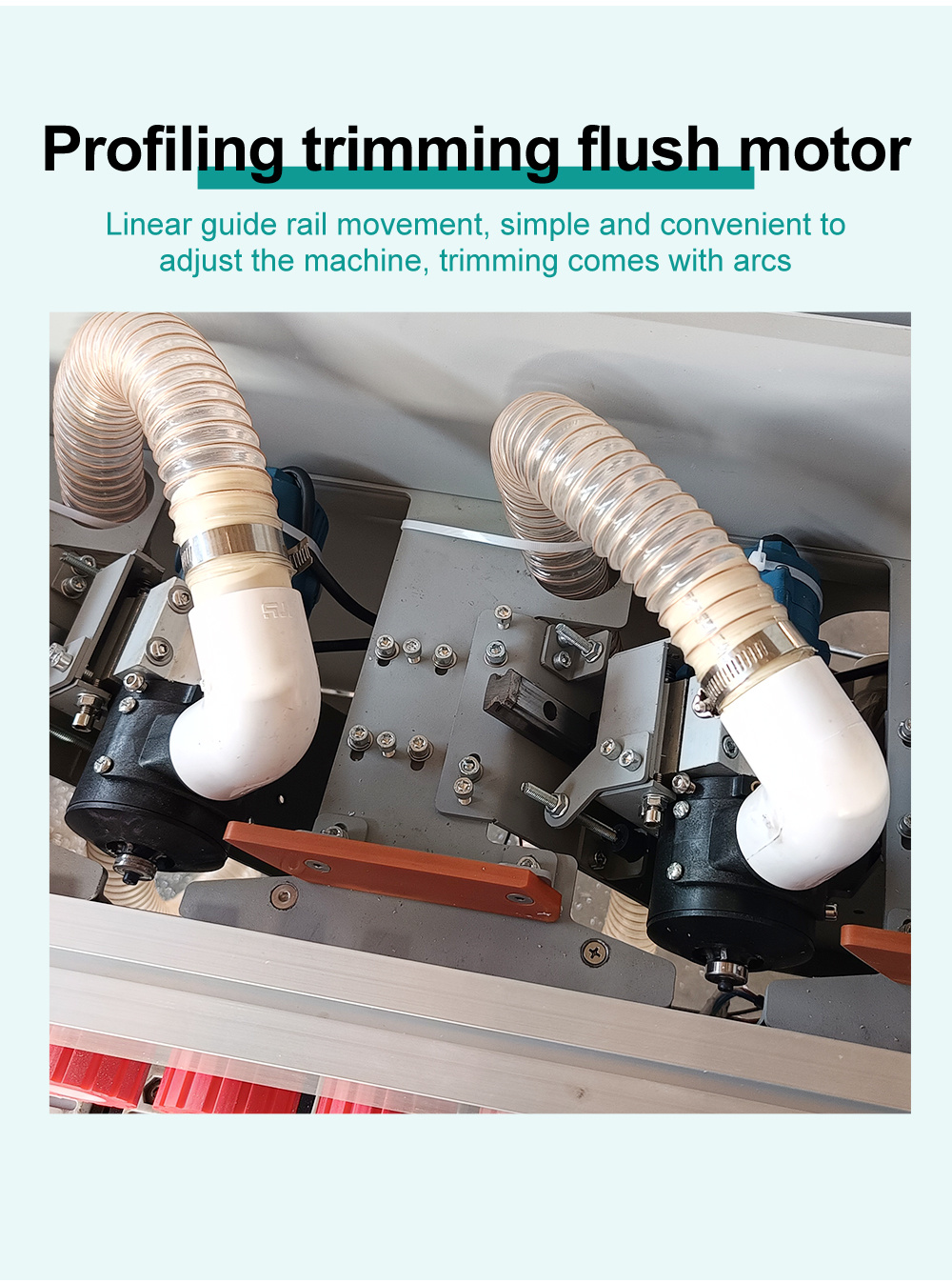

4. Profiling trimming flush motor,linear guiderail movement,simple and convenient adjustment,trimming comes with arc

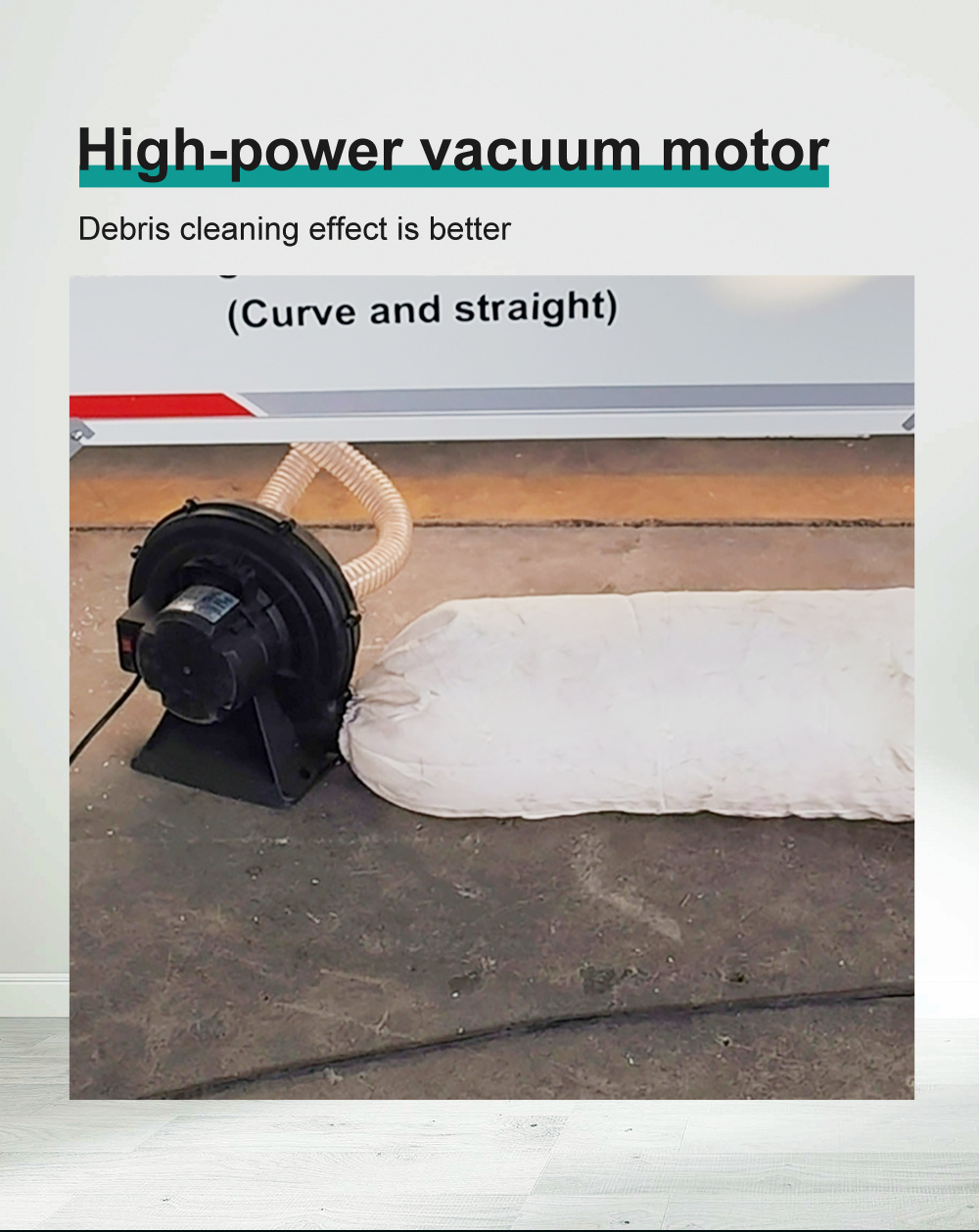

5. Profiling trimming end cutting motor, better debris cleaning effect
6. The length of the machine is lengthened,the number of pressure wheels is increased,and the delivery of plates is more stable.
Previous:
Next:

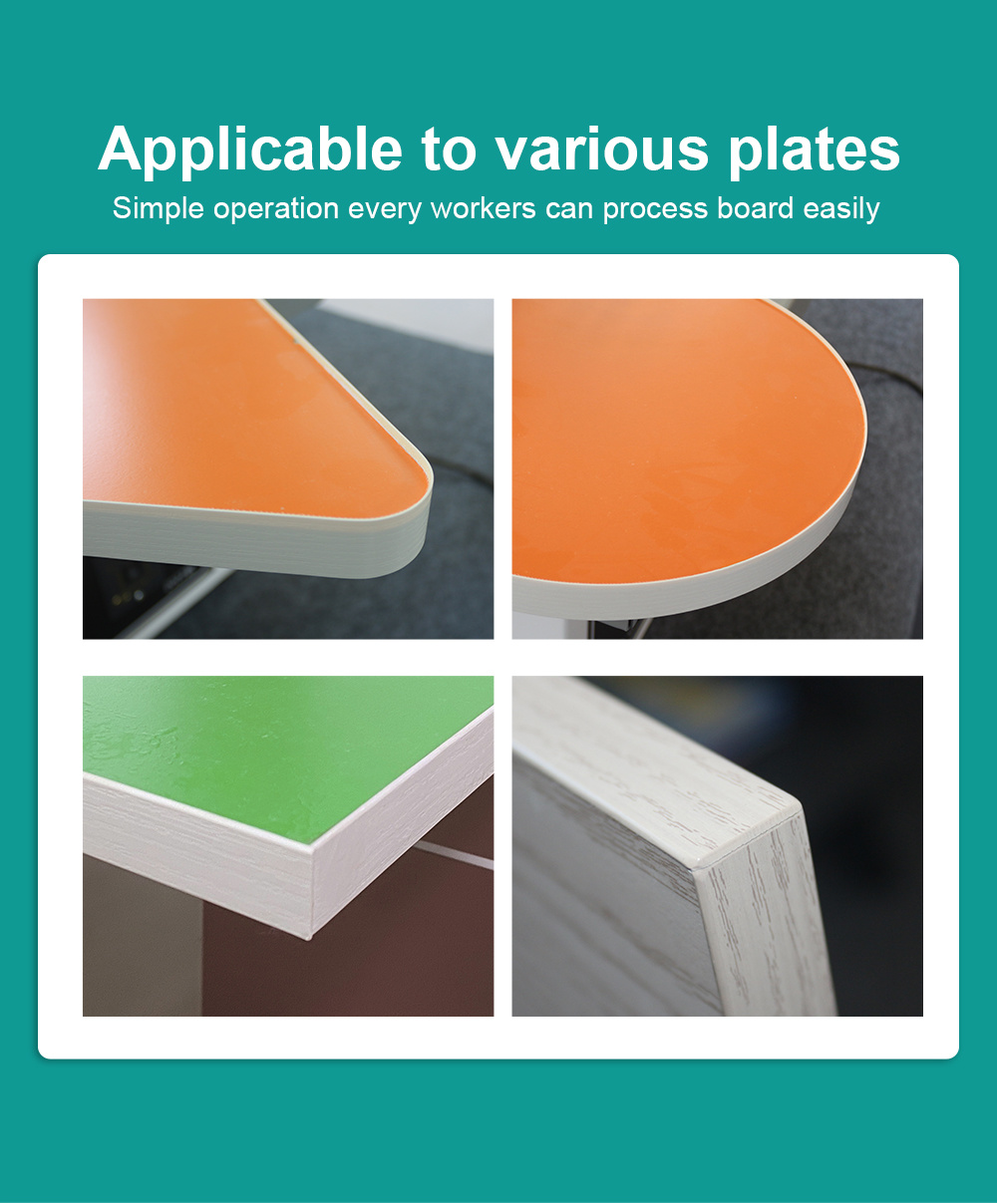

Effect Of Sheet
Flat Shape
Flat shape
Edge Banding For Curve
Edge Banding For Irregular Shape
