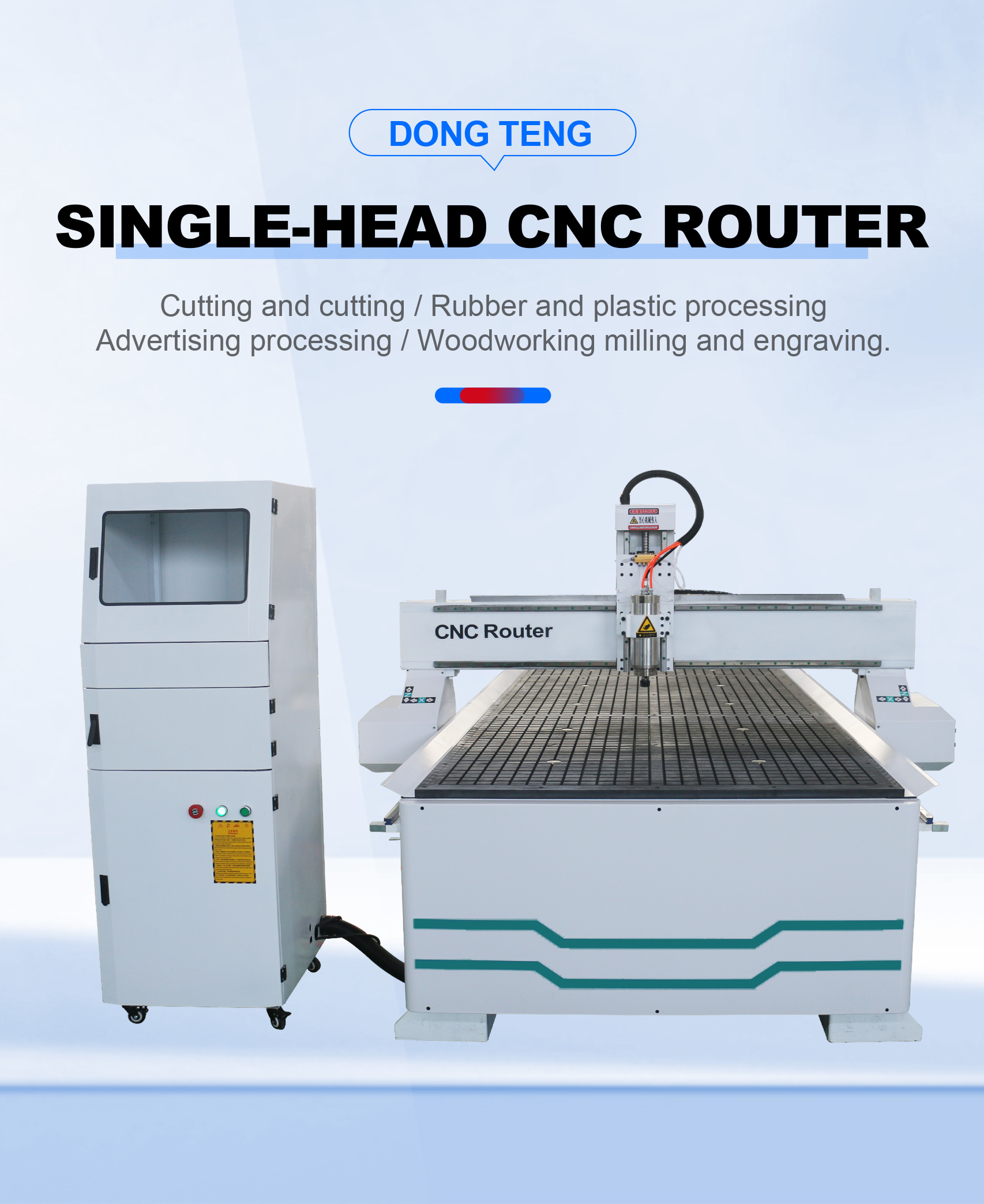

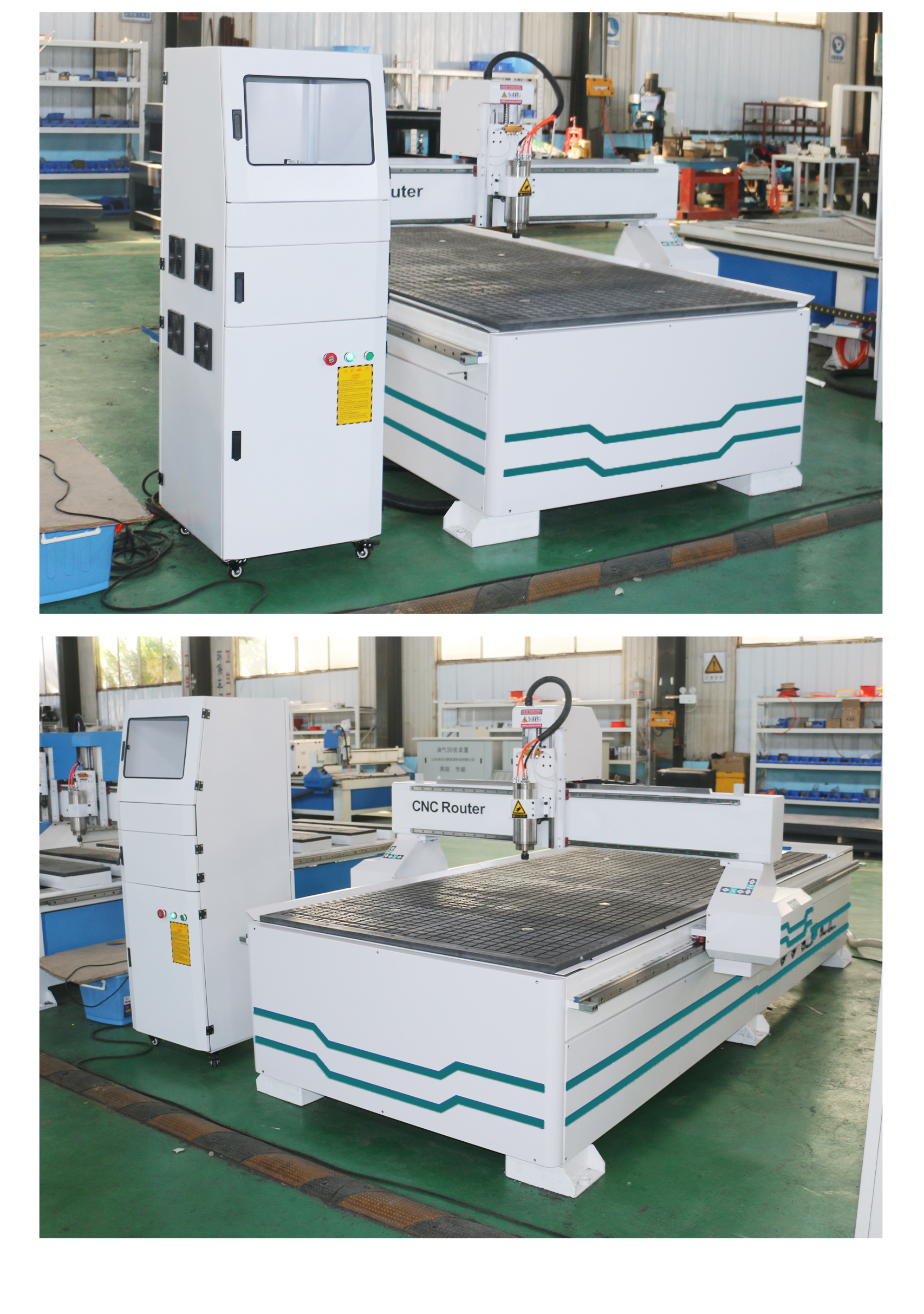

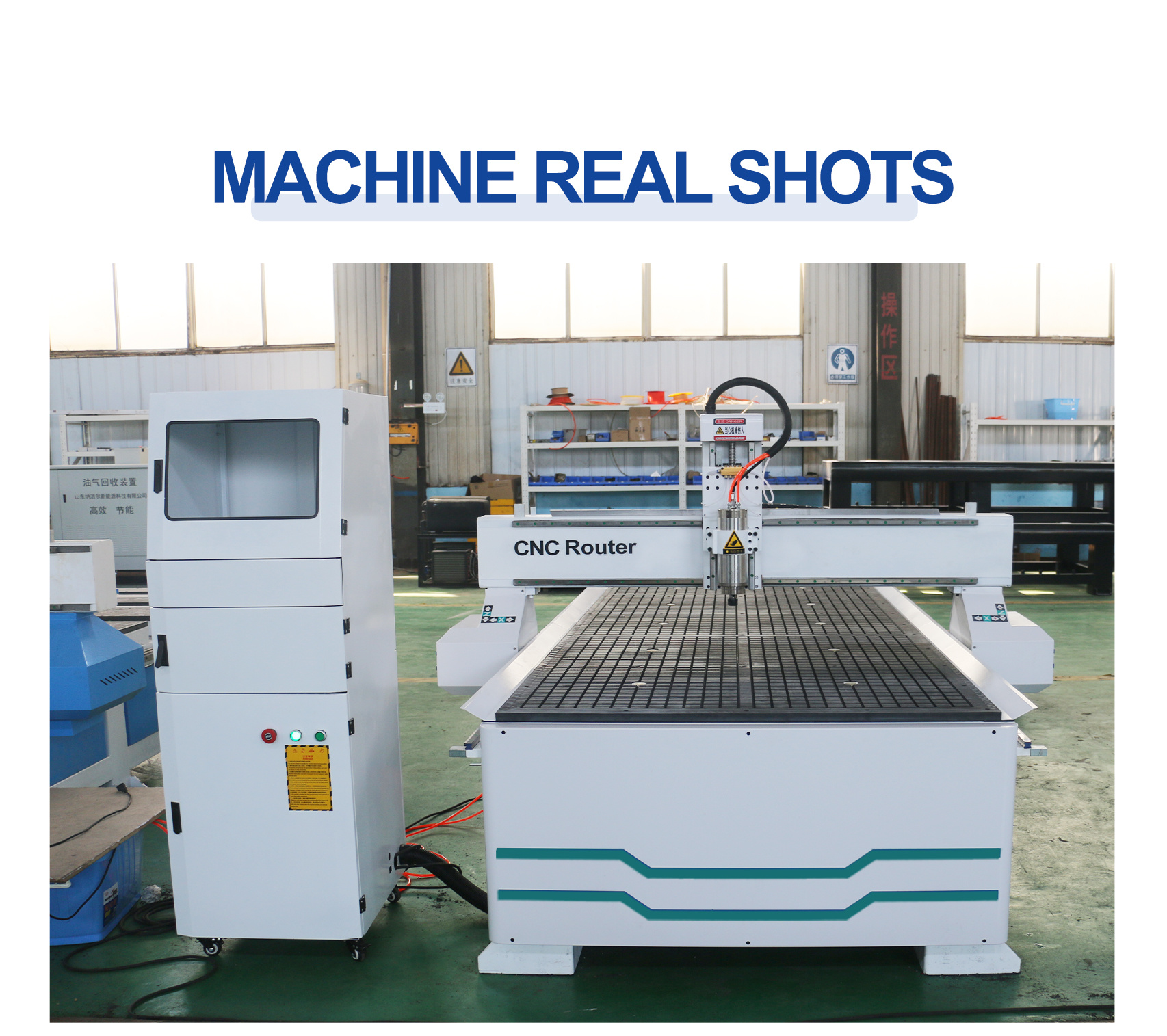

DT-1325 CNC ROUTER

With the this CNC Router, you can cut a variety of materials, including plastic, wood, foam, and composite materials. you’ll find plenty of room for creativity — anything you can draw, it can cut. We only use components from high-quality suppliers and bring our customers the best quality / price ratio with this CNC router.

+86 153 1881 6295

admin@dongtengmach.com

E-mail

Category:

CNC Router Machine

Inquiry

Back to list

Video
Product Description
Parameter
Advantages

- Commodity name: DT-1325 CNC ROUTER
With the this CNC Router, you can cut a variety of materials, including plastic, wood, foam, and composite materials. you’ll find plenty of room for creativity — anything you can draw, it can cut. We only use components from high-quality suppliers and bring our customers the best quality / price ratio with this CNC router.
Key words:
- DT-1325

DETAIL PARAMETERS

Table size	1300*2500mm
Working area	13002500200mm
Bed material	Welded large steel pipe
Work surface	T-slot worktable
Repeatability	+0.01mm
Engraving accuracy	0.02-0.03mm

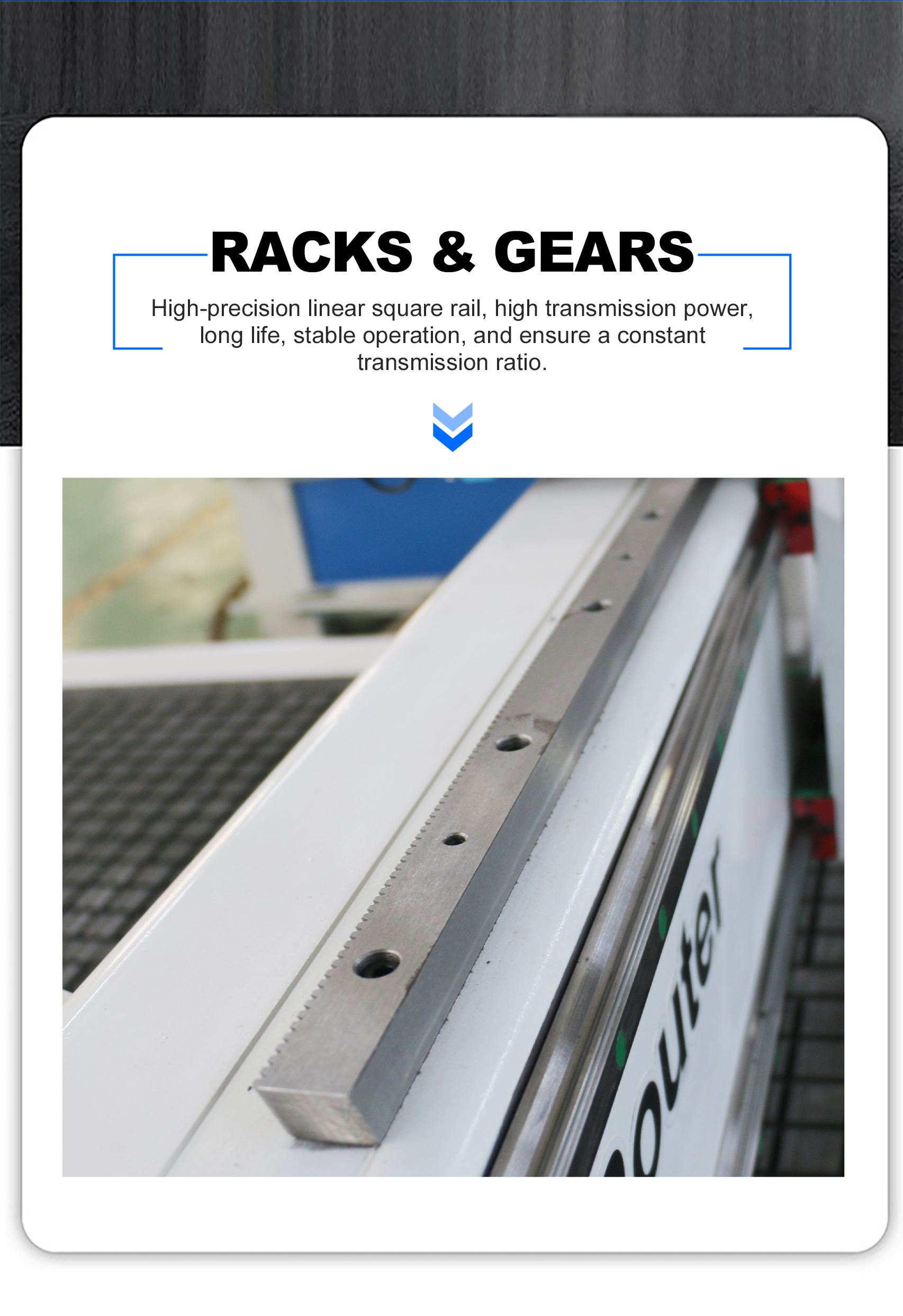

XYz transmission	XY helical rack and pinion transmission,Z screw transmission
Guide rails	HIWIN20 square rails
Inverter	3.7KW
Working speed	18000mm/min
Spindle speed	0-24000rpm
Spindle power	3.2KW water cooling
Motor	leadshine hybrid servo motor
Operating voltage	AC380v220v50Hz

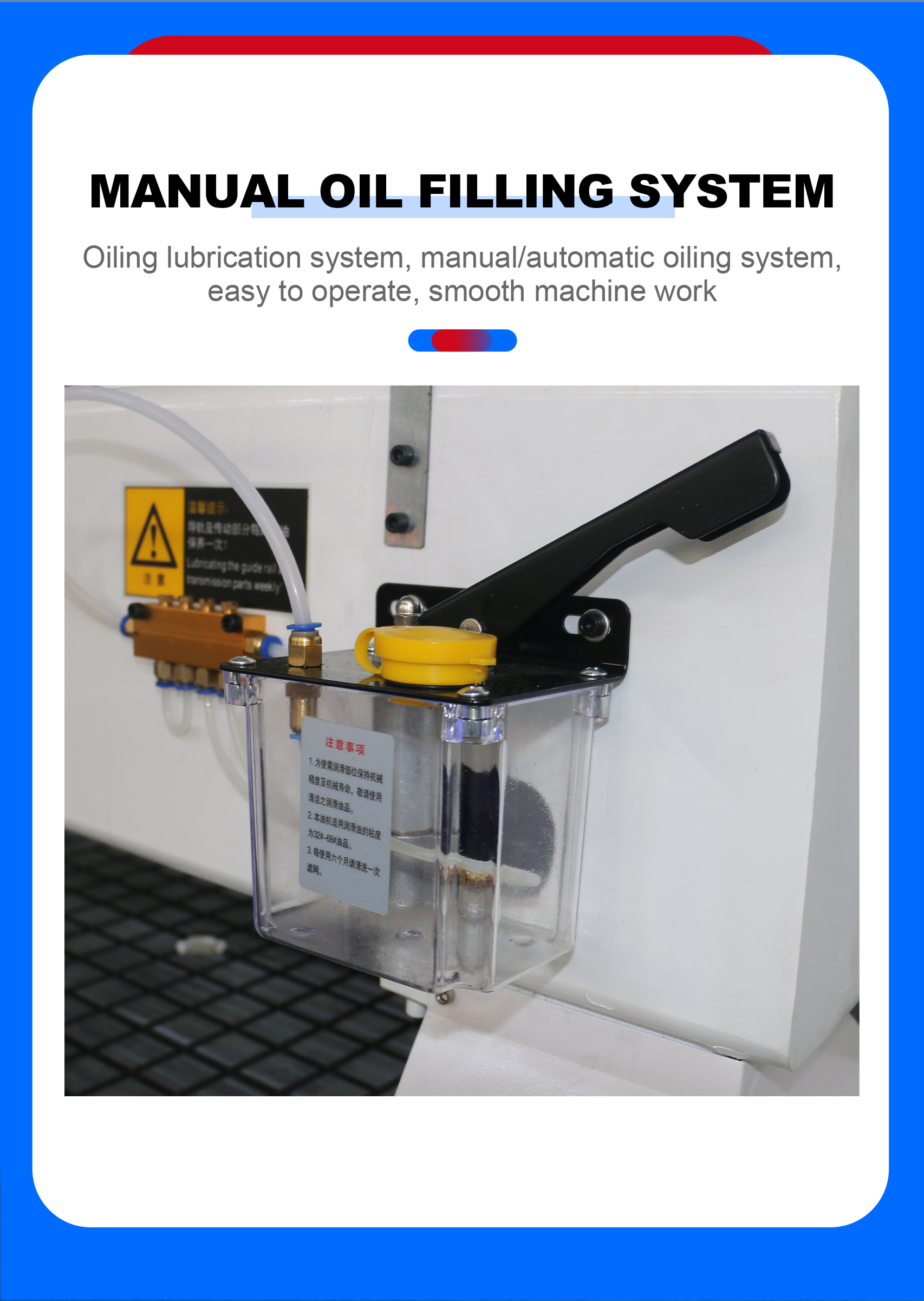

oil circuit system	manual oil circuit system
Package size	3200x1700x960mm

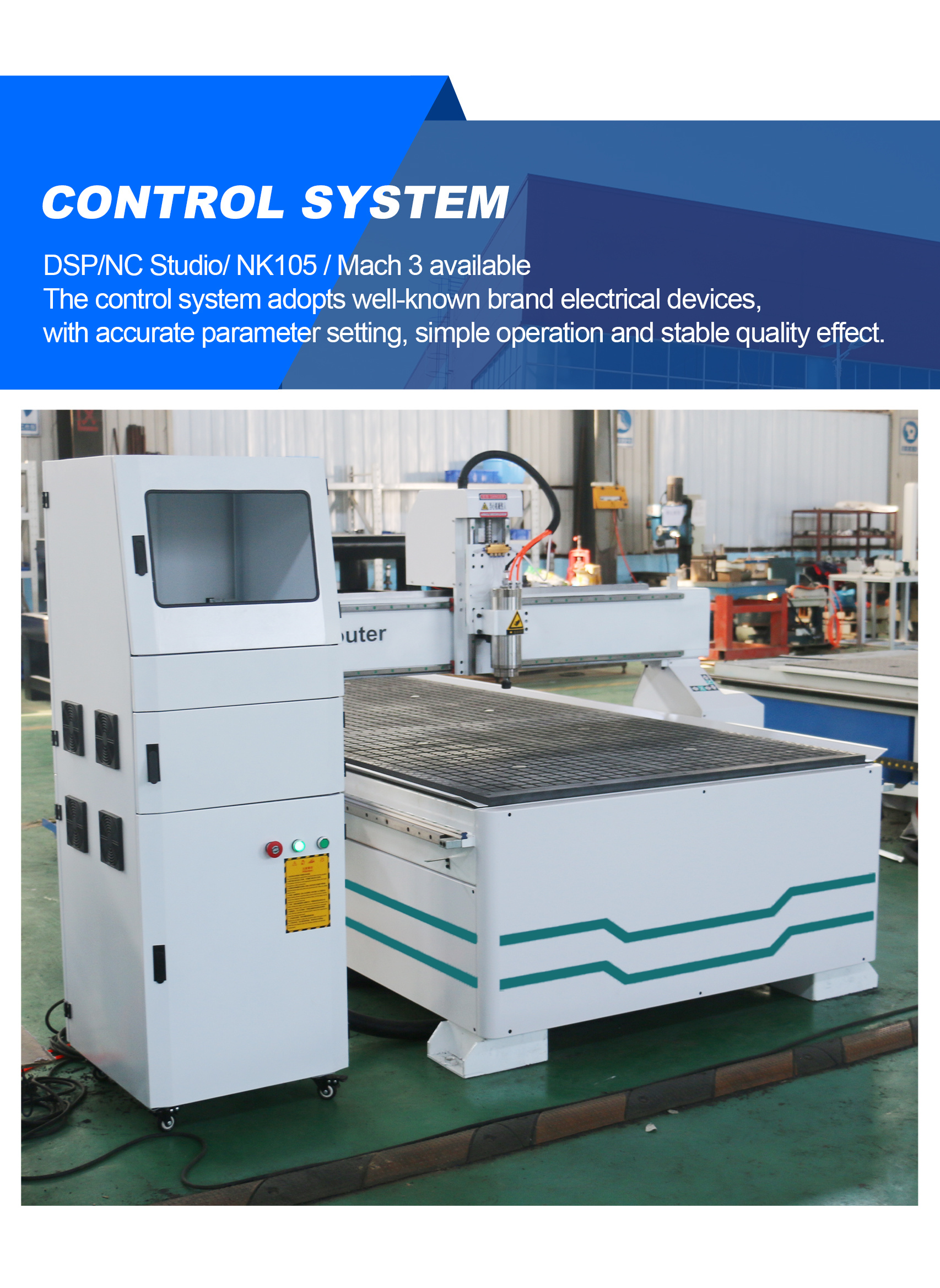

1, DSP/NC Studio/ NK105 / Mach 3 controller for option, it well realizes high-speed and high-precision motion control.

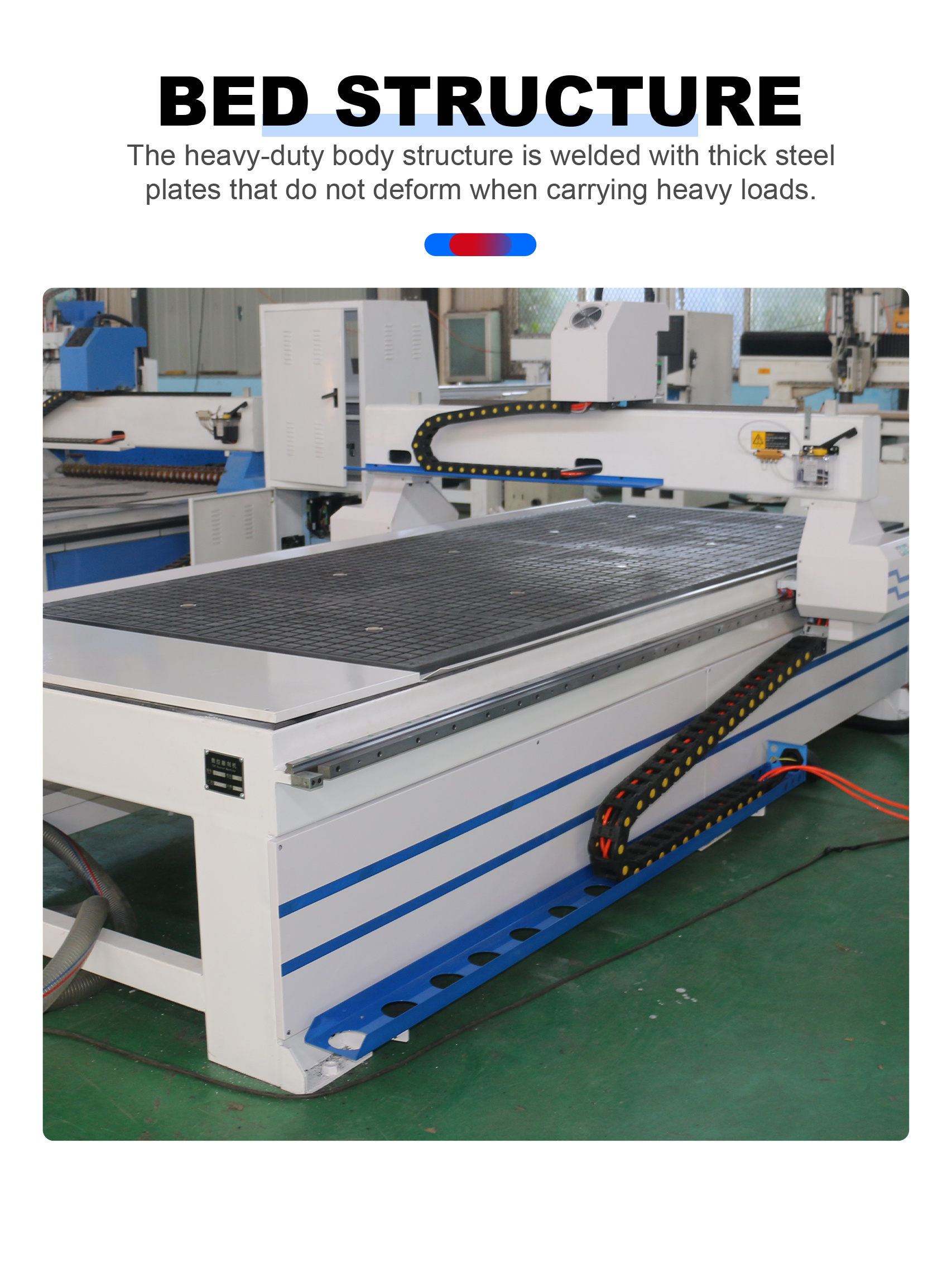

2, Base frame is made of heavy-duty square steel that is welded, precisely machined by gantry milling machine center and stress relieved by vibration device which is very stable
3, High-accuracy ball screw ensures more stable movement and high accuracy.

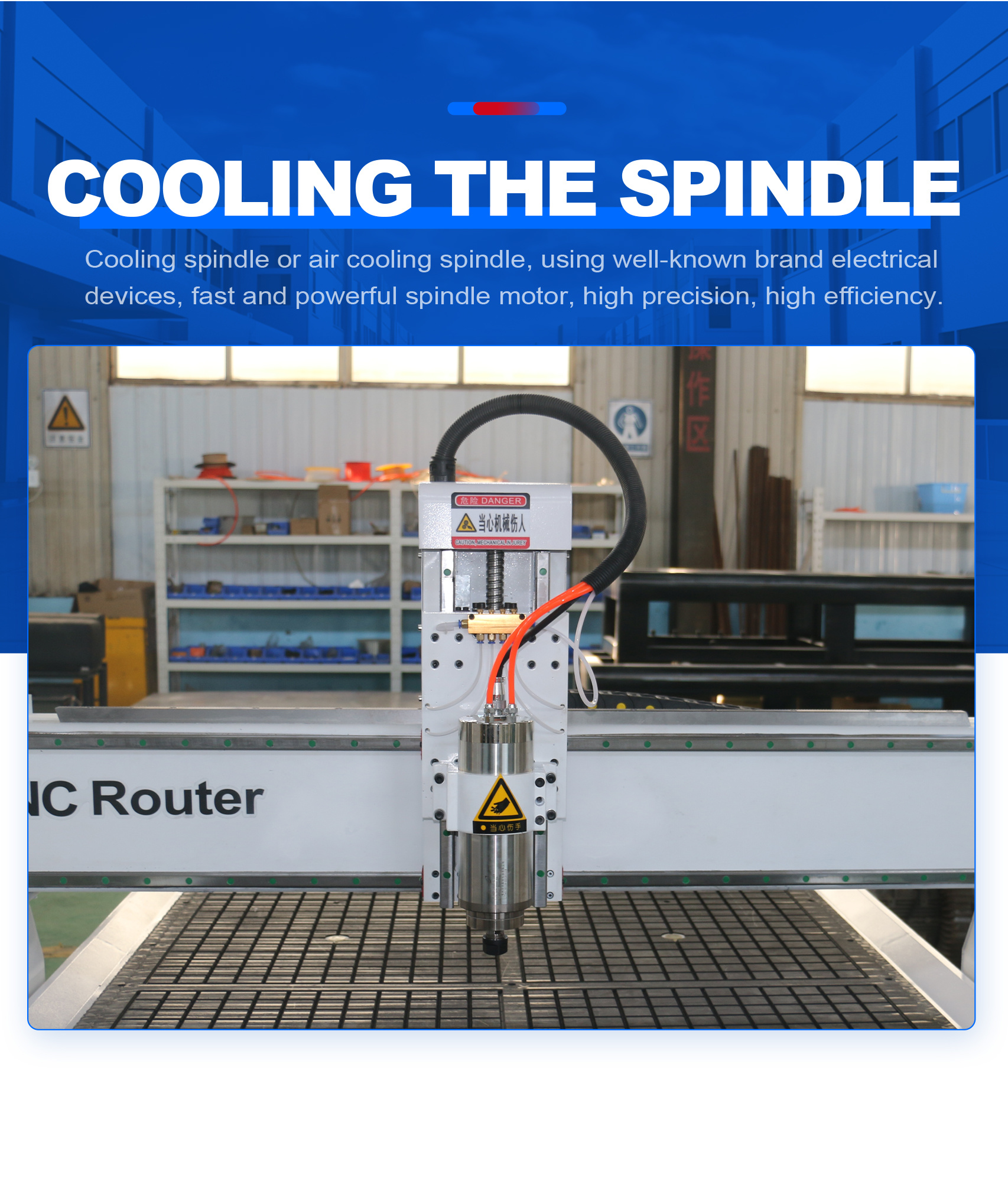

4, Water-cooling brushless spindle, low noise, vigorous cutting strength, and long-time mass processing

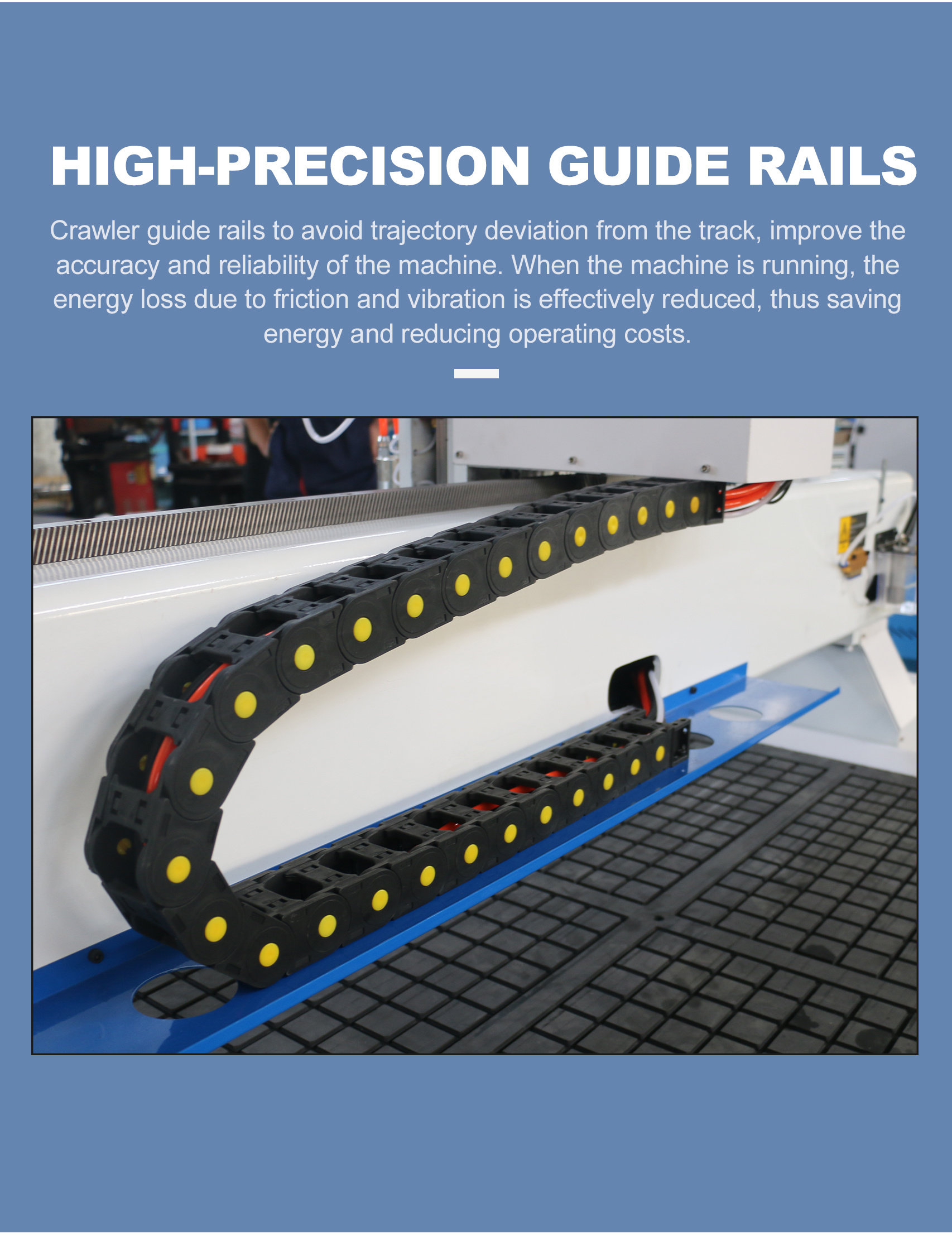

5, HIWIN linear guide rails for X, Y, Z axis, carefully installed and regulated by special purpose instrument, and this assures smooth motion and long term reliability.

DT-1325ATC LINEAR AUTOMATIC TOOL CHANGE MACHINE CENTER
