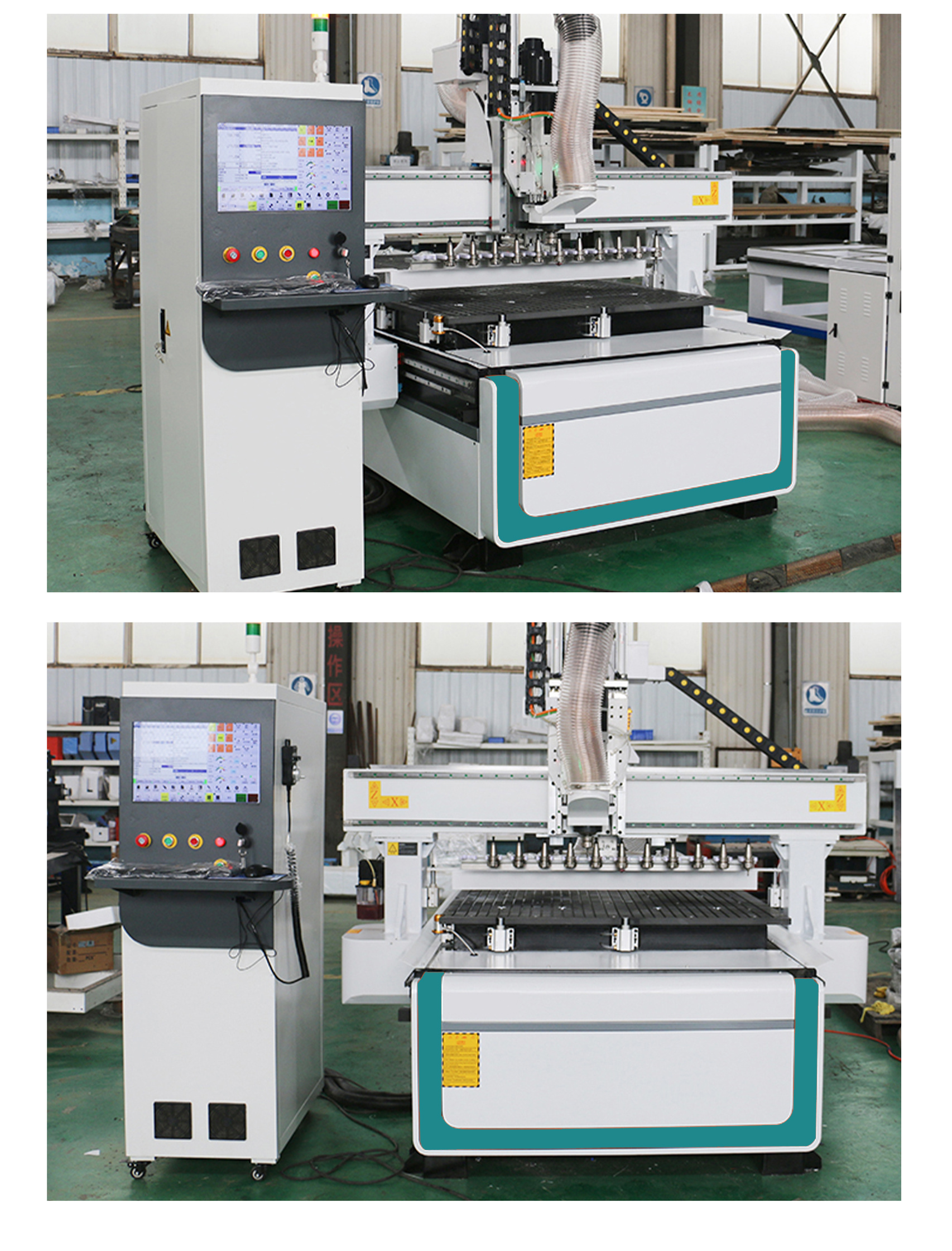

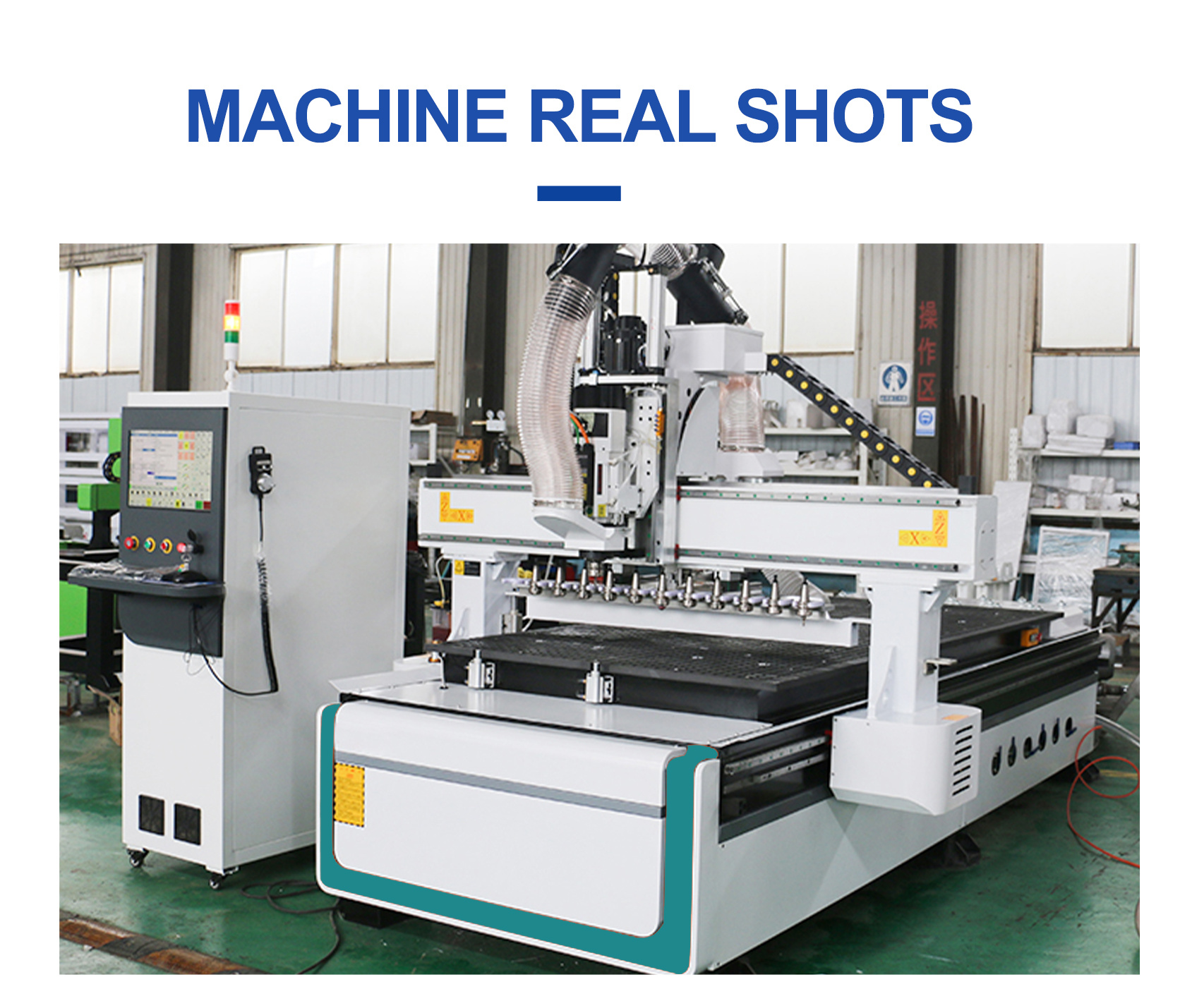

DT-4 Axis CNC Router
This is a cost-effective multifunctional ATC CNC engraving machine; it can assemble four tools of different specifications at the same time to complete the work faster; it is suitable for cutting, grooving, processing invisible parts, drilling, milling and other processes at one time without interrupting the tool changing process.
- Video
- Product Description
- Parameter
- Advantages
-
- Commodity name: DT-4 Axis CNC Router

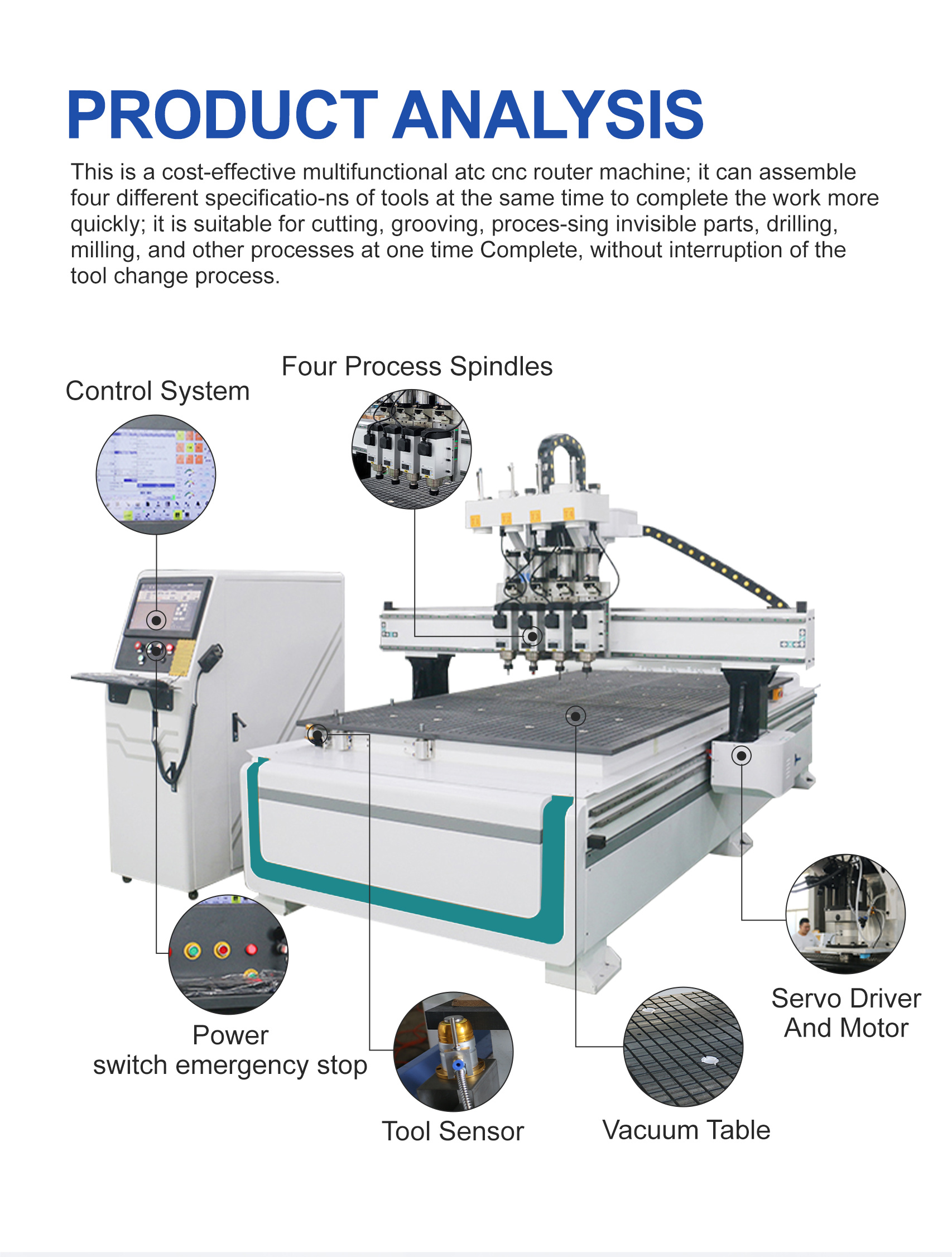

This is a cost-effective multifunctional ATC CNC engraving machine; it can assemble four tools of different specifications at the same time to complete the work faster; it is suitable for cutting, grooving, processing invisible parts, drilling, milling and other processes at one time without interrupting the tool changing process.
Key words:- DT-4 Axis CNC ROUTER
-
-
DETAIL PARAMETERS
Voltage AC380V 50HZ3PH Table Surface Vacuum table Working Area X1250mm*Y2480mm*Z200mm Max empty speed XY50000mm/min z20000mm/min Max Working speed 15000-30000mm/min Bed structure Heavy Double -layer blanking trapezoidal bed Inverter 7.5KW Spindle 6KW air cooling*4 Spindle speed 0-18000rpm Motor Leadshine Servo motor Vacuum Pump 7.5KW water pump Collector 5.5KW dust collector Packing Wood package Weight 2.5T -

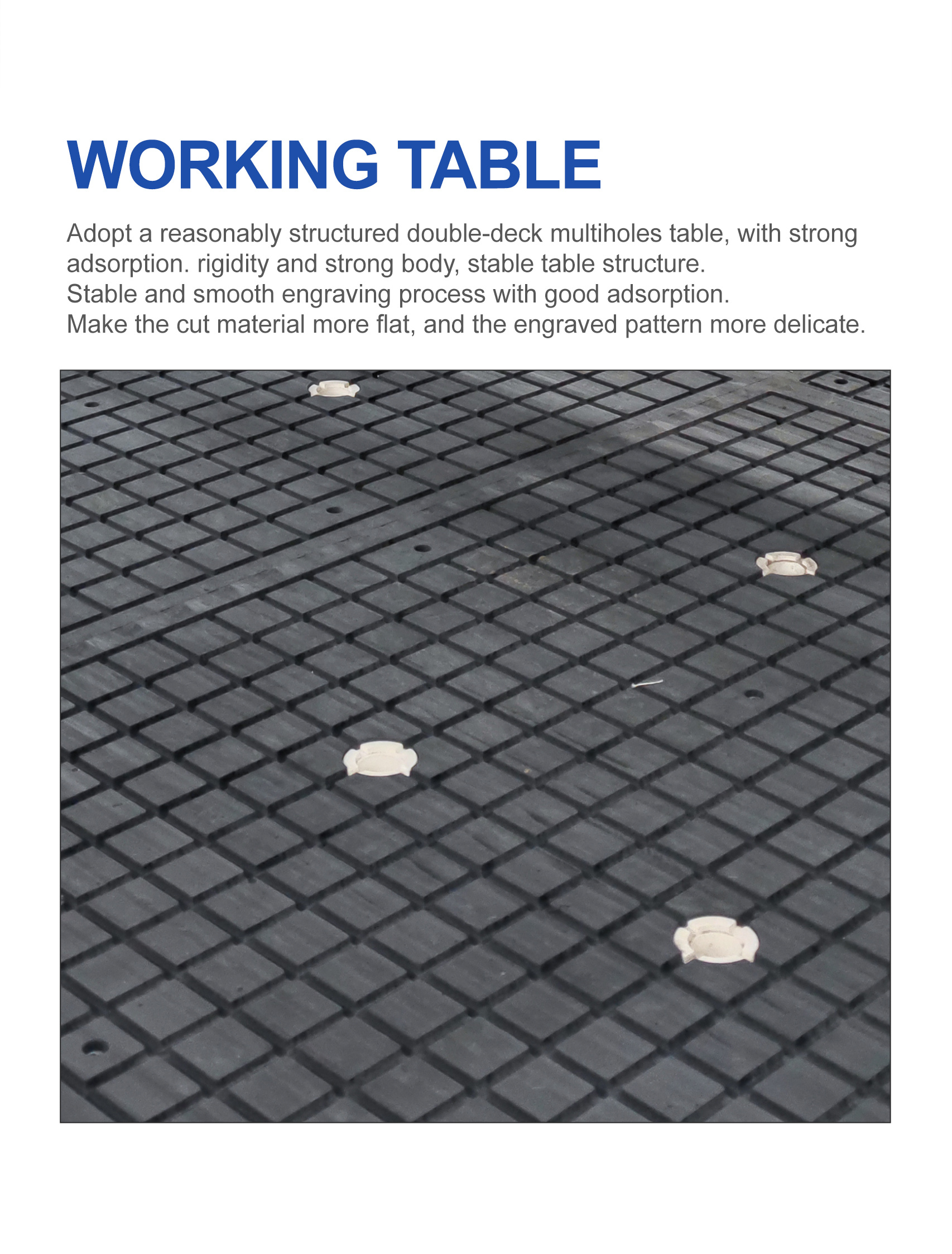

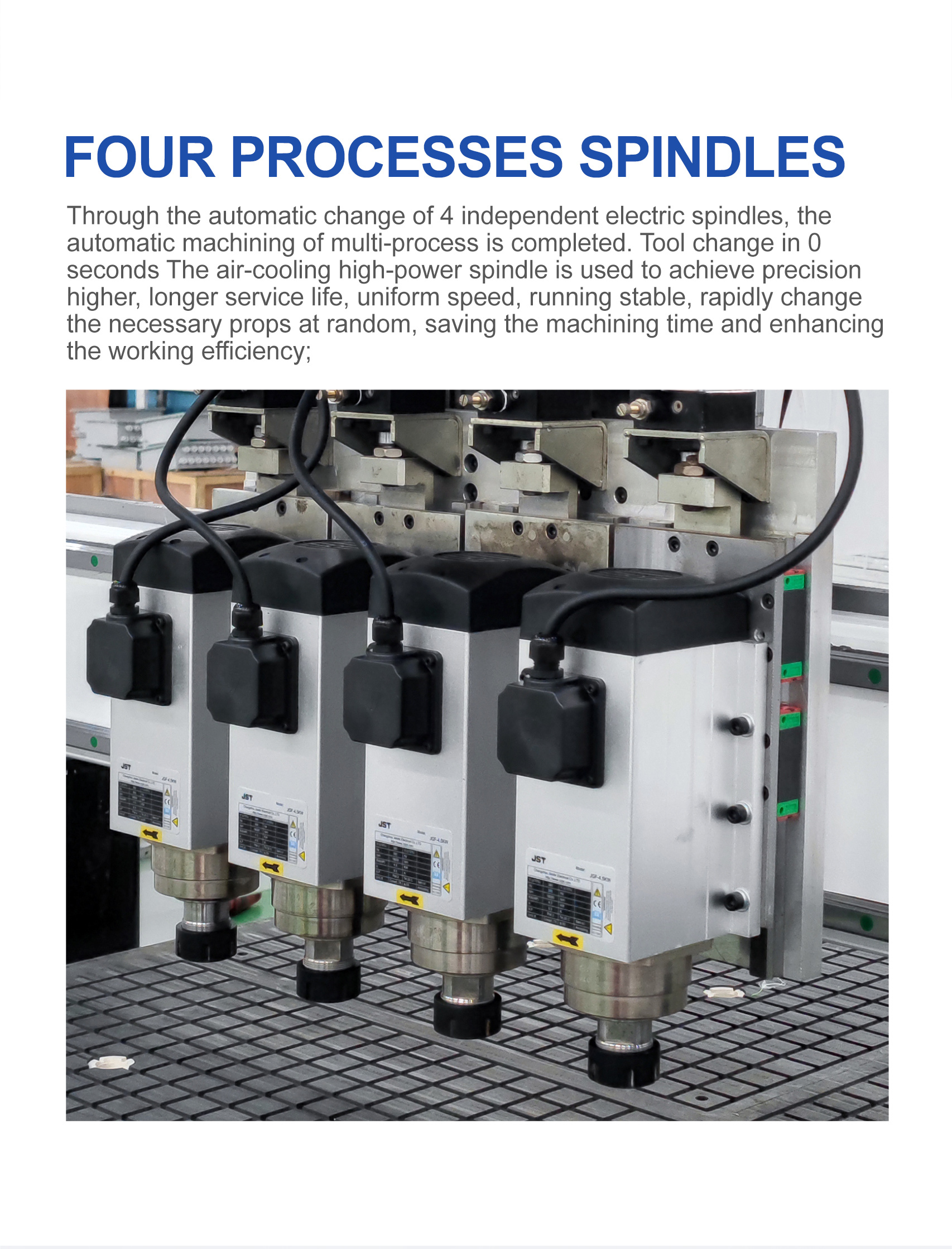

1. High efficiency: multiple spindle motors work at the same time to complete product processing in large quantities. The vacuum adsorption table adopts advanced technology and can strongly adsorb materials in different areas.
2. Fast engraving speed: high-speed drive motor and driver, high-precision rack drive sturdy cutting spindle make engraving faster.

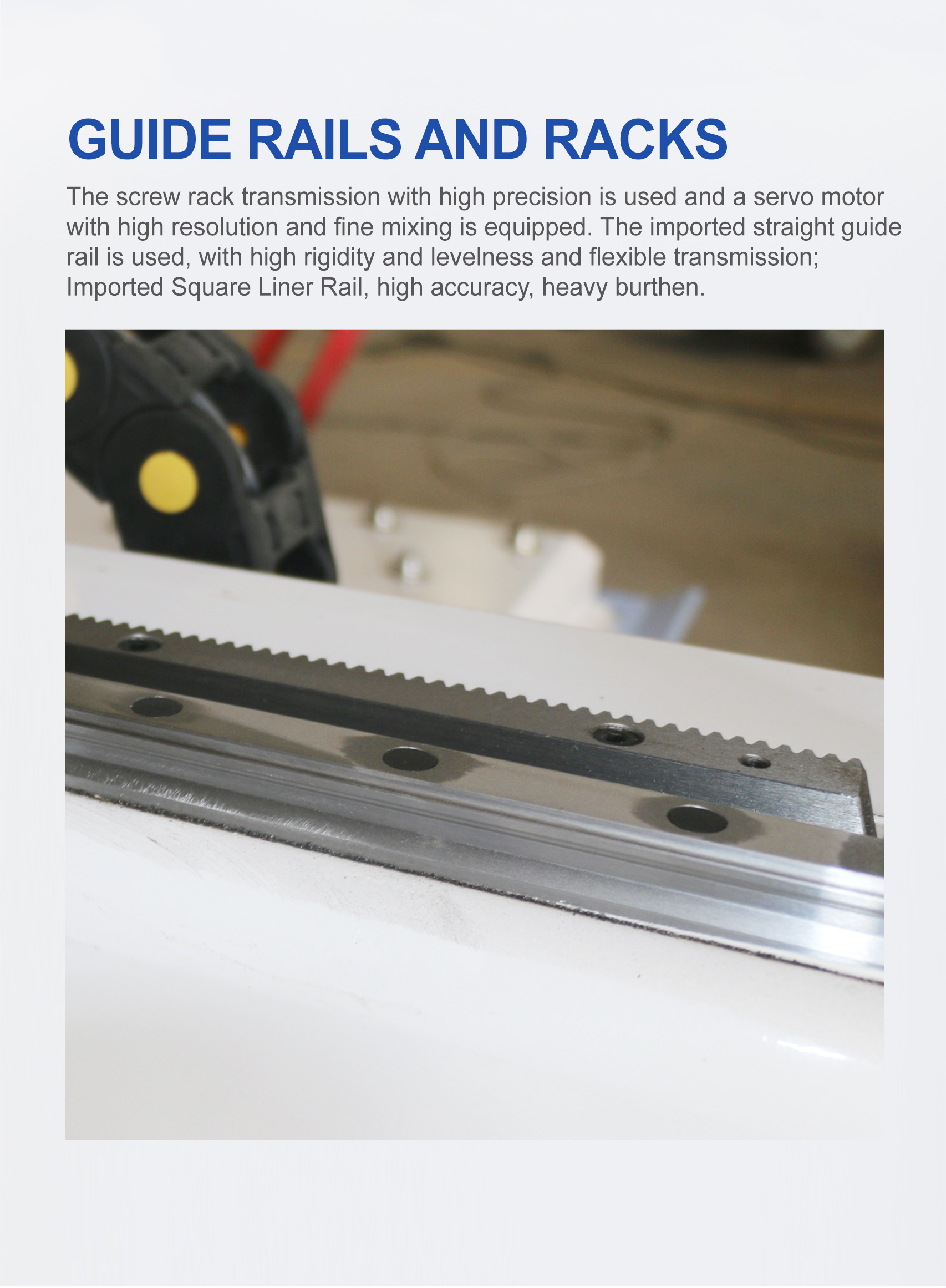

3. Stable operation: imported linear square guide rails, large load capacity, stable operation, high precision, long life, imported ball screws with high precision.
4. Strong and durable: the entire bed is welded with steel structure, with strong rigidity and strength, and long-term high-speed operation without deformation. The gantry movement strengthens the table, which is strong and durable.
Effect Of Sheet
EFFECT DISPLAY
EFFECT DISPLAY
EFFECT DISPLAY
EFFECT DISPLAY
EFFECT DISPLAY
